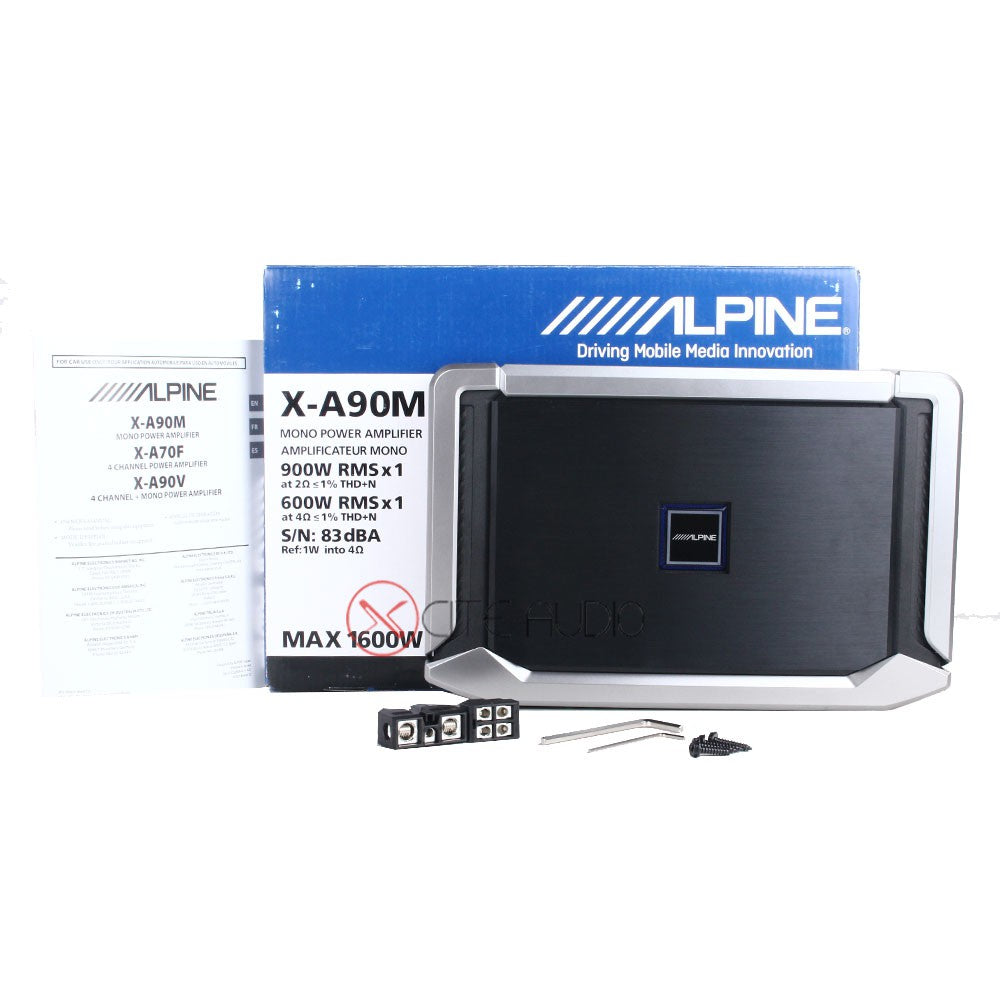

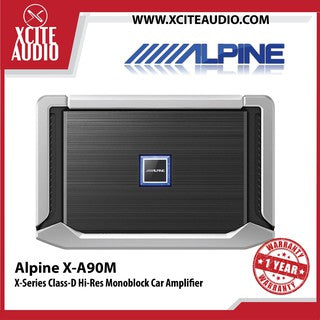

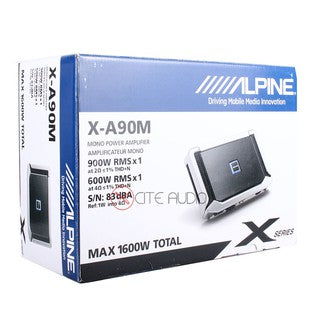

Alpine X-A90M X-Series Class-D Hi-Res Monoblock Car Amplifier






Product Description

The X-Series Amplifier are made for an audiophile. With lossless music in Hi-Res Audio playback ability of extended frequency range from 10Hz ~ 60kHz, you can truly enjoy the excited world of music exactly as you in the centre of the performance. The evolutionary innovation of aluminum heat sink with a bespoke air-flow system will keep amplifier not only maintains but also effectively drive power for its performance at peak level for a high-level power output without any interrupted during operation.This is a perfect power matching item for all new X-Series speaker which can the best sound quality of all time.



Features & Specification:

General

  • Built-in Variable High/Low Pass Filter
  • Variable Subsonic Filter (Mono Channel)

Bass EQ

  • Aluminium Heat Sink
  • All-new SIERRA Digital Design
  • Remote Sensing
  • RCA Speaker Connection (Optional KCE-SP2R)

Install

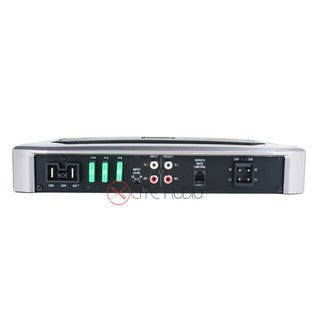

  • Connectors: Redesigned Speaker Terminals for Easy Installation
  • Terminal Layout: One-Sided
  • Mounting Design: Easy Stacking and Clean-look installation

RMS Power Ratings

  • Per Channel into 4ohms, 14.4V (≤1%THD+N): 600W
  • Per Channel into 2ohms, 14.4V (≤1%THD+N): 900W

Sound Tuning

  • Subsonic Filter (Subwoofer): 8-40 Hz (-24dB/oct)
  • Crossover Frequency (LPF): 50-400 Hz (-24dB/oct)
  • Equalizer (Bass EQ): 0-12dB (Fc 50Hz, Q Factor 1.3)

Features

  • Power Requirements: 14.4 V.DC (9 - 16 V allowable)
  • Input Sensitivity (RCA Input): Hi: 0.4 - 10 V Lo: 0.1 - 4.0 V
  • High Level Input with automatic power on
  • Frequency Response (+0, -3dB: 1W into 4 ohms): 8Hz - 400Hz
  • THD+N (10W into 4 ohms): <0.02%
  • THD+N (600W into 4 ohms): <0.07%
  • Damping Factor (Reference: 10 W into 4 ohms at 100Hz): >1,500
  • Signal to Noise (Rated Power into 4 ohms): >107dB

Dimensions

  • Width: 297.0 mm
  • Height: 50.8 mm
  • Depth: 192.0 mm
  • Weight: 3.2 kg
