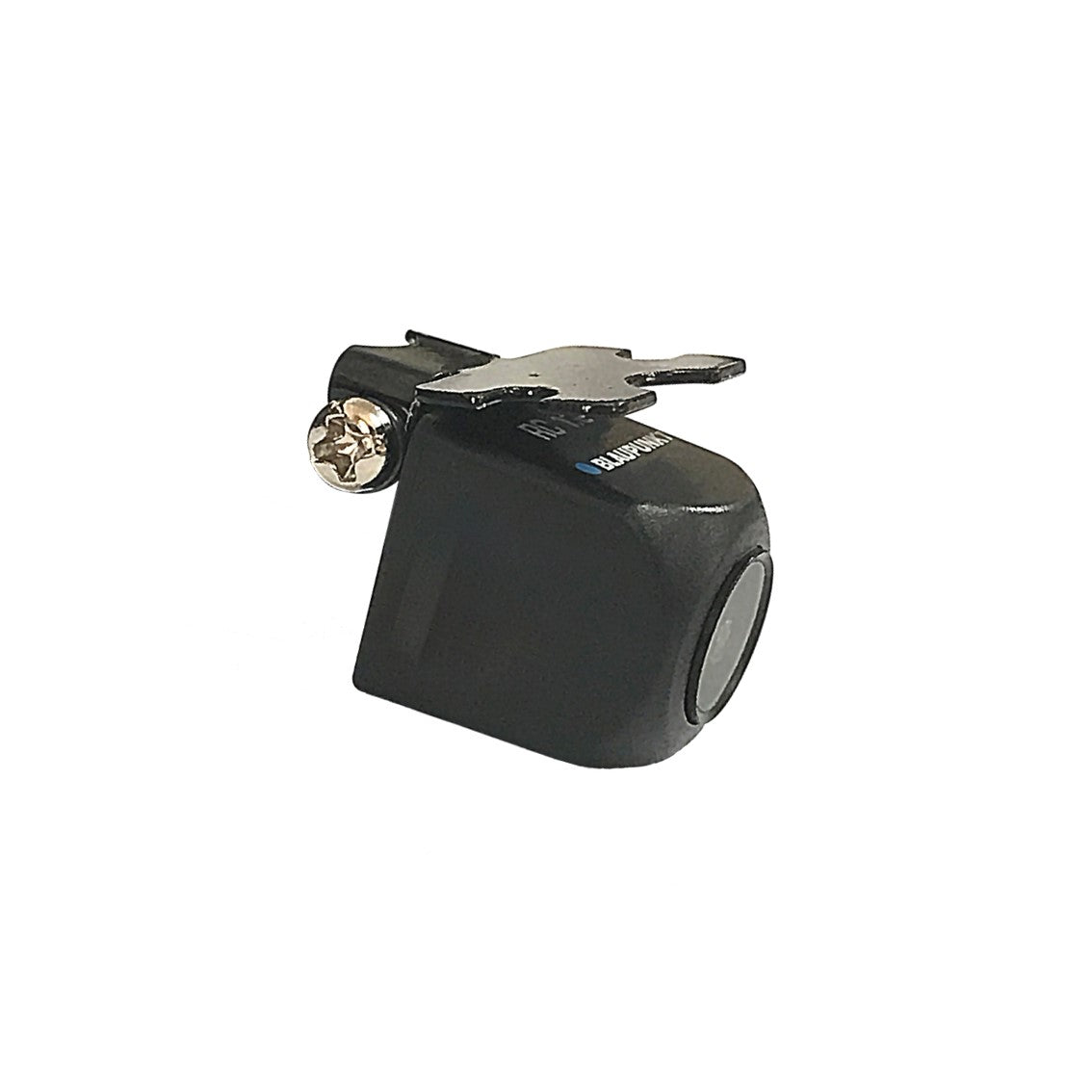

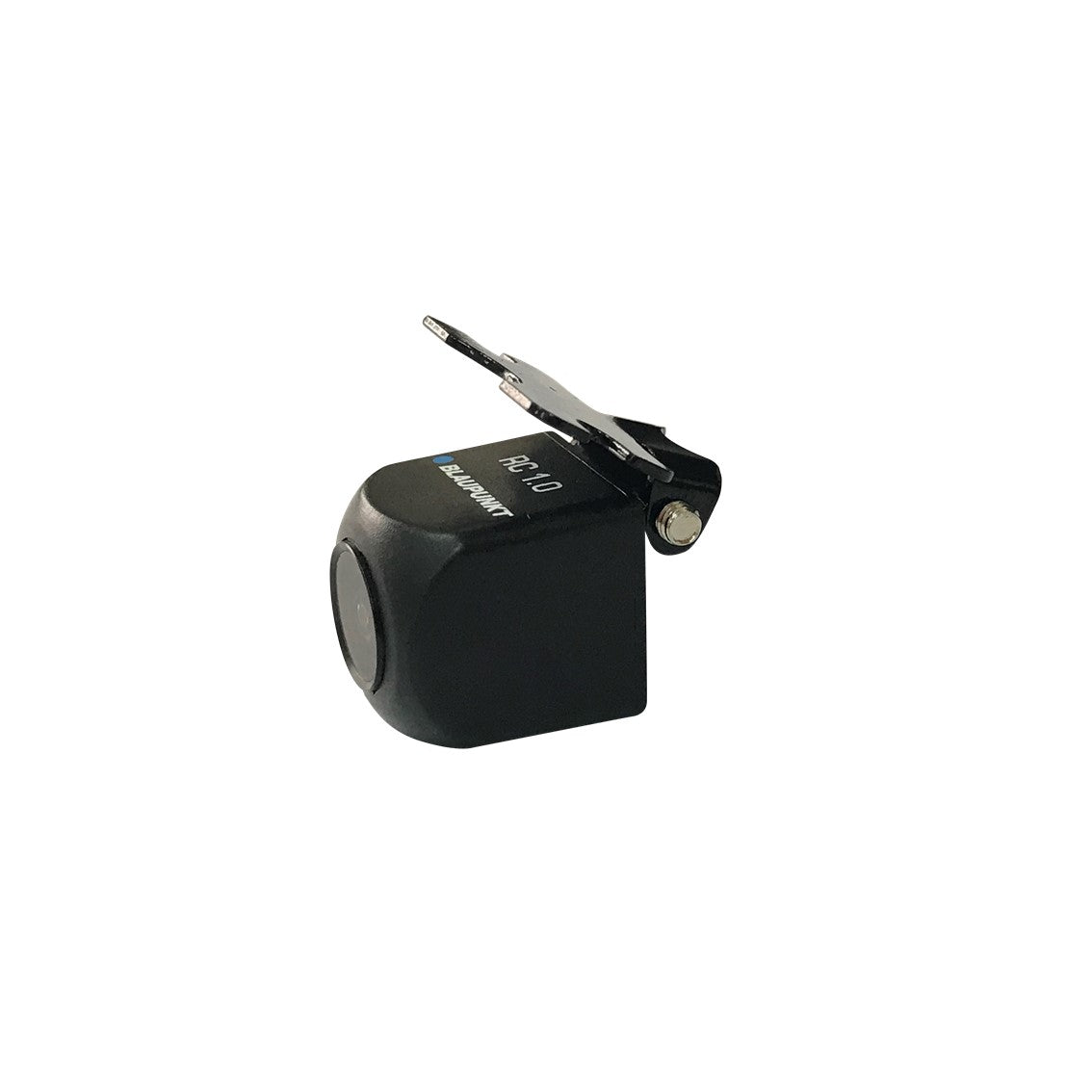

Blaupunkt RC 1.0 170° Ultra Wide CMOS Sensor Universal Car Rear View Camera

Blaupunkt RC 1.0 170° Ultra Wide CMOS Sensor Universal Car Rear View Camera

Reverse Camera RC 1.0 is a reverse camera that helps the driver to keep focused and aware of the surroundings outside of the car to prevent accidents towards kids, pets and small animals passing by the car. The reverse camera also clears out blind spots by displaying the image projected through the Horizontal 170° Ultra Wide Viewing Angle Camera with ease.

Specifications

• Image Sensor: CMOS
• TV System: NTSC/PAL
• Effective Pixel: 720 (H) x 480 (V)
• Image Resolution: 750TVL
• Frame Frequency: 25/30 fps
• Scanning System: 525 lines, 60 fields/sec
• Sync System: Internal
• Signal Noise Ratio: 48dB
• Video Signal: 1.0Vp-p at 75 ohms
• Exposure Control: Automatic
• Gain Control: Automatic
• Scope of Electronic Shutter: 1/60 - 1/100000sec
• White Balance: Auto (2500K-9500K)
• The Lowest Illumination: 0.2 Lux/F
• Viewing Angle: 170° (D), 105° (H), 95° (V)
• Character of Image: Mirror Horizontal
• Operating Voltage: DC 12V (DC9-16V)
• Operating Current: 29.3mA
• Operating Temperature: -20~+70°C
• Storage Temperature: -30~+75°C
• Water Resistant: IP68
• Connector Type: RCA/4 PIN DIN
• Lens: 4 Glasses

Content:

• 1 x Car Rear View Camera
• Manual
• Fitting as per Manufacturer
