JBL Club A754 Club Series 4-channel car amplifier - 75 watts RMS x 4

Solid performance

Looking like it was carved out of a block of steel, JBL's Club A754 four-channel amplifier can deliver 75 watts RMS to each of your front and rear speakers. Or, you can use the amp to power front speakers plus a subwoofer with up to 200 watts RMS from bridged channels. And this amp's Class D design means it won't put a huge load on your vehicle's electrical system.

Compatible with almost any system

Speaker-level inputs and signal-sensing turn-on allow this amplifier to simply integrate into almost any system, even one using the factory radio. Separate high- and low-pass filters on the front and rear channels tune the sound to perfectly fit your speakers or subs.

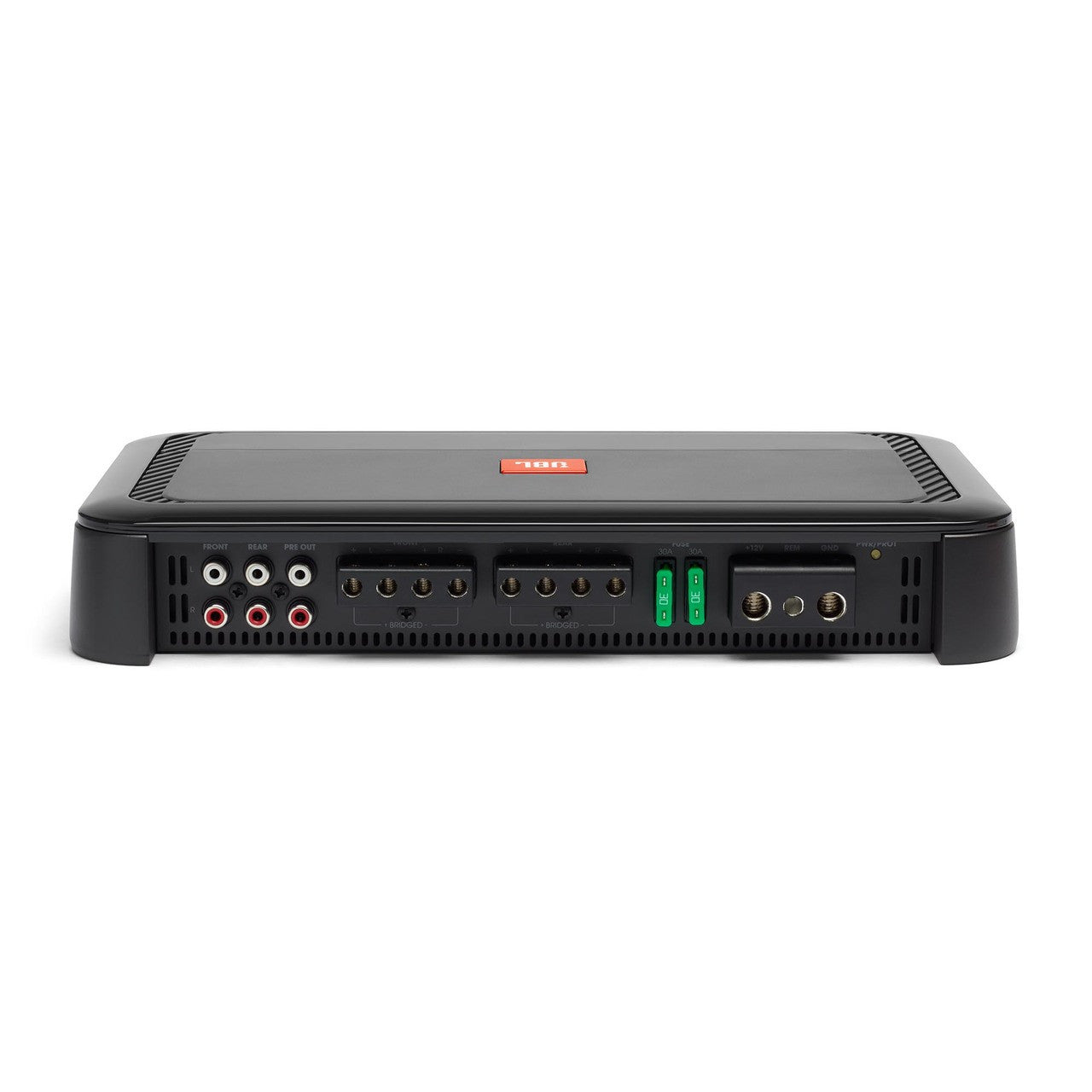

JBL Club A754 connection panel

Product highlights:

• 4-channel car amplifier
  • 75 watts RMS x 4 at 4 ohms
  • 100 watts RMS x 4 at 2 ohms
  • 200 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
• Class H amp technology
• variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
• preamp and speaker-level inputs
  • bare wire to RCA adapters included for high-level input
• preamp outputs
• wiring and hardware not included with amplifier
  • 8-gauge power and ground leads recommended
• fuse rating: 30A x 2
• dimensions: 12-1/2"W x 2"H x 7"D
• warranty: 1 year

What's in the box:

• 4-Channel amplifier
• Four 30A fuses (2 installed/2 spares)
• 4 Speaker to RCA adapters
• Four 2-1/8" screws
• Logo badge w/ adhesive backing
• Owner's manual (Eng/Span/Fren/Others)
