JVC KW-M560BT Digital Media Receiver featuring 6.8" Capacitive Touch Monitor (Apple CarPlay & Android Auto)

success_icon Added to cart
success_icon falied








Monitor
Screen Size: 6.8"W VGA Screen
Touch Panel: Capacitive
Monitor Touch Control: Yes
Customisable GUI: Yes
Key Illumination Color: Blue
Dimmer: Yes
Multilingual Display: Yes ( (English / Russia / Thai / Turkish / Arabic / Persian / Malaysia / Indonesia)

Media Playback
MP3 Compatible with Tag: USB
WMA Compatible with Tag: USB
WAV Compatible with Tag: USB
AAC Compatible with Tag: USB
FLAC Compatible with Tag: USB
H.264 Compatible: USB
WMV Compatible: USB
MPEG 1/2 Compatible: USB
MPEG 4 Compatible: USB
AVI/MKV Compatible: USB

Bluetooth Control
Built-in Bluetooth[1]: Yes (Wired-Mic included)
Hands Free Call: Yes (HFP1.6 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP): Yes
Supported Audio Formats: AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required): Yes
Phone Book Access Profile (PBAP): Yes
Alphabetical Search for Phone Book: Yes
Auto Pairing for iPhone/Android: Yes (Android only)

Android Control

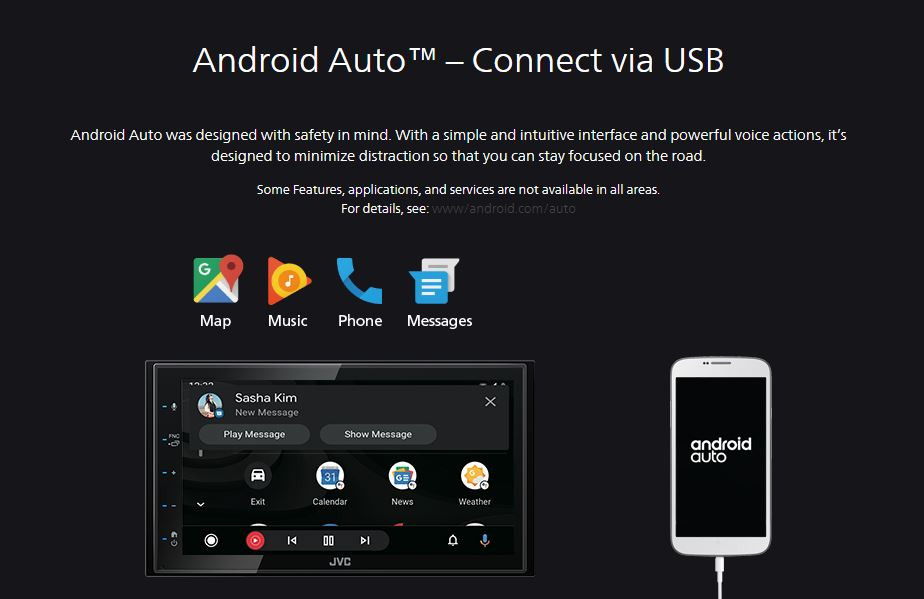

Android Auto[2]: Yes (via USB)

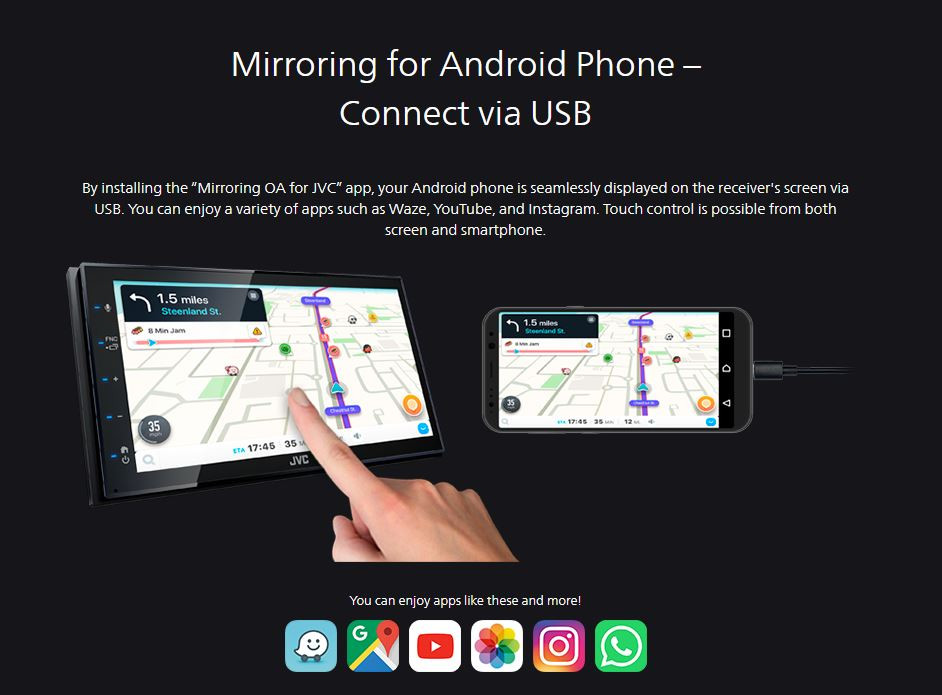

Mirroring for Android: Yes (via USB) *Need mirroring App
Android Music Playback: Yes (via Bluetooth(R))

iPod/iPhone Control

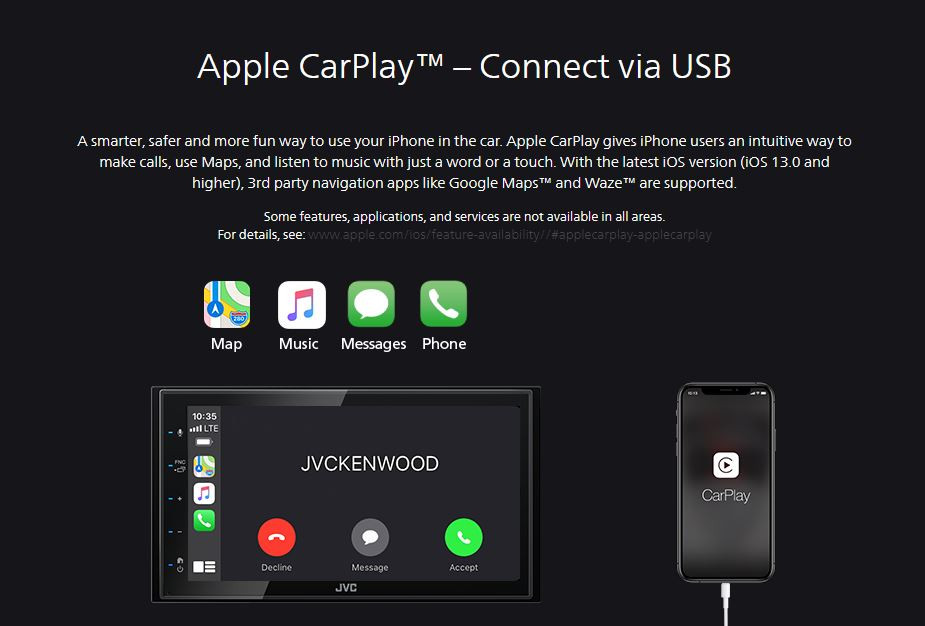

CarPlay[3]: Yes (via USB)

USB
USB Port: x 1 (High Speed)

Position Rear
USB Power Supply: Yes (1.5A High Current Charging)

Radio Tuner
Radio Data System:Yes
Preset Stations: 20(FM:15ch, AM:5ch)
Auto Memory Entry: Yes

FM
Frequency Range: 87.5-108.0MHz

AM
Frequency Response: 531-1,611kHz

Audio
Maximum Power Output (Front & Rear): 50Wx4
Full Bandwidth Power (Front & Rear): 22W x 4 (Full Bandwidth Power, at less than 1% THD)

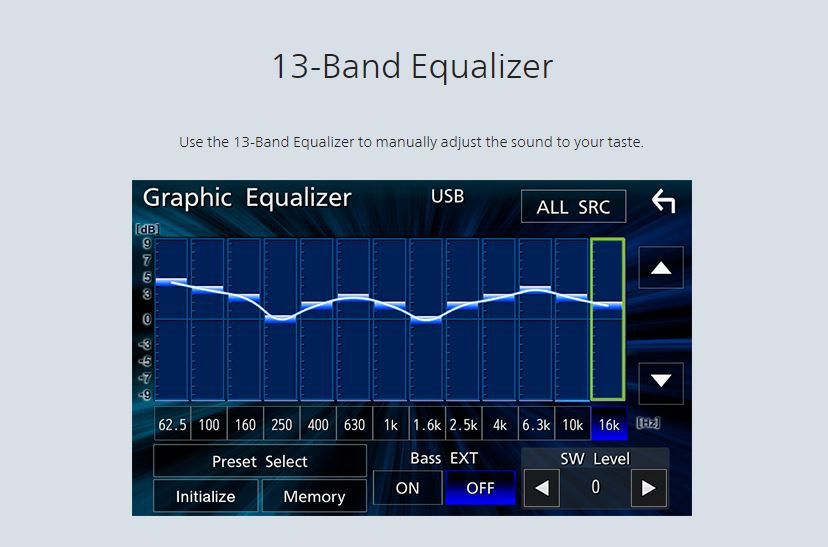

EQ: Yes (13-Band Graphic EQ)
Preset EQ: Yes (7Preset + 3user)
Bass Boost: Yes
High-Pass Filter/Low-Pass Filter: Yes/Yes
Time Alignment: Yes
Inputs and Outputs: AV Input mini jack (AV-IN or Camera switchable)
Video Out: RCA
Rear view camera Input: Yes
Line Output Terminals: 2Preouts (Terminal) + Sub WF (Cable)
Pre-output Level/Impedance: 2.0V / 10k ohms
Subwoofer Output with Level/Frequency Control: Yes

General
Back Up Memory: Yes
Wireless Remote Control Type: Ready (RM-RK258 required)
Steering Remote Control Ready: Yes
Learning Direct OEM Remote: Yes
ISO Connector: Yes

Dimensions (W x H x D)
Installation Size: 178 x 100 x 75 (mm)
Weight: 1.1kg
Unit weight in individual package: 1.8kg
