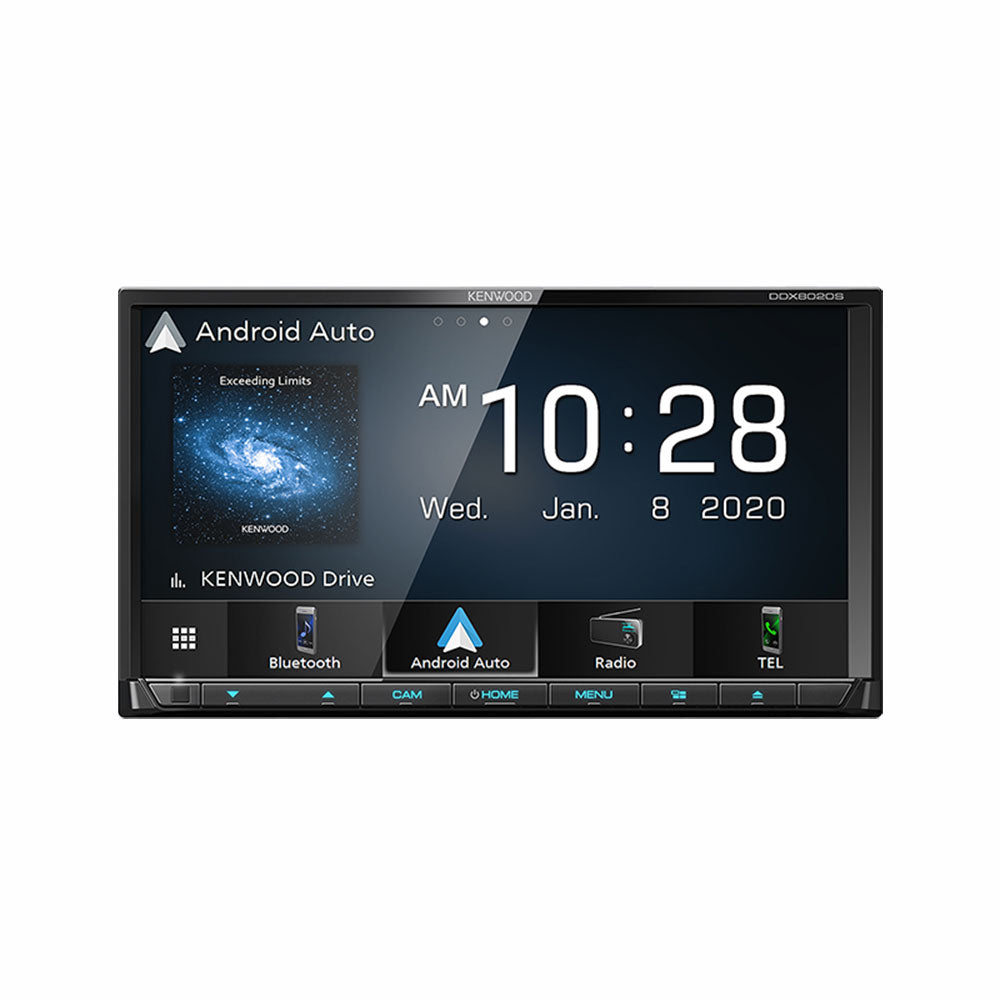

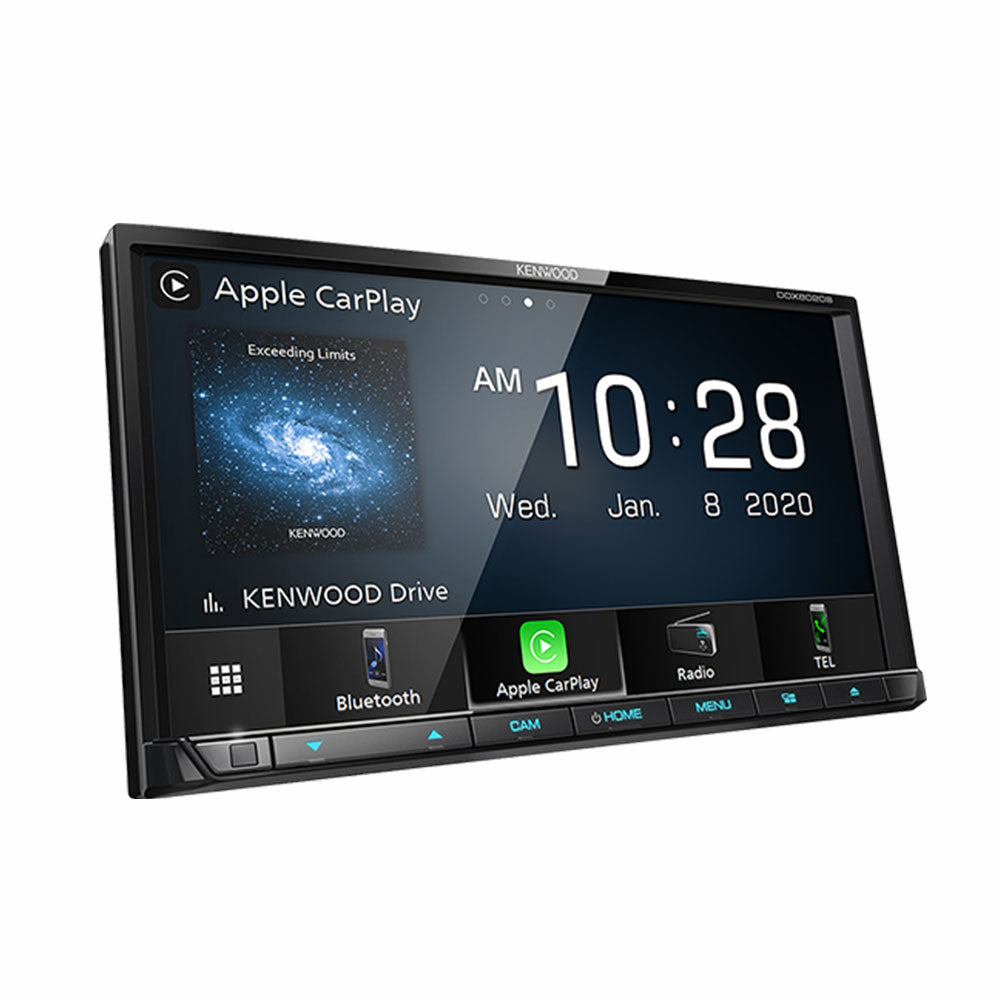

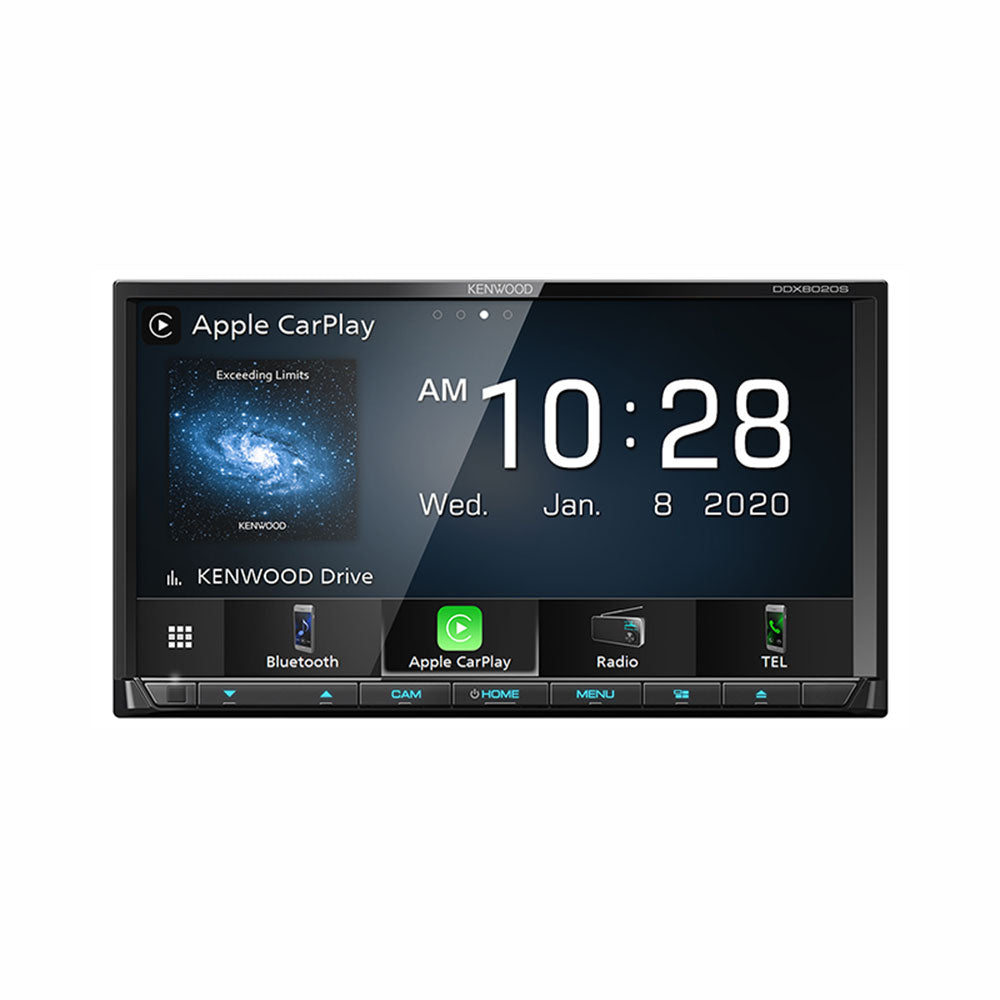

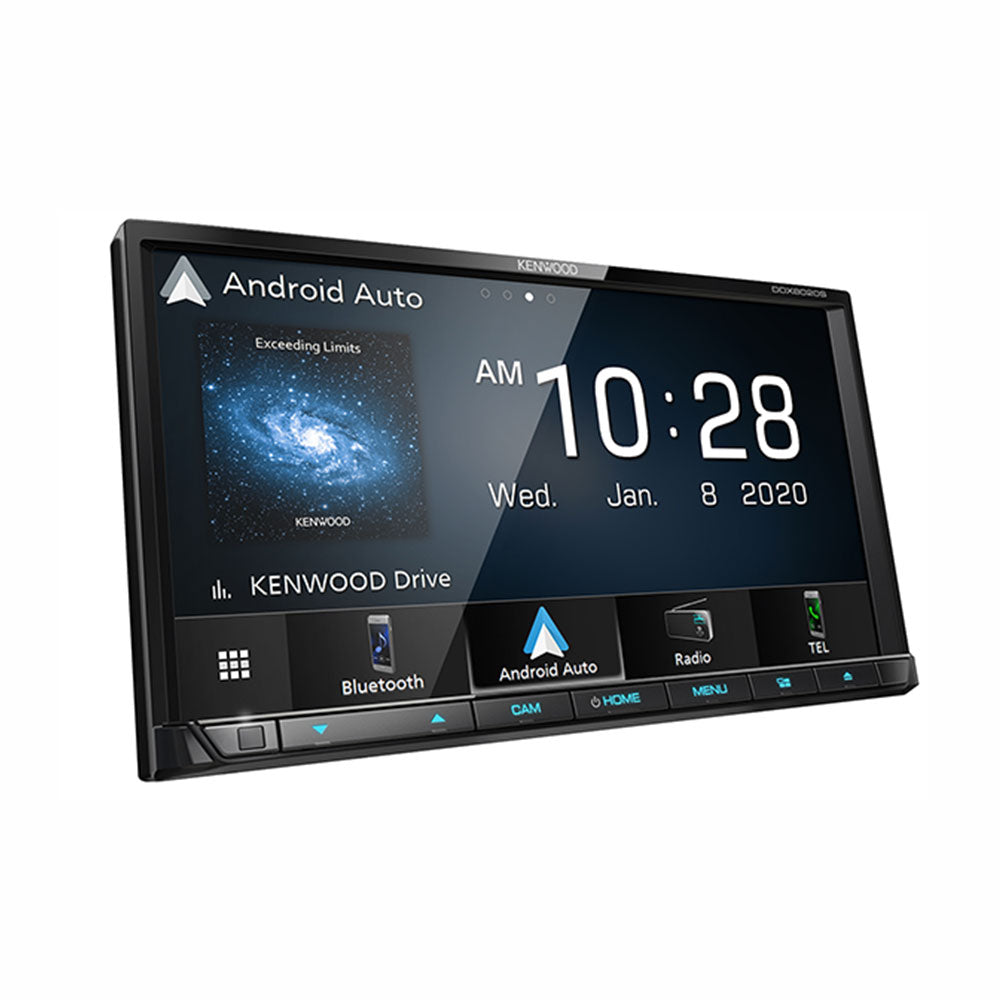

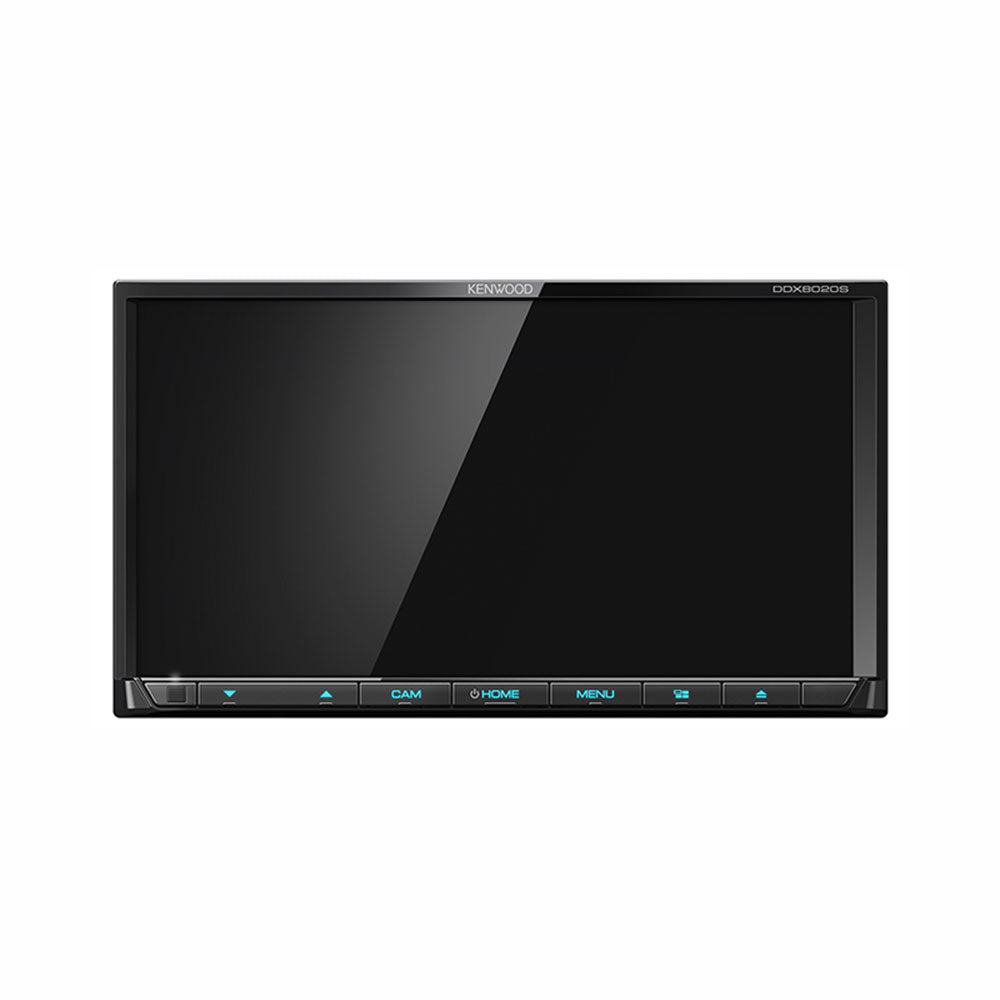

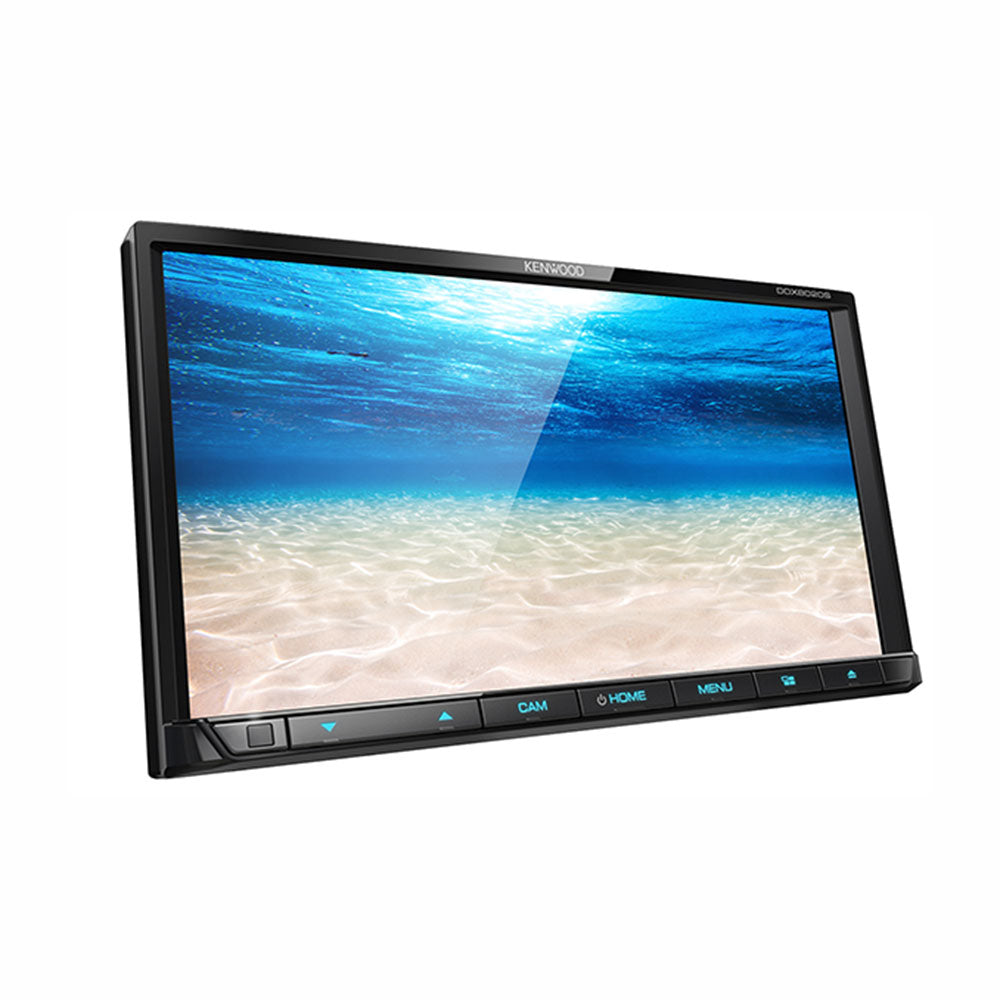

Kenwood DDX8020S 7" Digital AV Receiver with WVGA Display Car Headunit

Kenwood DDX8020S 7" Digital AV Receiver with WVGA Display Car Headunit

Regular price RM2,025.00
Regular price RM2,399.00 Sale price RM2,025.00
Sale Sold out

Kenwood DDX8020S 7" Digital AV Receiver with WVGA Display Car Headunit

D1D2D3D4D5D6D7D8D9D10

Features:

  • Apple CarPlay™ & Android Auto™ Ready
  • USB Mirroring Ready
  • Customizable Multi-Widget Screen
  • Built-in Bluetooth
  • 3 Camera Inputs
  • 13 Band EQ & Digital Time Alignment
  • 3 Preouts 5V


Specifications:

Monitor Section

  • Picture size: 6.95 inches(diagonal) wide
  • W x H: 156.6 mm x 81.6 mm
  • Display system: TN LCD panel
  • Drive system: TFT active matrix system
  • Number of pixels:
  • 1,152,000
  • 800H x 480V x RGB
  • Effective pixels: 99.99%
  • Pixel arrangement: RGB striped arrangement
  • Back lighting: LED


DVD Section

  • D/A Converter: 24 / 32Bit
  • Audio Decoder:
  • Linear PCM
  • Dolby Audio
  • MP3 / WMA / AAC / WAV / FLAC / Vorbis
  • Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
  • Wow & Flutter: Below Measurable Limit
  • Frequency response 96k Sampling: 20 - 44,000 Hz
  • 48k Sampling: 20 - 22,000 Hz
  • 44.1k Sampling: 20 - 20,000 Hz
  • Total harmonic distortion 1kHz: 0.010%
  • Signal to Noise ratio: 90.5dB (DVD-Video 96k)
  • Dynamic range: 89dB (DVD-Video 96k)
  • DISC Format: DVD-Video / VIDEO-CD / CD-DA
  • Quantifying bit number: 16 / 20 / 24bit


USB I/F Section

  • USB Standard: USB2.0 High Speed
  • File System: FAT 16/32, exFAT, NTFS
  • Maximum Power Supply Current: DC5V=1.5A
  • D/A Converter: 24/32Bit
  • Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
  • Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV


Bluetooth Section

  • Technology: Bluetooth Ver5.0
  • Frequency: 2.402 – 2.480 GHz
  • RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
  • Maximum Communication range: Line of sight approx.10m(32.8ft)
  • Audio Codec: SBC / AAC
  • Multi Profile Support: Multi Profile
  • Profile
  • HFP (V1.7) (Hands Free Profile)
  • SPP (Serial Port Profile)
  • A2DP (Advanced Audio Distribution Profile)
  • AVRCP (V1.6) (Audio/Video Remote Control Profile)
  • PBAP (Phonebook Access Profile)


DSP Section

  • Graphics equalizer
  • BAND: 13Band
  • frequency (Hz) (BAND1-13): 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
  • Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
  • 2Way X'Over
  • HIGH PASS FILTER frequency: Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
  • SLOPE: -6/-12/-18/-24[dB/Oct.]
  • LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
  • SLOPE: -6/-12/-18/-24[dB/Oct.]
  • 3Way X'Over
  • HIGH PASS FILTER frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
  • SLOPE: -12/-18/-24[dB/Oct.]
  • Band PASS FILTER frequency:
  • Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
  • 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
  • SLOPE: -12/-18/-24[dB/Oct.]
  • LOW PASS FILTER frequency: 30/40/50/60/70/80/90/100/120/150/Through[Hz]
  • SLOPE: -12/-18/-24[dB/Oct.]
  • Position
  • Front / Rear /Subwoofer Delay: 0 - 6.1m (0.01m Step)
  • Gain: -8 to 0dB
  • Subwoofer Level: -50 to +10dB


FM

  • Frequency Range:87.5MHz - 108.0MHz
  • (Frequency step): (50kHz)
  • Usable sensitivity: 9.3dBf
  • S/N30dB: 0.8μV/75Ω
  • Quieting sensitivity: 15.2dBf
  • DIN S/N 46dB: 1.6μV / 75Ohms
  • Frequency response: 30Hz - 15kHz
  • (±3.0dB)
  • S/N (dB): 65dB (MONO)
  • Selectivity: Over 80dB (±400kHz)
  • Stereo separation: 45dB (1kHz)


AM

  • Frequency Range: 531kHz - 1611kHz
  • (Frequency step): (9kHz)
  • Usable sensitivity: 25μV

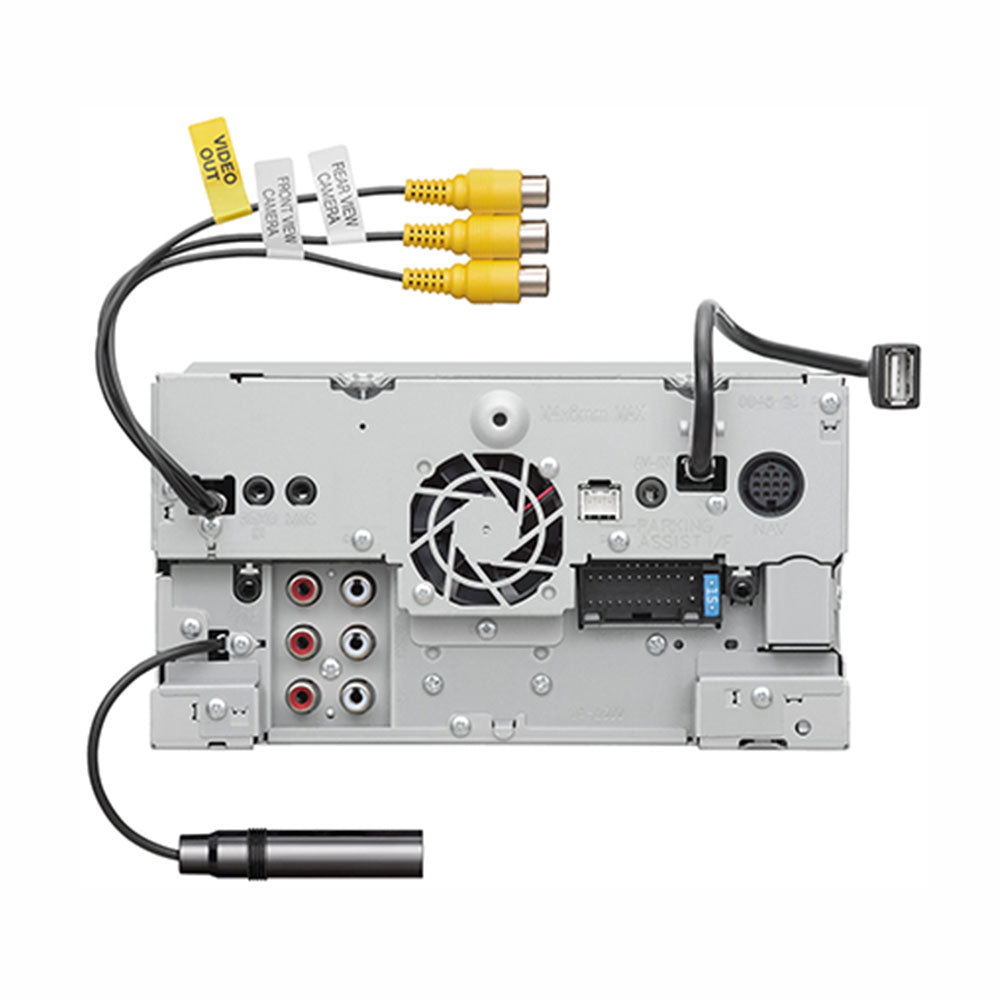

Video

  • Color system of external video input: NTSC/PAL
  • External video input level (Mini jacks): 1 Vp-p / 75 Ohms
  • External audio max input level (Mini jacks): 2 V / 25 kOhms
  • Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
  • Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
  • Audio Output level (Mini jacks): 0.9 V / 10 kOhms
  • Analog RGB input: -


Audio

  • Maximum Power Output (Front&Rear): 50Wx4
  • Typical Power Output (Front&Rear):
  • Full Bandwidth Power
  • (at less than 1%THD)
  • 22Wx4
  • Output frequency band: 20 - 88,000Hz
  • Preout level (V): 5V / 10kOhms
  • Preout impedance (Ω): =< 300 Ohms
  • Speaker Impedance (Ω): 4-8 Ohms


General

  • Operating voltage: 12V DC Car Battery
  • Installation Dimension WxHxD: 178mm x 100mm x 160mm
  • Weight Main unit 2.4 kg


Content:

  • 1 x Car Headunit
  • Manual
  • Fittings as per Manufacturer
