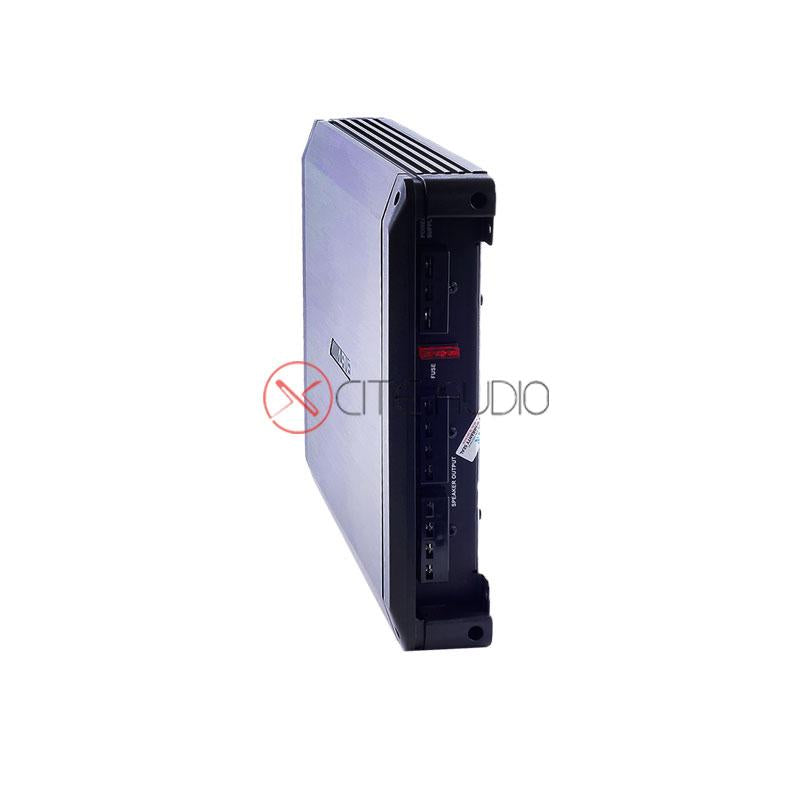

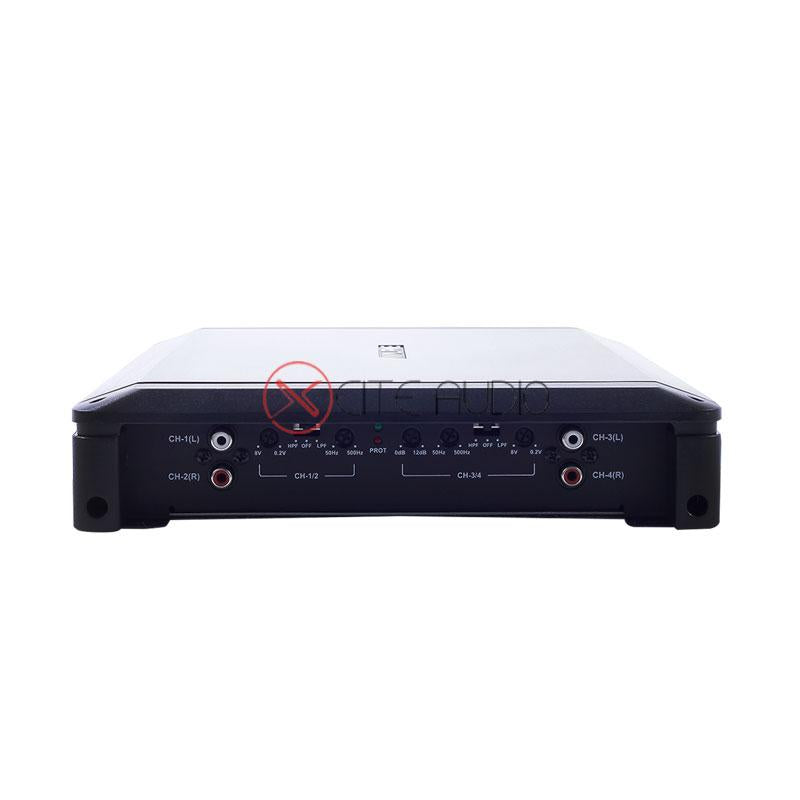

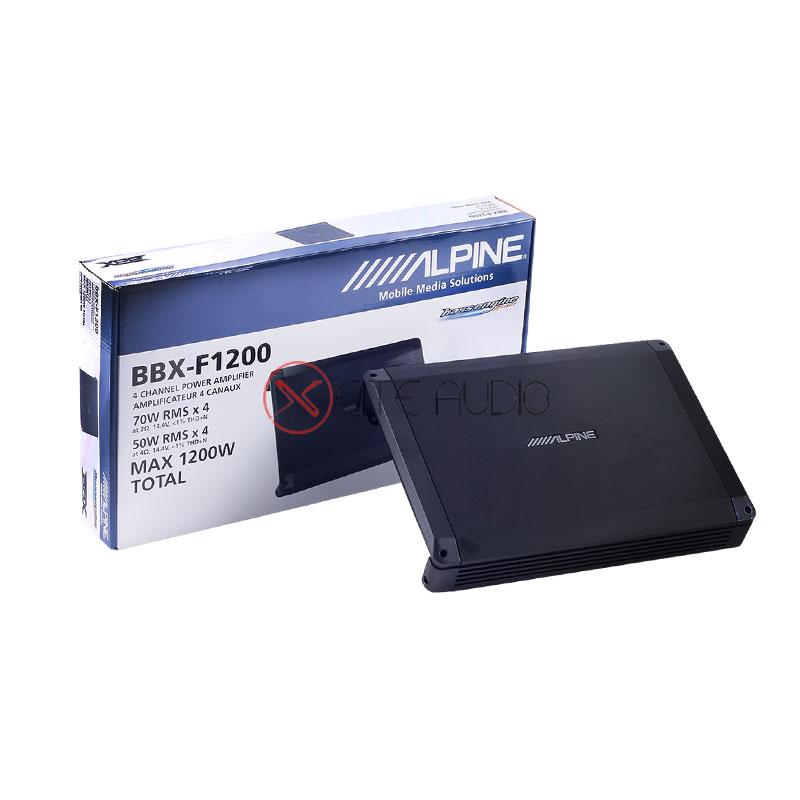

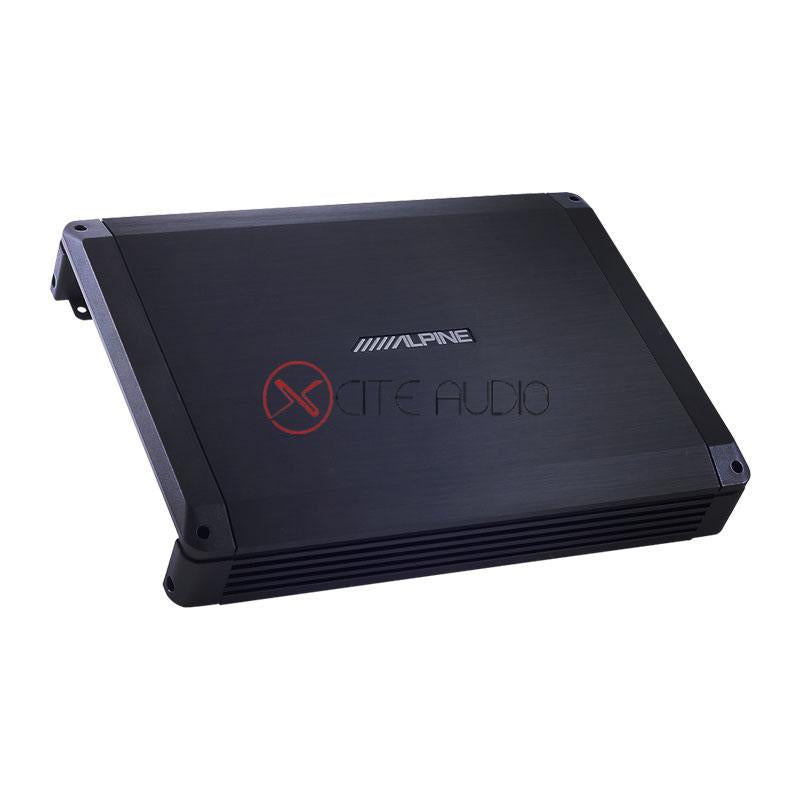

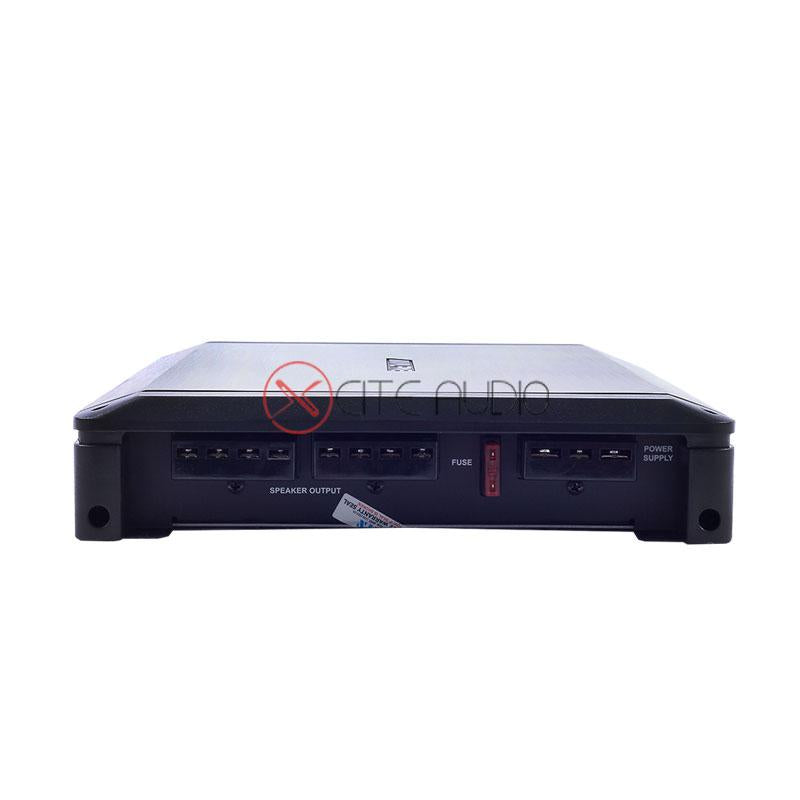

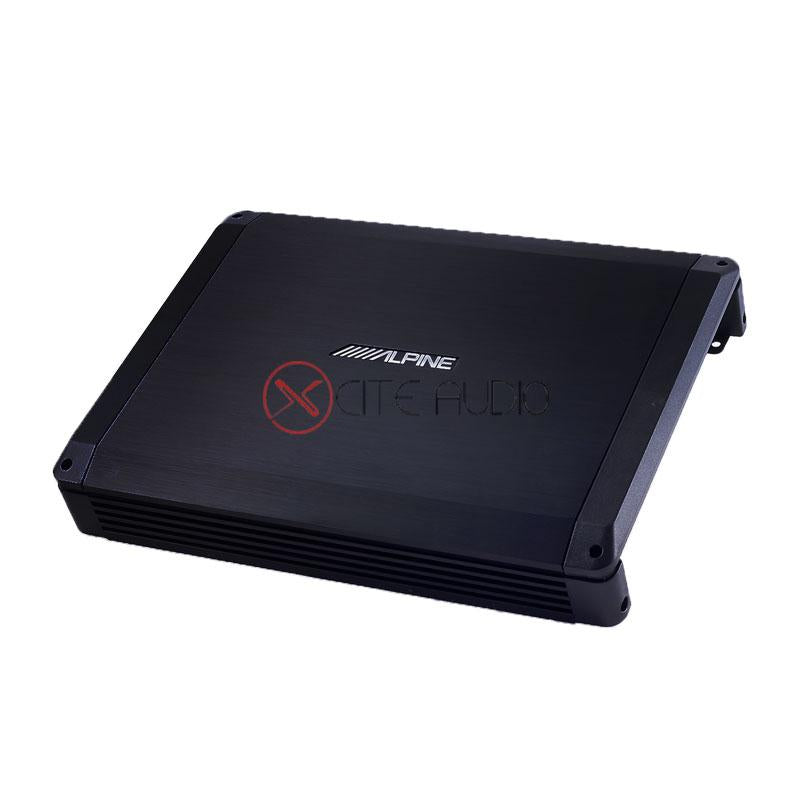

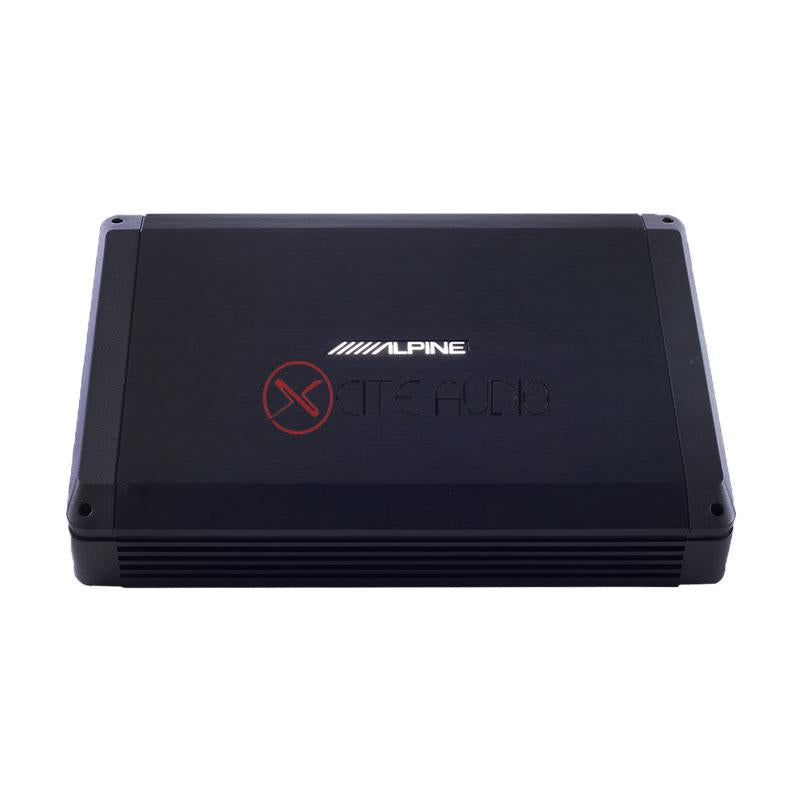

Alpine BBX-F1200 BBX Series 1200 Watts 4/3/2 Channel Class AB Car Amplifier

Alpine BBX-F1200 BBX Series 1200W 4Channel Class AB Car Amplifier

This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system. This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.

High pass and low pass filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.

Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

Features & Specification:

Install

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

• Amplifier Type: Class-A/B
• Channel Design: 4/3/2 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red status LED
• 2 pair RCA pre-inputs

Max Power Output Ratings

• Total Max Power: 1200W

RMS Power Ratings

• Per Channel into 4ohms (≤1%THD+N): 4 x 50W
• Per Channel into 2ohms (≤1%THD+N): 4 x 70W
• Bridged into 4ohms (≤1%THD+N): 2 x 130W

Sound Tuning

• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
• 1/2 Ch: LP/HP:  50Hz – 500Hz
• 3/4 Ch: LP/HP:  50Hz – 500Hz
• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB (3/4 Ch only)

Dimensions

• Footprint: 330 mm x 52 mm x 240 mm

General

• Power Requirements: 14.4 V DC (11 V to 16 V)
• Input Sensitivity: 0.2 - 8.0 V
• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impedance: 4 or 2 Ω
• Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB

Content:

• 1 x Car Amplifier
• Manual
• Fitting as per Manufacturer
