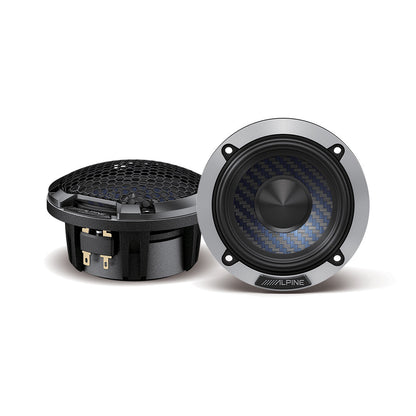

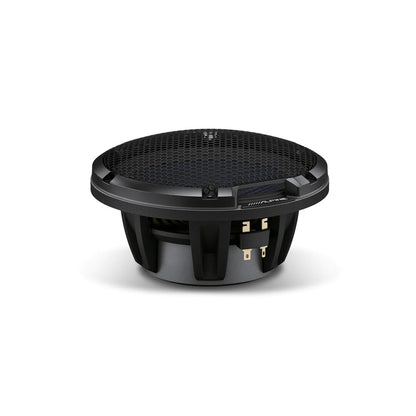

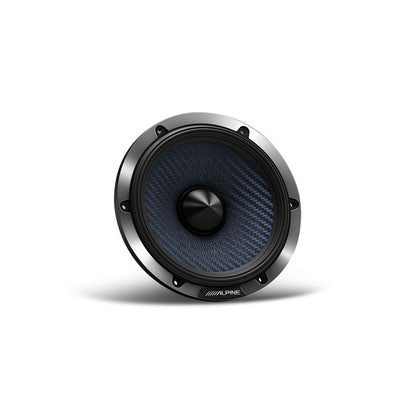

Alpine DP-35M

Digital Precision DP-Series 3.5″ Mid-Range Speaker

Alpine’s Digital Precision (DP) Series are state-of-art loudspeakers delivering an acoustic performance to match their stunning high-performance inspired aesthetic design.

Precise in their construction, these speakers are composed of a bespoke design machine-finished aluminum cast frame complemented by an elegant backplate housing and an industry-first blue-accented woven carbon fiber hybrid woofer diaphragm. The 3.5″ midrange magnificently articulates vocals and instruments with extraordinary fine detail and stunning musicality. Catering for custom high-end audio system builds the DP-35M gives the flexibility for multi-speaker configurations and upgrading of late-model vehicles with comprehensive factory speaker systems.

The DP-Series are the encapsulation of precision design and atmospheric sound performance.

Woven Carbon Fiber Diaphragm

The woven carbon fiber hybrid woofer diaphragm provides bullet-proof rigidity and is lightweight, this ensures accurate cone velocity and limits distortion to achieve a natural and highly revealing mid-range response, as well as powerful bass extension. The appearance of this loudspeaker is incredible with performance to match.



Aluminum Frame and Gold-Plated Terminals

Manufactured with precision, the aluminum frame is rigid for low resonance with 6 mounting points for optimized bass coupling and mid-range response. The machine turned front and stunning backplate cover provide a high-class finish and the gold-plated terminals prevent connection degradation.



Exclusive HAMR Surround

Alpine’s High Amplitude Multi-Roll (HAMR) surround provides a greater maximum and linear cone excursion for high SPL.

The HAMR surround maintains full control over the cone at any excursion stage for powerful bass and pure sound.

General Specification

• Midrange Size: 3.5″
• Cone Material: Woven Carbon Fiber Hybrid
• Magnet: Ultra High-Density Radial Ring Magnet
• Frame: Cast Aluminum
• Surround: HAMR Multi-Roll
• Mounting: 4 Point
• Terminals: Gold Plated
• Grille: Honeycomb (Included)
• Power handling:
  • 240 Watts peak power
  • 50 Watts RMS power
• Frequency response: 100Hz - 6.5KHz
