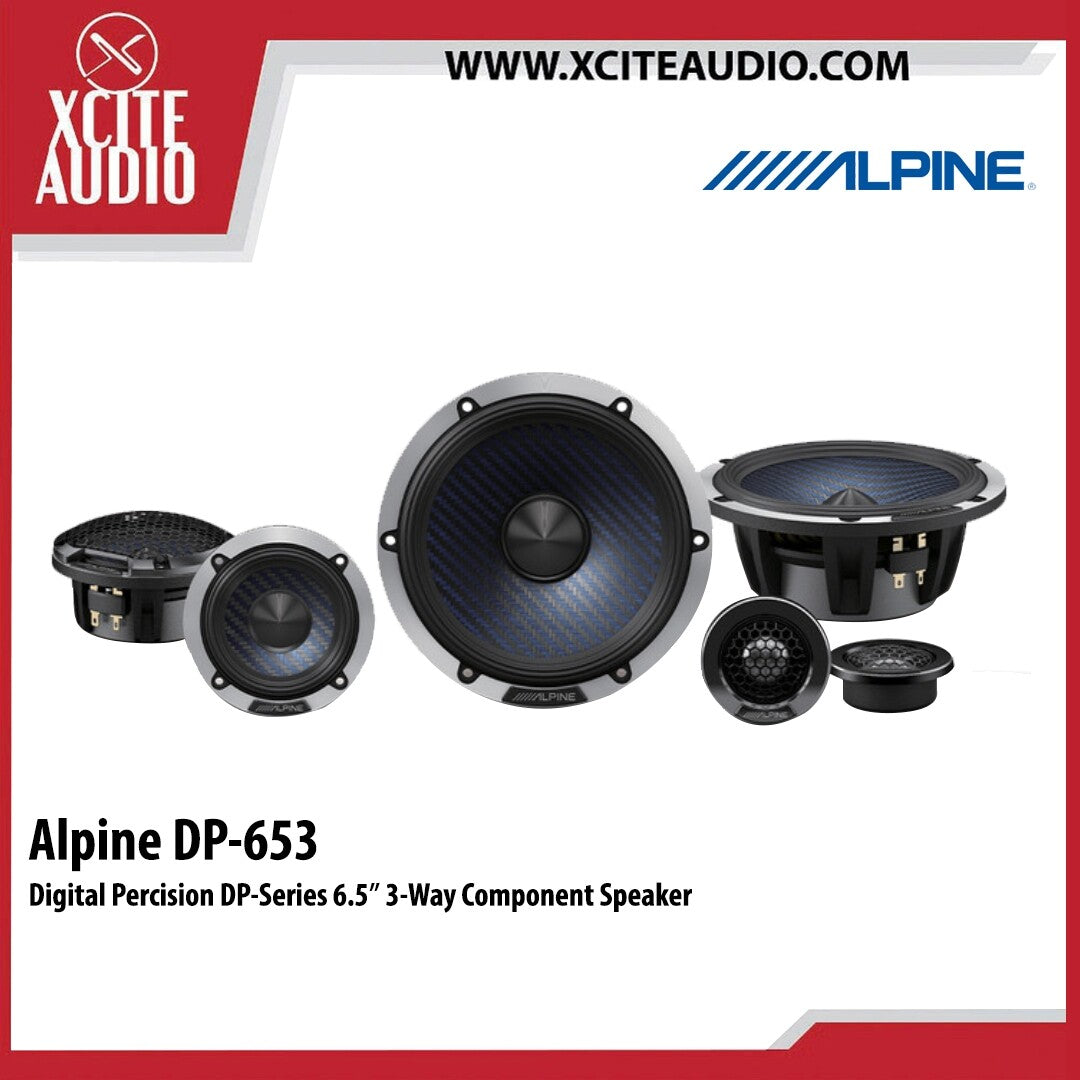

Alpine DP-653 Digital Percision DP-Series 6.5" 3-Way Component Speaker

Features

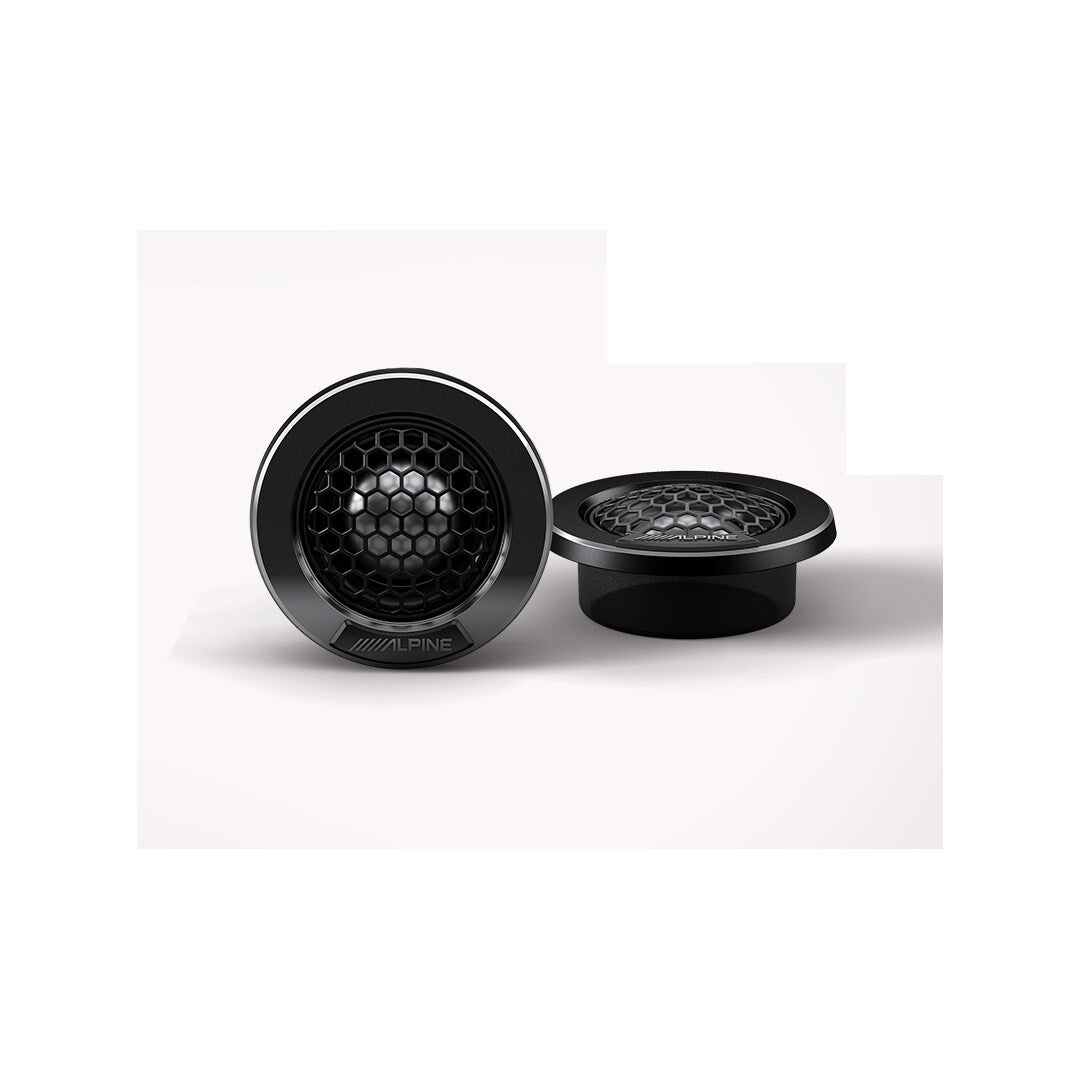

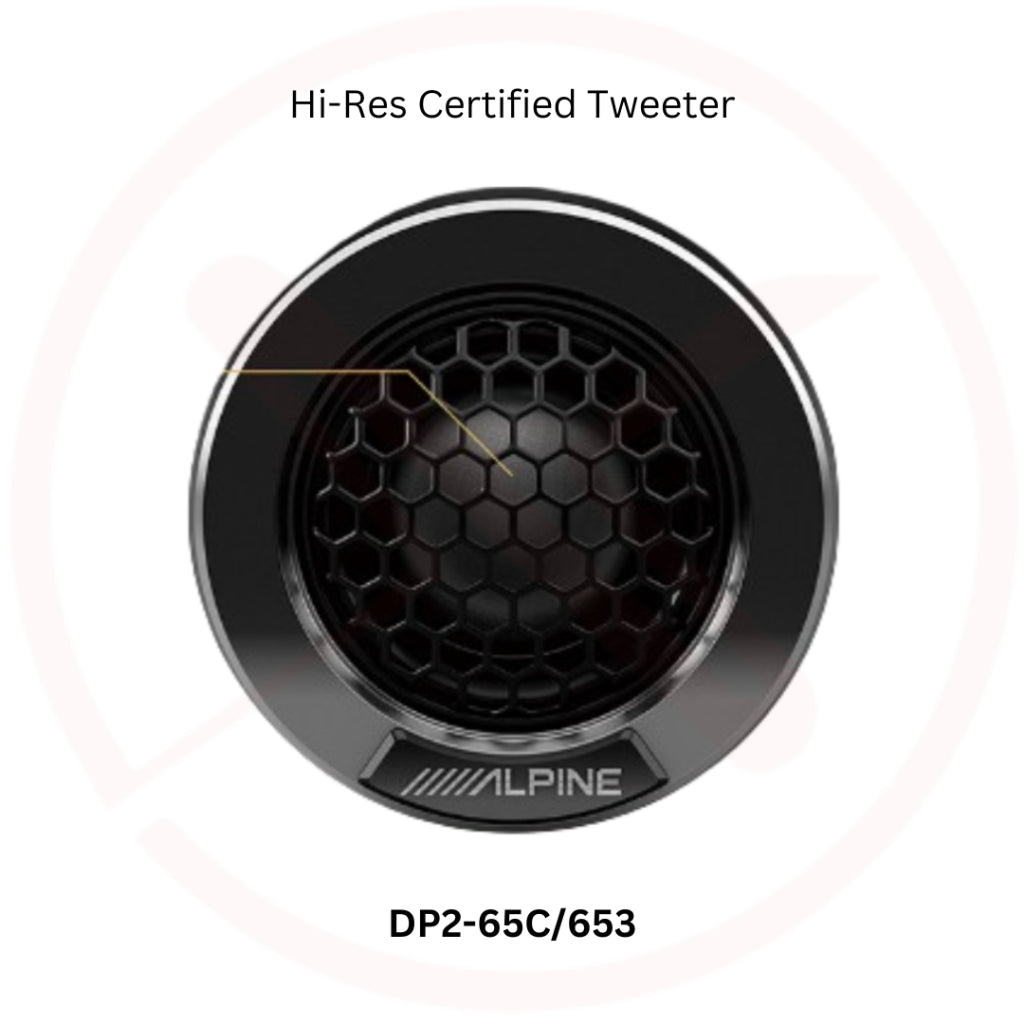

Tweeter

Tweeter Type: 1″ Magnesium Alloy Dome Tweeter

Magnet Material: Neodymium Magnet

Application Type: Surface Mount

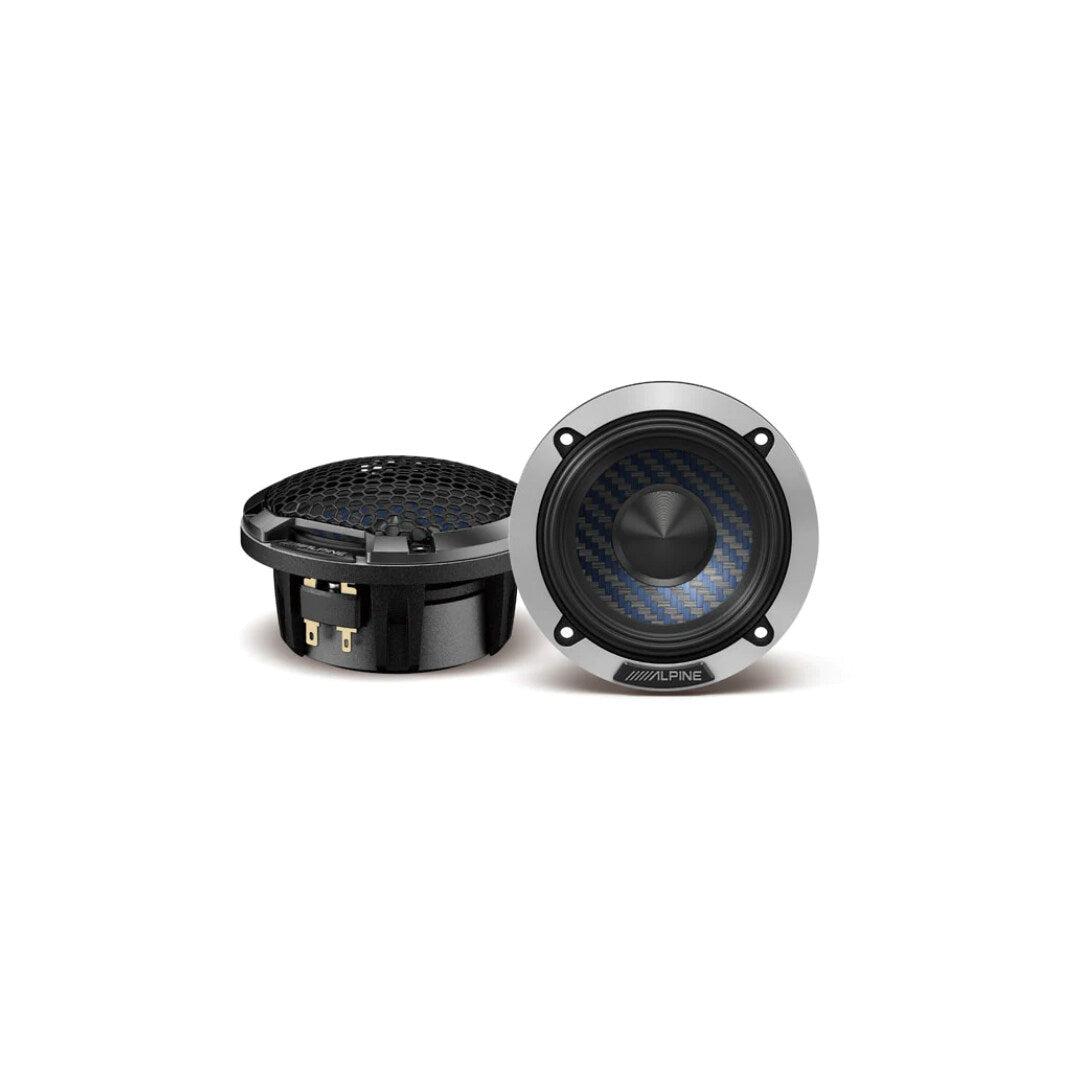

Midrange

Midrange Size: 3.5″

Cone Material: Woven Carbon Fibre Hybrid

Magnet: Ultra High Density Radial Ring Magnet

Frame: Cast Aluminium

Surround: HAMR Multi-Roll

Mounting: 4 Point

Terminals: Gold Plated

Grille: Honeycomb (Included)

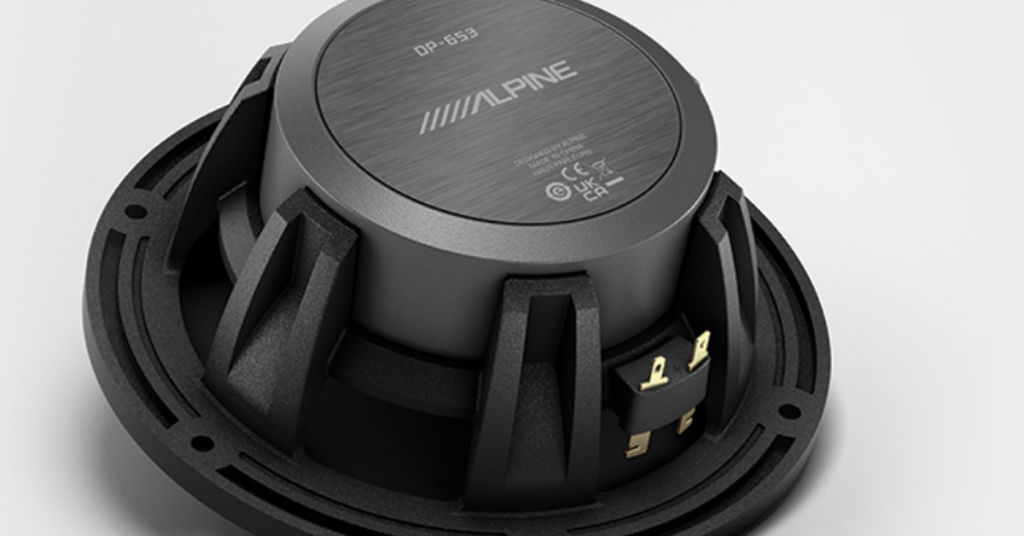

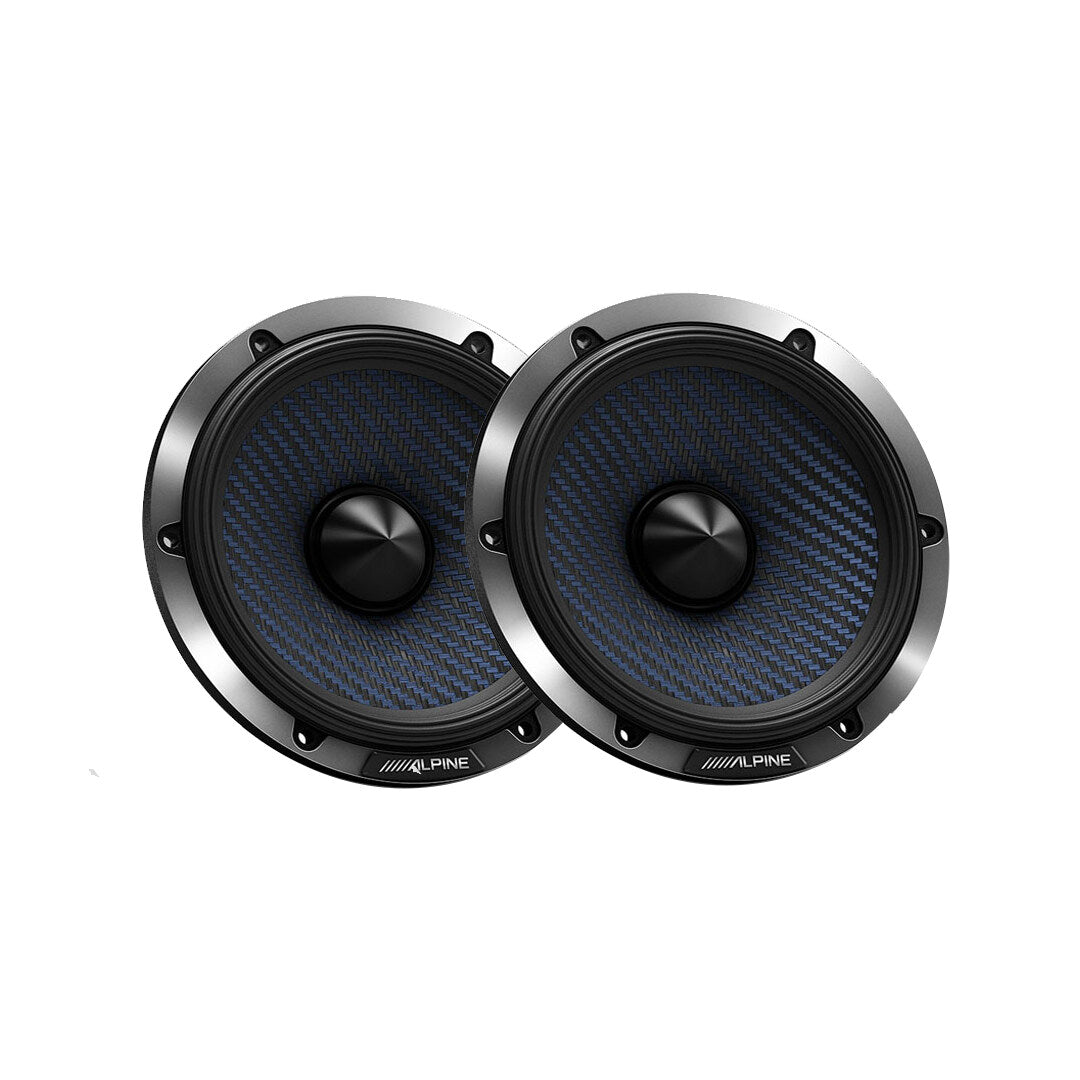

Woofer

Woofer Size: 6.5″

Cone Material: Woven Carbon Fiber Hybrid

Magnet: Ultra High-Density Radial Ring Magnet

Frame: Cast Aluminum

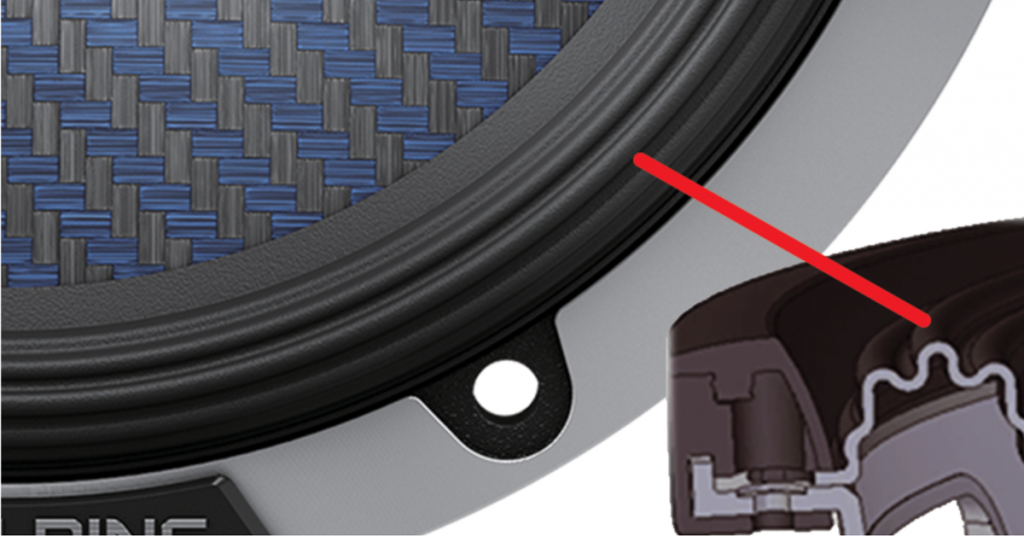

Surround: HAMAR Multi-Roll

Mounting: 6 Point

Terminals: Gold Plated

Grille: Honeycomb (Optional DP-65G)

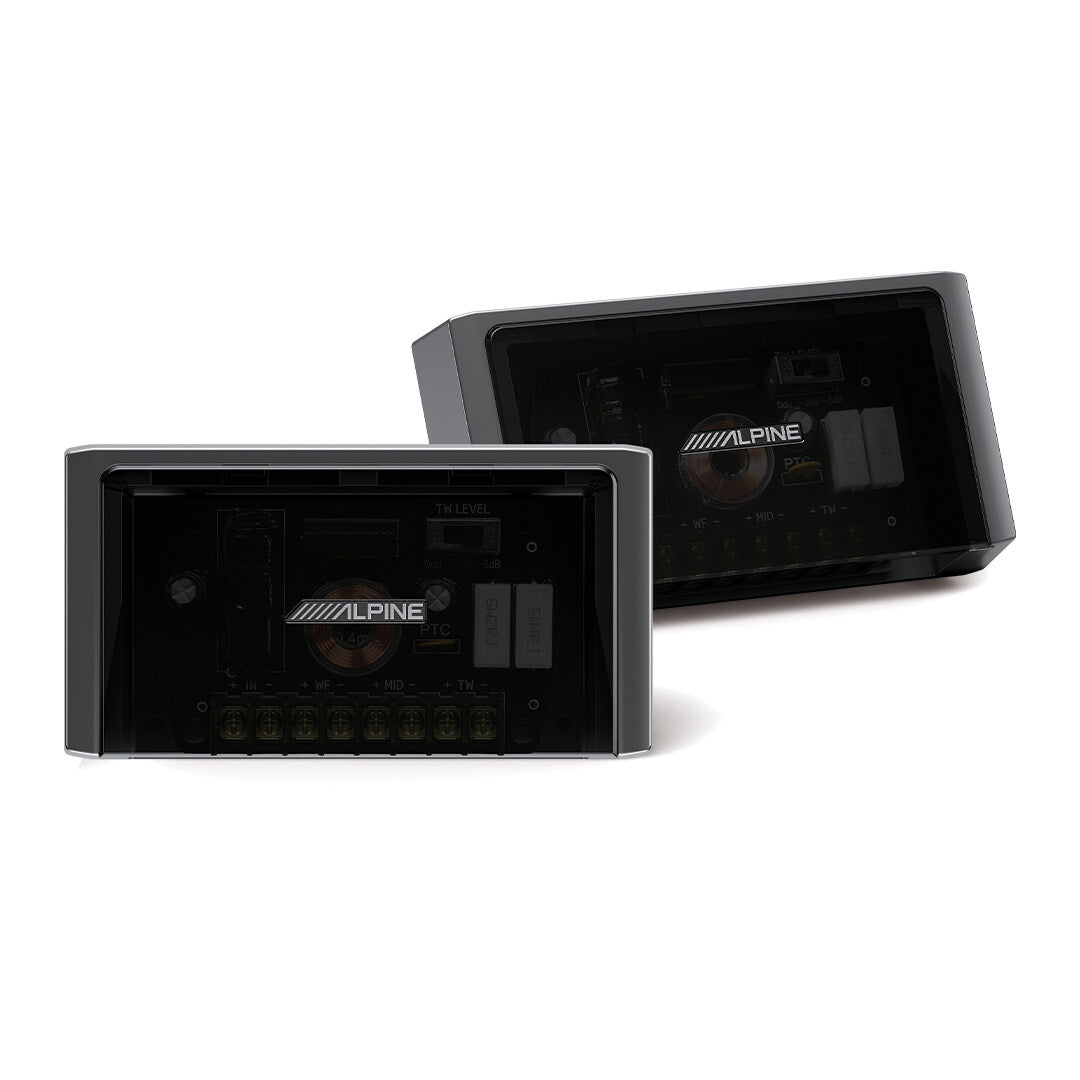

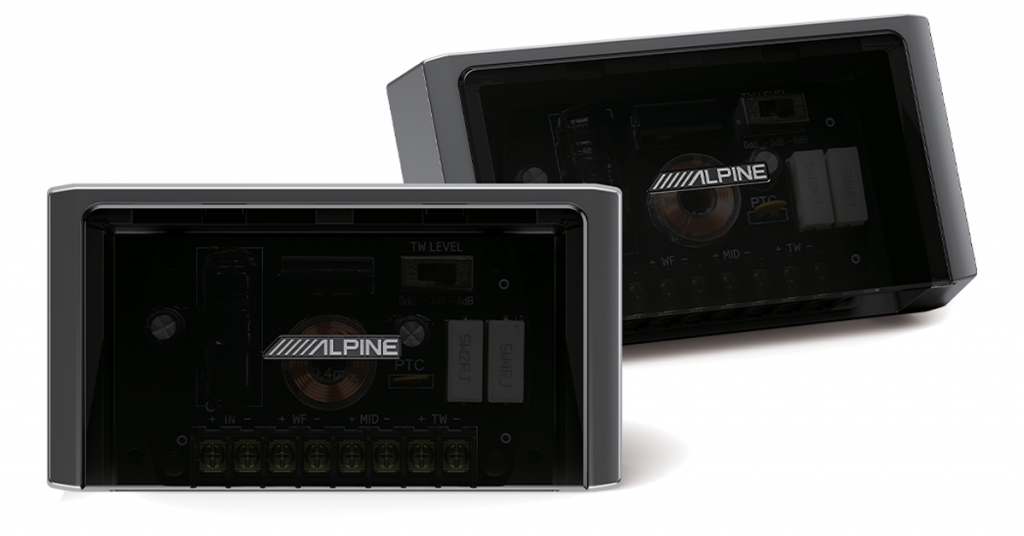

3-Way Passive Crossover Network (Optional DP-653DP)

3-Way Passive Design: 1-Input with 3-Way Output (Tweeter/Midrange/Woofer)

Tweeter Attenuation: 0dB, -3dB, -6dB

High Grade Network Components

Alpine Custom Specification Poly-Capacitors

Air-Core Inductors (Woofer Output)

Specifications

General

Peak Power Handling: 240W

RMS Power Handling: 50W

Nominal Impedance: 4ohms

Frequency Response: 65Hz – 24KHz

In-Line 2-Way High Quality Crossover

1″ Magnesium Alloy Dome Tweeter

Woven Carbon Fiber Hybrid Woofer Diaphragm

Woofer Cast Aluminum Frame

Woofer Grille Optional (Pair): DP-65G

3-Way Passive Crossover Network Optional (Pair): DG-653NW

Dimensions

Woofer Diameter: 165mm

Woofer Cut-Out: 130.2mm

Woofer Mounting Depth: 58.9mm

Midrange Diameter: 94.7mm

Midrange Cut-Out: 75.7mm

Midrange Mounting Depth: 34.2mm

Tweeter Diameter (Without Frame): 39mm

Tweeter Depth (Without Frame): 20.1mm

Tweeter Mounting Cup Diameter: 59mm

Tweeter Mounting Cup Diameter Cut-Out: 43.6mm

Tweeter Mounting Cup Depth: 15.8mm

Weight

Woofer: 1240g

Midrange: 405g

Tweeter: 72g
