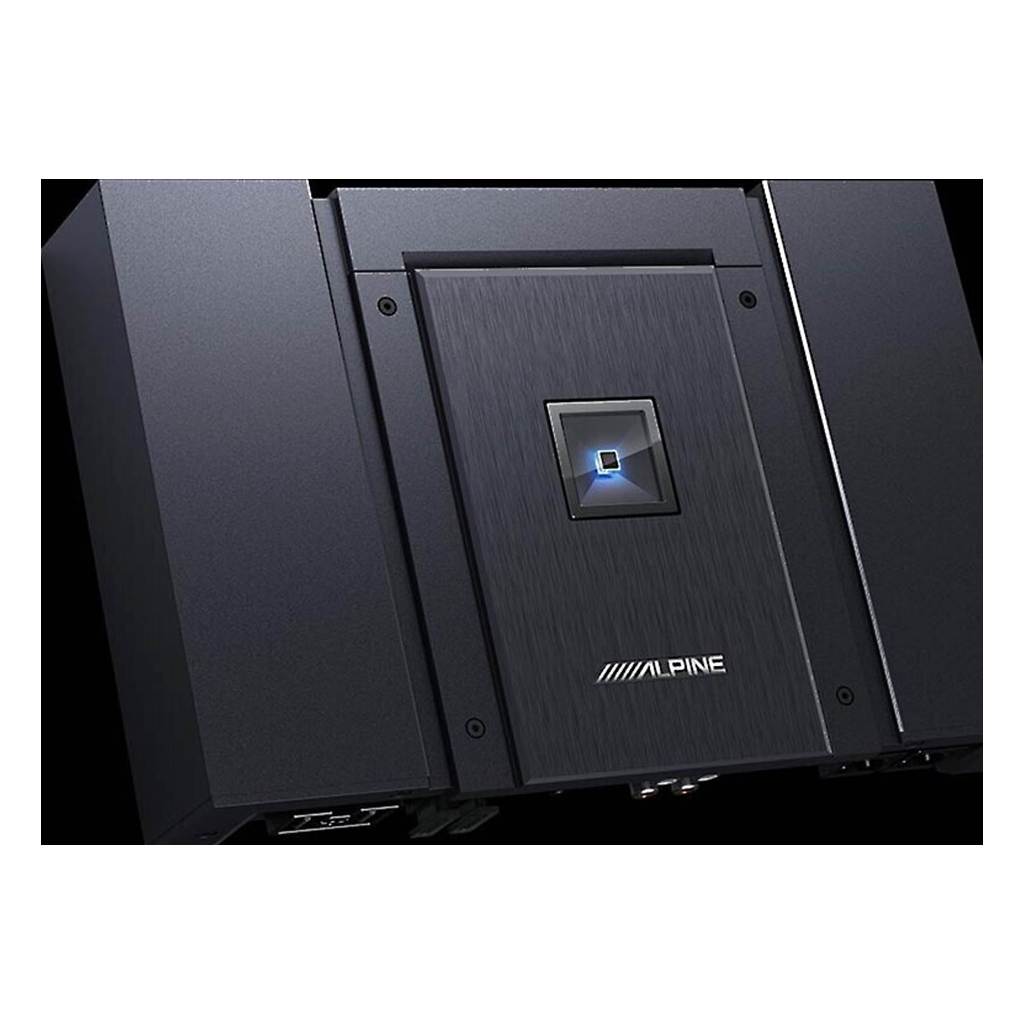

Alpine HDA-F60 Status Series 4-channel car amplifier — 100 watts RMS x 4

Alpine Status high-resolution amplifier

Alpine's Status System components will play your high-resolution music files with incredible high-quality, studio-level purity and sonic fidelity, with a stereo image that'll leave you breathless — almost as if the musicians are playing inside your car. The HDA-F60 four-channel amplifier produces 100 watts RMS per channel, so you'll get the big sound you want, with every musical detail felt clearly. You can bridge the rear channels of this amp to power a subwoofer with up to 300 watts RMS, for some awesome bass bumping to go along with your 100-watts per channel hi-res front soundstage. Or, if you're only interested in the amp's raw power, you can bridge both front and rear channels to power a pair of subwoofers with up to 300 watts RMS each.

Hidden controls and plug-in connectors

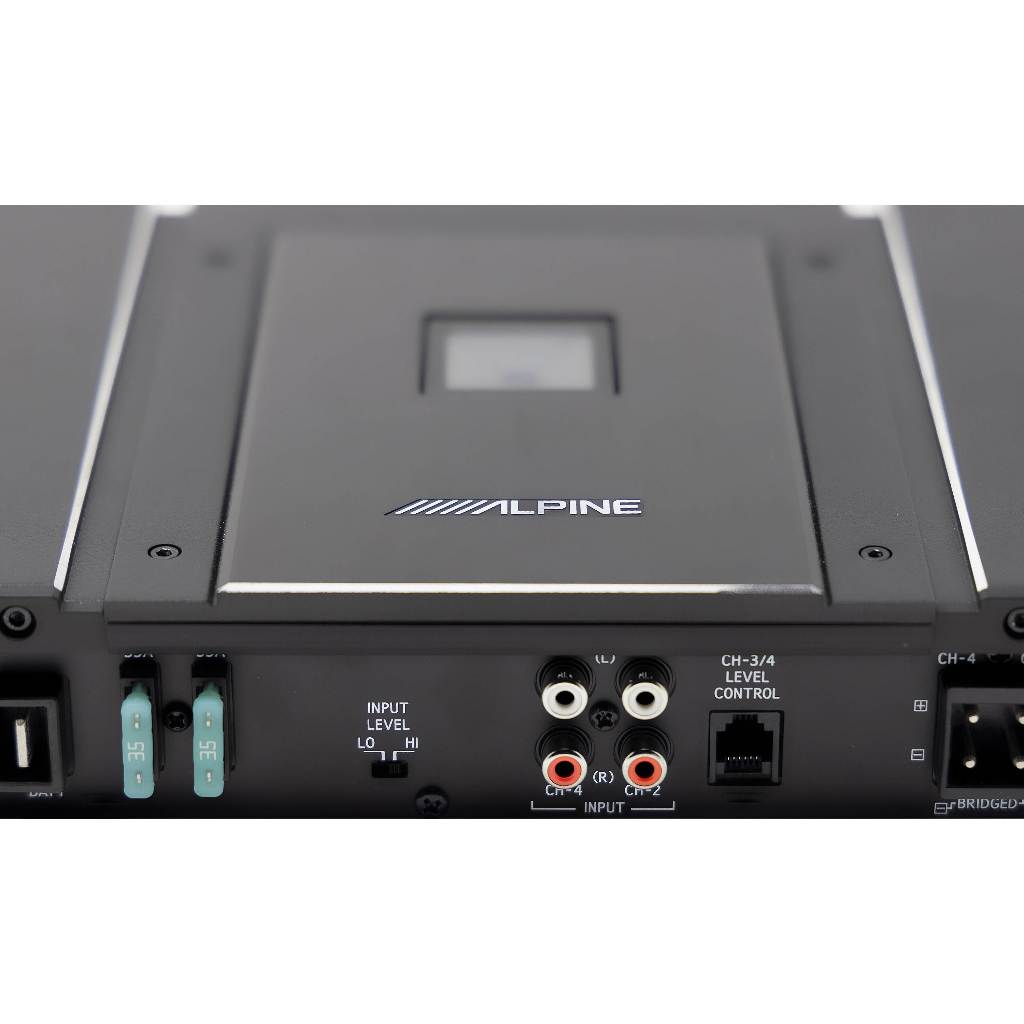

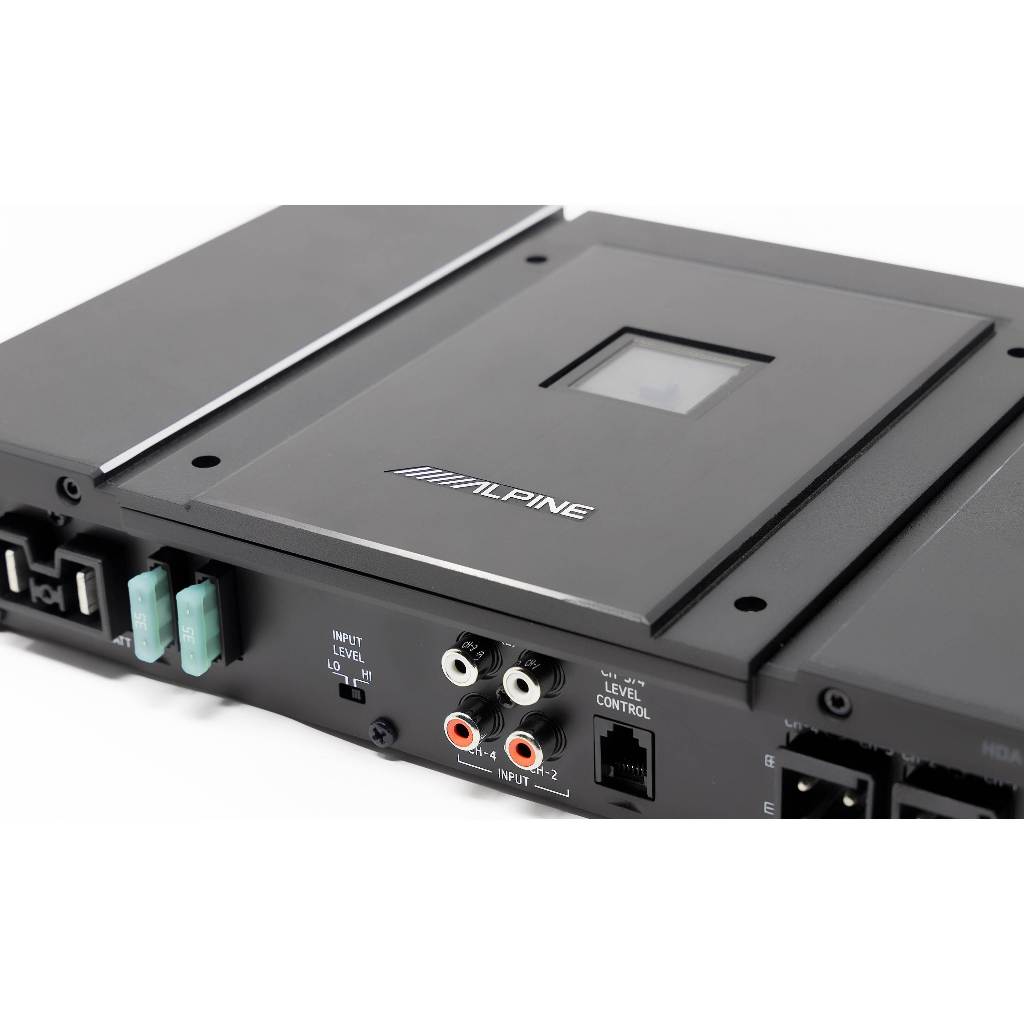

The amp's tuning controls sit protected under a removable top panel. Adjustable high- and low-pass filters shape the amplified signal to match your particular speakers and subs, so they'll sound their best. All connections are on one side of the amp, with nifty speaker and power wire plugs, making the amp easy to install or remove while ensuring tight, noise-free connections. There's also a provision for adding an optional wired remote level control so you can tweak the bass volume from the front seat when powering a subwoofer with the rear bridged channels.

Description:

●4-channel car amplifier

●100 watts RMS x 4 at 4 ohms

●150 watts RMS x 4 at 2 ohms

●300 watts RMS x 2 bridged at 4 ohms

●Hi-Res Class-D amplifier technology

●frequency response: (-3 dB) 10 to 60,000 Hz

●variable high- and low-pass filters (50-400 Hz, 12 dB/octave)

More info:

●preamp and speaker-level (up to 10V) inputs

●speaker-level inputs require speaker wire to RCA adapters

●speaker-level inputs feature signal-sensing amplifier turn-on

●optional RUX-KNOB.2 wired remote level control for bridged channels 3/4

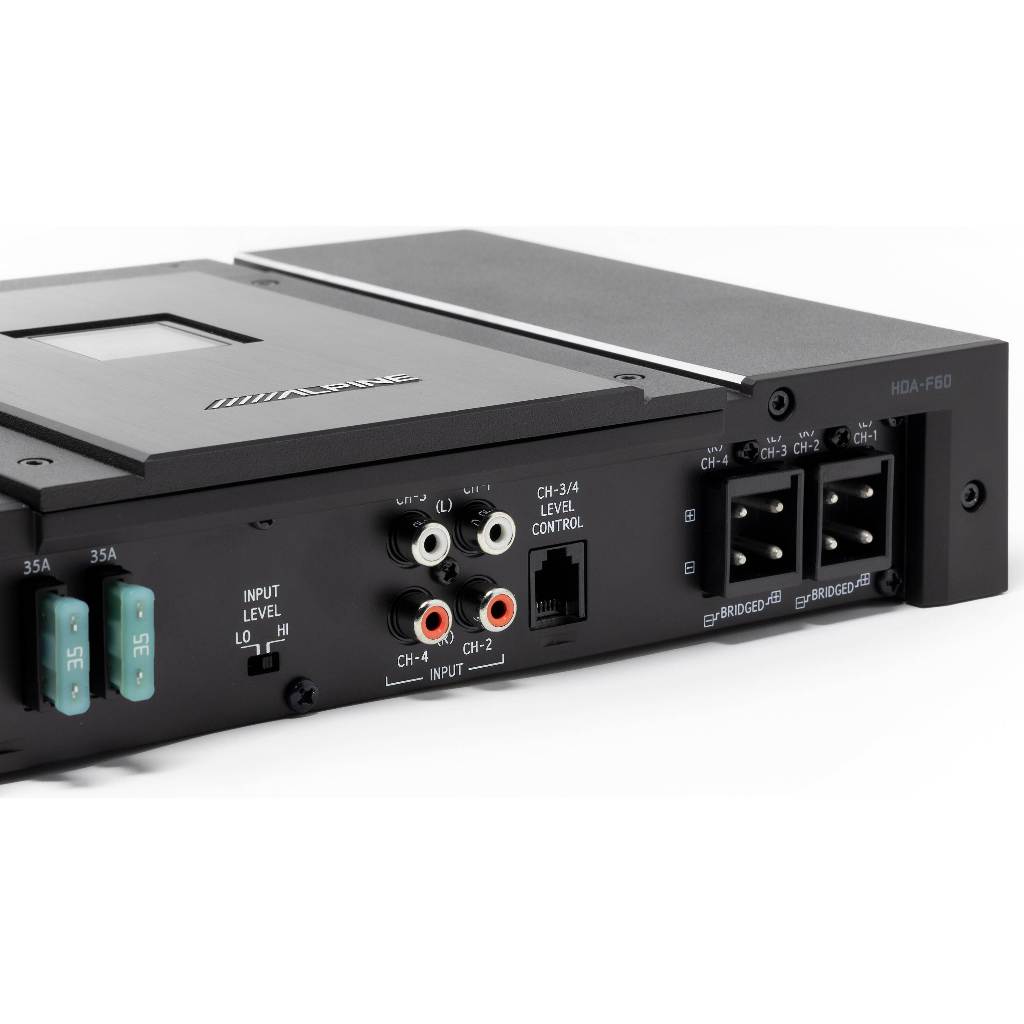

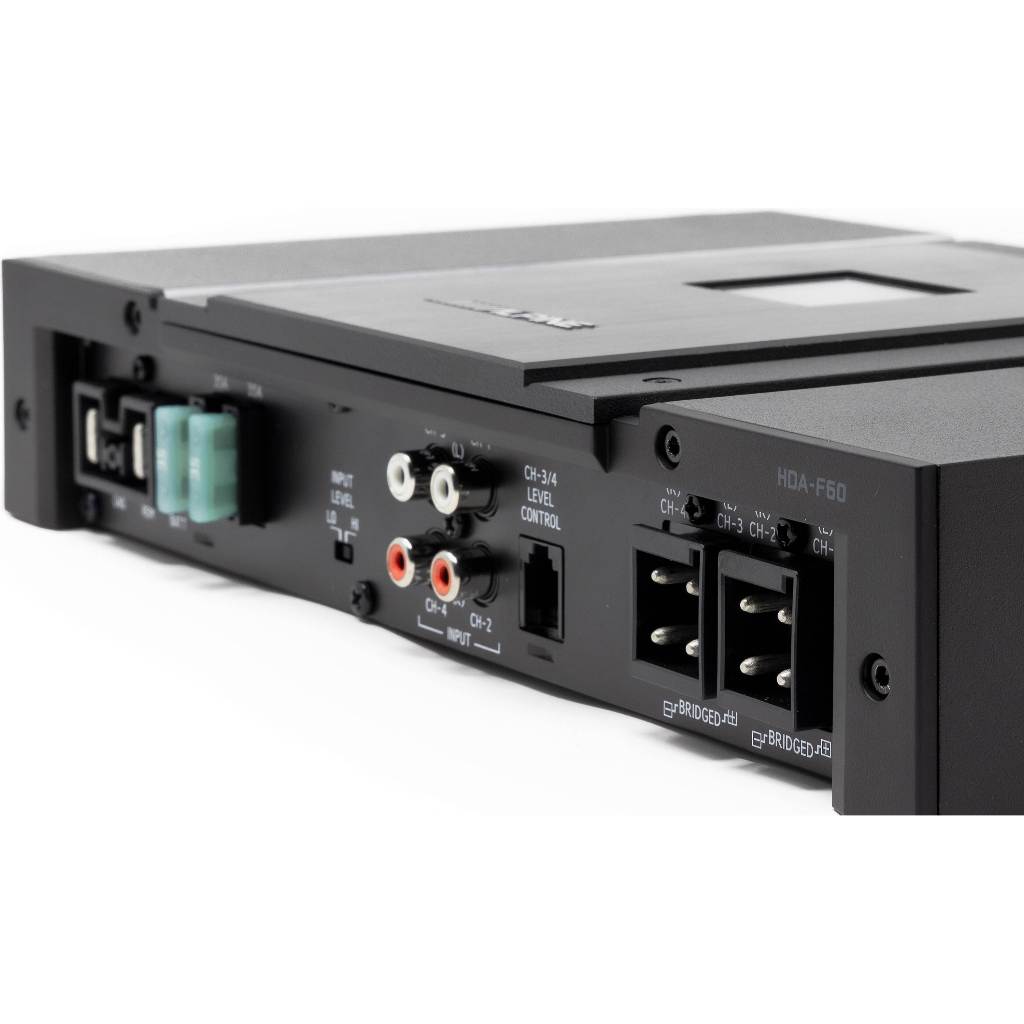

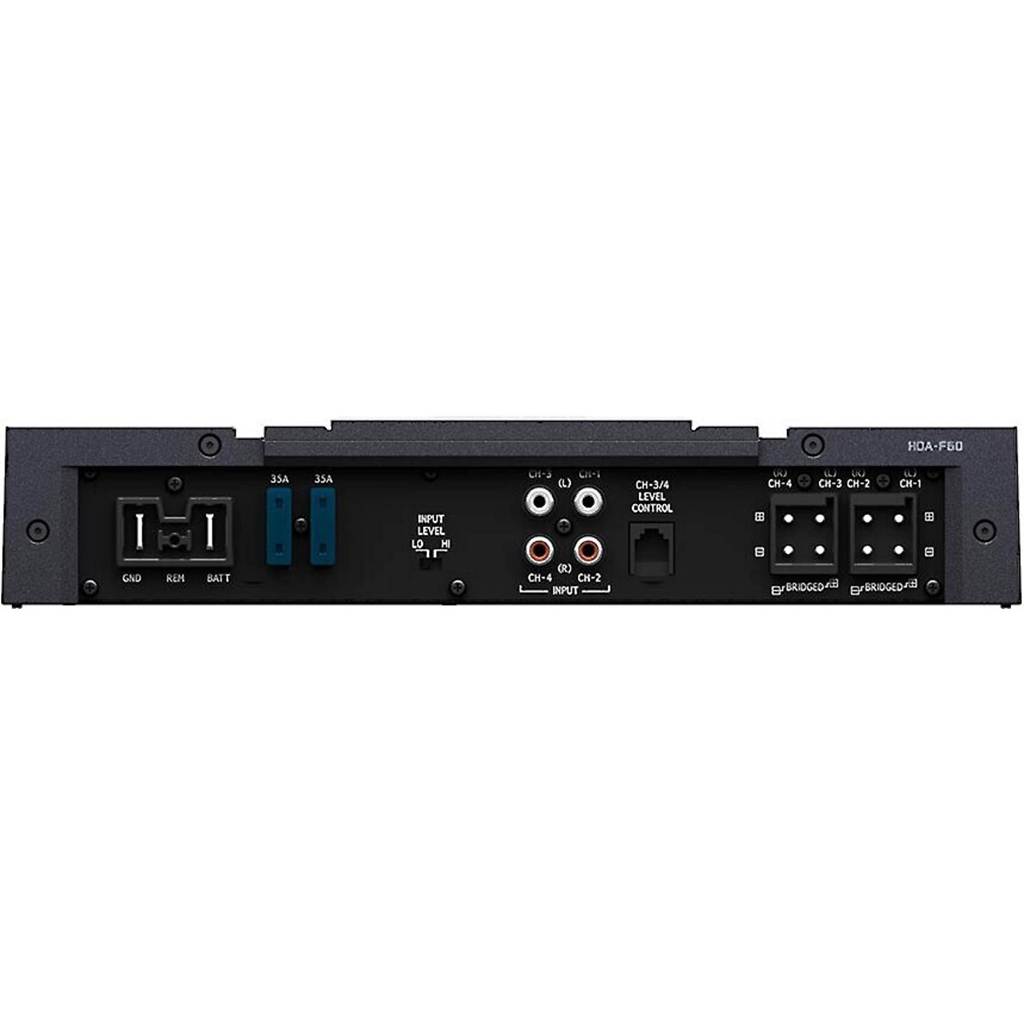

●quick-connect speaker and power connectors

●wiring and hardware not included with amplifier

●4-gauge power and ground wire recommended

●fuse rating: 35A x 2

dimensions:11.4375"W x 2.125"H x 7.5"D

warranty: 1 year

What's in the box:

Alpine HDA-F60 owner's manual

●4-Channel amplifier

●Two 35-amp ATO fuses (installed)

●Top cover (installed)

●Power connector plug

●2 Speaker connector plugs

●2 Mounting legs

●2mm Allen wrench

●2.5mm Allen wrench

●4mm Allen wrench

●Four 3/4" Screws

●Eight 3/8" Screws

●Owner's manual (English/ German/ French/ Spanish/ Italian/ Swedish/ Russian/ Chinese)

●Alpine verification certificate

●Warranty information

●Power wiring note
