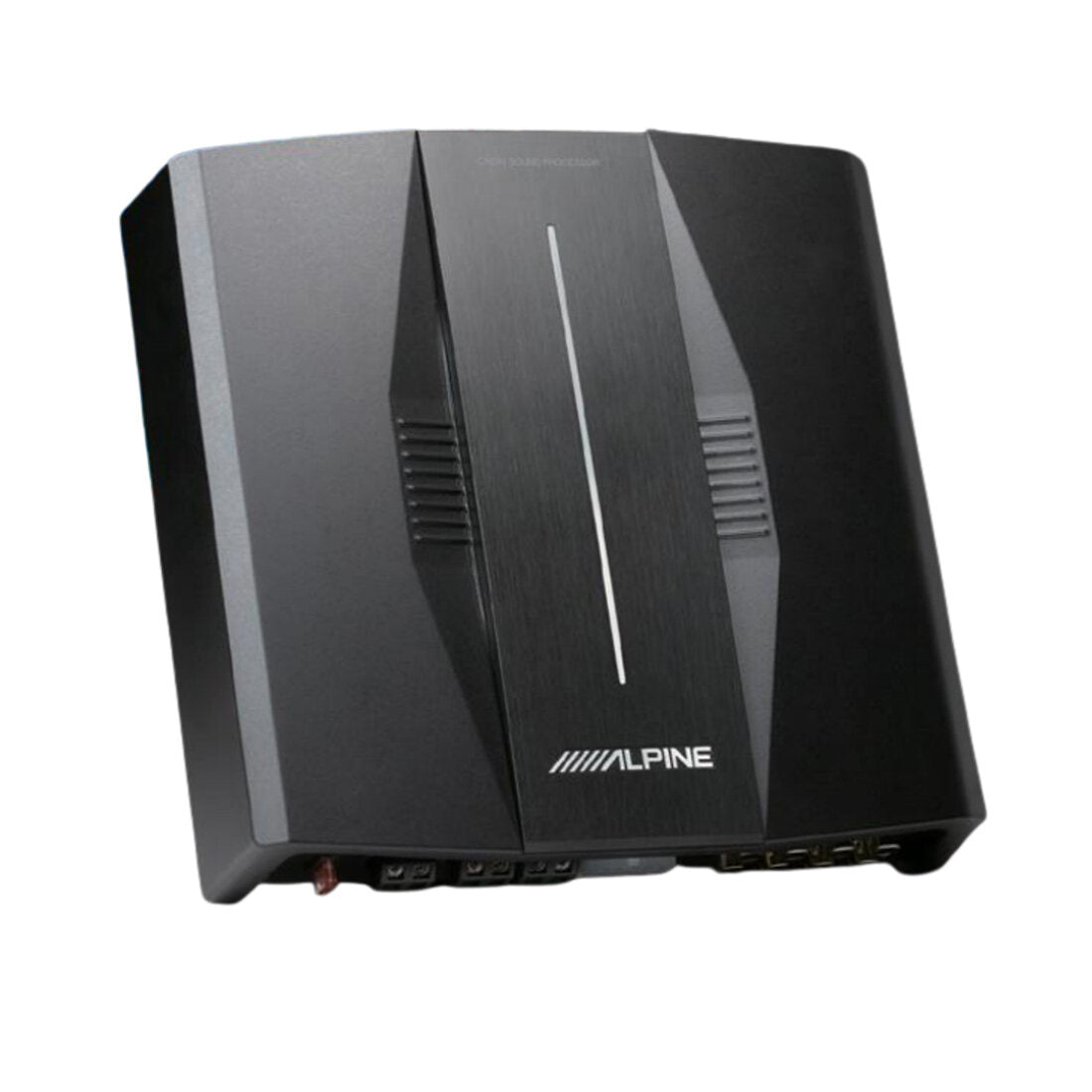

Alpine PXE-C80-88 8 CHANNEL AUTO TUNING DSP AMPLIFIER
Product highlights:
-
8-channel car amplifier with digital signal processing
-
50 watts RMS x 6 + 150 watts RMS x 2 at 4 ohms
-
50 watts RMS x 6 + 300 watts RMS x 2 at 2 ohms
-
-
High-Resolution Class D amp technology
-
frequency response: 10-48,000 Hz
-
-
settings and adjustments made via Alpine's DSP control app automatically on your iPhone and automatically or manually on your PC device
-
digital signal processing: 96 kHz, 24-bit
-

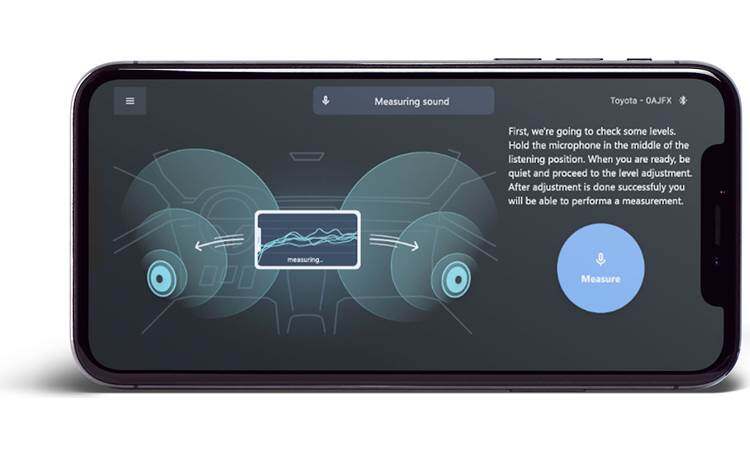

automatic tuning via iPhone uses built-in mic and Bluetooth® connection to amp (dongle included)
-
automatic tuning via PC uses an external measurement microphone like Alpine's KTX-CSP1 and USB connection to amp (cable included)
-
signal processing includes input/output routing, 31-band EQs, and multi-channel time alignment
-
Anti-EQ eliminates factory EQ curves
-
More info:
-

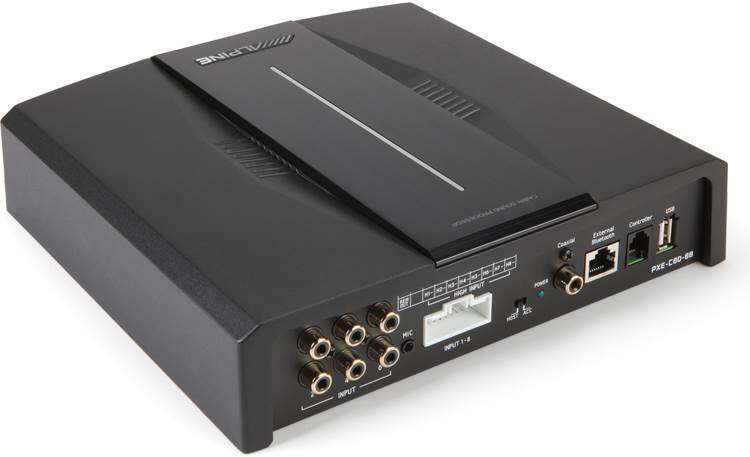

inputs: coax and USB digital (up to 96 kHz, 32-bit); 8-channel high-level speaker (up to 30V); 6-channel RCA
-
preamp outputs: 8-channel processed (4V)
-
wiring and hardware not included with amplifier
-
8-gauge power and ground wires recommended
-
-
fuse rating: 40A
-
dimensions: 8.82"W x 2.14"H x 10.43"D
-

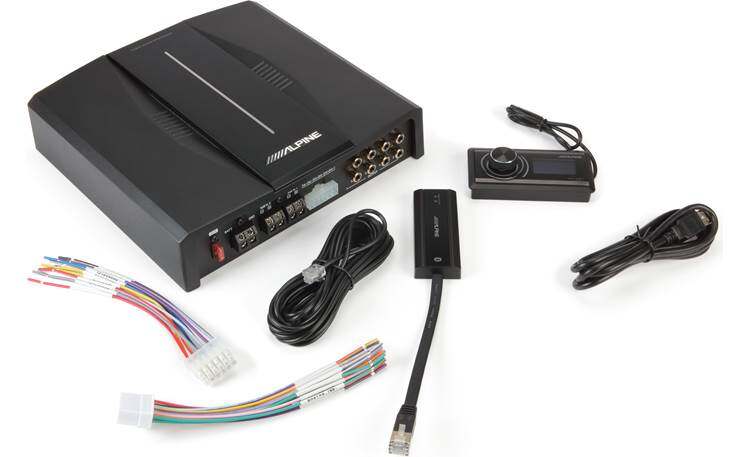

What's in the box:
-
Alpine PXE-C80-88 owner's manual
-
8-Channel processor/amplifier (installed 40A mini-ATO fuse)
-
CSP Controller (attached 16" cable with 4-pin connector)
-
16.25' Controller cable (4-pin connector on one end / RJ-12 connector on other end)
-
KCE-800BT Bluetooth module (attached 6" cable terminated in an RJ-45 connector)
-
5' USB-A cable (2.0)
-
6" 20-Pin input harness
-
6" 12-Pin output harness
-
2 Mounting plates
-
Four 3/4" pan-head screws
-
Ten 6mm counter-sunk machine screws
-
Quickstart guide (En/ Sp/ Fr/ Others)
-
Warranty information
-
Product registration information
-
Quickstart addendum
