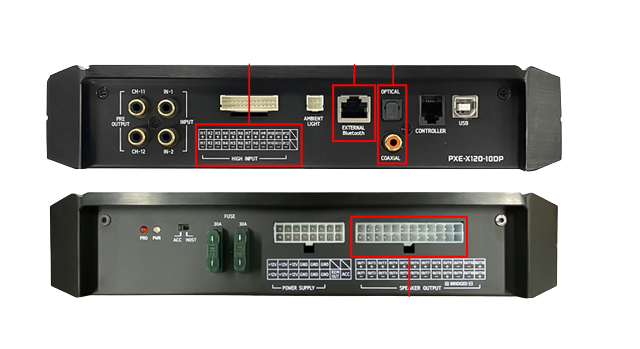

Alpine PXE-X120-10DP Sound Processor Support BMW-Series. Alpine Exclusive Sound System For BMW Series! Sound Tuning By Alpine Sound Specialist. 12-CH &Output Support Subwoofer. Built-In High-Power Amplifier.
Dynamic range
-
≥100dB
Signal to noise ratio (RCA)
-
≥100dB
Background noise
-
High level CH1~CH4: 58uVrms, CH5~CH8: 113uVrms,
-
CH9~CH10: 115uVrms; RCA: 8.8uVrms
Channel resolution
-
≥80dB
THD
-
≤0.01%
Input voltage
-
High level: 30Vpp; RCA: 6.5Vpp
Output voltage
-
High level CH1~CH4: 28Vpp, CH5~CH8: 40Vpp,
-
CH9~CH10: 58Vpp; RCA: 8Vpp
Rated power
-
CH1~CH4: 25W, CH5~CH8: 50W,
-
CH9~CH10: 100W (4Ω, 14.4V, 1kHz, 10%THD),
-
Bridging CH9~CH10: 1CH×200W (4Ω, 14.4V, 1kHz, 10%THD)
Maximum power
-
CH1~CH4: 50W, CH5~CH8: 100W,
-
CH9~CH10: 200W (4Ω, 14.4V, 1kHz, 10%THD),
-
Bridging CH9~CH10: 1CH×400W (4Ω, 14.4V, 1kHz, 10%THD)
Input/output sensitivity (RCA)
-
1:1.23 (no power amplification)
Frequency response
-
20Hz 〜 20kHz
System sampling rate
-
48kHz/24bit
Input impedance
-
High level: 18Ω; RCA: 15kΩ
Output impedance
-
51Ω
Working voltage
-
9〜16V
Quiescent current
-
≤3mA (in off state)
Stand-by power consumption
-
≤0.1W
REM startup input
-
High level (H1-/H1+), ACC optional
REM startup output
-
12V (0.2A)
Startup time
-
10s
Operating ambient temperature -20~60°C
Storage temperature
-
-40~85°C
Net weight
-
3.9kg
Dimensions
-
250mm×234mm×50mm
