Alpine PXE-X120-8 | 12-Channel Hi-Res Car Digital Audio Processor | Built-In Amplifier | Bluetooth

The Alpine PXE-X120-8 is a 12-channel, high-resolution digital sound processor (DSP) with a built-in amplifier, designed to upgrade and fine-tune car audio systems. It offers extensive tuning capabilities via PC or smartphone app, matrix input summing, and a variety of input/output options.

Key Features and Specifications

High-Resolution Audio: Supports Hi-Res Audio with a sampling rate of 96kHz/24bit and a frequency response of 20Hz ~ 40kHz, ensuring high-fidelity sound reproduction.

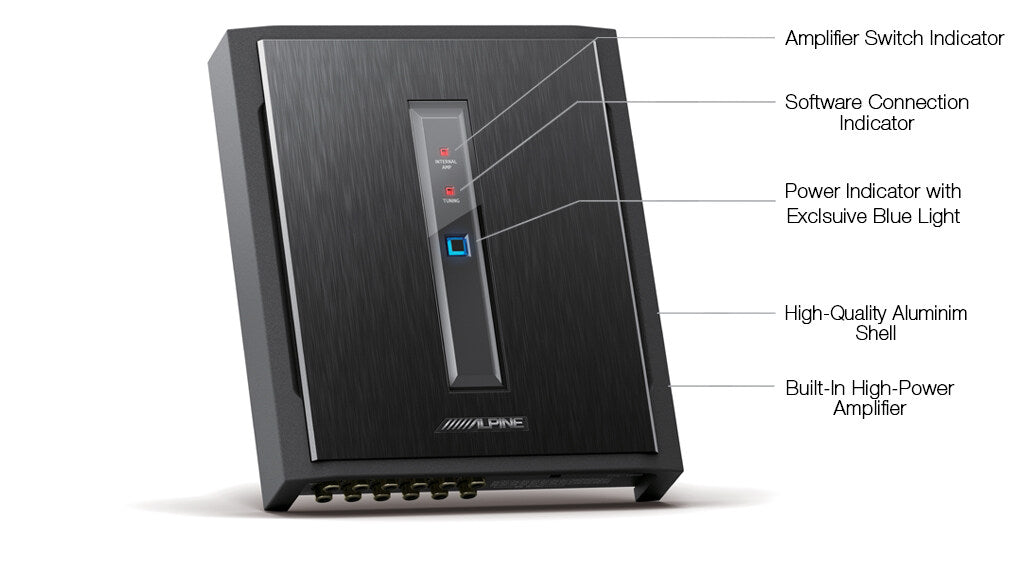

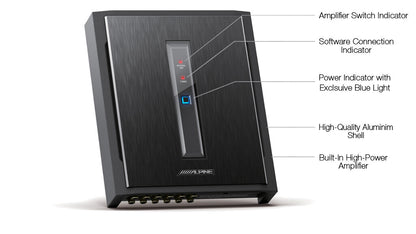

Built-in Amplifier: Features an integrated amplifier providing 4 channels x 25W RMS + 4 channels x 50W RMS for powering speakers directly.

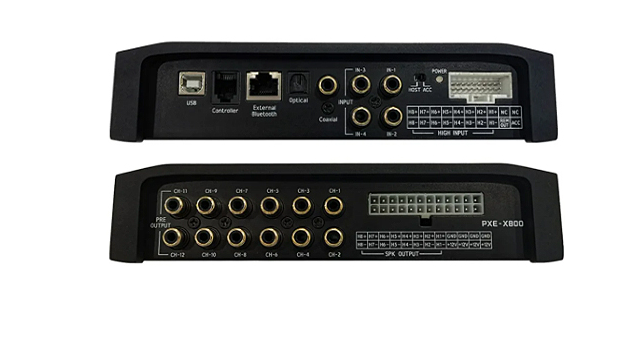

Extensive Connectivity:

Inputs: 12-channel high-level, 2-channel RCA, HD Bluetooth, optical, and coaxial digital inputs.

Outputs: 8-channel high-level, 12-channel RCA pre-outs.

Advanced Audio Tuning:

Equalizer: 31-band parametric or graphic EQ per channel, with adjustable frequency, Q value, and gain.

Crossover: High-pass, low-pass, and band-pass filters per channel with selectable slopes (12dB to 48dB/octave).

Time Correction: Up to 20ms of time delay per channel for precise sound staging.

Phase Adjustment: 0 or 180-degree phase adjustment per channel.

Matrix Summing: Allows summing of input signals to manage complex factory audio systems.

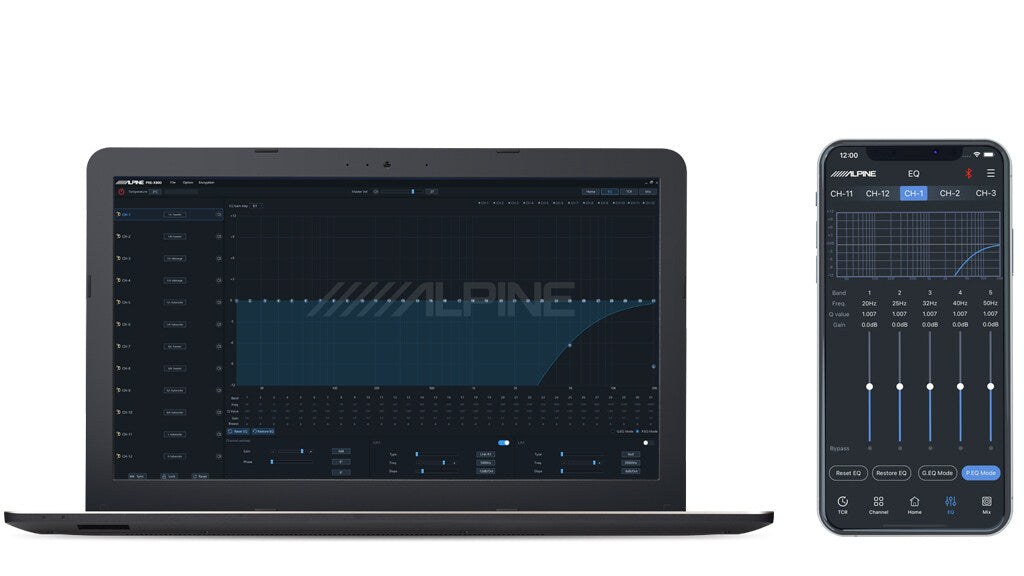

Control Interface: Sound tuning is done through a dedicated PC software or the "Alpine Music" smartphone application (iOS/Android).

Mix Source Feature: Automatically switches audio sources based on signal sensing, useful for integrating navigation prompts over music.

Specification

Frequency response

20Hz ~ 40kHz

Inputs

12-channel high-level

2-channel RCA audio

Built-in AMP

Optical / Coaxial

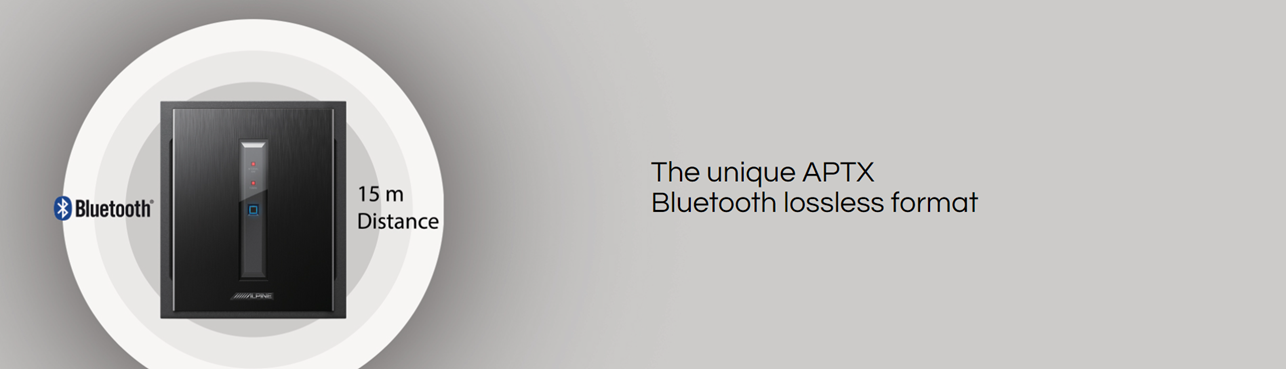

HD Bluetooth 5.0 (aptX)

Outputs

CH1 ~ CH4: 25W RMS, CH5 ~ CH8: 50W RMS (4Ω, 14.4V, 1kHz, 10% THD)

CH1 ~ CH4: 50W Max, CH5 ~ CH8: 100W Max (4Ω, 14.4V, 1kHz, 10% THD)

12-channel RCA pre-outs

Sampling Rate: 96kHz / 24Bit

Sound & Tuning

31 Bands parametric EQ

31 Bands graphic EQ

Time correction (up to 20ms / ch)

Crossover: HPF / LPF / Bandpass (Slope 12/18/24/30/36/42/48 dB)

Matrix input summing

PC and Smartphone App (iOS/Android) control

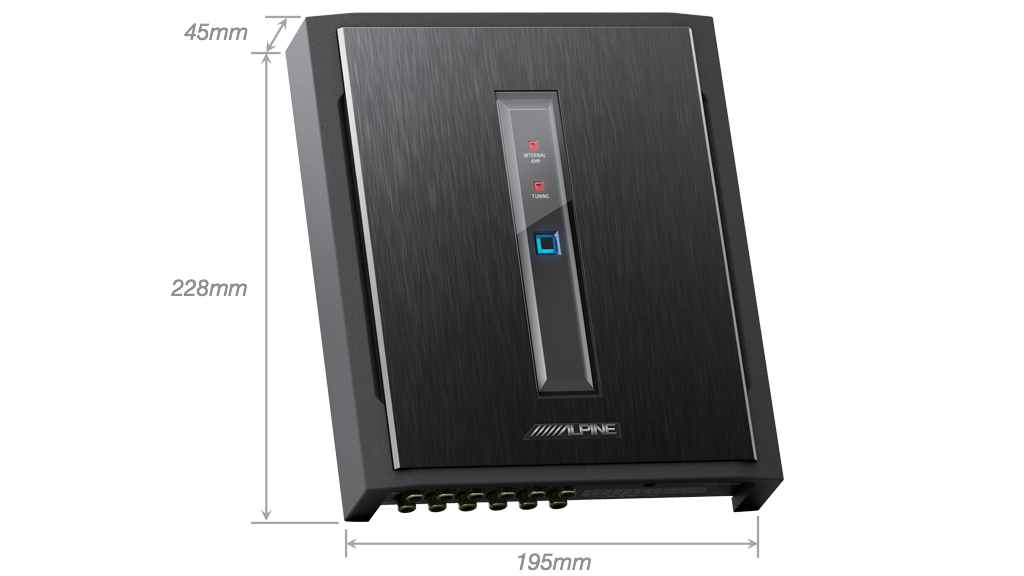

Dimension

228.2mm x 194.5mm x 45mm
