Alpine R2-A75M R2-Series mono subwoofer amplifier — 750 watts RMS x 1 at 2 ohms

Powerful, realistic bass

Alpine Authorized Online Dealer

If you like your music loud and clear, Alpine's R-Series R2-A75M amplifier is for you. It cleanly reproduces the bass in your music so you can enjoy the enhanced realism you want, even when you're playing high-res music. Alpine has built some of its top-of-the-line amplifier technology into this R2-Series amp, including high-efficiency transformers, premium low-noise custom capacitors, and low-distortion dual "Sierra" feedback/correction circuitry.

How much power?

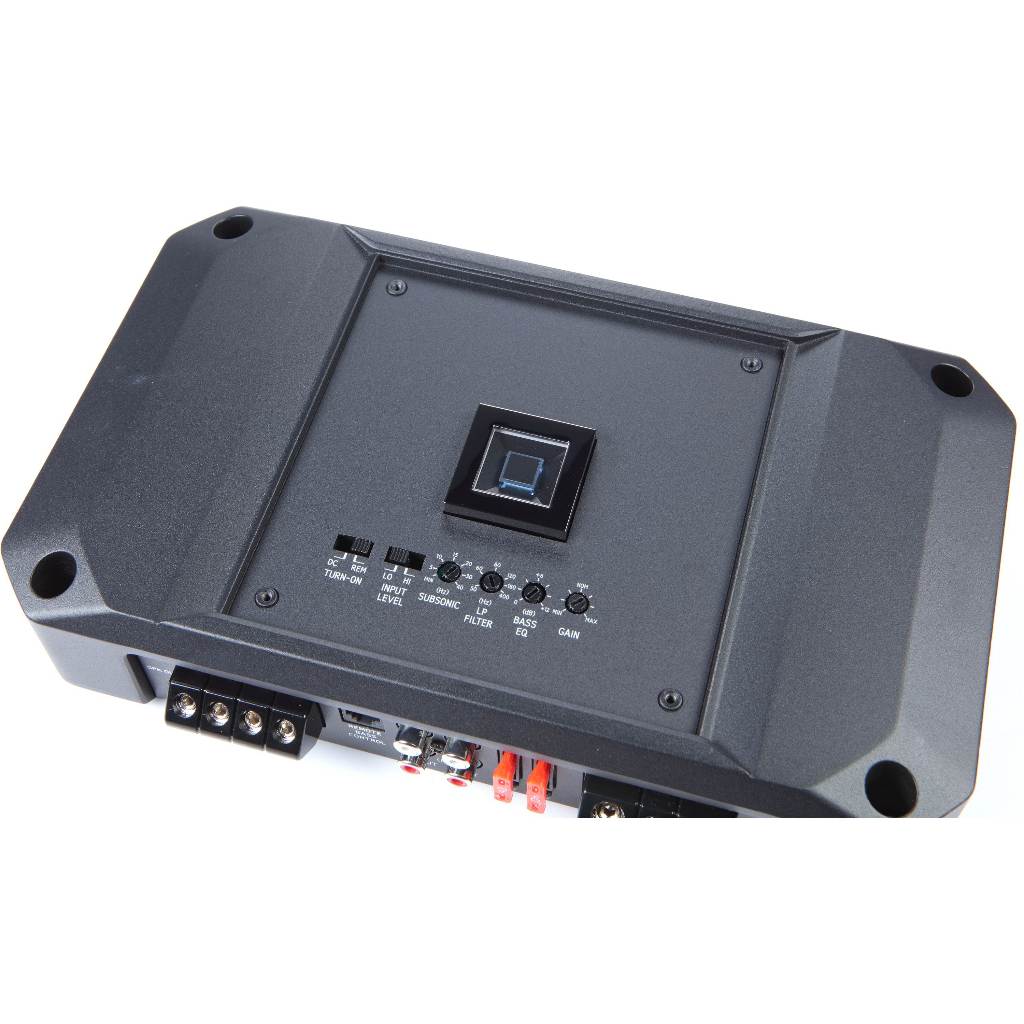

The R2-A75M mono subwoofer amplifier produces up to 750 watts RMS, making it a perfect match for an Alpine R-Series subwoofer. Advanced Class D amp technology makes this powerful amp small enough to fit almost any location. You can adjust the amp's low-pass filter, bass boost, and subsonic filter to get just the right bass tone. Plus, you can add the optional RUX-KNOB.2 remote bass knob to control your bass from the dash.

Description:

●mono subwoofer amplifier

●500 watts RMS x 1 at 4 ohms

●750 watts RMS x 1 at 2 ohms

●variable low-pass filter (50-400 Hz, 24 dB/octave)

●variable bass boost (0-12 dB at 50 Hz)

●variable subsonic filter (8-40 Hz, 24 dB/octave)

●optional RUX-KNOB.2 wired remote level control

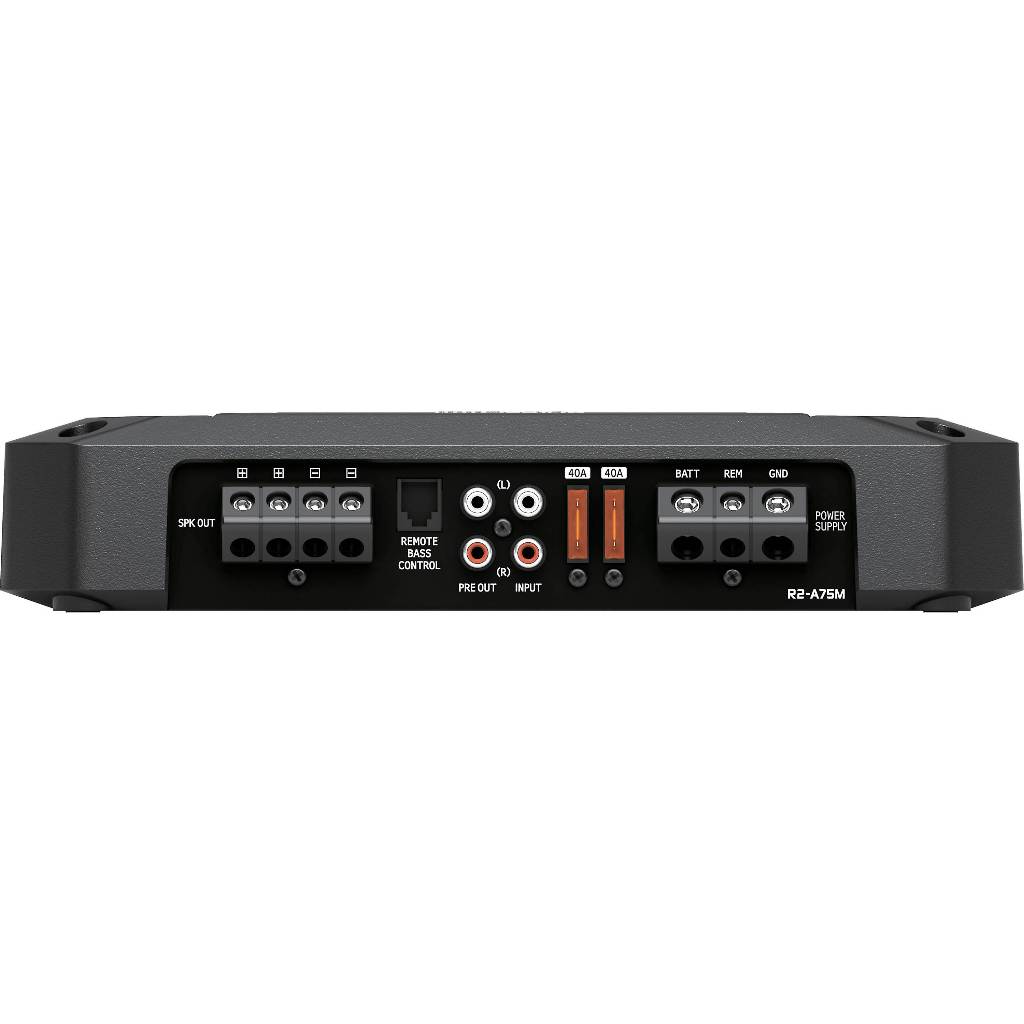

●preamp and speaker-level inputs

●speaker wire to RCA adapter required for speaker-level input

●preamp outputs

●wiring and hardware not included with amplifier

●4-gauge power and ground leads recommended

●fuse rating: 40A x 2

dimensions: 11.12"W x 2.23"H x 6.91"D

warranty: 1 year

What's in the box:

Alpine R2-A75M owner's manual

●Mono subwoofer amplifier (two 40A ATO fuses installed)

●Four 1" pan-head screws

●3mm Allen key

●2.5mm Allen key

●Owner's manual (En/ Sp/ Fr/Others)

●Alpine Verification Certificate

●Warranty information

●Power supply note
