Alpine R2-S69 Next-Generation 6x9” (16 x 24cm) COAXIAL 2-WAY R-SERIES SPEAKERS

R-Series speakers are engineered to deliver prodigious power while maintaining extreme sound clarity for a totally exciting sound. They provide high power output and handling, wide frequency response, and powerful bass. The R-Series line includes component and coaxial speakers, subwoofers and for the first time, amplifiers.

The New 2022 R-Series Speakers

Alpine's Legendary R-Series Speakers enter the 3rd generation and are designed with innovative materials to deliver more output and sound simply amazing. You can choose between a professional and standard speaker line to fit your desired sound quality and budget.

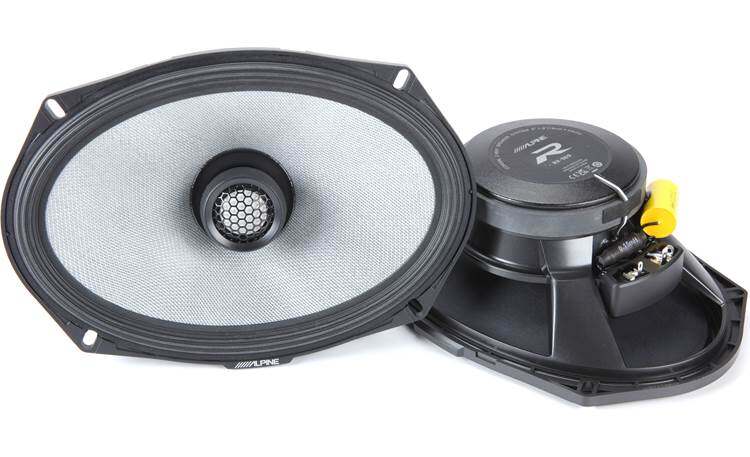

6x9” 2-Way Coaxial Speaker

The R2-S69 is the 6x9” 2-Way Coax model of the new 2022 R-Series speaker line-up. It features a 16 x 24cm door woofer as well as an integrated tweeter with up to 40kHz frequency response.

Glass-Fiber Reinforced Cone

The door woofer features an all-new glass-fiber reinforced cone. This material is very stiff and extremely light-weight, resulting in a super-fast response and highly accurate music reproduction.

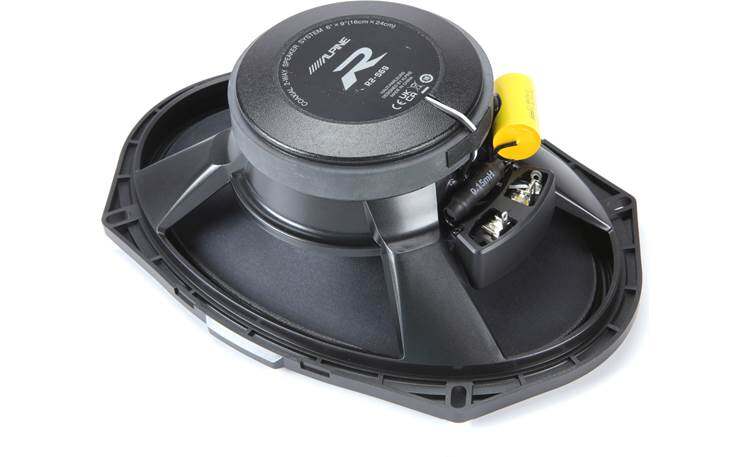

Composite Basket and Large Magnets

The standard models (R2-S69, R2-S69, R2-S69C and R2-S69) feature composite baskets (in comparison to the Aluminum die-cast baskets of the PRO models) – which makes them more affordable. They fit larger magnets than in previous generations (while maintaining the same mounting depth).

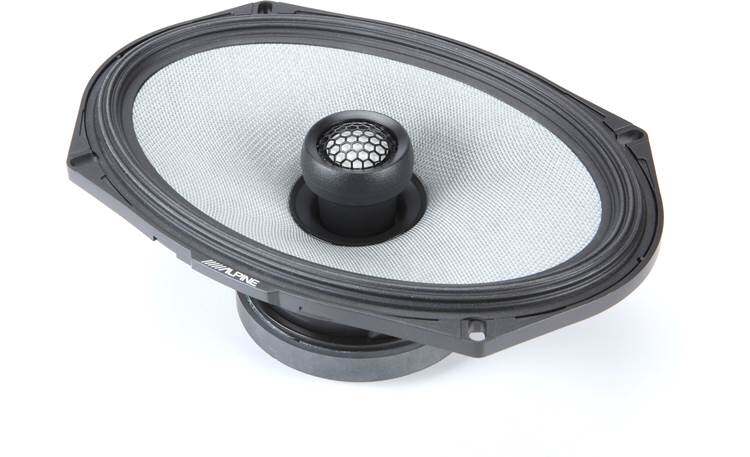

Hi-Res Audio Certified Hard Dome Tweeter

The all-new magnesium hard-dome tweeters deliver clear, detailed music reproduction and play up to 40kHz (Hi-Res Audio). The Coax-tweeters can be swiveled in their housing to point them right at the sweet-spot.

HAMR Surround

Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion.

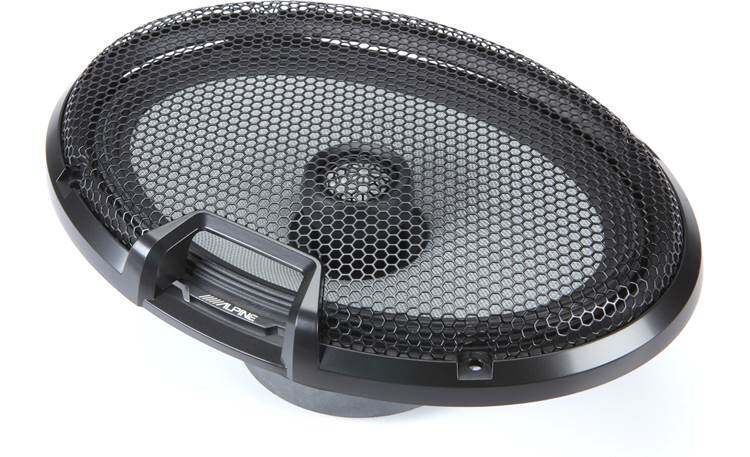

New Speaker Grills

The new speakers grills in hexagon design look very aggressive and do not increase the overall speaker installation diameter.

Speaker type

• 6x9” ​(16x24cm) coaxial 2-way speaker

Frequency response

• 65 Hz - 40 kHz

Power handling

• 300 Watts peak power
• 100 Watts RMS power

Material

• Glass Fiber
• Dust cap
• Plastic frame
• Ferrite magnet

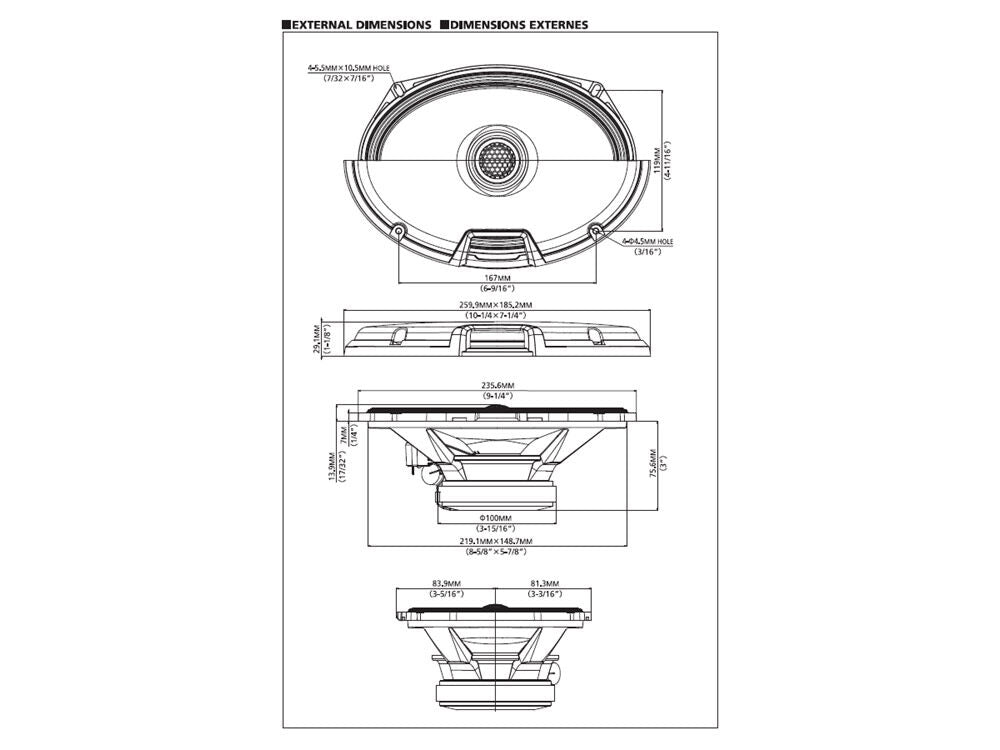

Dimension

• Woofer mounting diameter: 236 x 165 mm
• Woofer mounting depth: 76 mm
