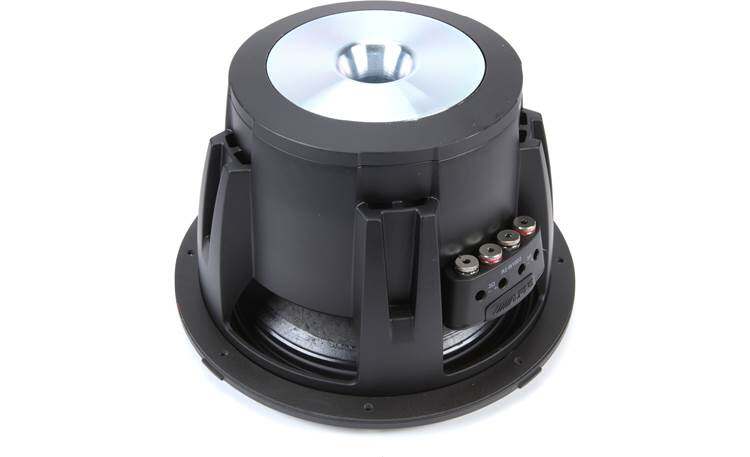

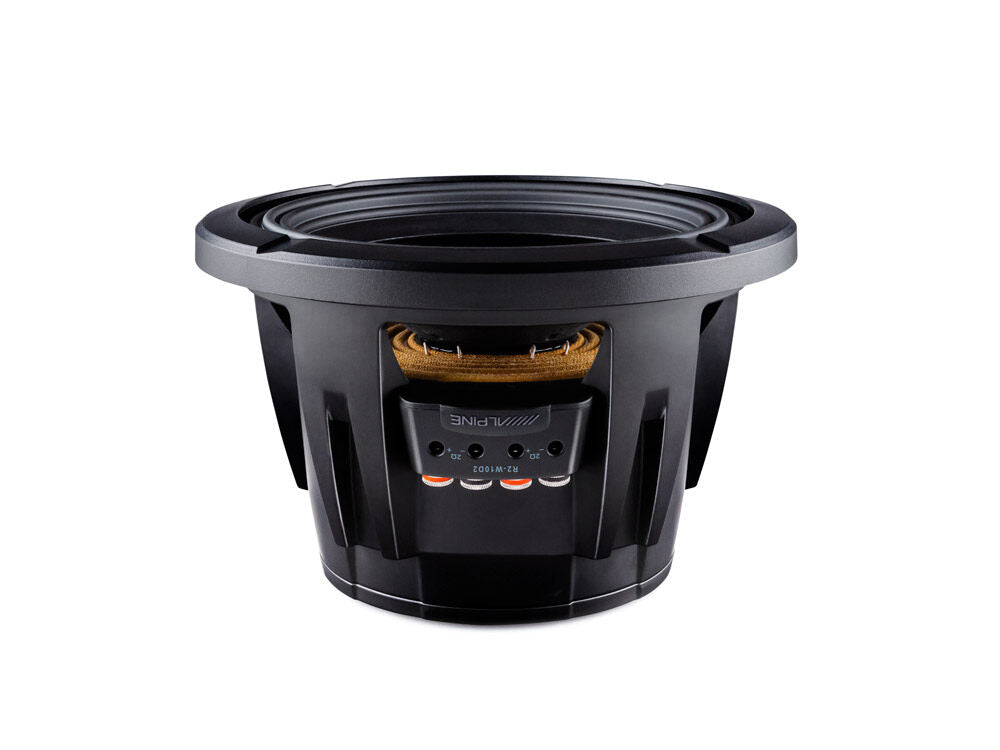

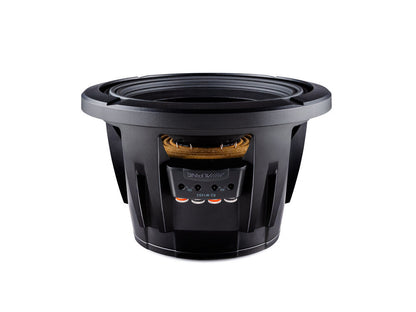

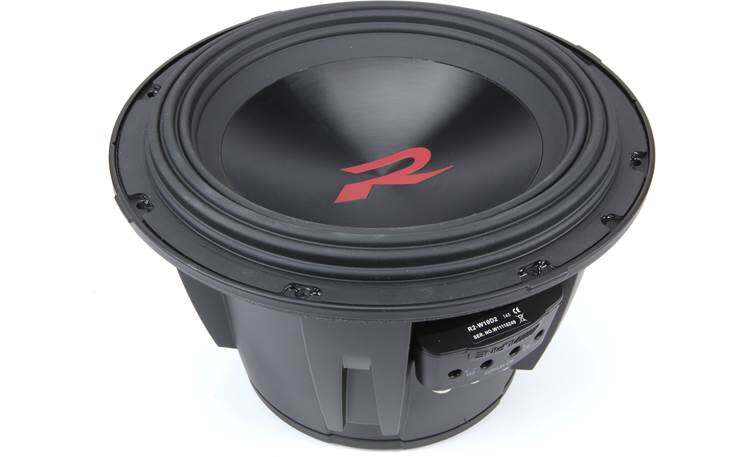

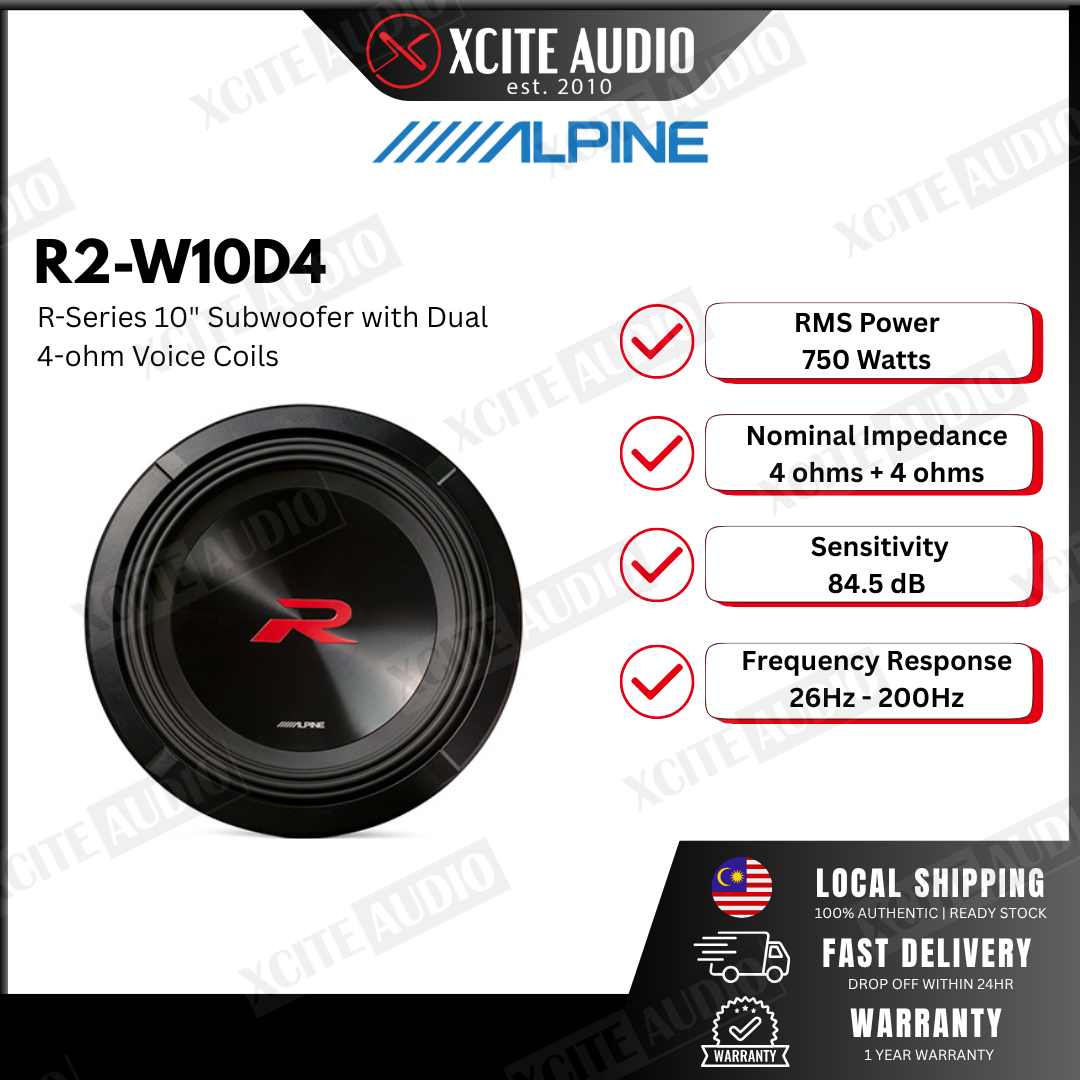

Alpine R2-W10D4 R Series 10" Subwoofer with Dual 4-ohm Voice Coils

The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. the new ceramic dust cap is very light weight and rigid, keeping distortion an absolute minimum. The new, enlarged motor structure ensures better overall woofer control for a clean, strong bass response.

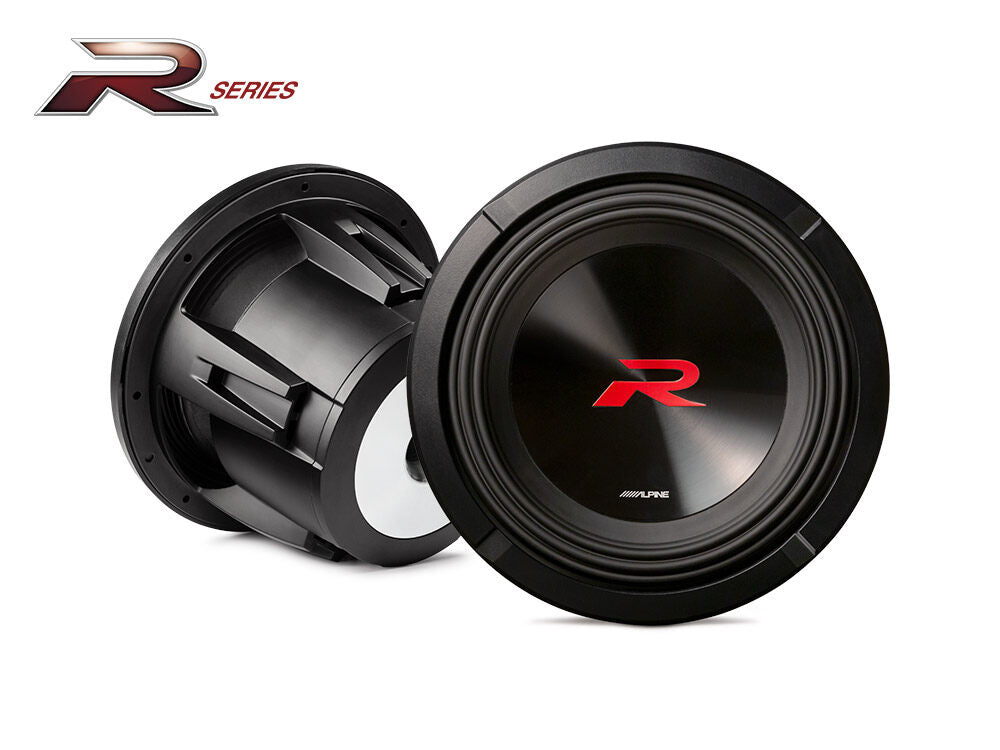

The New 2022 R-Series Subwoofers

The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.

New Motor Structure

The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.

Next-Gen Sound Performance

Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.

Additional Reliability

A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non-stop bass performance.

Flexible Application

The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for additional protection to the cone.

Increased Accuracy

These subwoofers feature Alpine’s High Amplitude Multi-Roll (HAMR) Surround technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.

Sizes & Variations

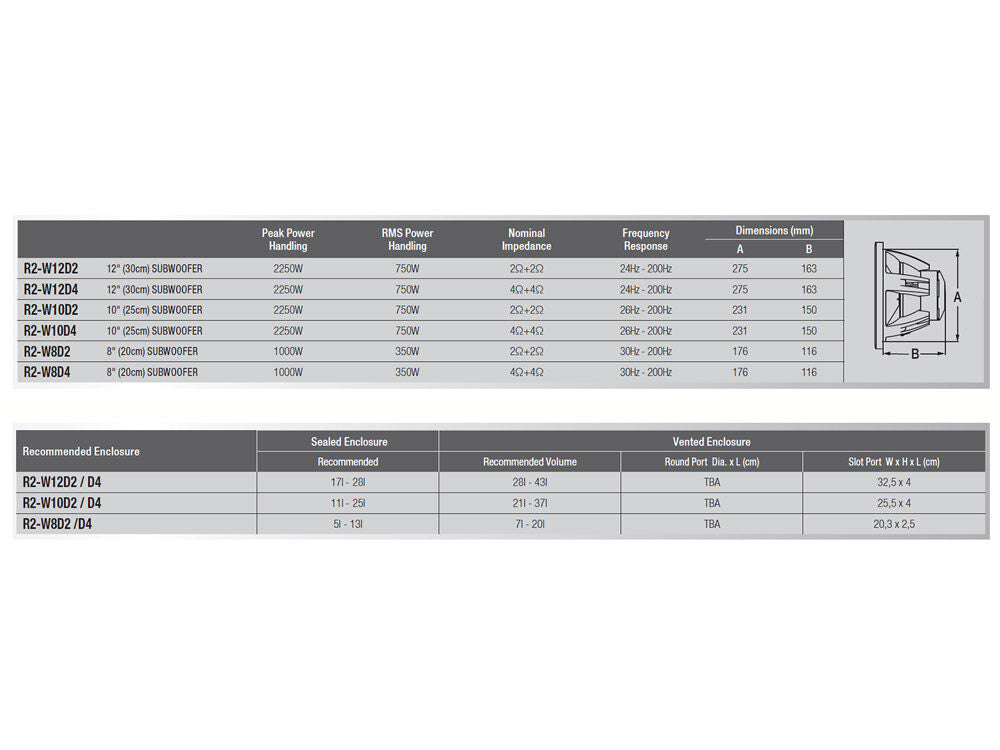

The new R-Series subwoofers are available in 12”, 10” and 8” size configurations and come in dual 2Ω and dual 4Ω impedances.

Product highlights:

• 10" subwoofer with dual 4-ohm voice coils
• Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
• frequency response: 26-200 Hz
• power handling: 300-750 watts RMS (375 watts per coil)
• peak power: 2250 watts
• sensitivity: 82.3 dB

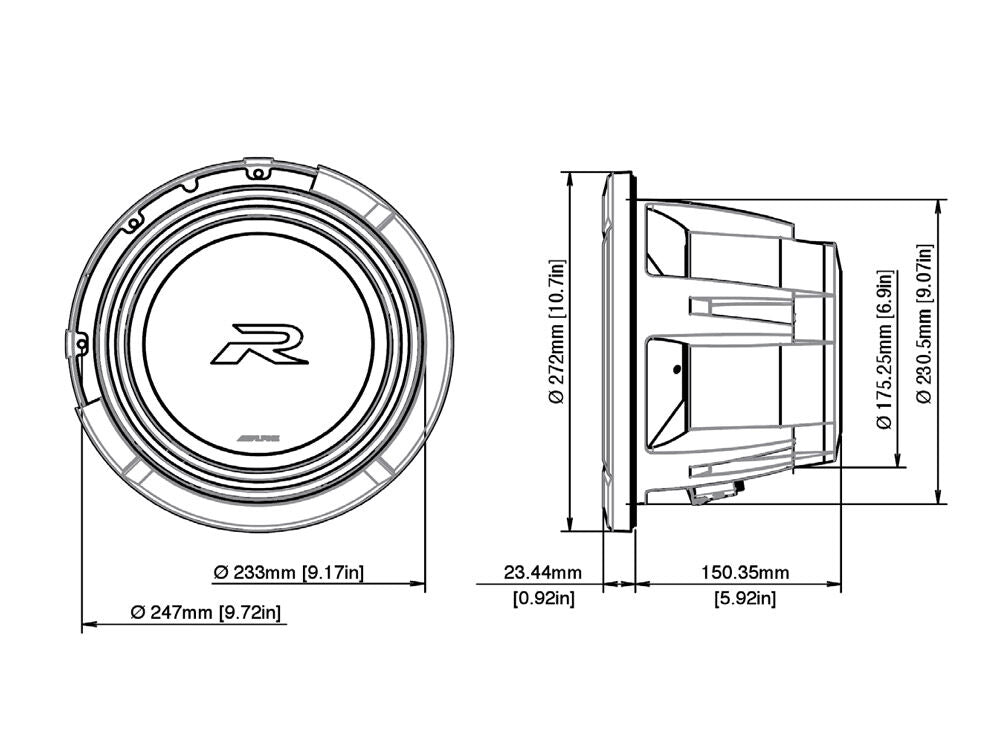

• top-mount depth: 5.975"
• mounting height: 0.8"
• sealed box volume: 0.48-0.93 cu. ft.
• ported box volume: 0.83-1.38 cu. ft.
• grille not included
