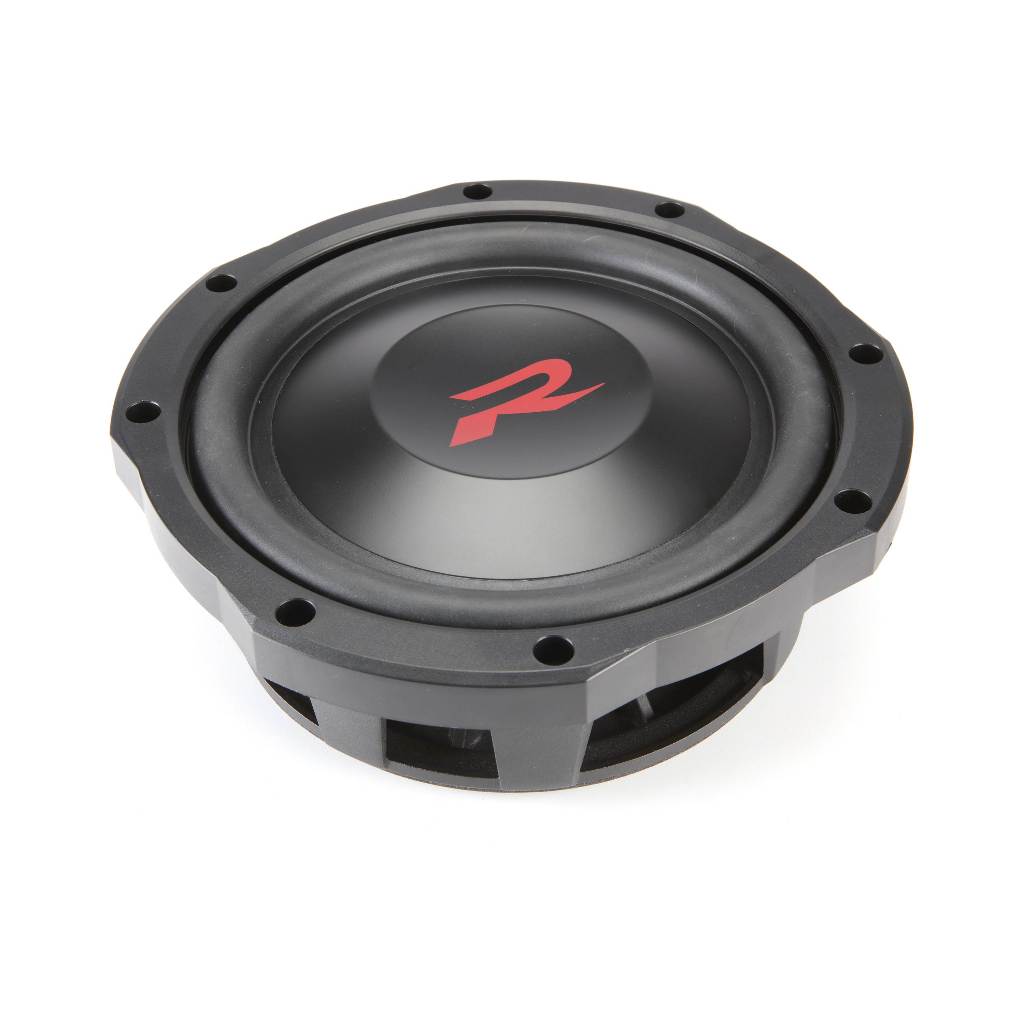

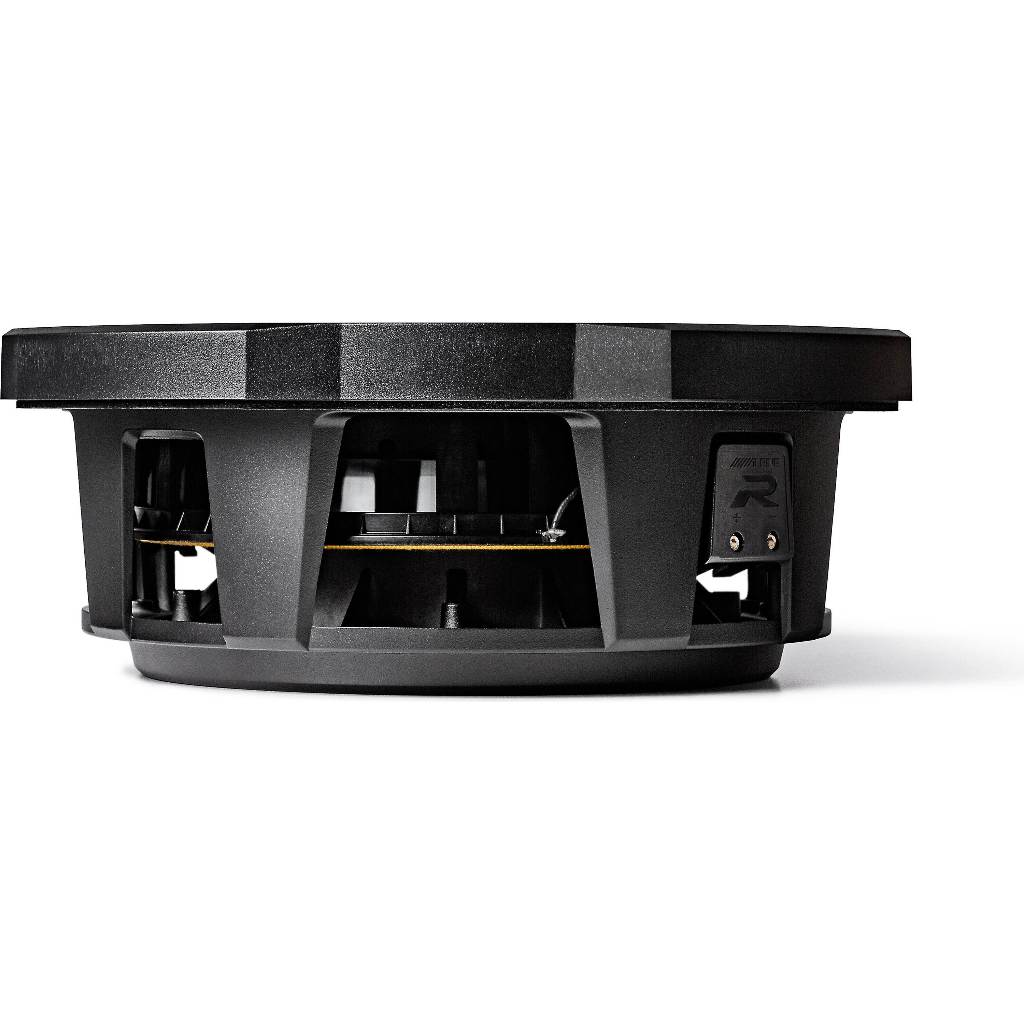

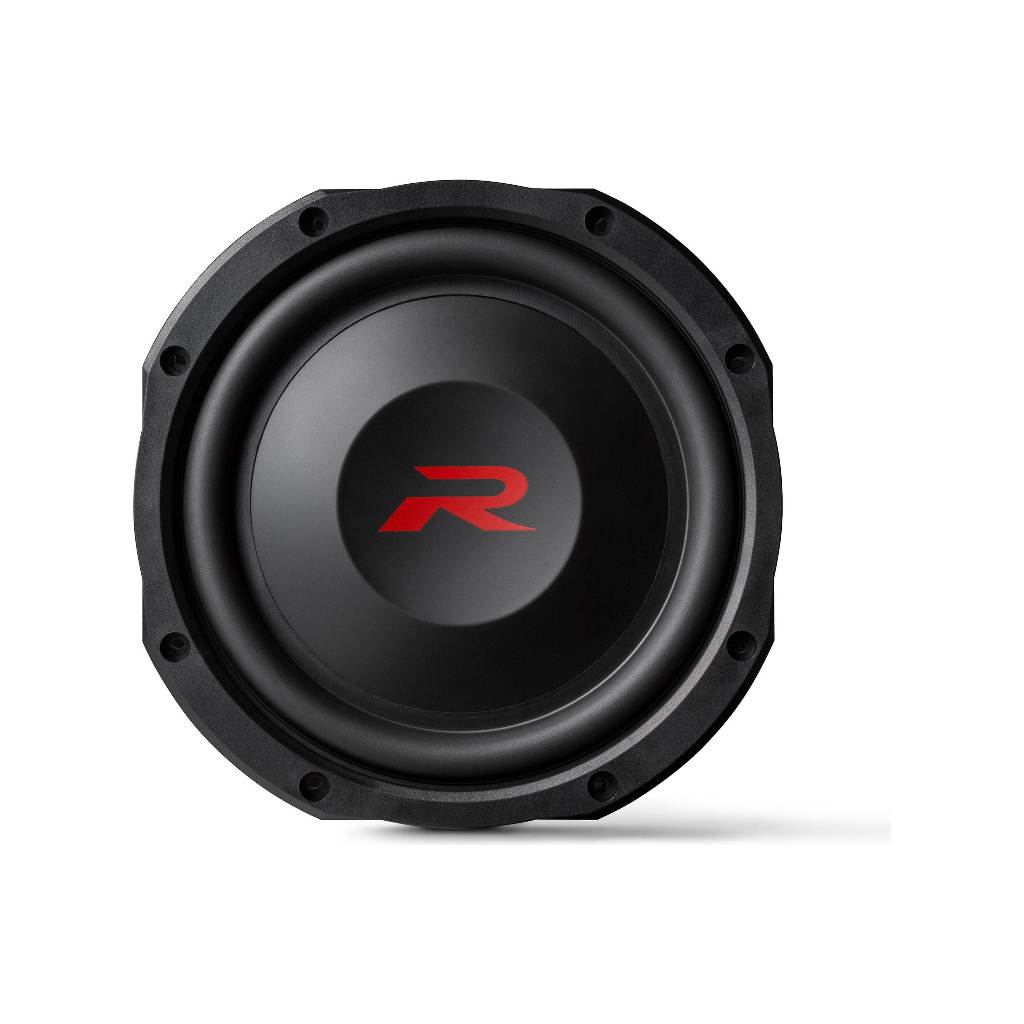

Alpine RS-W10D4 R-Series shallow-mount 10" subwoofer with dual 4-ohm voice coils
Alpine RS-W10D4 R-Series shallow-mount 10" subwoofer with dual 4-ohm voice coils
Couldn't load pickup availability
Shallow-mount upgrade
Alpine's R-Series subwoofers are known for their high power handling and tight response. The new RS-W10D4 shallow-mount sub delivers the same quality in a speaker that'll fit where other subs won't.
Small size, big impact
Built around a solid, cast-aluminum frame, this shallow sub requires a mounting depth of only 3.25 inches. Yet the RS-W10D4's cone excursion is the same as a regular R-Series sub, so you'll enjoy the kind of impact you expect from Alpine.
Fits into your system
This versatile sub sounds great in sealed or ported enclosures. You can wire the dual voice coils for either 2- or 8-ohm total impedance, giving you more wiring options when setting up your system. The sub handles up to 600 watts RMS (1800 watts peak) so make sure you've got a solid amp to power it. Grille sold separately.
Specifications:
●10" shallow-mount subwoofer with dual 4-ohm voice coils
●polypropylene cone with aluminum dust cap and butyl rubber surround
●cast aluminum frame
●frequency response: 25-100 Hz
●power handling: 600 watts RMS (300 watts per coil)
●peak power: 1800 watts
●sensitivity: 78 dB
●top-mount depth: 3.271"
●sealed box volume: 0.49-1.04 cu. ft.
●grille not included
warranty: 1 year
What's in the box:
Alpine RS-W10D4 owner's manual
●One 10" Dual 4-ohm voice coil shallow mount subwoofer

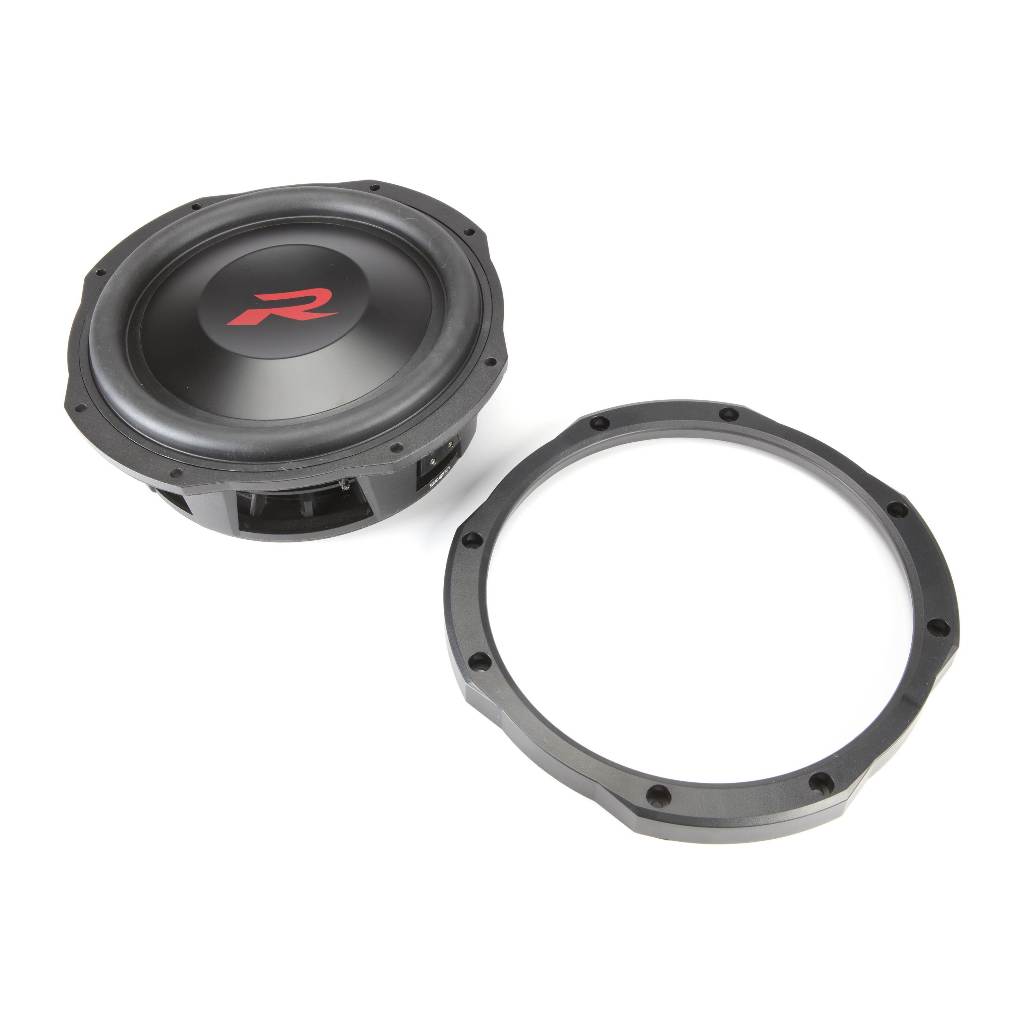

●Plastic trim ring
●Two 18" jumper wires (12-gauge)
●2.5mm Hex key
●Application guide (English/ French)
●Warranty information (English/ French)
●Important Notice (English/ French)
