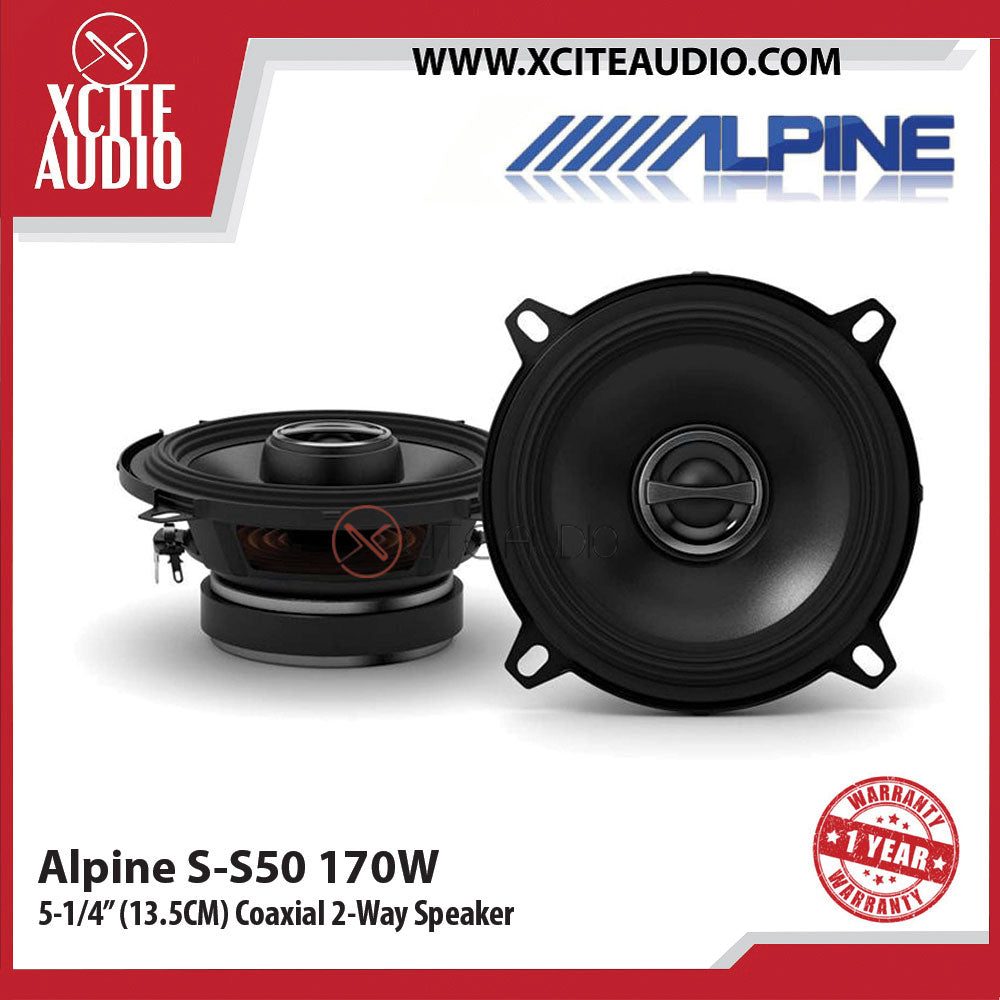

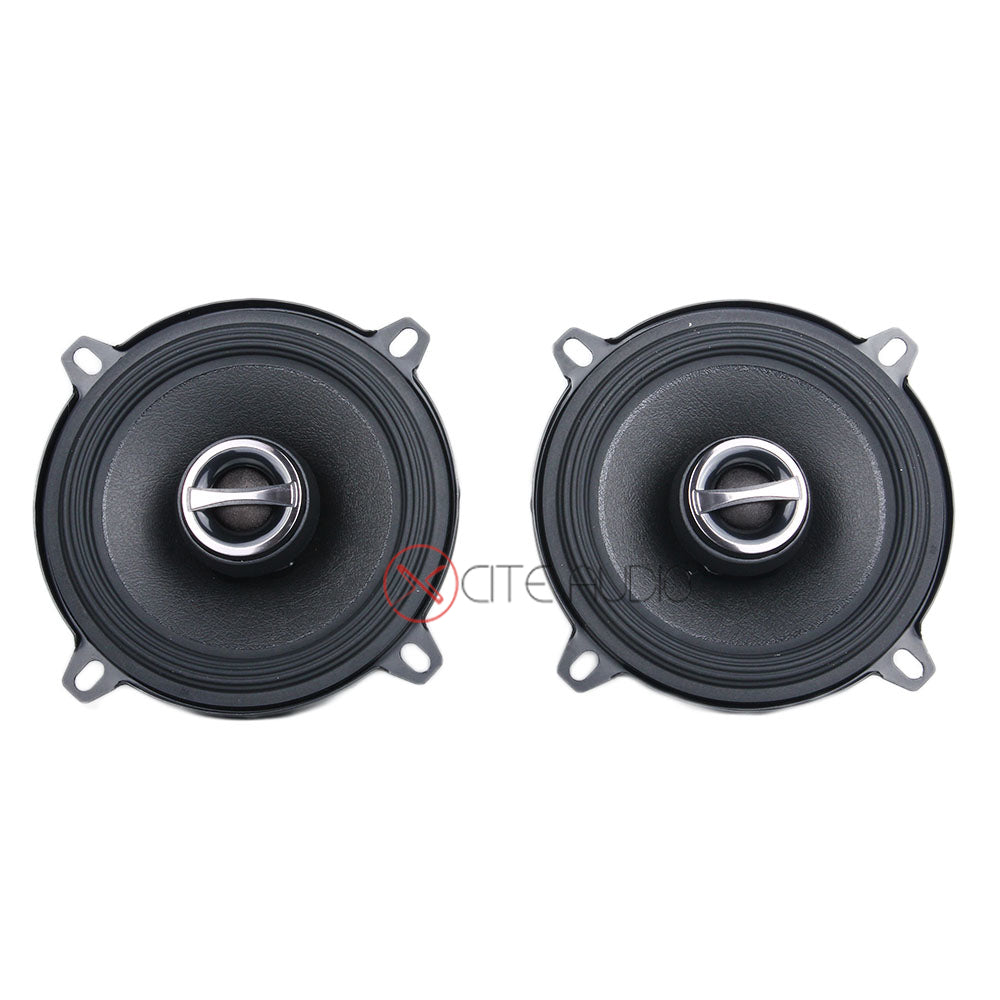

Alpine S-S50 5.25" 2-Way S-Series 170 Watts Coaxial Car Speakers

RM364.00 RM355.00
Unit price  per

Alpine S-S50 5-1/4" 2-Way S-Series 170 Watts Car Coaxial Speakers

The S-Series delivers amazingly high performance for this class of speaker. They boast the world’s first use of a CFRP diaphragm (Carbon Fiber Reinforced Plastic), which has the ideal balance of hardness and light-weight, for extremely clean and accurate sound. They also feature a larger voice coil than previous types for higher driving power, and the same HAMR surround as used on the X-Series.



Introducing the S-Series speaker line
The all-new Alpine S-Series speakers offer an amazing price vs. performance ratio and come in many configurations. They are perfect for OEM upgrades with many sizes to choose from to suit a wide variety of vehicles.



HAMR Surround
Alpine’s patented H.A.M.R. (High Amplitude Multi-Roll) surround is now found on the S-Series speakers. This proven technology increases excursion while maintaining accuracy and linearity. The multi-roll design allows an even unfolding of the surround, which creates incredible linearity and colorization rejection.



Powerful Speaker Motor
The S-Series speakers have a large voice coil. The 6.5-inch and 6x9-inch models for example feature a 35-mm voice coil, and this large voice coil size increases their driving power and control of the motor.

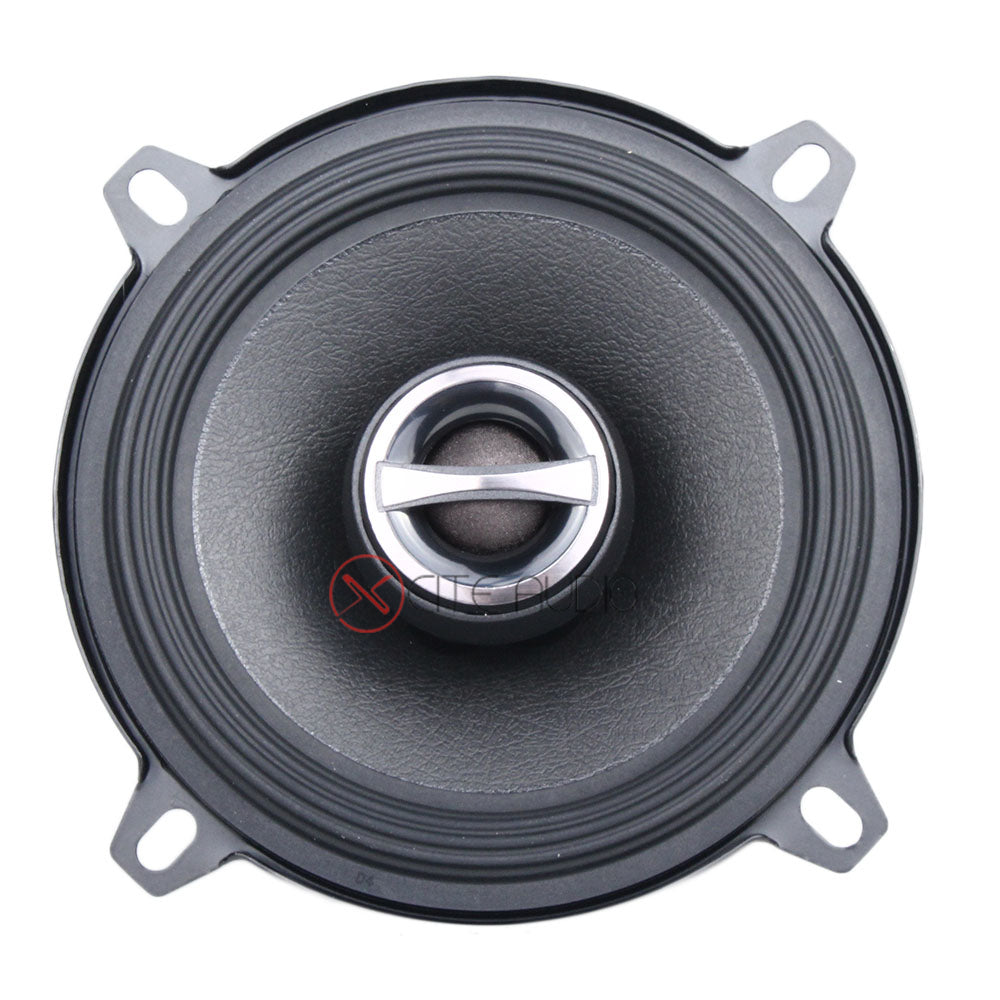

CFRP Cone
The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance.



Features:
Woofer

  • CFRP (Carbon Fiber Reinforced Plastic) cone with spezialised rubber surround
  • HAMR (High Amplitude Multi-Roll) Surround
  • 25 mm Voice Coil
  • Magnet Material: Ferrite
  • Grill sold separately: KTE-S50G

Tweeter

  • Tweeter Type: 1" Wide-Range Silk Dome
  • Magnet Material: Neodymium

Crossover Network

  • Grade: 2nd order Network Design



Specifications

Power Handling

  • Peak Power: 170 Watts
  • RMS Power: 55 Watts (CTA-2031 Compliant)

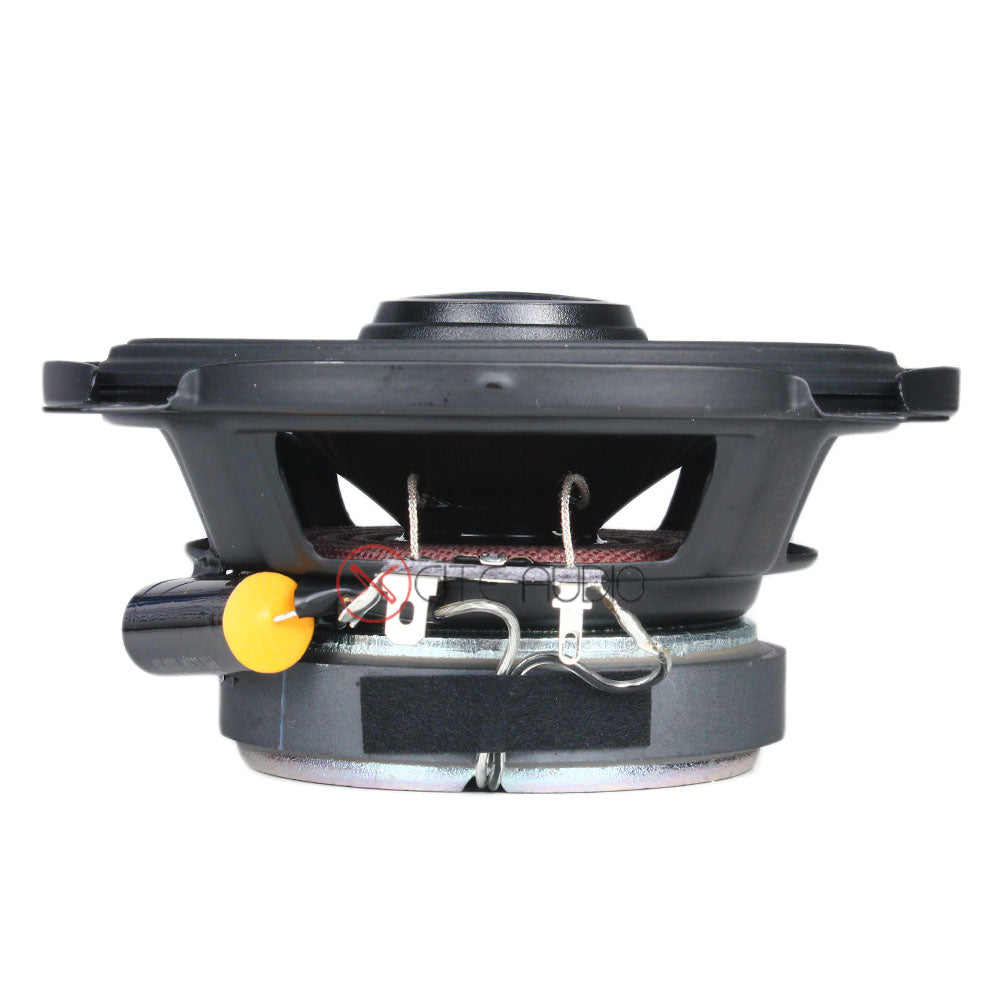

Dimensions Woofer

  • Frame 129 mm
  • Mounting Depth: 49.9 mm
  • Mounting Height: 15.9 mm
  • Magnet: 80.0 mm

General

  • Frequency Range: 80 Hz - 22 kHz
  • Impedance: 4 Ohms
  • Sensitivity: 87 dB/W


Content:

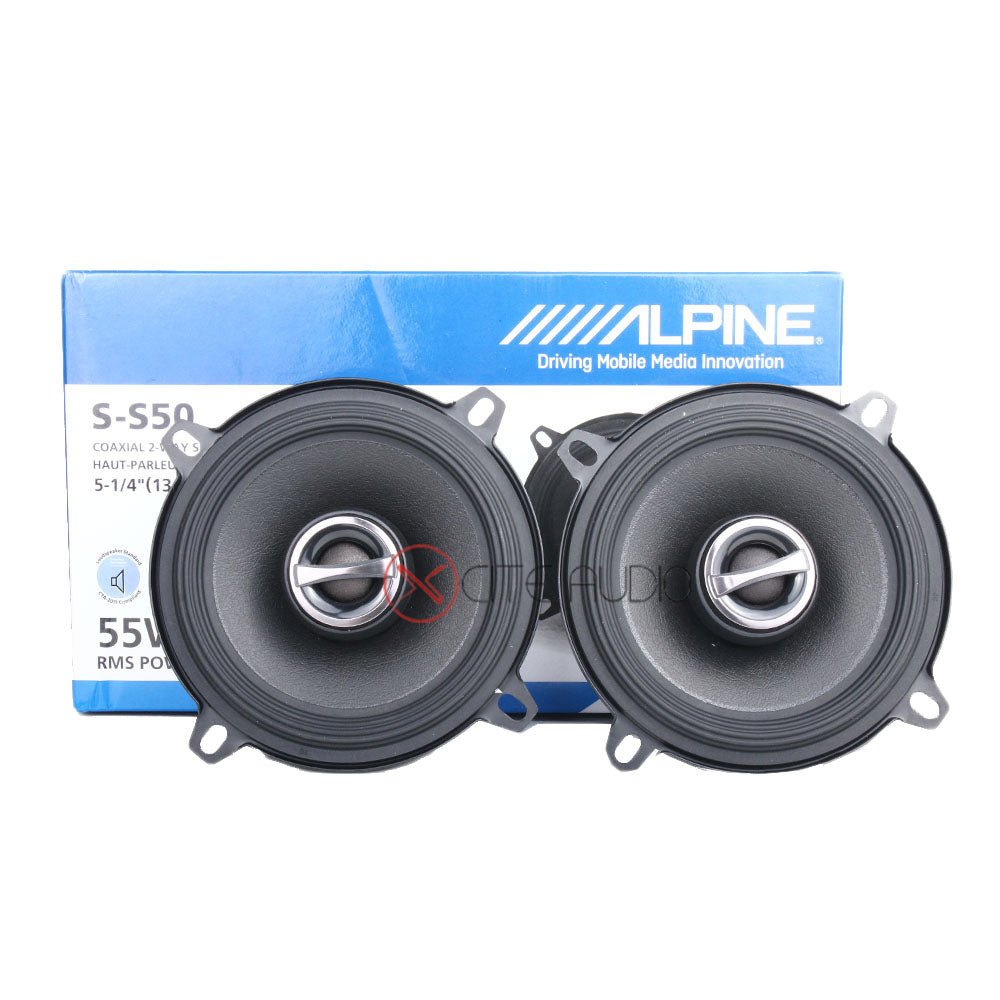

  • 2 x Car Speakers
  • Manual
  • Fitting as per Manufacturer
