Xcite Audio

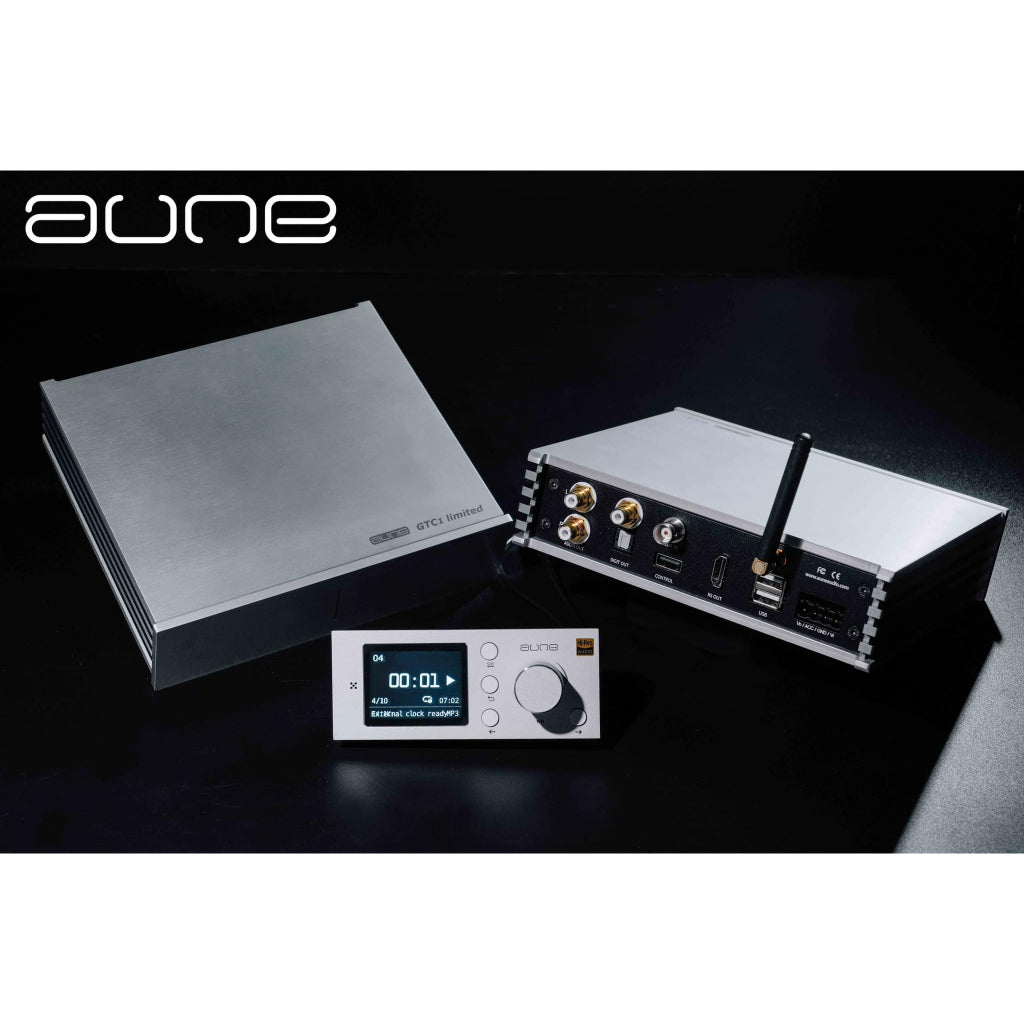

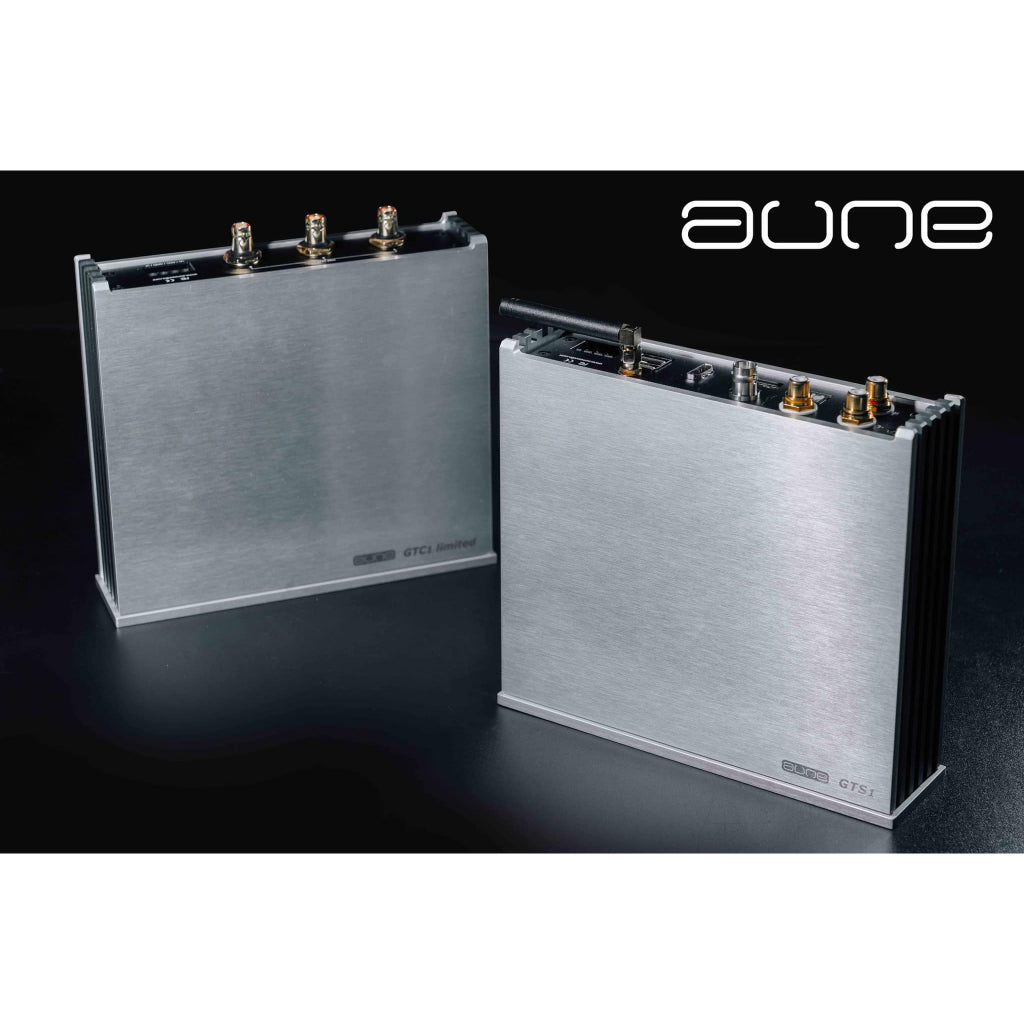

Aune Hi-Res Music Car Audio Players GTC1 Car OCXO Audio Clock & GTS1Hi-Res Music Car Audio Player

Aune Hi-Res Music Car Audio Players GTC1 Car OCXO Audio Clock & GTS1Hi-Res Music Car Audio Player

Regular price RM4,950.00
Regular price Sale price RM4,950.00
Sale Sold out

Aune Hi-Res Music Car Audio Players GTC1 Car OCXO Audio Clock & GTS1Hi-Res Music Car Audio Player

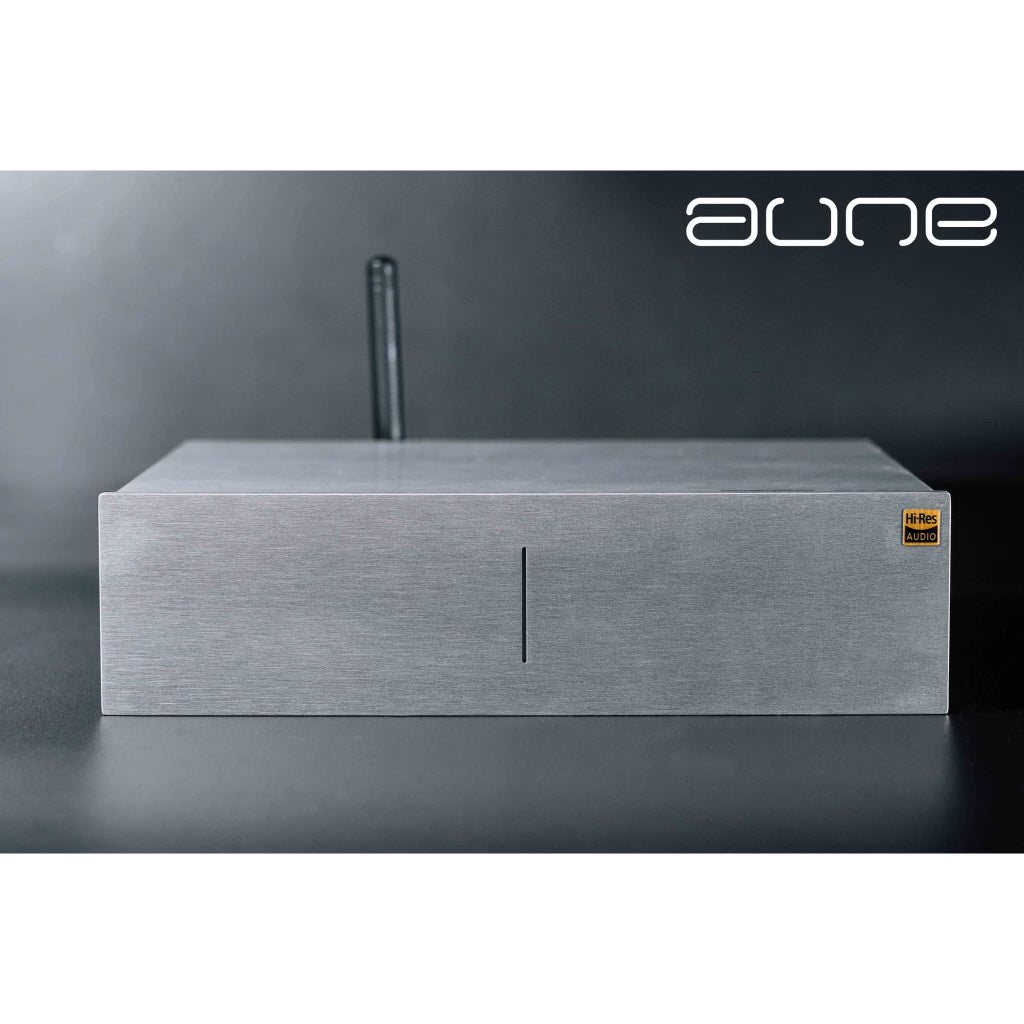

GTS 1 - Hi-Res Music Car Audio Player

- 18 years of experience, supports 32bit/768khz DSD512 format direct read and direct decode (supports 2T mobile hard disk)

- Pure underlying hard-decoding technology, to the purest form of audio playback, and no OS constraint to boot up in one second

- FPGA asynchronous clocking + FIFO reuse technology to create lower jitter and clean digital signals

: Built-in PLL phase-locked loop and support for external master clock input provide a new core for the onboard HIFI system

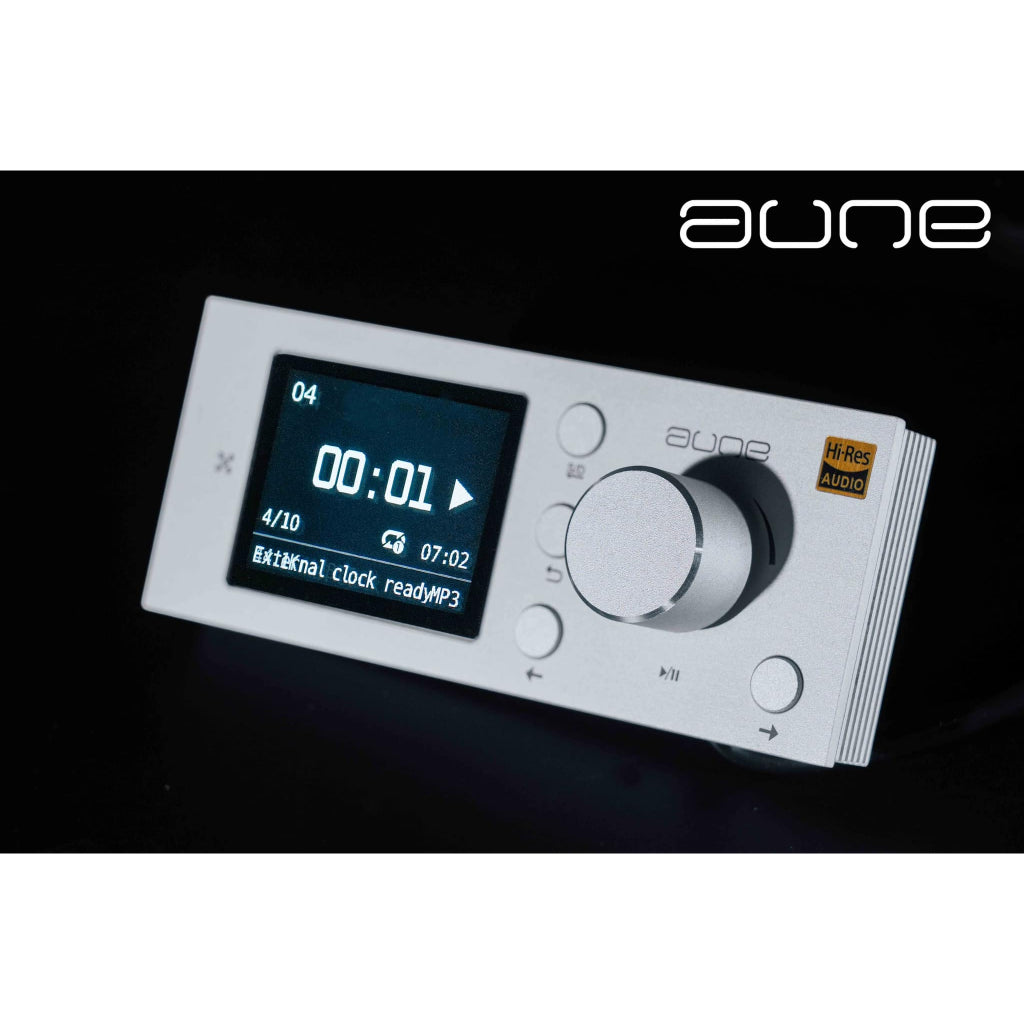

- Supports LDAC / APTX-HD high-definition Bluetooth decoding, external wireless control display technology, and mobile applet control

: Fully isolated power supply technology for onboard environment, with built-in two-stage voltage regulator and positive and negative power supply circuits


GTC 1 - Car OCXO Audio Clock

- OCXO Thermostatic Crystals

The GTC 1 core uses Titansaudiolab clocking technology, a customized high stability / low phase noise thermostat, and other parameters related to sound

quality that are optimized for the system. The high-performing frequency-optimized thermostat core is like a supercar engine, providing constant power to the system.

- Powerful Output Drive

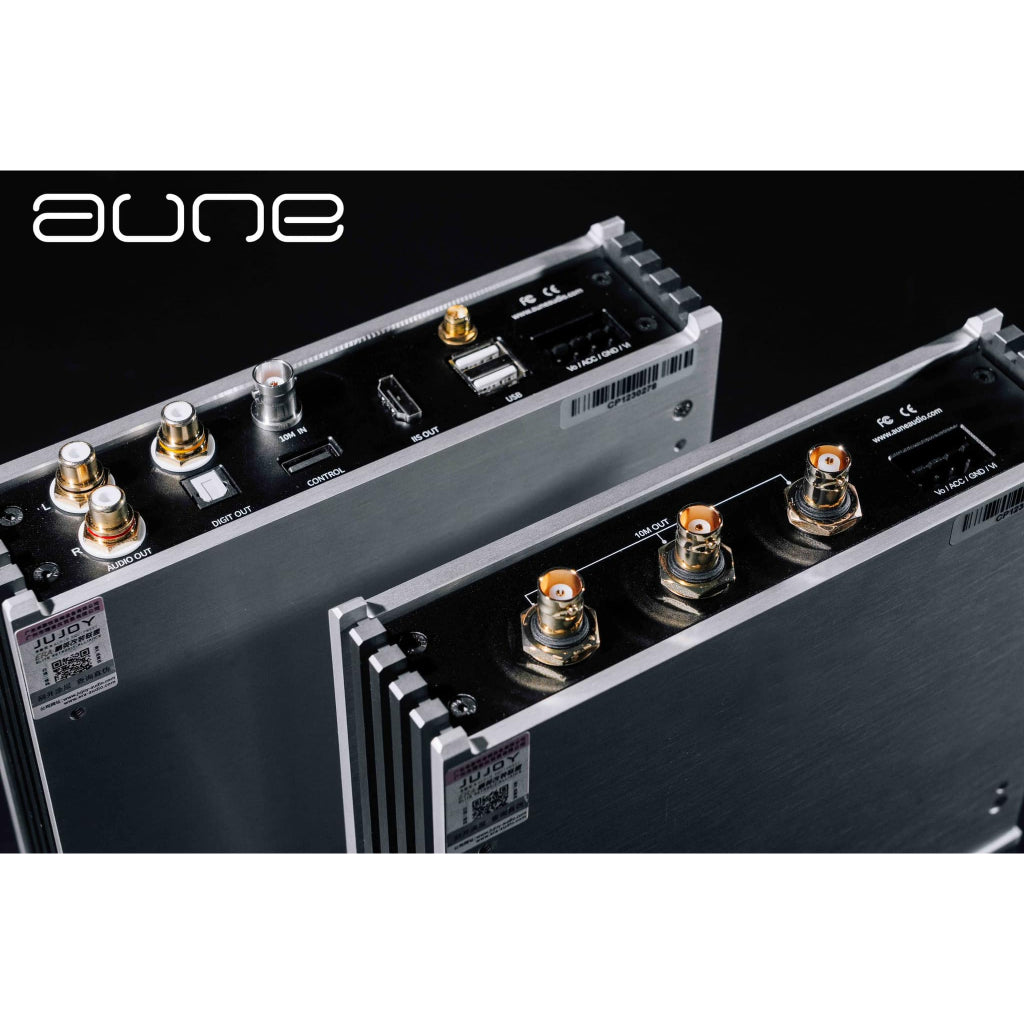

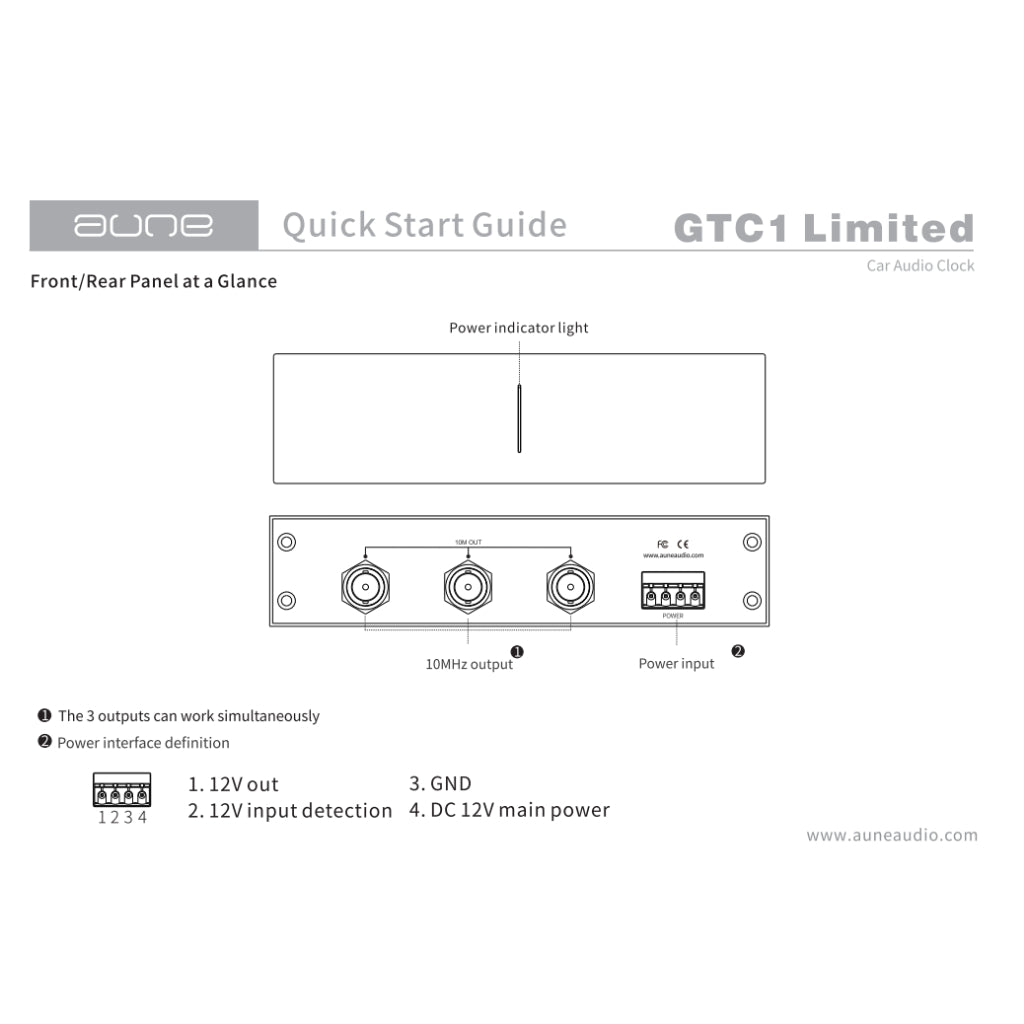

The GTC 1 features three 10MHz outputs using flexibleadaptive-Z technology to provide high performance clock signals for players, decoders, and DSPs simultaneously.

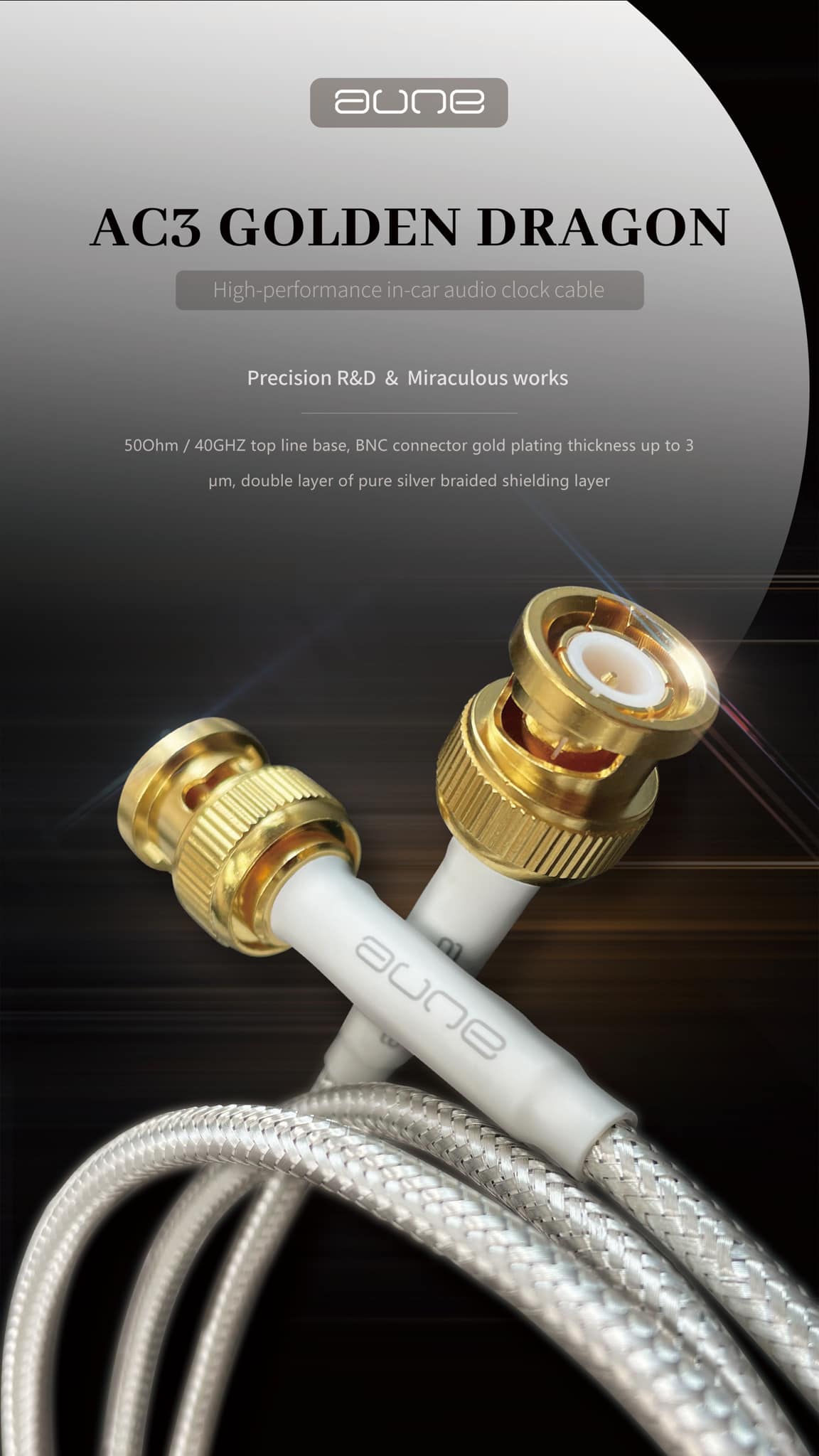

AC3 GOLDEN DRAGON - High Performance BNC Cable

AC3 Golden Dragon sound approval is extremely demanding, first we used home flag- ship floor system as a proofreading benchmark, and then the car equipment GTS 1/2 withGTD 1 for proofreading the final selection, to ensure that the entire car audio system, neutral and natural sound style, to show the original music.



TECHNICAL SPECIFICATIONS (GTS 1 - Hi-Res Music Car Audio Player)

Digital Output:

THD+N & Noise 24bit/192k 1kHz/0dB -141dB

Digital Jitter 199ps

Analog Output RCA

Output Level 2.0 Vrms

Frequency Range +0.5 dB

Digital Jitter 4.6 uV

THD+N & Noise -102 dB

WAV: 16bit | 24bit | 32bit-44.1k / 48k /88.2k /96k / 176.4k /192k /384k /768k WAV+ CUE

FLAC: 16bit | 24bit|32bit -44.1k / 48k / 88.2k /96k / 176.4k /192k /384k level 0-8


APE: 16bit / 44.1k extra High level




Output Frequency 10 MHz*3

QutputPower a > dBm (500)

“OutputWaveform iit LNG SquareWave >

“Waveform RiseTime _<297-00 8 9 9 ine J. iii

“Audio Stability, = SDE “a 8 8 8=—

Phase Noise O/T = gre gS <-100dBc @1Hzoffset

< -130dBc @ 10Hz offset

< -140dBc @ 100Hz offset

< -150dBc @ 1kHz offset

< -158dBc @ above 10kHz offset

Frequency accuracy (ex-factory) < +£0.02ppm

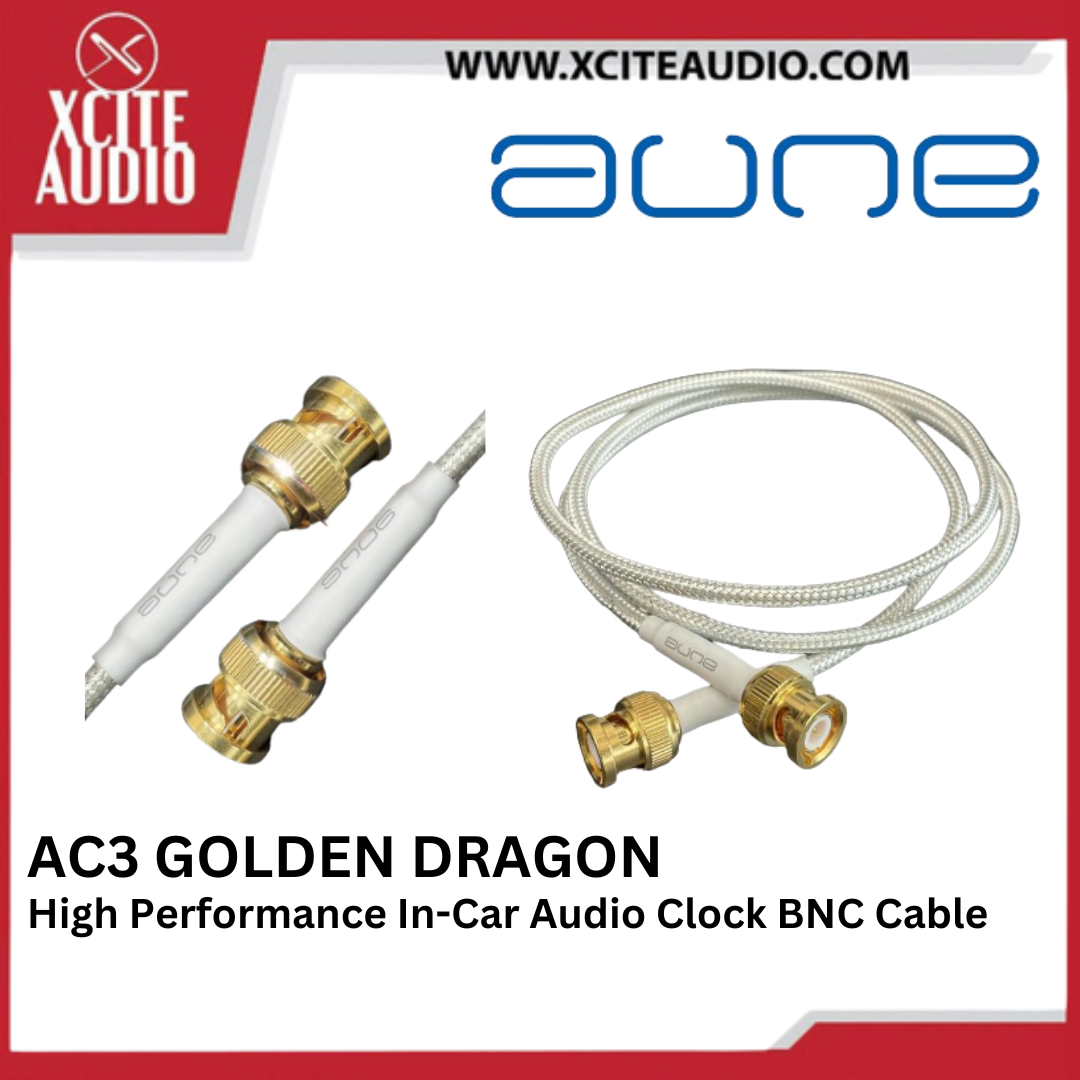

AC3 GOLDEN DRAGON BNC CABLE (optional add on)

-500hm/40GHZ top line base

-3 µm gold plated

-double layer braiding

-pure silver shield insulation


Hi there, you can choose delivery or self-pick up at our store in Ara Damansara. Contact +6019-269 6609 to pick up or more professional car audio advice!

Free Shipping within West Malaysia. We will bubble wrap to protect your goods before shipping.

We will ship out the product within the same working day. If fall on the weekends, we will ship out on Monday.

Need Professional Car Audio Advice? (FREE)

+6019-269 6609

Call or Whatsapp us for professional car audio advice, we don't bite :D

If you want to listen to the live demo of this product, kindly contact us.
