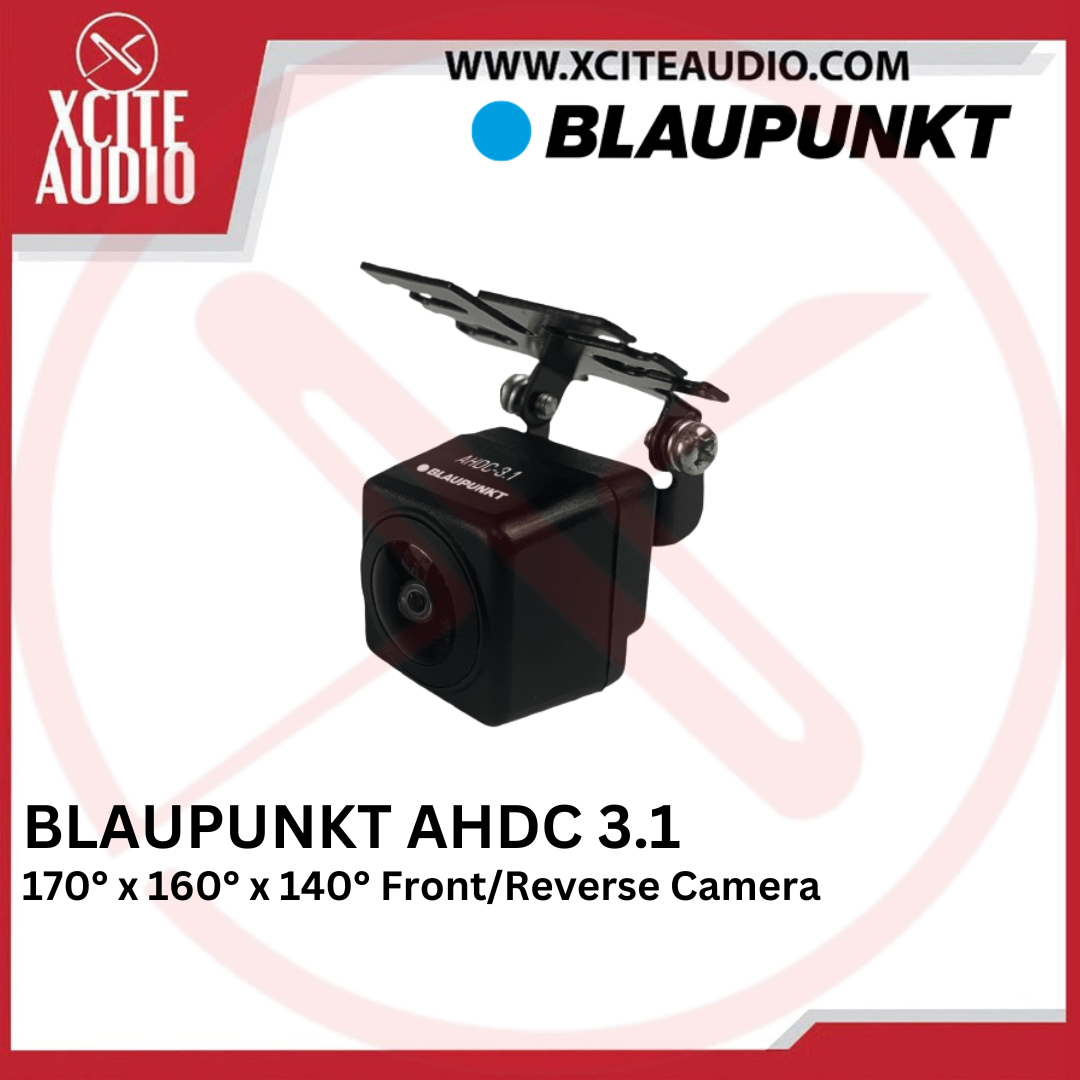

Blaupunkt AHDC-3.1 AHD Car Front/Reverse Camera | 170° x 160° x 140° Ultra Wide Angle | 5-Layer Glass | AHDC 3.1
The beauty of a reverse camera is hidden behind the lens. The Blaupunkt Reverse Camera AHDC 3.1 is intended to function as a backup camera when backing up a vehicle. Furthermore, you will have better visibility of the rear of your vehicle without having to turn your head. The Blaupunkt AHDC 3.1 includes a High-Definition 1920(H) x 1080(V) effective pixel lens, which helps to generate clear visuals on your head unit.
The Blaupunkt AHDC 3.1 can project visuals at 170° horizontal angle of view, reducing blind spots for drivers. Without having to look in any direction, you can easily reverse park your vehicle.
No weather can affect the performance of Blaupunkt AHDC 3.1, even during heavy rain. The reverse camera has an IP 68 water-resistant rating to protect it from water damage.
The Blaupunkt Reverse Camera AHDC 3.1 comes with 5 glasses lenses, which help to increase and improve the camera’s focal range. It is much clearer and sharper than previous models.
Image Sensor : CMOS
TV System : PAL
Effective Pixel : 1920 (H) x 1080 (V)
Image Resolution : 750TVL
Frame Frequency : 25fps
Scanning System : 525 lines, 60 fields/sec
Sync System : Internal
Signal Noise ratio : >52dB
Video Signal : 1.0Vp-p at 75ohm
Exposure Control : Automatic
Gain Control : Automatic
Scope of Electronic Shutter : 1/60~1/100000sec
White Balance : Auto (2500K~9500K)
Illumination Min. : 0.1 Lux/F
Character of Image : Mirror horizontal
Operating Voltage : DC12V (DC9-16V)
Operating Current : 160mA-180mA
Operating Temperature : -20~70°C
Storage Temperature : -30~75°C
Environment Temperature : 90% RH
Viewing Angle : 170° (D), 160° (H), 140° (V)
Water-resistant : IP68
Connector Type : RCA/4 PIN DIN
Lens : 5 glasses
