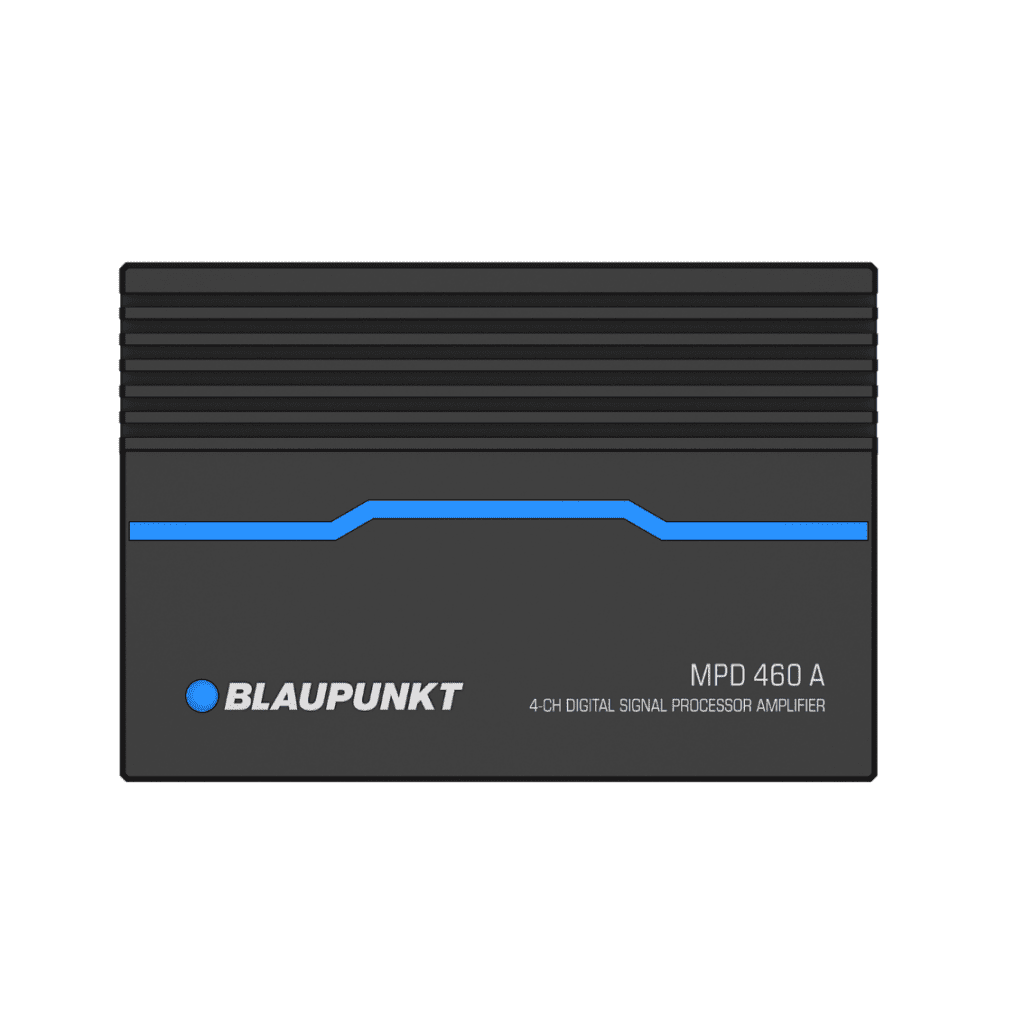

Blaupunkt MPD 460 A Velocity Power Class AB Amplifier with 4-Channel DSP

Blaupunkt MPD 460 A is a Velocity Power Class AB Amplifier with DSP that will blow your mind with its exciting functions. Get more from MPD 460 A by downloading PC Tuner Software to drive more power into your amplifier.

SPECIFICATIONS

Audio

• RMS Power : 25Wx4(4Ω), 40Wx4(2Ω)
• DSP Resolution : 24 Bit
• DSP Power : 48 kHz
• Output Power RMS @ 4 Ohms (≤1% THD +N) : 4x25W
• Output Power RMS @ 2 Ohms (≤1% THD +N) : 4x40W
• Distortion (THD) : <0.005%
• Damping Factor : >70
• Operating Voltage : 10 -14.4V
• Sampling Rate : 48kHz
• Signal Converter A/D : 7210
• Signal Converter D/A : 4344

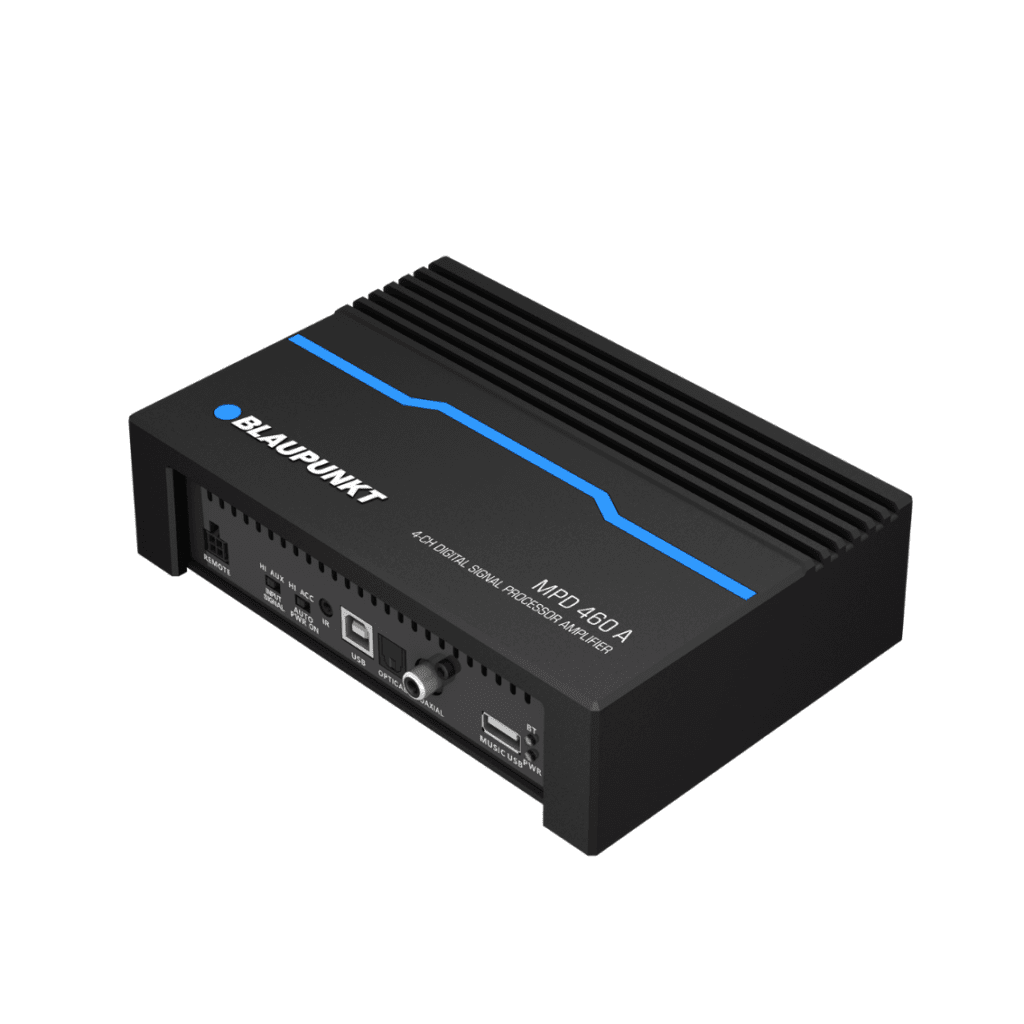

Input

• 2 x RCA/ Aux-in
• 1 x COAX-in
• 4 High Level Speaker Input
• 1 x Optical SDPIF
• 1 x Remote-i
• 1 x USB
• RCA/ Cinch Sensitivity : 300mV
• High Level Input Sensitivity : 2.5V
• Impedance High Level : 100
• Ohms S/N Ratio Analog-in : 100dB

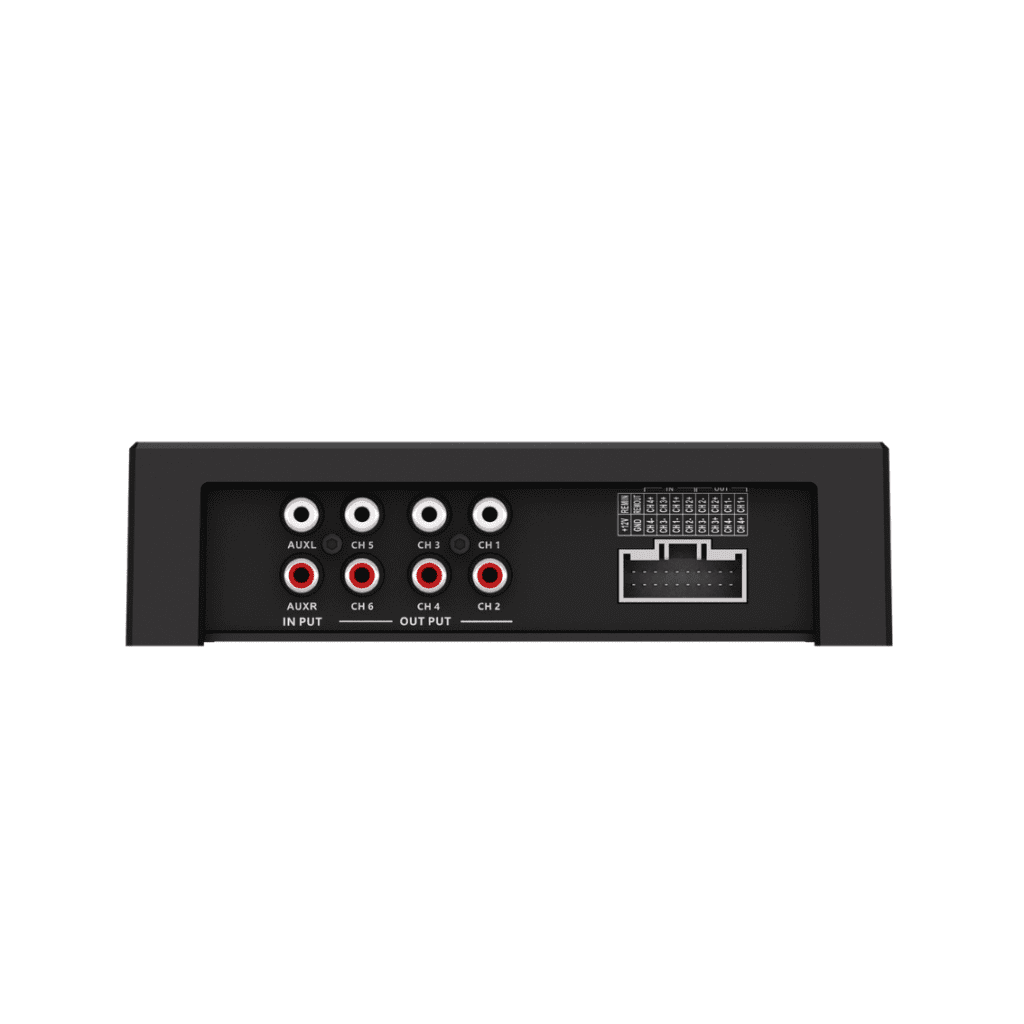

Output

• 6 x RCA/ Cinch
• 4 High Level Speaker Output
• 1 x Remote-out
• Voltage RCA/ Cinch : 4V RMS

Feature

• Class AB Amplifier
• 31-Band Equalizer/ Phase & Time Alignment Setting
• Max. Output Power : 200W
• Max. Current Consumption : 30A
• Dimension (W x H x D) : 170 x 120 x 43mm
• Weight : 0.85 kg
