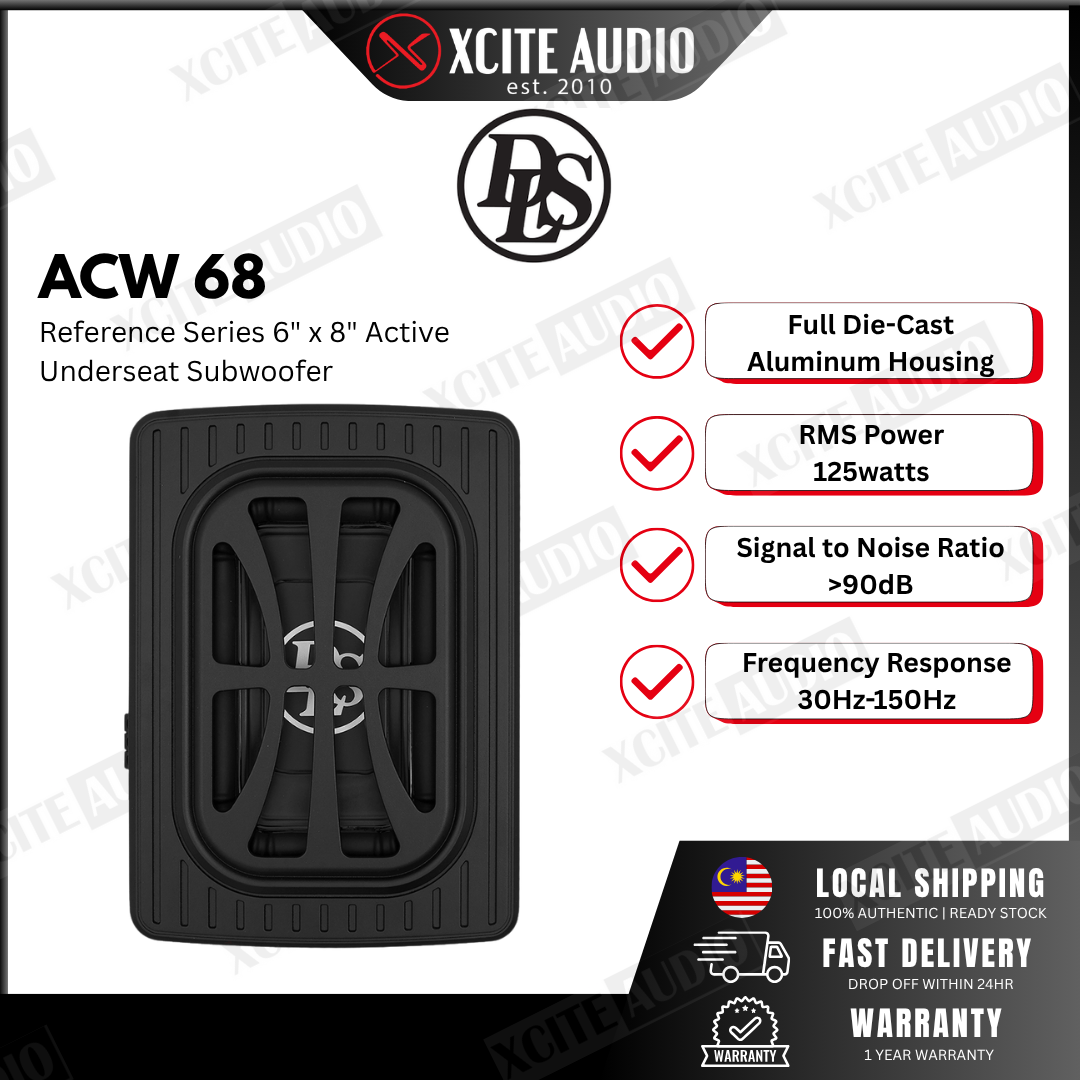

DLS ACW68 - Reference Series 6"x 8" Under-Seat Active Subwoofer | 120W RMS

DLS ACW68 | Slim 6×8″ Under‑Seat Active Subwoofer | 120 W RMS | ~90 dB S/N

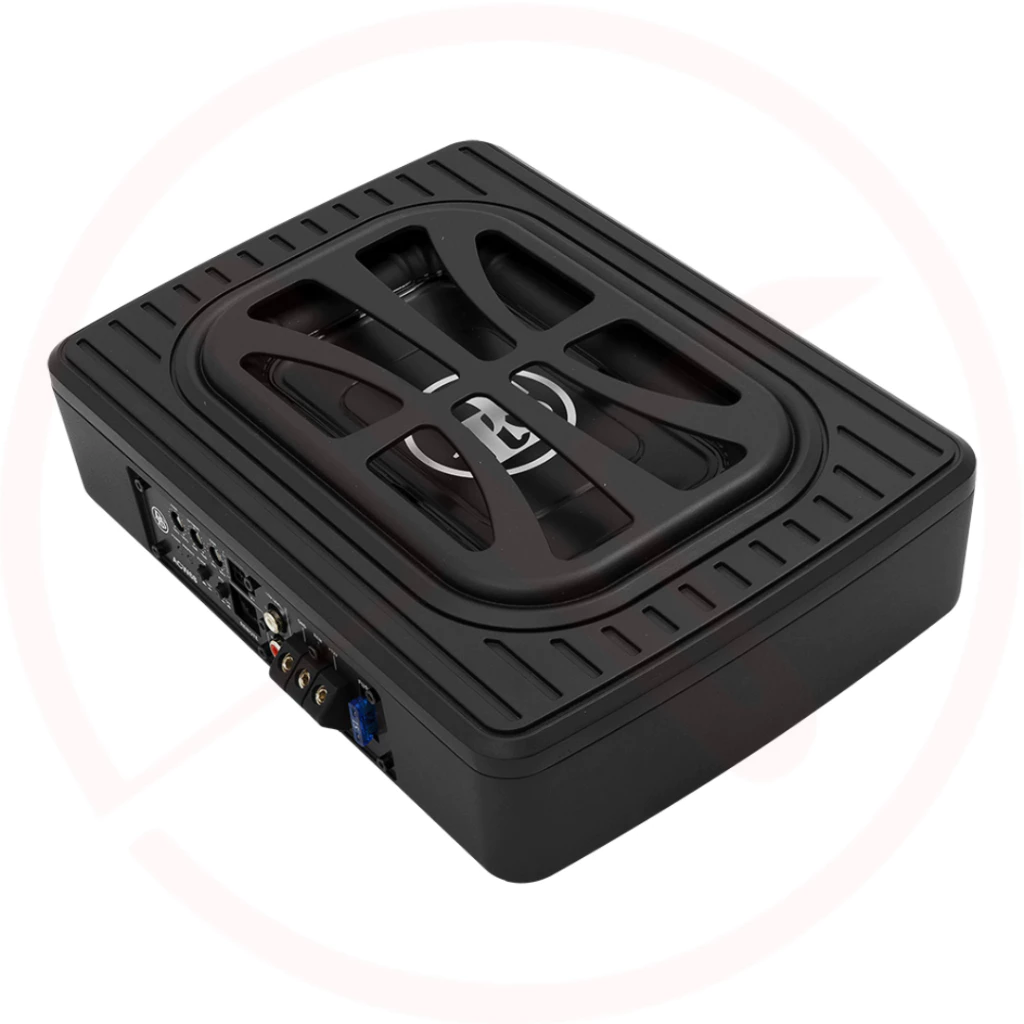

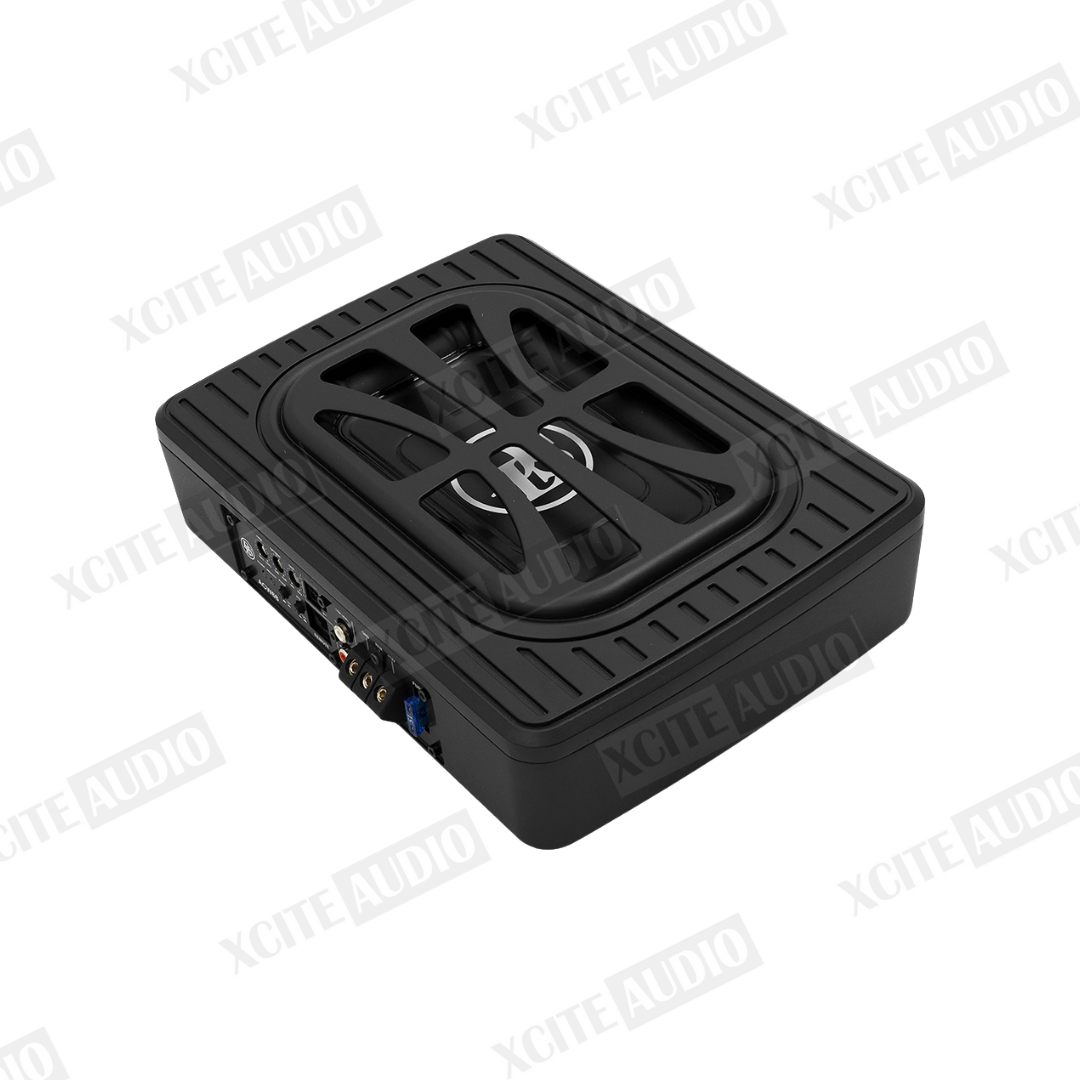

The DLS ACW68 is part of DLS’s premium Reference series—engineered in Sweden for compact installation and immersive bass performance. This active under-seat subwoofer integrates a 6×8″ polypropylene cone driver with a built-in Class‑D amplifier (120 W RMS / 250 W peak) into a slim, die‑cast aluminum enclosure. With a thoughtful Bass Optimize control and both high-level and low-level inputs including Auto Turn‑On, it offers detailed, powerful low‑frequency output even when driven directly from factory systems—making it an ideal high‑end upgrade for OEM audio setups.

Product Highlights:

Active 6×8″ polypropylene driver in slim aluminum housing (~72.5 mm tall)

120 W RMS / 250 W MAX class‑D amplifier for punchy, rich bass in compact spaces

Bass Optimize function with Q‑matched −6 dB / +6 dB boost to tailor low‑end punch and depth

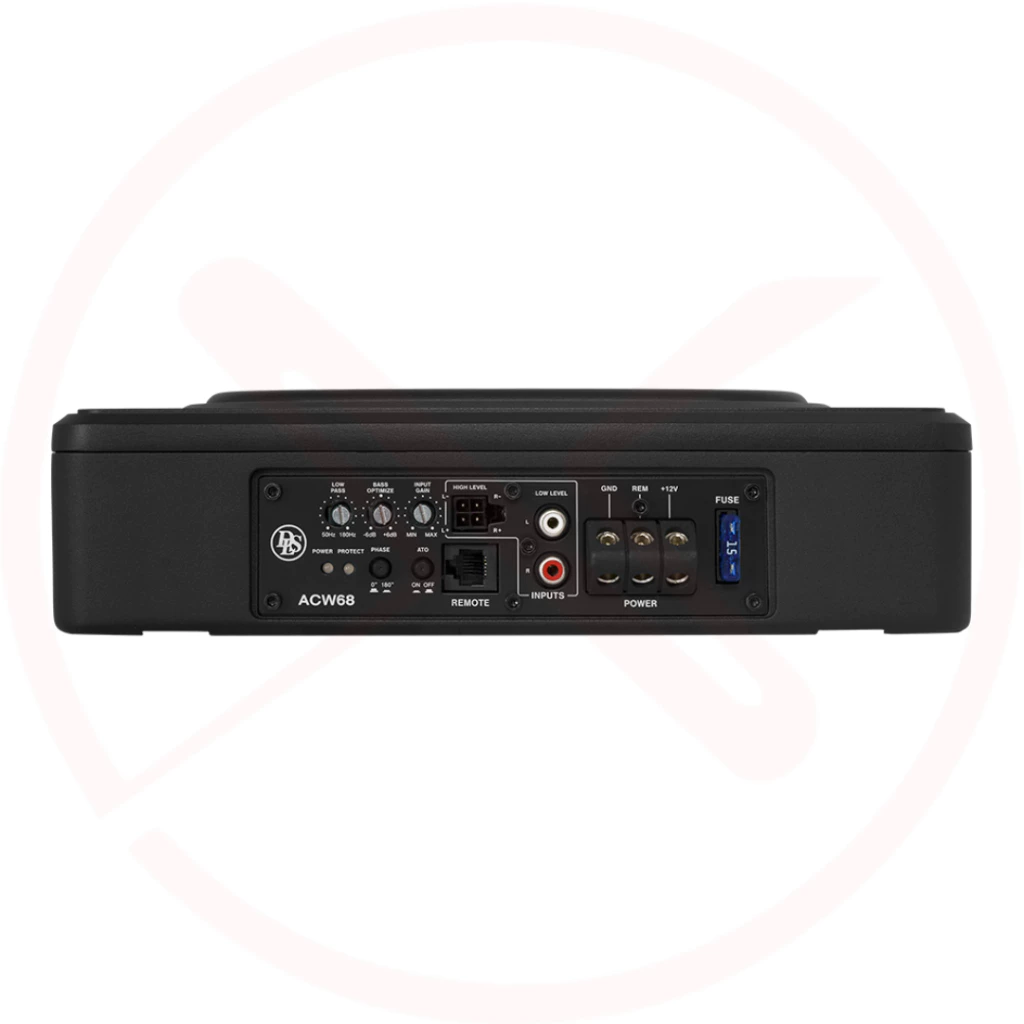

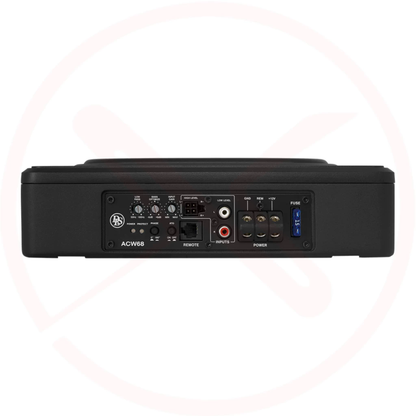

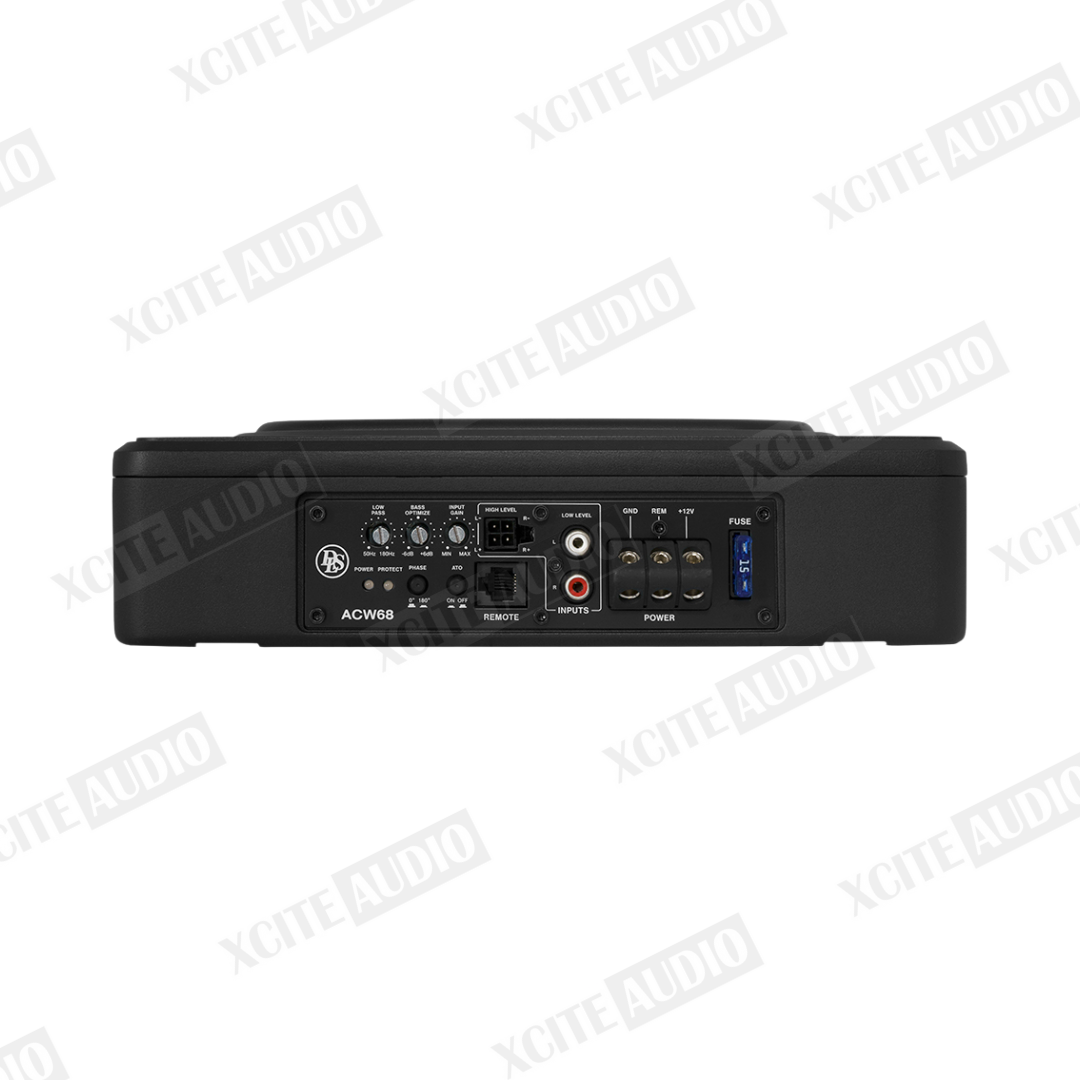

Both high‑level (0.9 V) and low‑level (300 mV RCA) inputs, with Auto Turn‑On for simple integration into factory systems

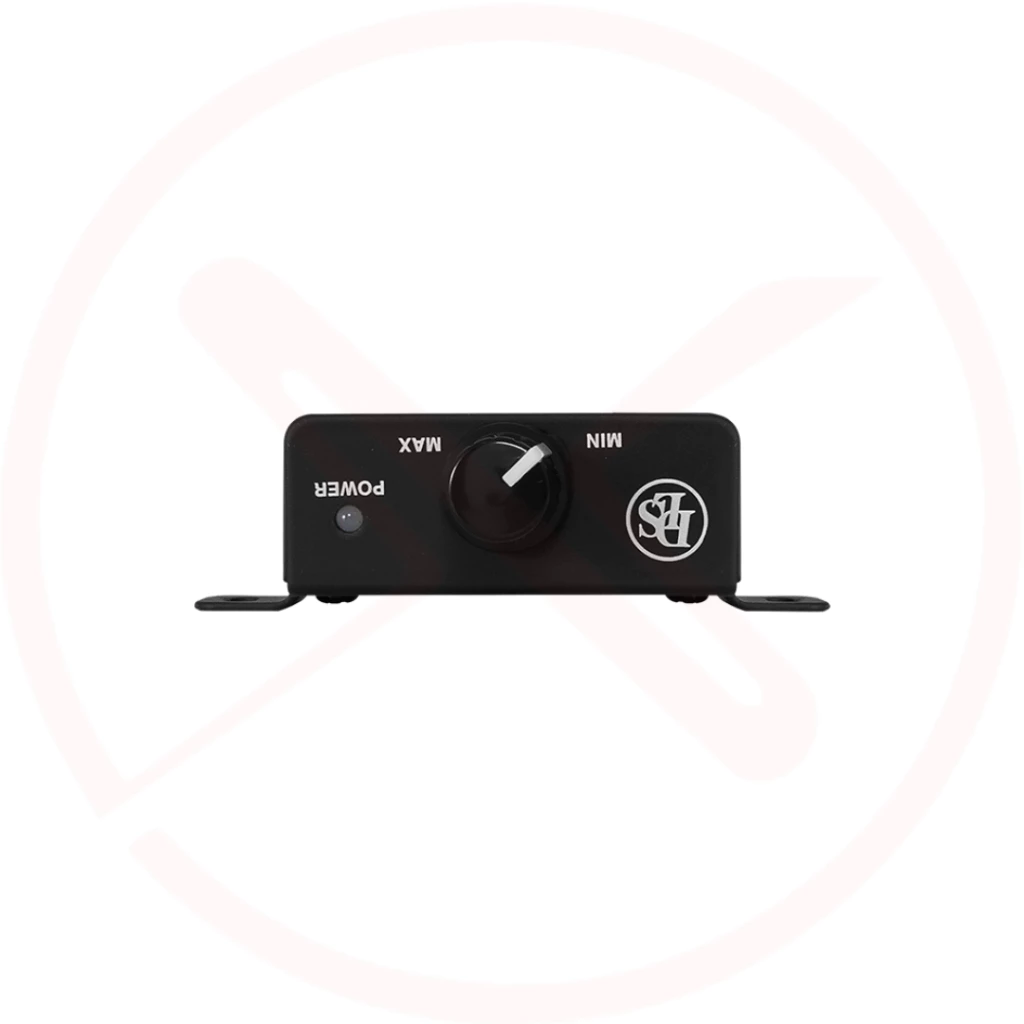

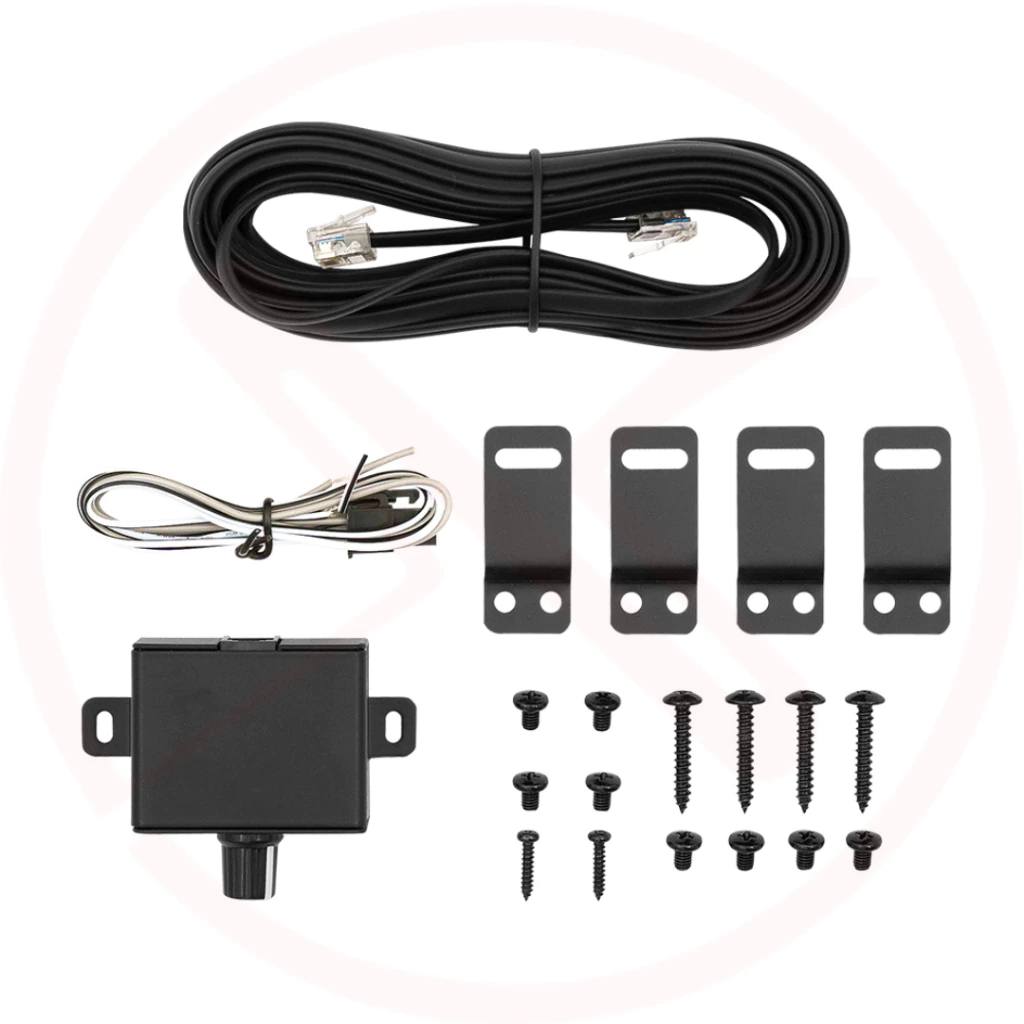

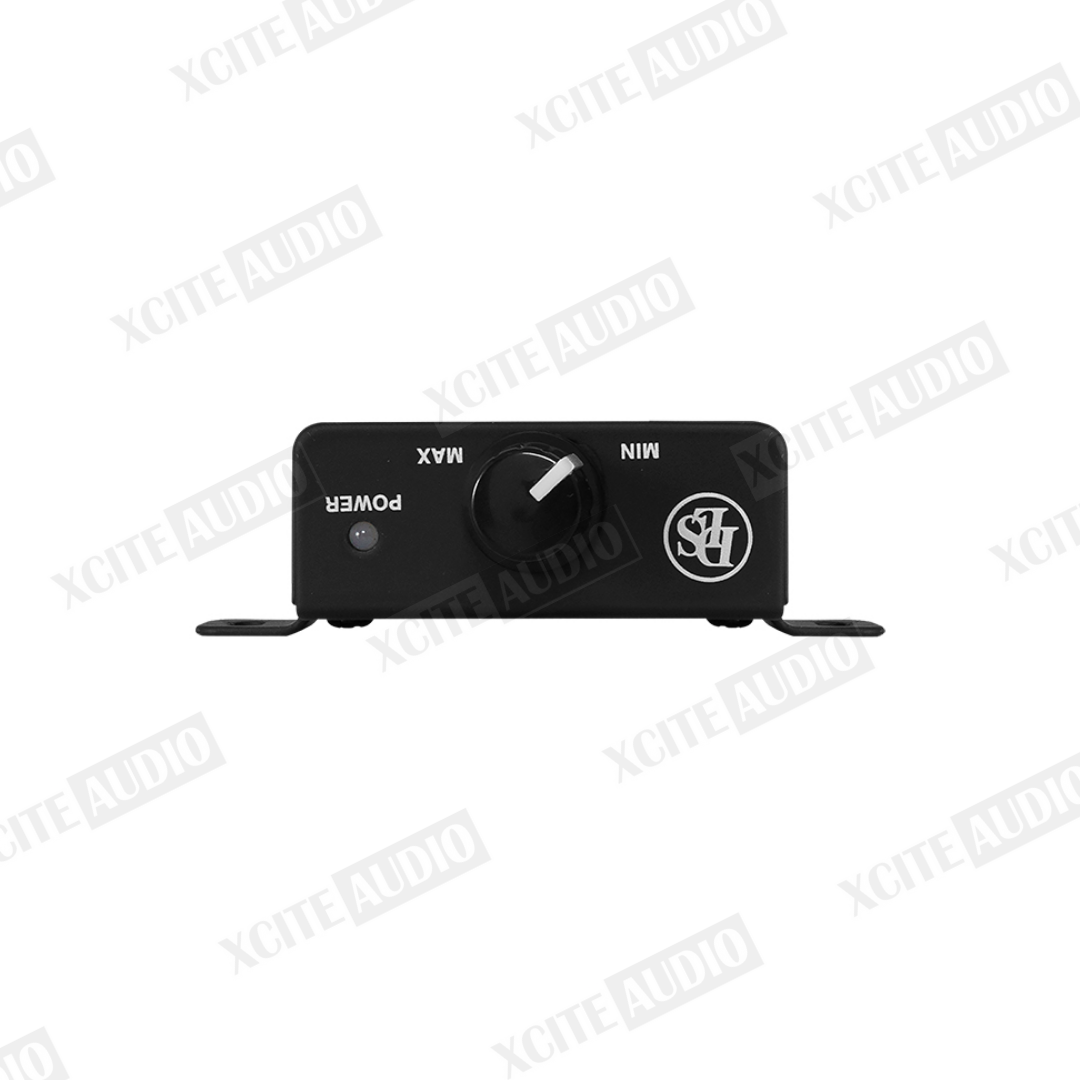

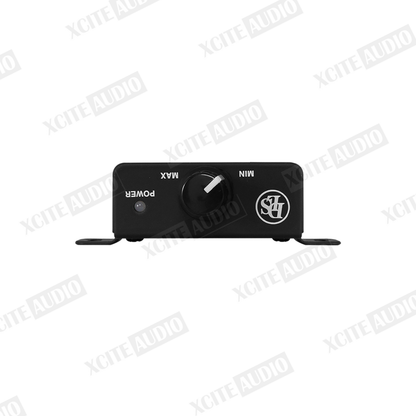

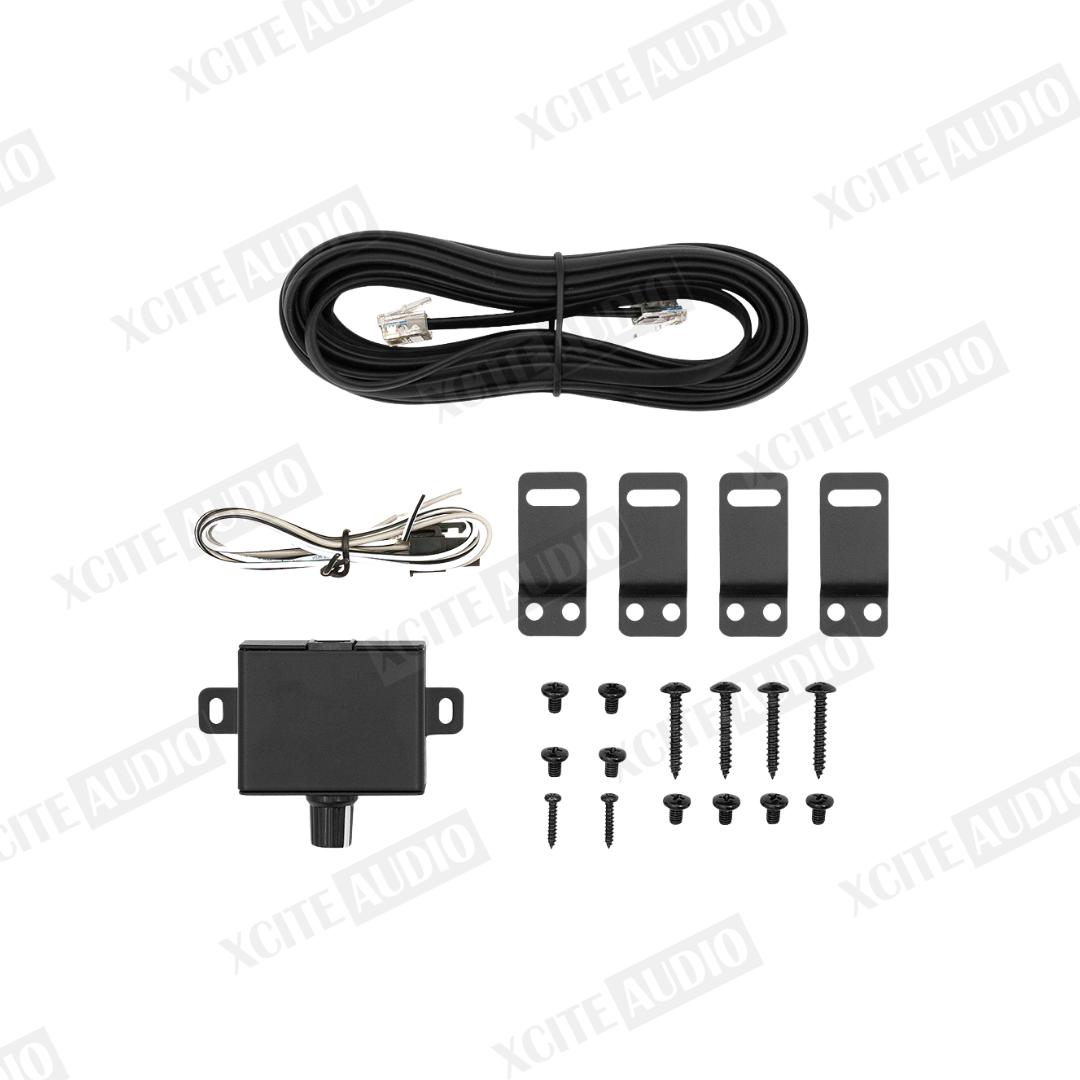

Remote control included with steel‑cased attenuator for convenient tuning on the movedls.seljudshopen.se

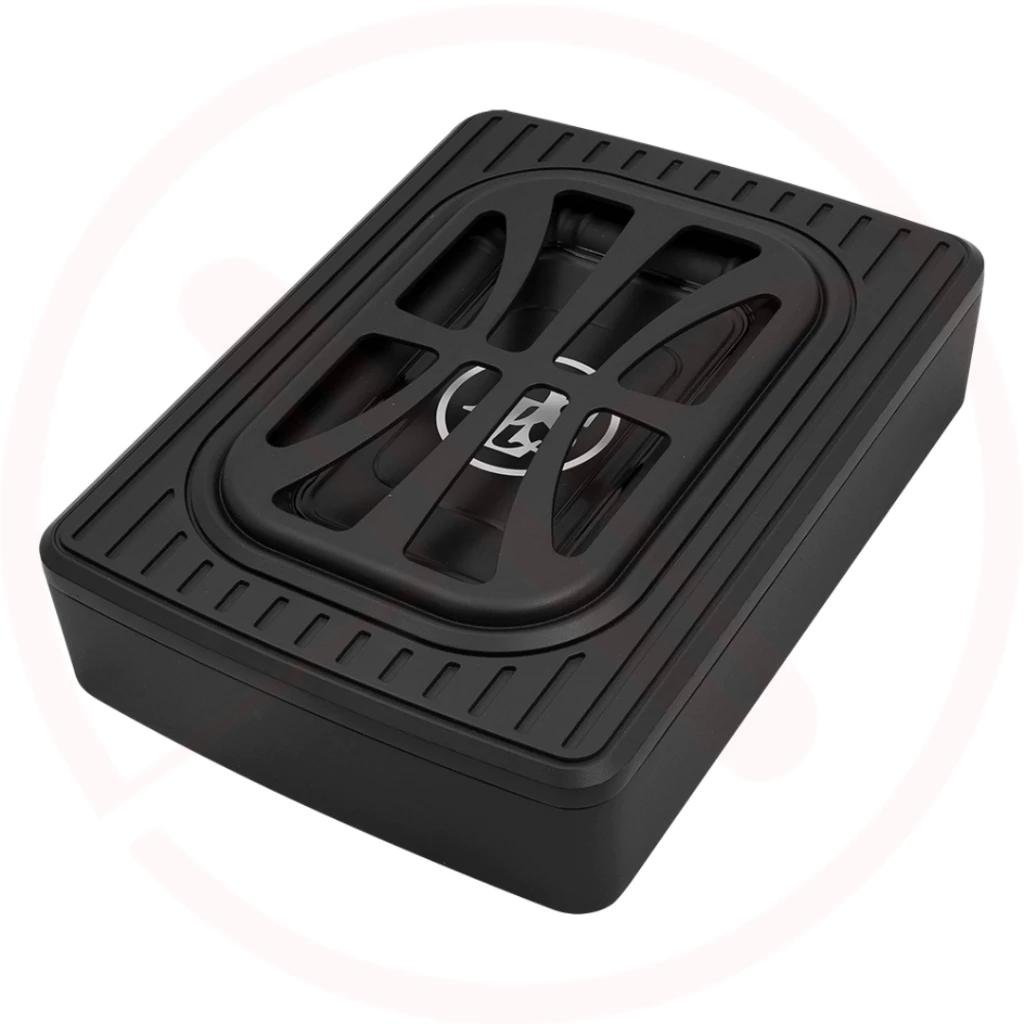

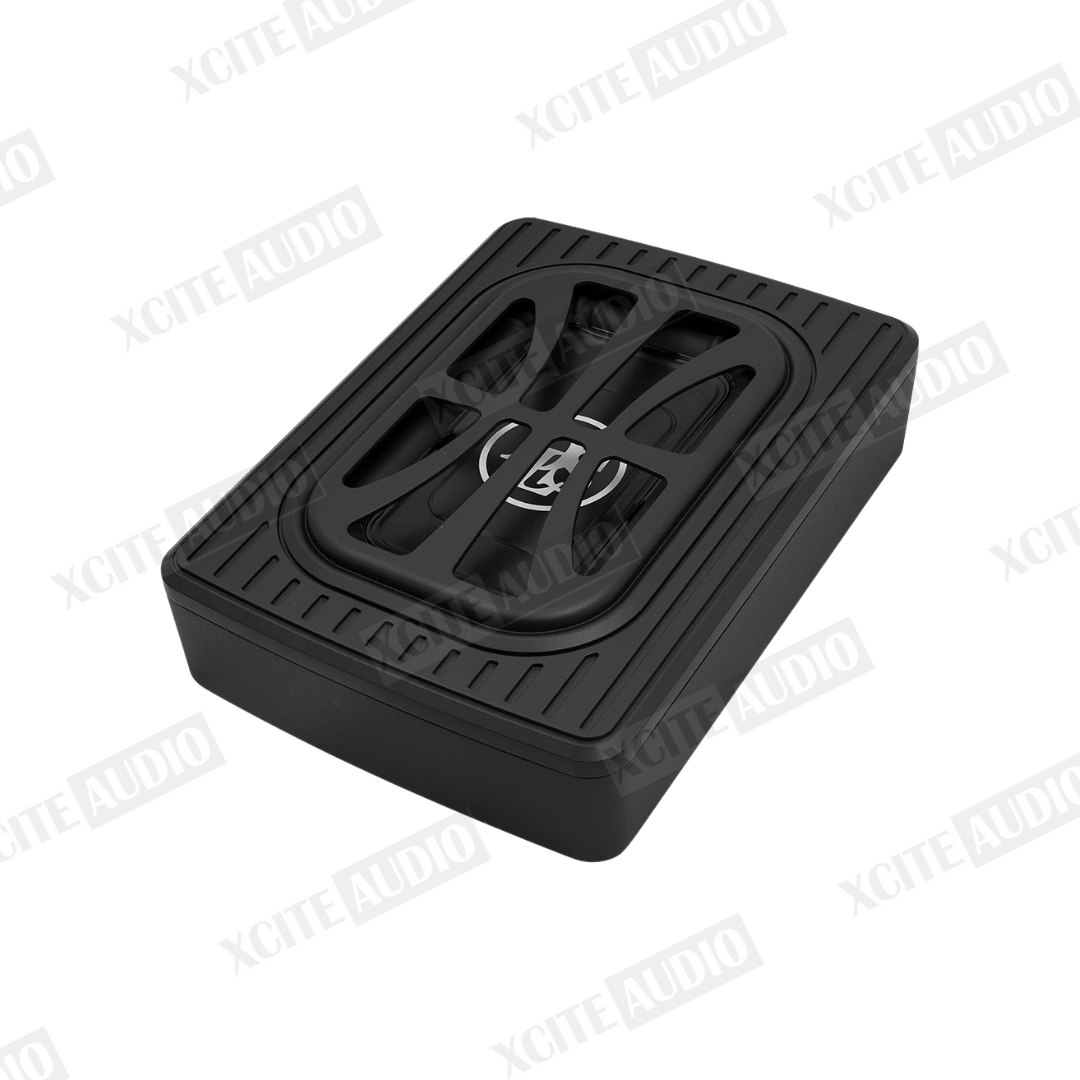

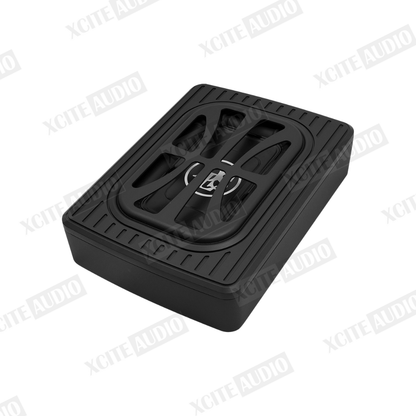

Fully sealed die‑cast aluminum enclosure with matte‑black coating for rigidity, thermal stability, and premium aesthetics

Tech Specs:

Model: ACW68

Type: Active under‑seat subwoofer, 6×8″ (150 × 200 mm)

Power Handling: 120 W RMS / 250 W Peak

Sensitivity (S/N): > 90 dB

Impedance/Input Sensitivity: High‑level: 0.9 V; Low‑level: 300 mV

Frequency Response: 30 Hz – 150 Hz

Bass Optimize (Boost): −6 dB / +6 dB

Low‑Pass Filter: 50 Hz – 150 Hz (adjustable)

Subsonic Filter: 30 Hz

Fuse Rating: 15 A

Mounting (Dimensions): ~150 × 200 mm driver; enclosure 289 × 210 × 73 mm (~72.5 mm height)

Enclosure Material: Die‑cast aluminum housing with matte black finish

Configuration: Sealed active subwoofer with built‑in amp, EQ and remote control

Applications: Compact under‑seat installation under front seats or rear footwells; OEM upgrade for smoother, tighter bass without external amp in tight spaces
