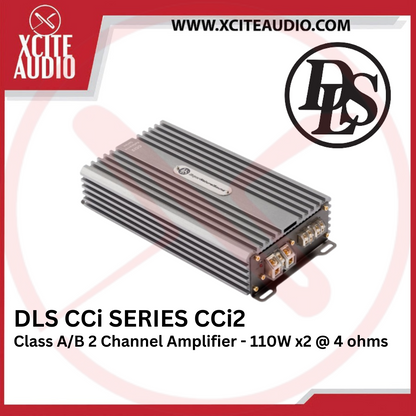

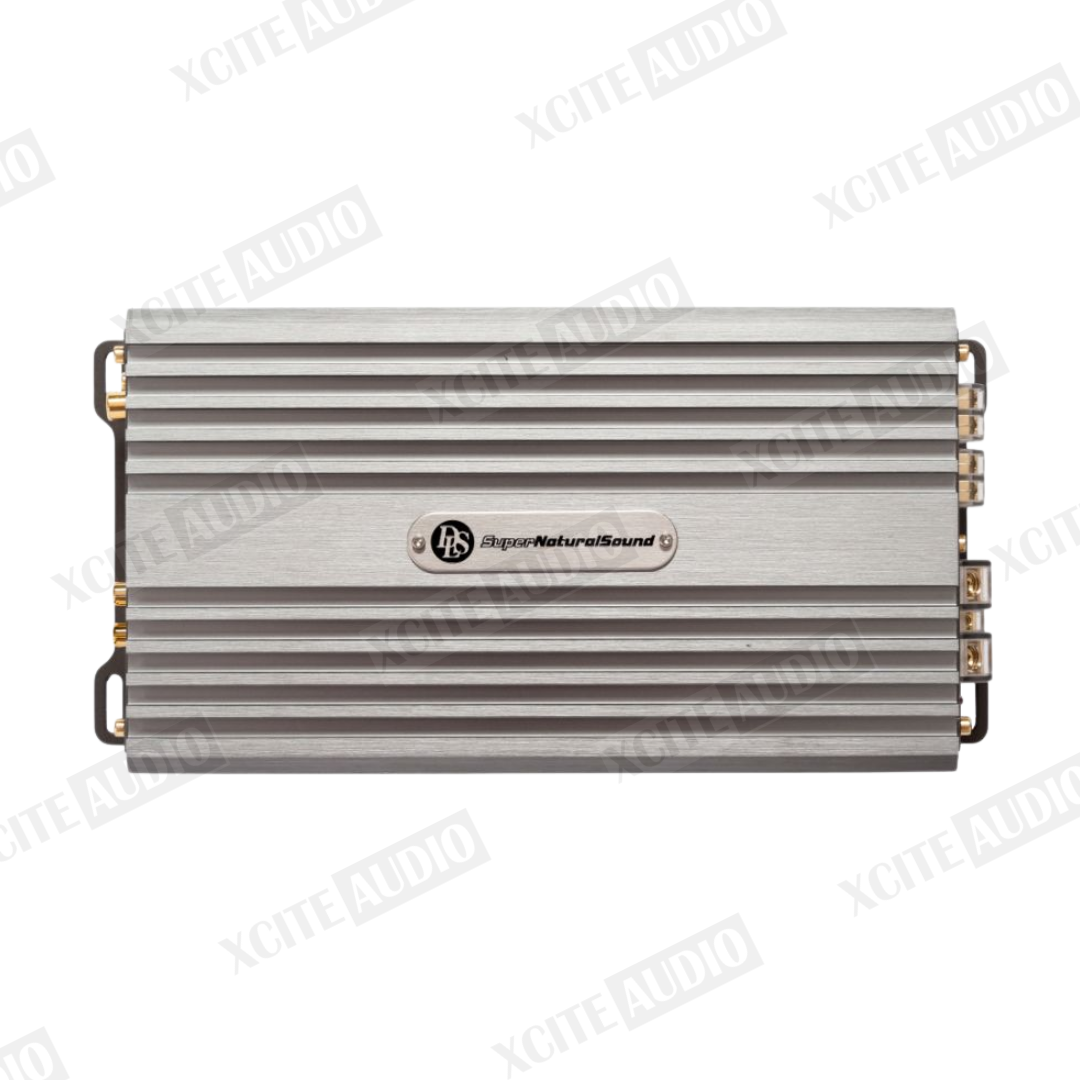

DLS CCi Series CCi2 - Class A/B 2 Channel Amplifier 110W RMS X 2
“Probably one of the best SQ amps in the world in terms of price / performance”
Two channel audiophile amplifier for high demands tuned by Gordon Taylor. The appraised DLS sound is secured by linear regulators supplying the preamp and a high bias drivecircuitry. Combined with top quality output devices it simply makes DLS amplifiers sonically superior to competitors. Glimmering details with warm midrange and a class leadingS/N ratio of over 110 dBA — the amp is dead quiet!

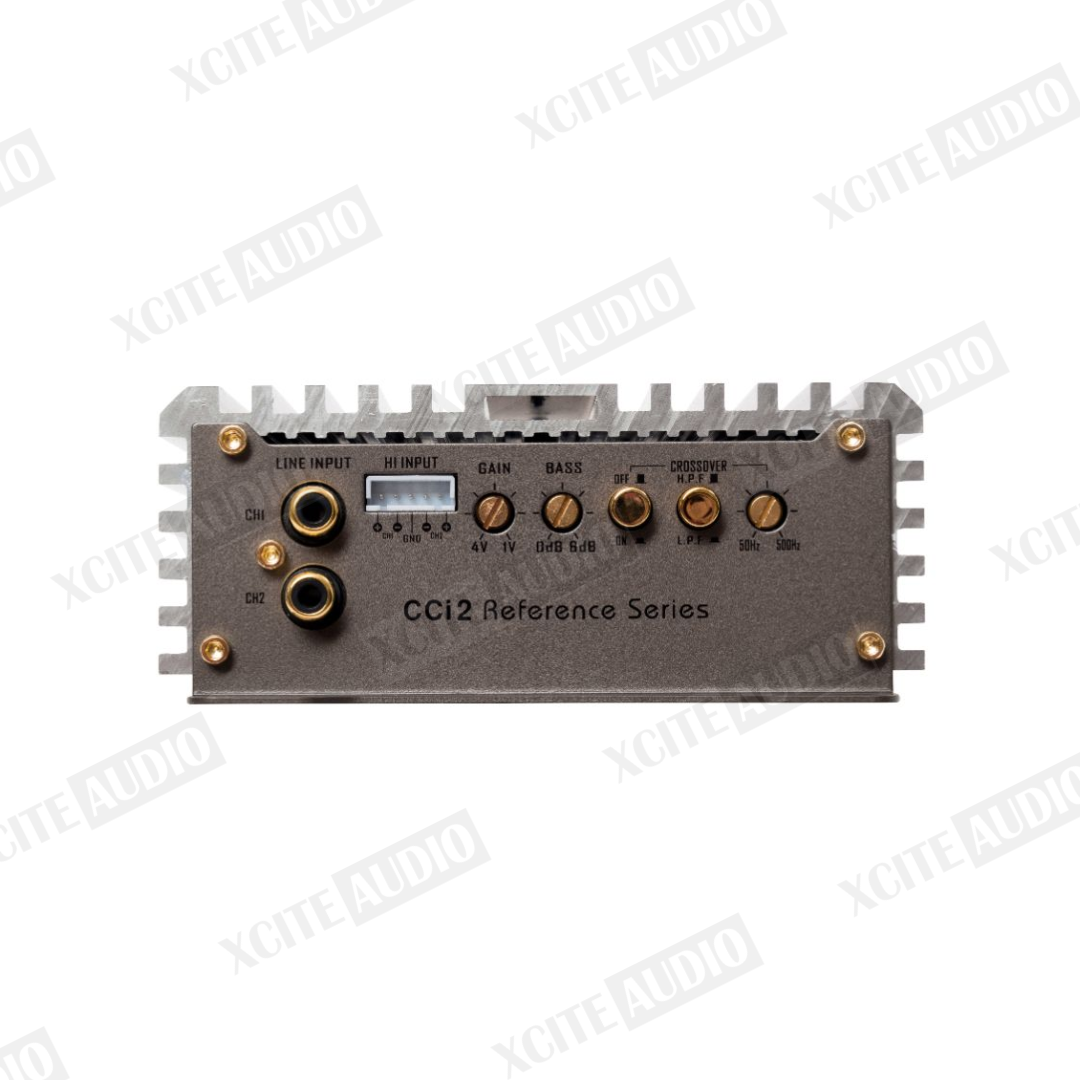

When used for system integration the CCi2 includes DLS High level converter with Auto start for serious upgrading of OEM radios and wide range input level handling. Another useful function of the Hi Level input is that a low-level output to additional amplifiers can be sourced from the RCA input connectors.
TECH SPECS
-
Number of channels : 2
-
Amplifier class : AB
-
Mono bridge mode 4 ohm : 340 Watt
-
Output power in 2 ohm : 2 x 170 Watt
-
Output power in 4 ohm : 2 x 110 Watt
-
Damping factor : > 150
-
S/N ratio, A-weighted : > 110 dB
-
Frequency range : 10 Hz - 50 kHz
-
Input sensitivity : 1 - 4 Volt
-
Input impedance : 6 kohm
-
Input impedance, high level : 45 ohm
-
High pass filter : 50 - 500 Hz
-
Low pass filter : 50 - 500 Hz
-
Grand bass filter : Bass EQ +6dB @ 60 Hz
-
Low level output : No
-
High level input with auto start : Yes
-
Power consumption (idle) : 0,5 A
-
Power consumption (max) : 43 A
-
Integrated fan : Yes
-

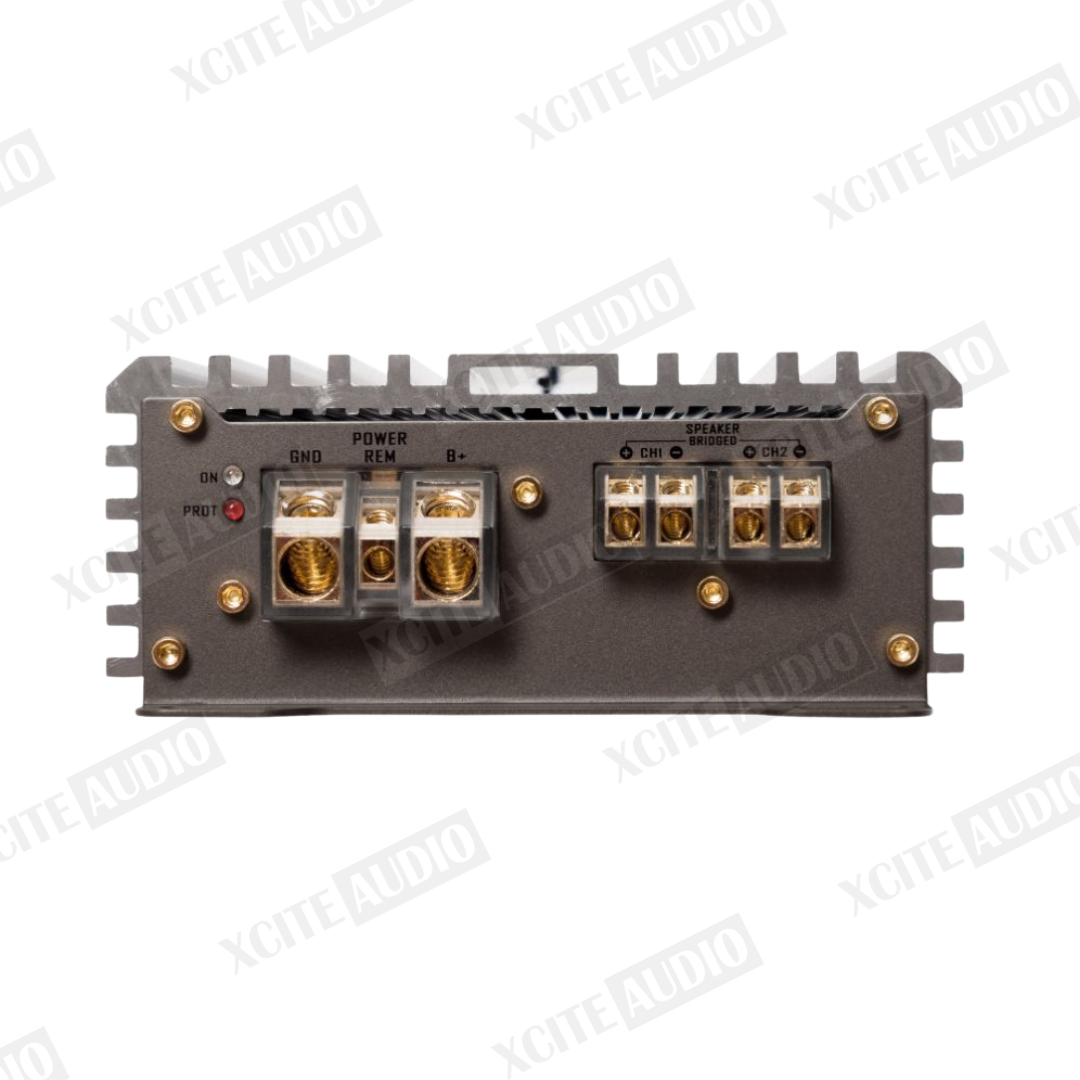

Fuses : Use external fuse 40A
-
Dimension (W x D x H) : 129 x 260 x 54 mm ( 5,1" x 10,2" x 2,1")
-
Weight : 1,87 kg
