DLS CCi Series CCi44 - Class A/B Four Channel Amplifier 85W RMS X 4
Warm and detailed SQ , high bias circuitry with unique heat management, tuned by Gordon Taylor, advanced HLC input, versatile active crossovers, cooling fan
From a sonic perspective the new circuitry has been further refined with linear regulators now supplying the preamp circuitry and high bias drive circuitry combined with top quality Sanken output devices that are sonically superiors. The result is glimmering details combined with warm midrange and a class leading S/N ratio of over 110dBA!

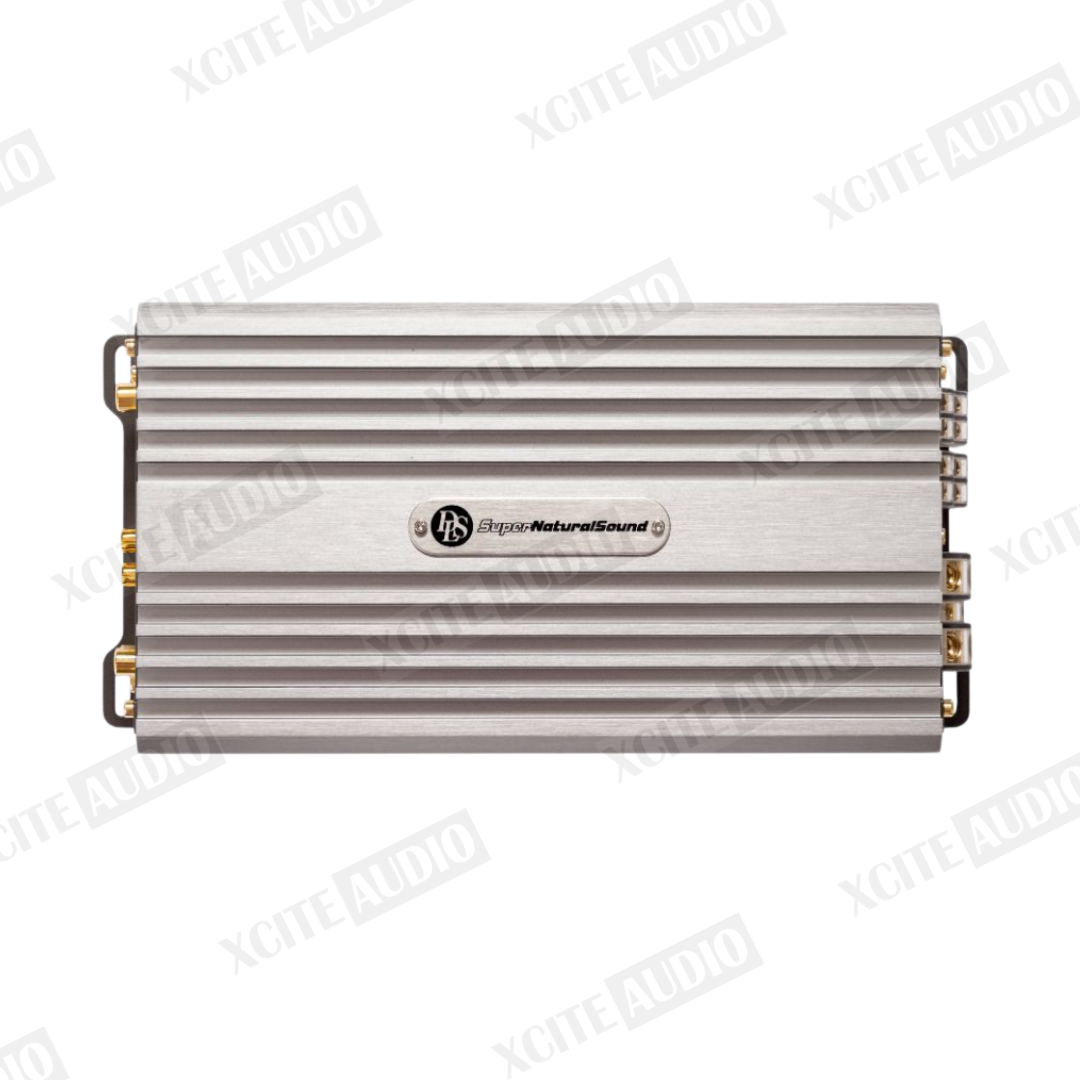

Started out with a new precision tooling of the heatsink that gave room for more heat dissipation fins on the outside including updated optics with chamfered edges. But as always – it is the inside that counts – on the inside of the heatsink there is a vast area of small fins that collect the heat from air pushed through the PC board by the integrated fan and releasing it through thin slots in the side panels. Thanks to the optimized power supply section the new CCi series produce more power and less heat!

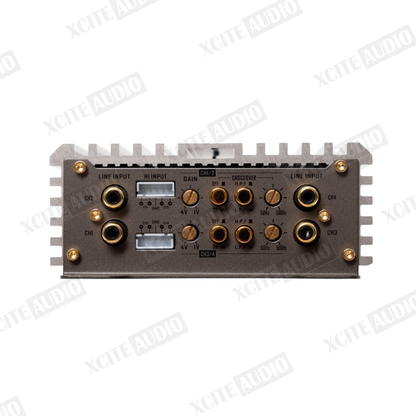

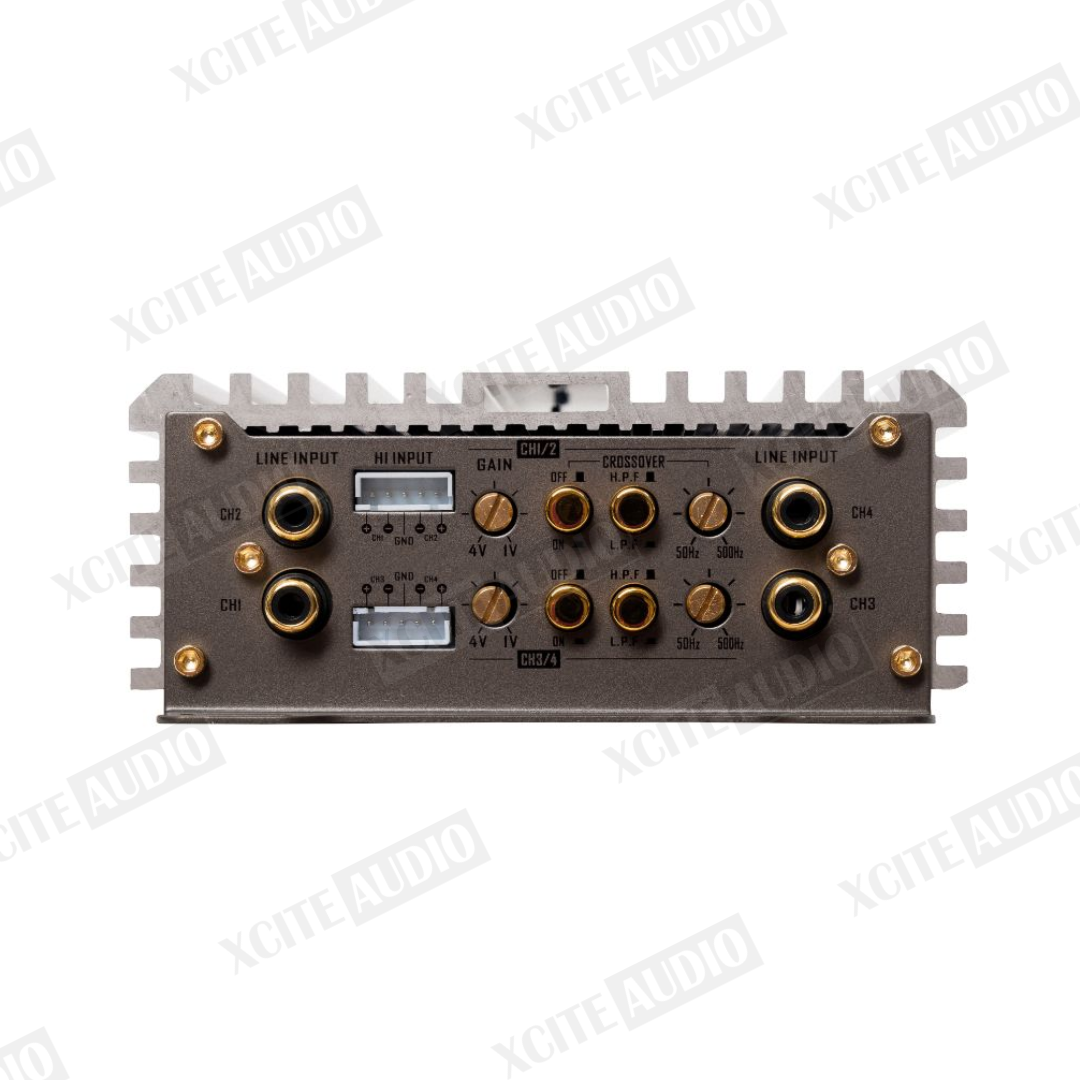

For perfect system integration it includes the proven DLS High level converter with Auto start for serious upgrading of OEM radios and wide range input level handling. A useful function of the Hi Level input in CCi44 is that a low-level output to additional amplifiers can be sourced from the RCA input connectors.
-
Number of channels :4
-
Amplifier class : AB
-
Power output RMS in 4 ohm : 4 x 85 W
-
Power output RMS in 2 ohm : 4 x 110 W
-
Power output RMS 4 ohm bridged : 2 x 220 W
-
Signal to noise ratio, A-weighted : 110 dB
-
Damping factor : >300
-
THD @ 5 W, 20Hz-20kHz : <0,25%
-
Frequency response : 10 Hz - 60 kHz
-
Input impedance, low level : 5 kohm
-
Input sensitivity : 1 - 4 V
-
Input impedance, high level : 45 ohm
-
Filter high-pass adjustable : Yes
-
Filter low pass adjustable : 50 - 500 Hz*
-
Filter low pass adjustable : 50 - 500 Hz*
-
Power consumption, idle : 0,7 A
-
Power consumption, max : 64 A
-

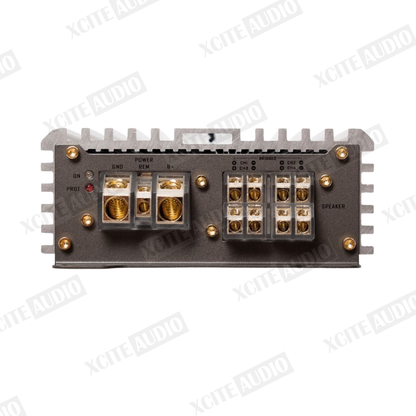

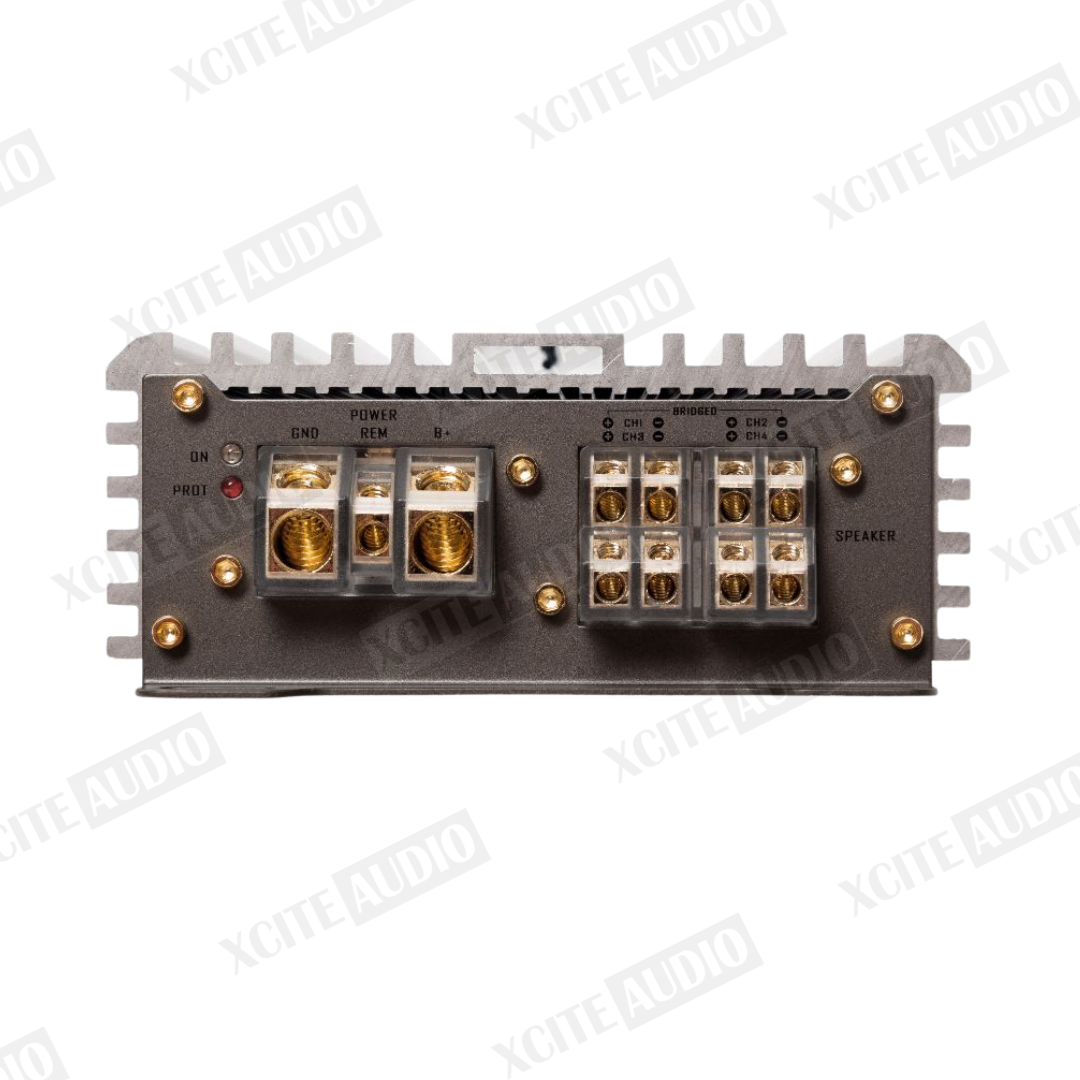

Fuse (no internal fuses used): use external fuse 60 A
-
Internal cooling fan
-
Dimensions HxWxD(mm) : 55 x 129 x 320
-
Dimensions (inch) : 2,2 x 5,1 x 12,6
-
Weight : 2,4 kg
