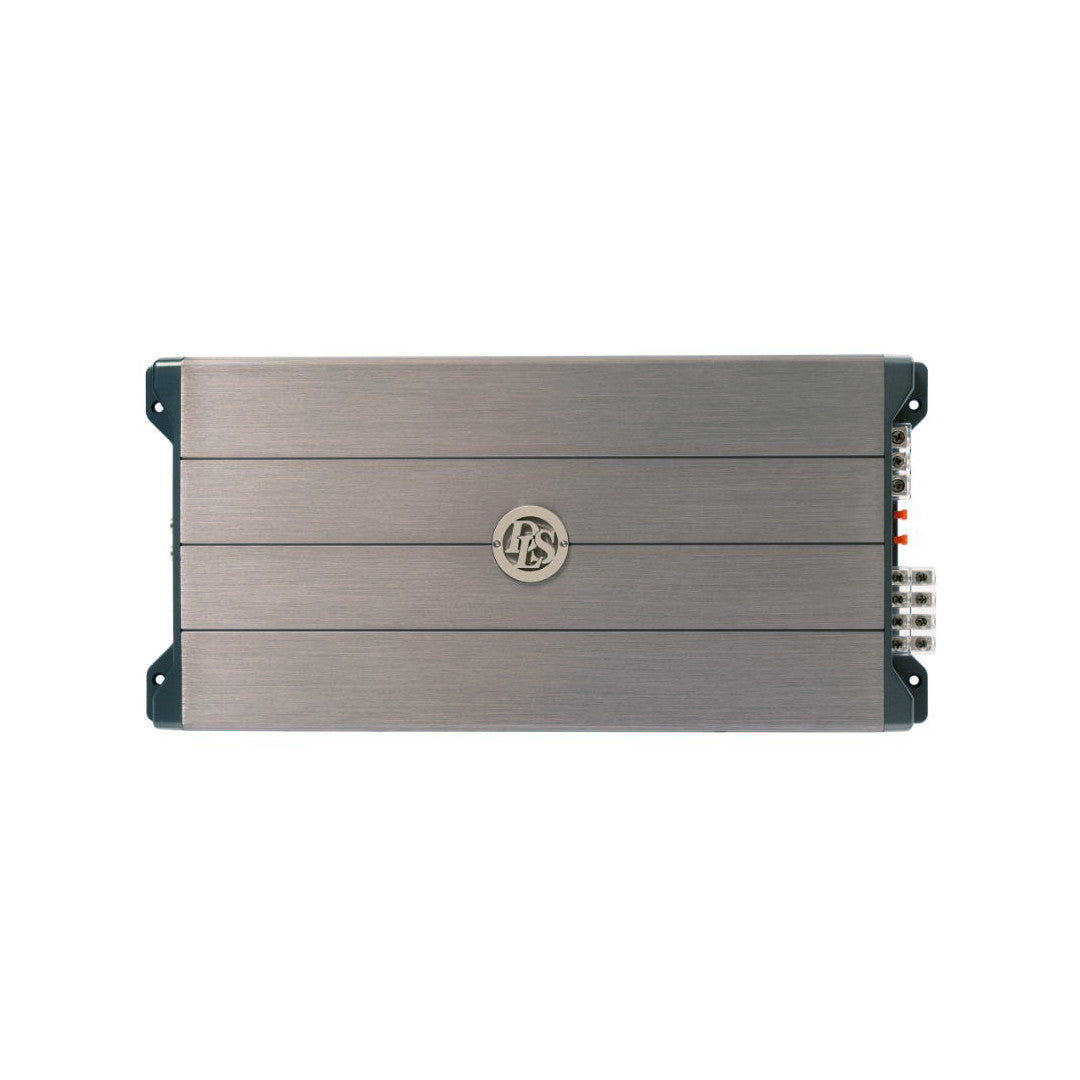

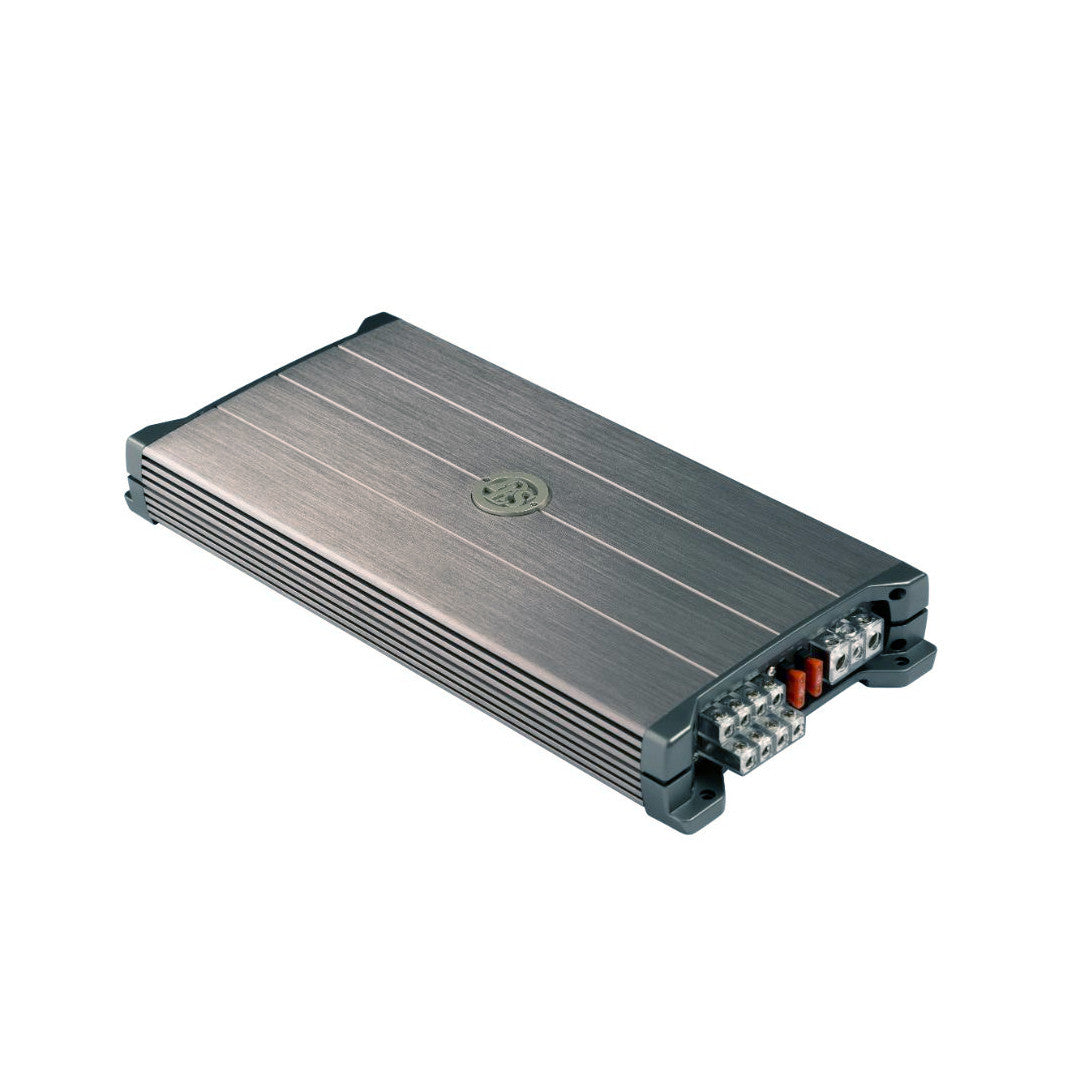

DLS P44 4-Channel Class AB Power Amplifier 4 x 100w RMS

Features

4 channel massive output power amplifier with the best sound available at an affordable price. Powerful sound – Class A/B with both details and raw power.

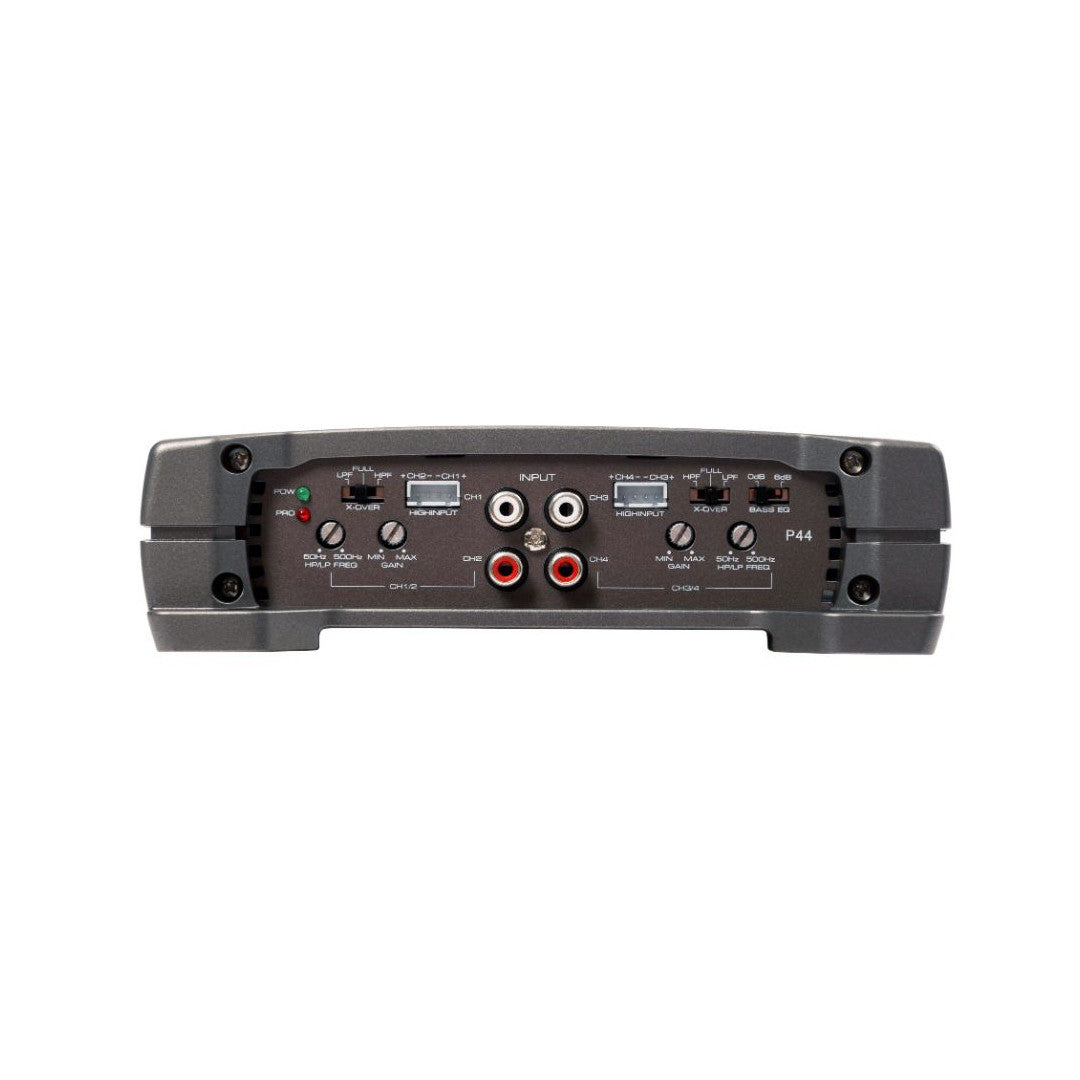

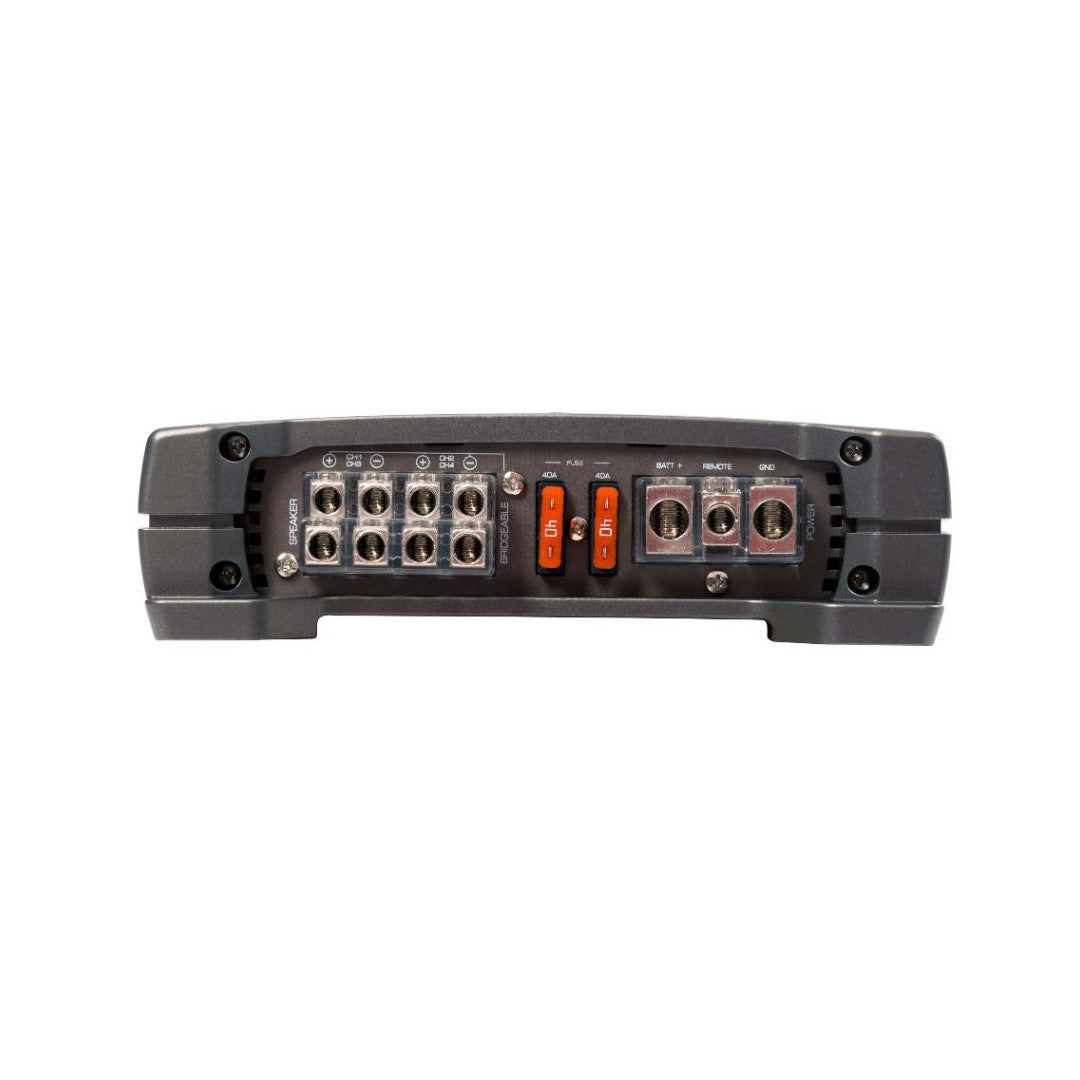

Advanced noise rejecting high level input for direct connection to factory radios. Auto start on high level input and oversized power and speaker cable terminals & regulated cooling fan in the bottom plate. Variable High and Low pass filters & +6 dB dynamic bass EQ @50Hz, perfect for high power speakers such as DLS 3710i.

Specification
Number of channels: 4
Amplifier class: AB
Power output, 4 ohm bridged: 2 x 280 W
Output power in 2 ohm: 4 x 140 W
Output power in 4 ohm: 4 x 100 W
Damping factor: >80
S/N ratio, A-weighted: >95 dB
Frequency range: 10 Hz – 30 kHz
Input sensitivity: 0,25 – 5V
Input impedance: 22k ohm
Input impedance, high level: 47 ohm
Filter high pass 50 – 500Hz / Can be Switched in/out
Filter low pass 50 – 500Hz / Can be Switched in/out
Bass EQ @ 50 Hz –: +6 dB
Power consumption (idle): 0,7 A
Power consumption (max): 80 A
High level input with auto start: Yes
Integrated fan
Fuse: 2 x 40 A
Dimension (W x D x H): 189 x 400 x 46 mm (7,44″ x 12,67″ x 1,81″)
Weight: 4 kg
