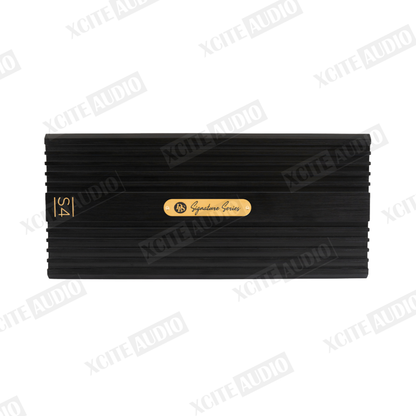

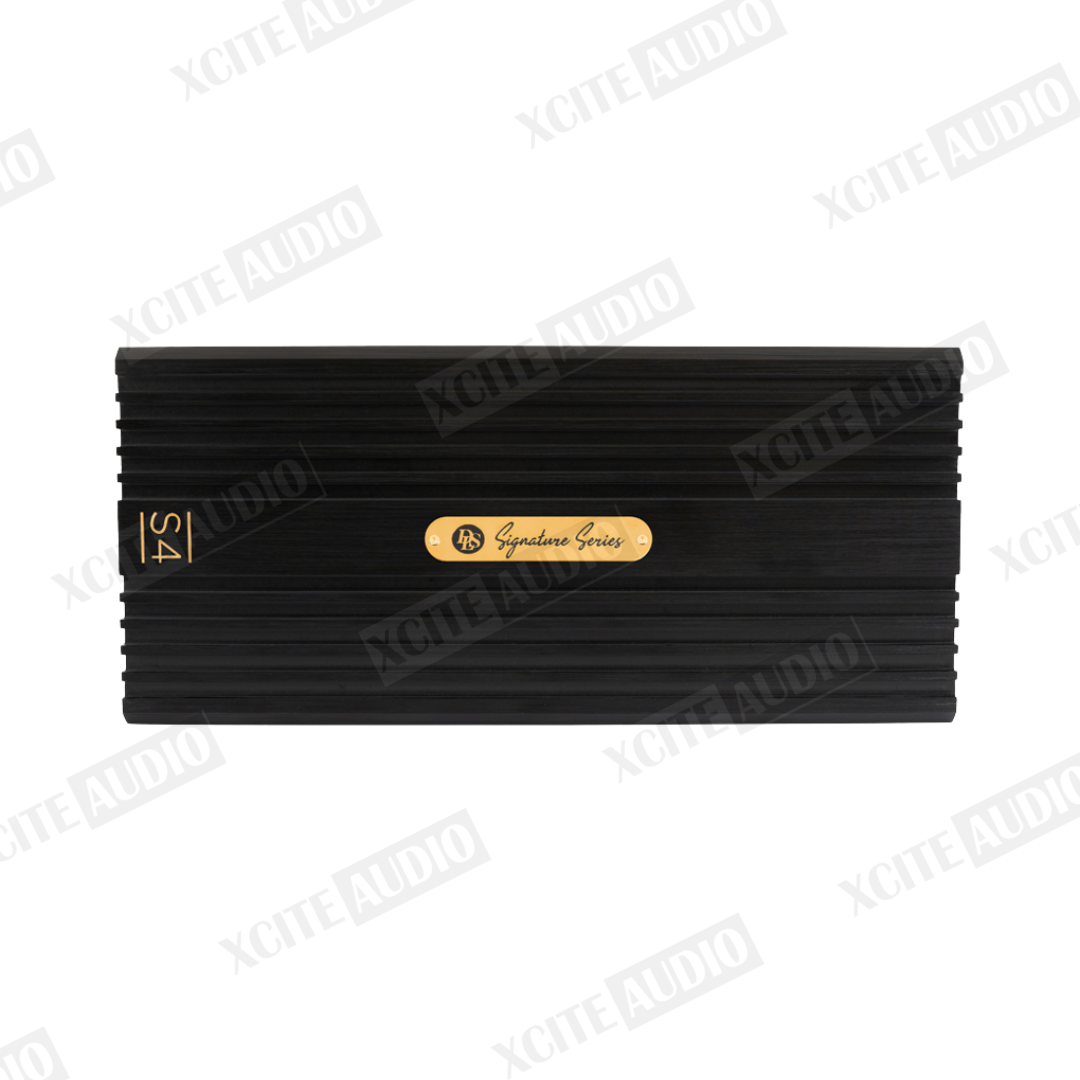

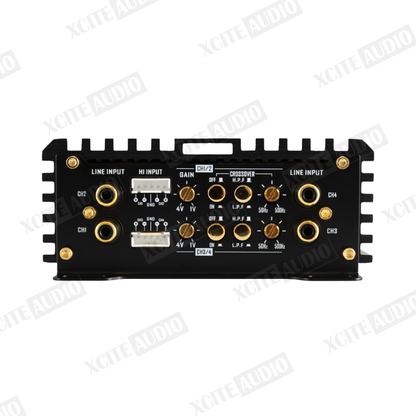

DLS Signature Series S4 - Class A/B Four Channel Amplifier 90W RMS X 4
Silence is Golden
A truly great amplifier does not make any sound at all. The Signature series has unrivalled low distortion and an extremely high signal-to-noise ratio, letting you hear only music and experience new details in your favourite songs with a warm clarity and a firm mid bass with impressive authority.
Optimised for perfection
No detail has been left untweaked, from the custom cooling system to the power supply. We have even trimmed each channel individually and synchronised every component with each other to perform in perfect harmony.
When used together with a Digital Sound Processor there is an option to bypass all preamp circuitry, letting the DSP get complete control of all sound tuning parameters. This allows a clean and unaltered signal to reach the amplifying stage in full without sonic degradation.
Enjoy music in full, unaltered and perfect, with the Signature series.
-

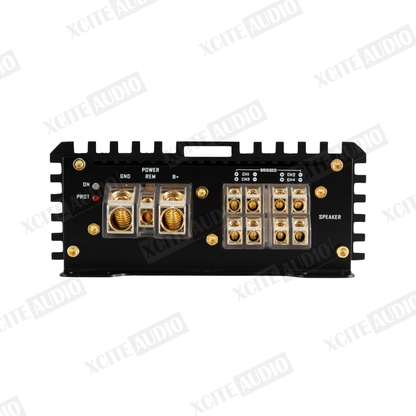

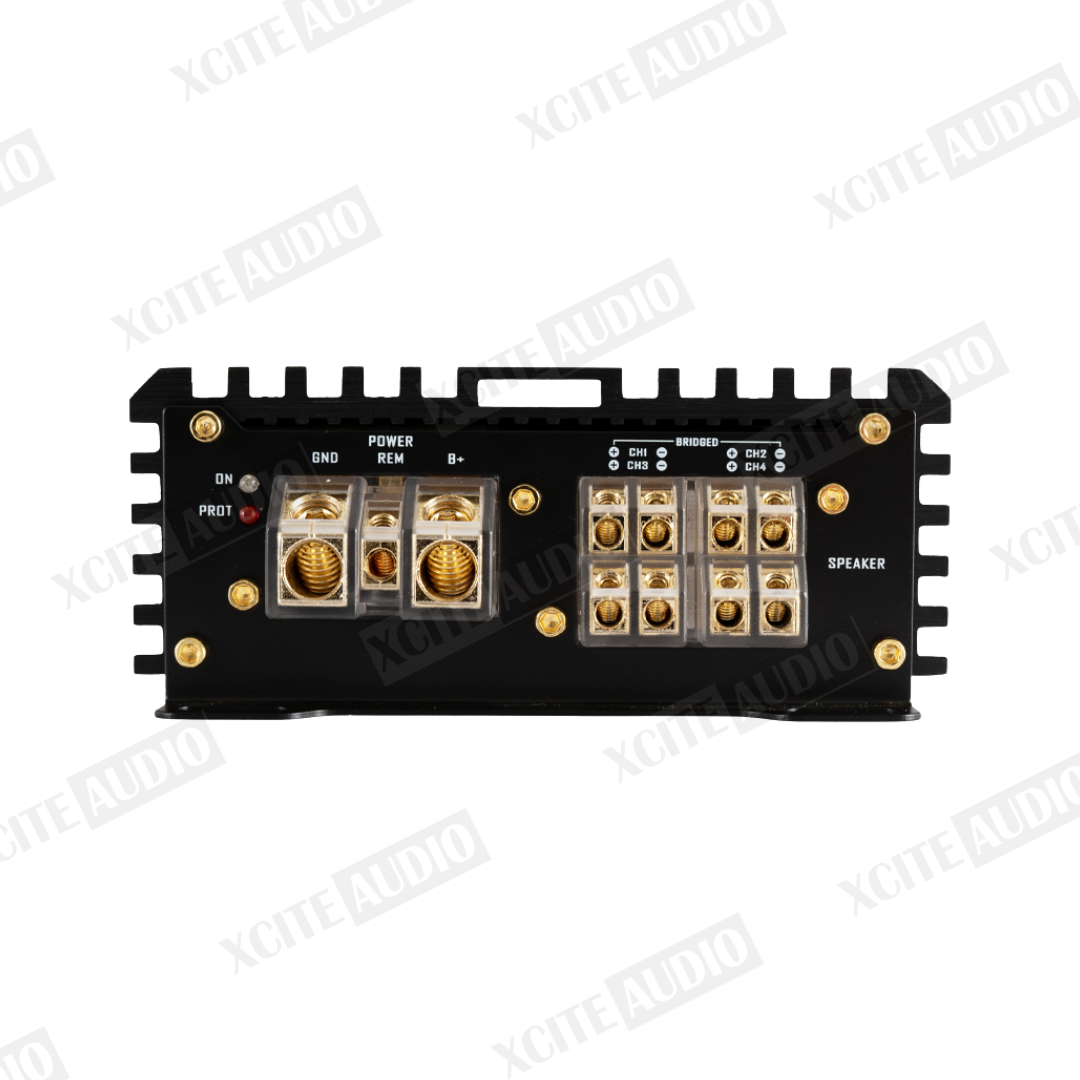

-Number of channels – 4
-
-Amplifier class – AB
-
-Output power in 2 ohm – 4 x 130 Watt
-
-Output power in 4 ohm – 4 x 90 Watt
-
-Output power in 4 ohm bridged – 2 x 260 Watt
-
-Damping factor >300
-
-THD at 3W, 20Hz-20kHz <0,065%
-
-THD at 85W, 1kHz <0,065%
-
-S/N ratio, A-weighted 116 dB
-
-Frequency range 10 Hz – 60 kHz
-

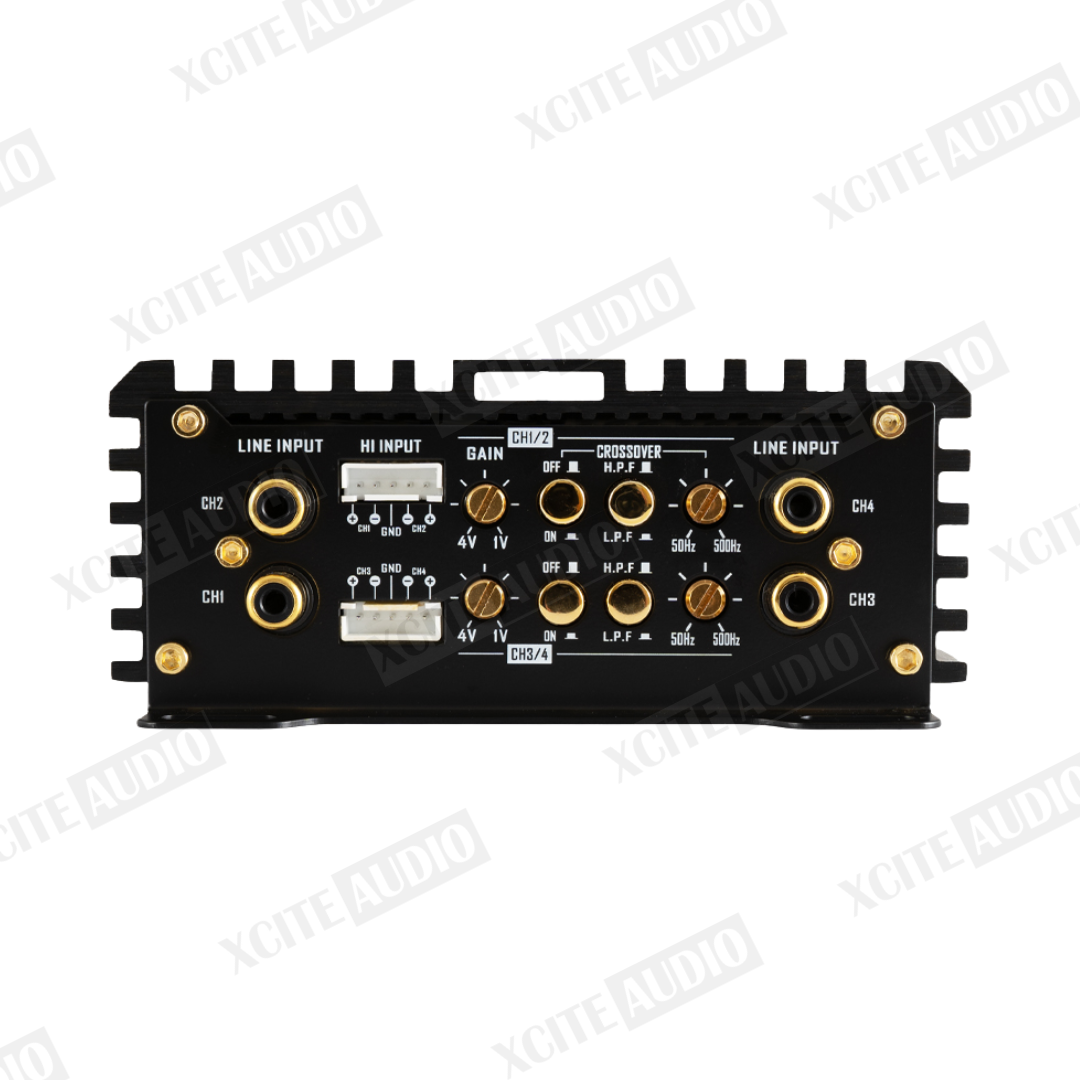

-Input sensitivity 1 – 4 Volt
-
-Input impedance, low level 5 kohm
-
-Input impedance, high level 45 ohm
-
-Filter low pass 50-500 Hz
-
-Filter high pass 50-500 Hz
-
-Power consumption (idle) 0,7 A
-
-Power consumption (max) 64 A
-
-Internal cooling fan
-
-Dimension (W x D x H) 129 x 320 x 54 mm (5,1″ x 12,6″ x 2,1″)
-
-Weight 2,4 kg
