ETON RES12 - 300mm (12") Active Spare Tyre Car Subwoofer

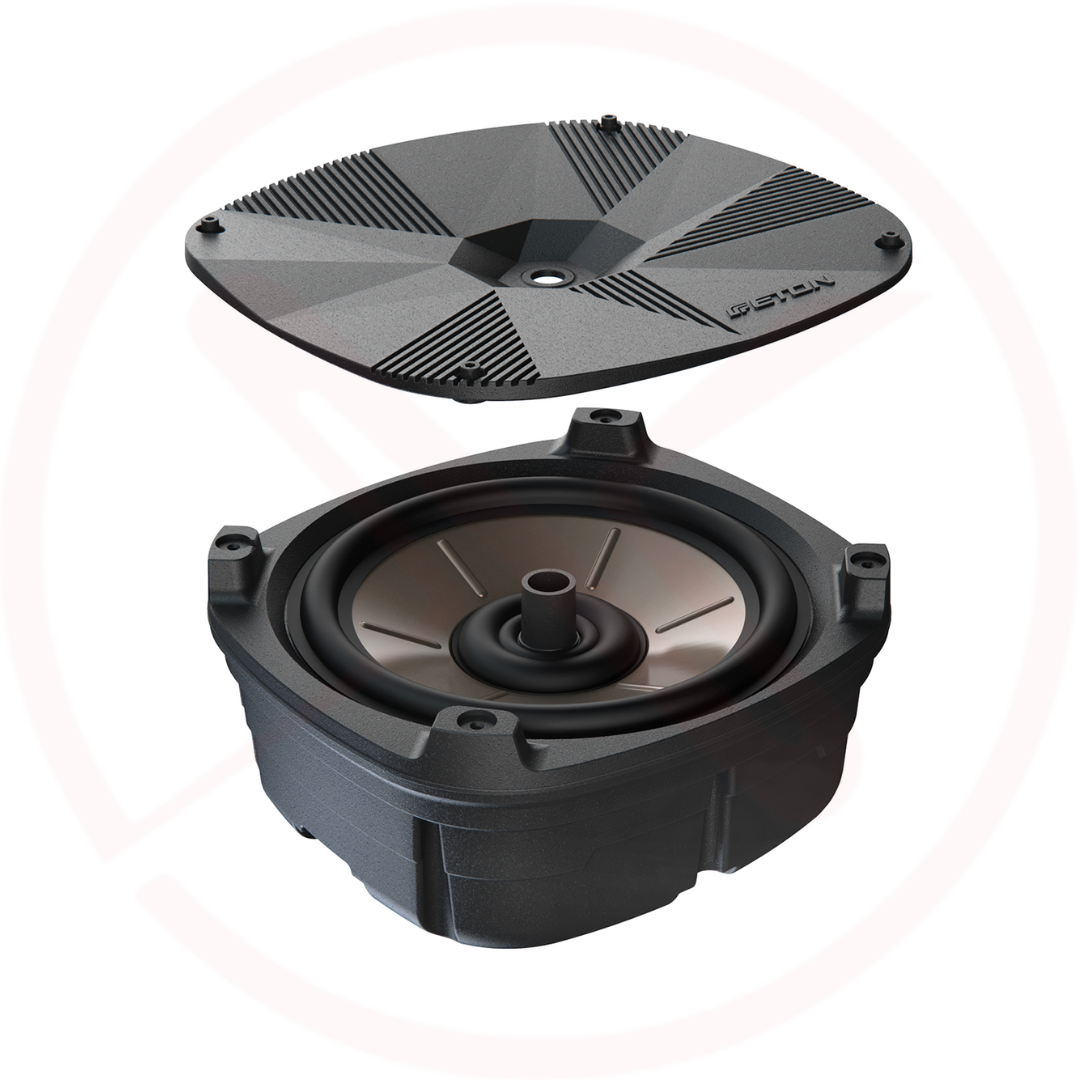

The RES subwoofer series stands for hidden rich bass! The special feature of this series is the hidden mounting in the spare wheel (from 15 "rim), i.e. it can be the subwoofer hidden in the spare wheel well mounted and still be carried the original emergency wheel. Thanks to the solid aluminum die-cast housing and the special design, this is possible! The new RES 12 has an extremely powerful 300 mm (12") subwoofer with ferrite magnet and stiffened aluminum membrane for extreme kick bass and powerful low bass passages. The special design of the driver, allows easy mounting in the center of the subwoofer, so the original mounting spike of the emergency wheel can still be used. The RES 12 has an extremely powerful active module with 500 W music power and low-pass filter and switch-on detection DC/SIG. Incl. level remote control with Phaseshift, Engineered in Germany.


Features & Specs
- RES 12 active subwoofer for hidden
installation in the spare wheel well or inside a
spare wheel (min. 15" steel rim)
- Rigid sealed cast aluminium enclosure
- Music power rating: 500 W Max.
- Rated power: 200 W RMS
- Impedance: 2 ohms
- Crossover frequency: ~ 50 - 100 Hz
- Max. current consumption: 25 A
- Phase rotation: 0° / 180
- RCA (Cinch) low-level input
- Combination connector with integrated
high level input (Hi-Level In),
+12V / GND power connection, remote input
- Operating voltage: 14,4 V (10V-16V)
- for vehicles with start-stop function suitable
- Dimensions: 341 x 321 x 164 mm (LxWxH)
- Weight: 9.8 kg

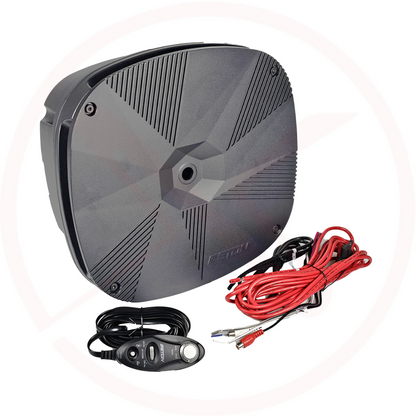

(Package Contents)
RES 12 avtive spare wheel
subwoofer
18 pin connection harness (+12 V power
cable, remote cable, speaker input, ground)
6 m power extension coupler (10 AWG)
with incl. fuse holder 25 A
Speaker cable
Remote cable
Strain relief & mounting accessories
Bypass plug for omitting
the wired remote control
    (amplifier works in full range mode)
