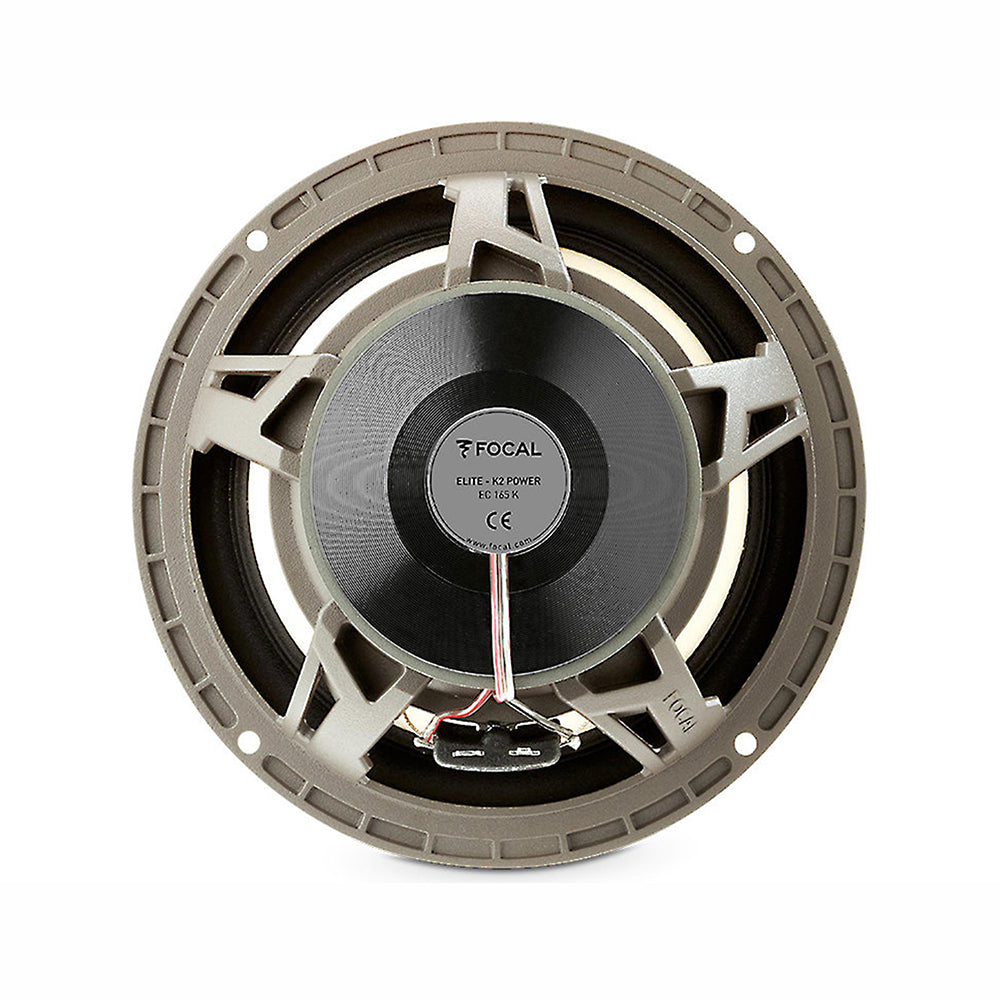

Focal EC165K 6.5" 160 Watts 2-Way 4 Ohms Coaxial Component Car Speakers

Focal EC165K 6.5" 160 Watts 2-Way 4 Ohms Coaxial Component Car Speakers

Regular price RM2,888.00
Regular price Sale price RM2,888.00
Sale Sold out

Focal EC165K 6.5" 160 Watts 2-Way 4 Ohms Coaxial Component Car Speakers

k2power-ec165k-specification-sheet EC165-K-technical-sheet

6.5" TWO-WAY COAXIAL COMPONENT KIT

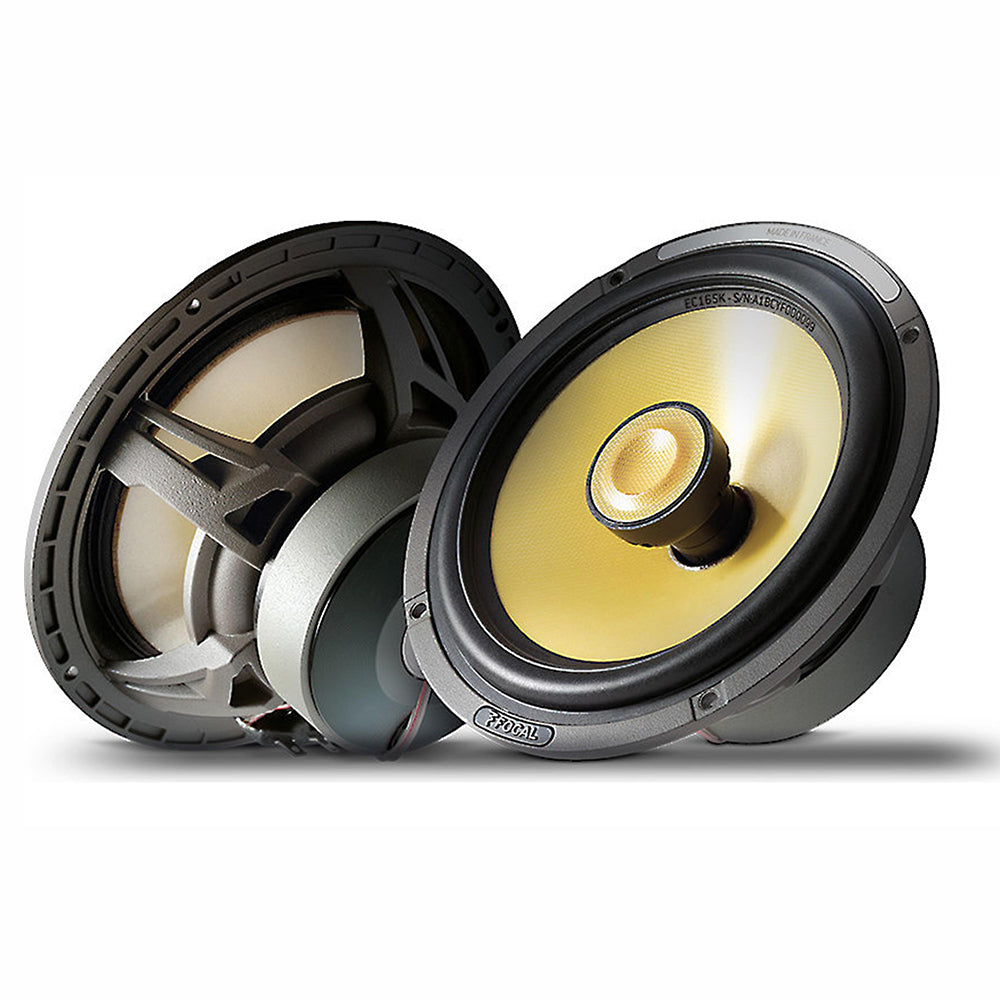

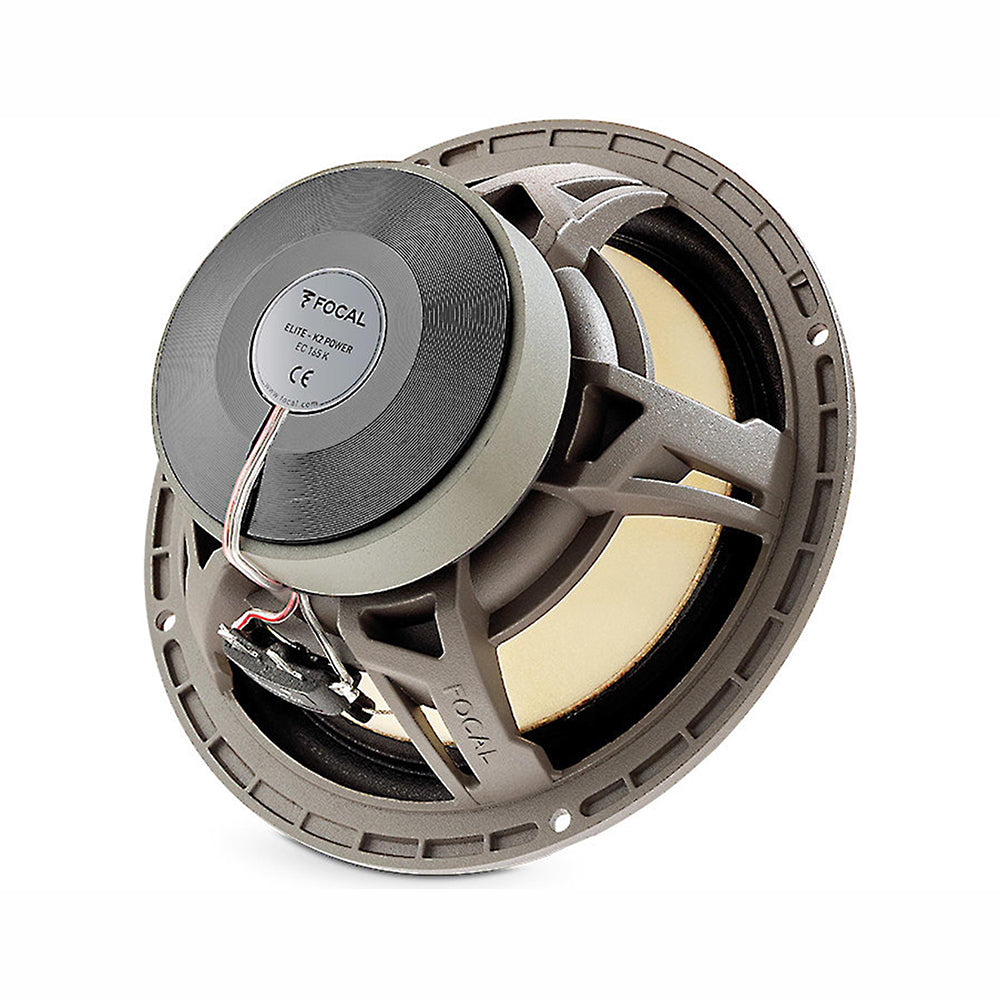

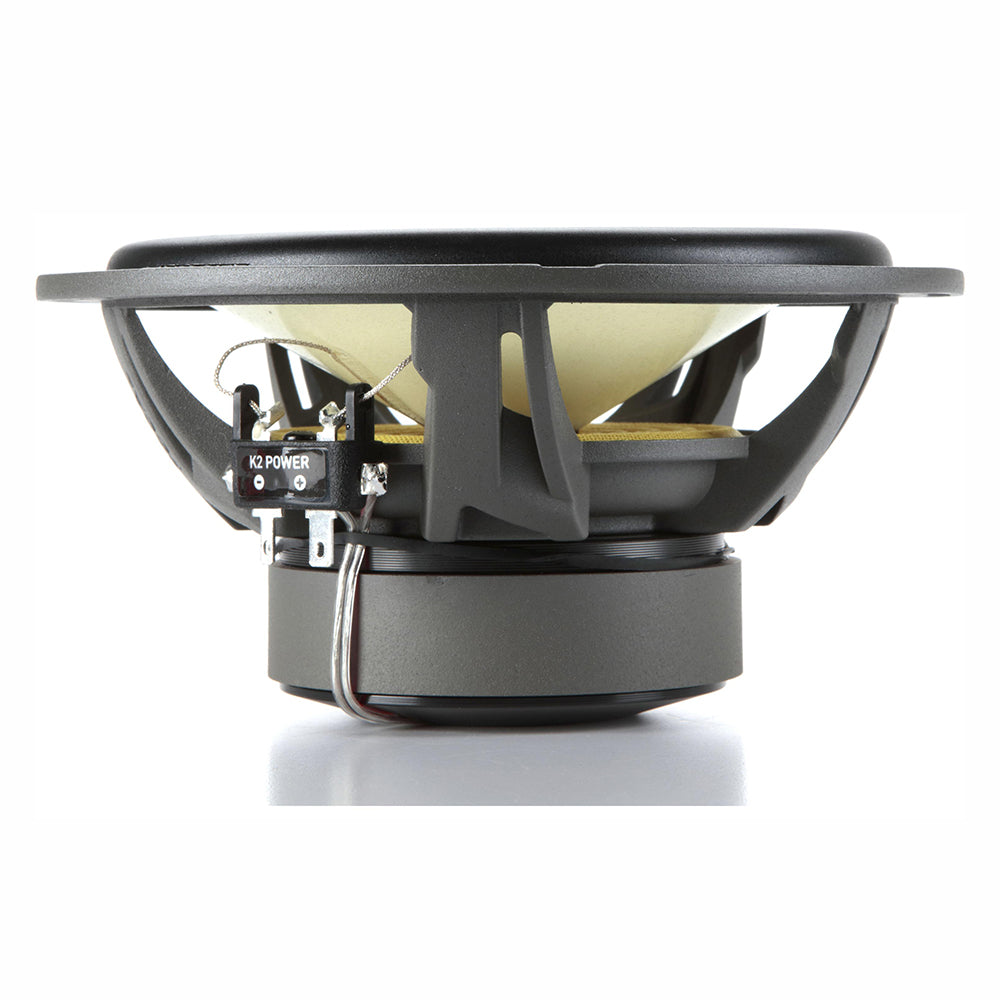

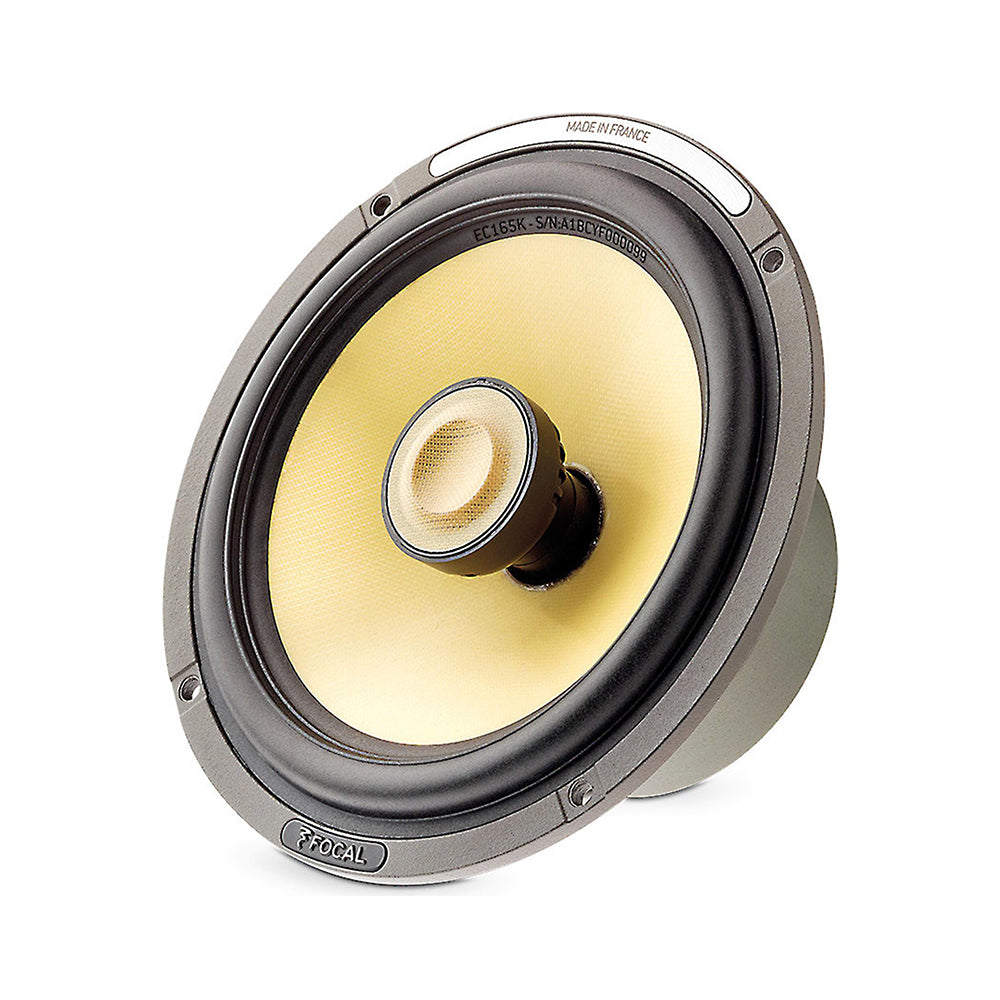

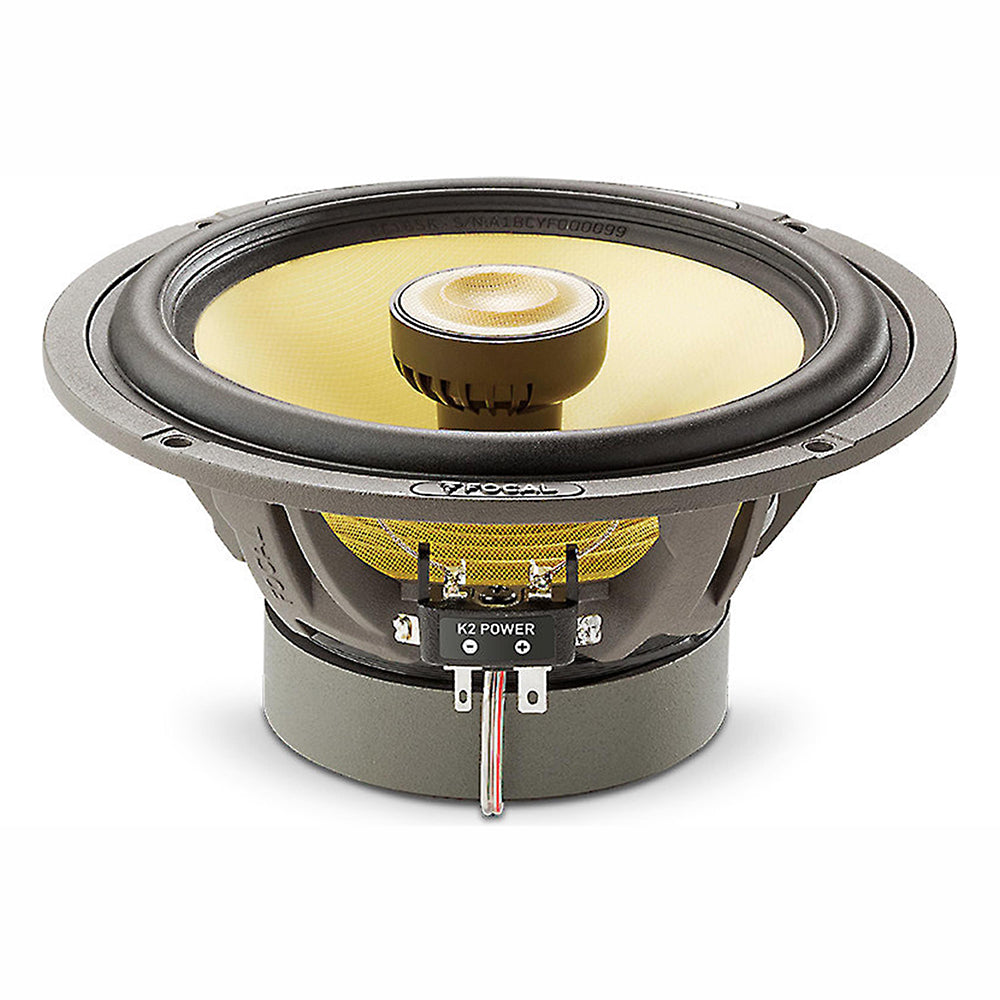

The EC 165 K kit is composed of two 165 mm (6½") woofers with coaxial tweeter

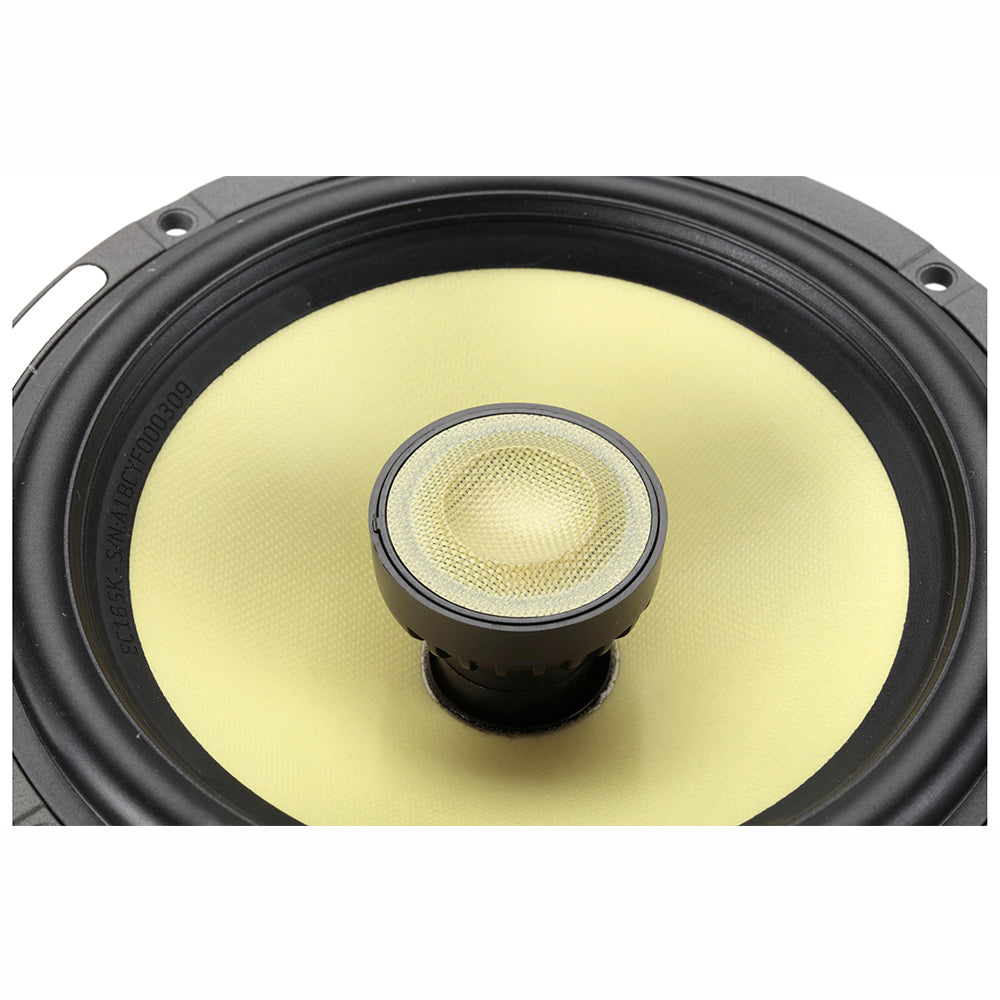

Like all speaker drivers in the K2 Power line, the coaxial woofers of the EC 165 K kit are also equipped with Kevlar® cones. These cones are endowed with all the ideal qualities: lightness, rigidity and excellent damping, to deliver dynamic sound and perfect definition. The cones are fixed to the frame using TMD suspension, whose exclusive design removes unwanted resonances and reduces the effects of distortion. The two TKM inverted dome tweeters are composed of aramid fibres. Their exclusive “M”-shaped profile is designed to control deformation of the dome, and to reproduce with precision smoothly high frequencies up to 22 kHz. The frames have been redesigned to make them more robust and shorter; their depth has been reduced as much as possible: 74 mm (3"). These tweeters are equipped with built-in crossover

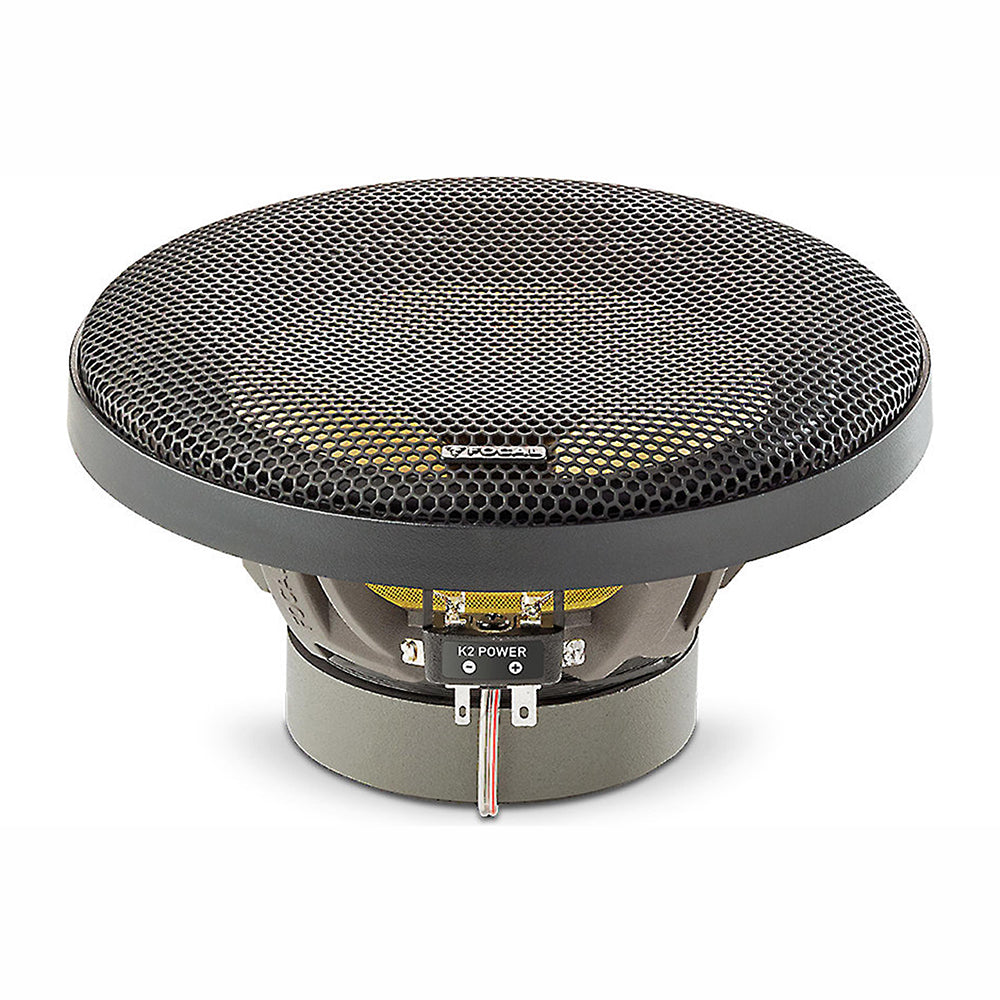

The kit is supplied with aluminium and mesh grilles.


WHAT MAKES THE DIFFERENCE

  • Inverted dome "M"-shaped tweeter
  • Reinforced tweeter post
  • Flush tweeter (compact)
  • 6-1/2" 2-way car speakers
  • K2 Kevlar sandwich woofer cone
  • Tuned Mass Damper (TMD®) rubber surround
  • 13/16" aramid fiber "M"-shaped inverted-dome tweeter
  • 4-ohm impedance
  • Power range: handles up to 80 watts RMS (160 watts peak power)
  • Frequency response: 60-22,000 Hz
  • Sensitivity: 93 dB at 2.83 V
  • Mounting depth: 2-15/16"


Technical Characteristics

  • 2-way coaxial kit
  • Diameter: 6½"(165mm)
  • Voice coil diameter: 1" (25mm)
  • Voice coil height: 0 9/16" (15mm)
  • Motor: Magnet
  • Tweeter: TKM ("M" profile aramid fiber inverted dome)
  • Cone: Composite K2 Power "W" sandwich cone
  • Surround: Tuned Mass Damper (TMD®)
  • Max. power: 160WNom. power: 80W RMS
  • Sensitivity (2.83V/1m): 93dB
  • Frequency response: 60Hz - 22kHz
  • Impedance: 4 Ω
  • Accessories: Supplied grilles


Content:

  • 2 x Car Speakers
  • Manual
  • Fittings as per Manufacturer
