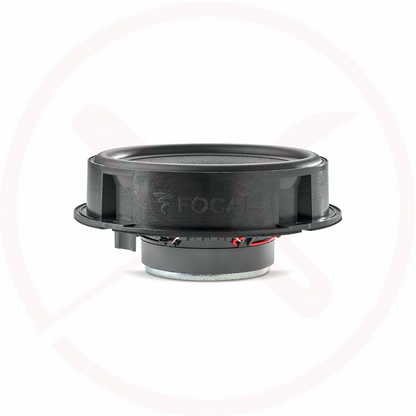

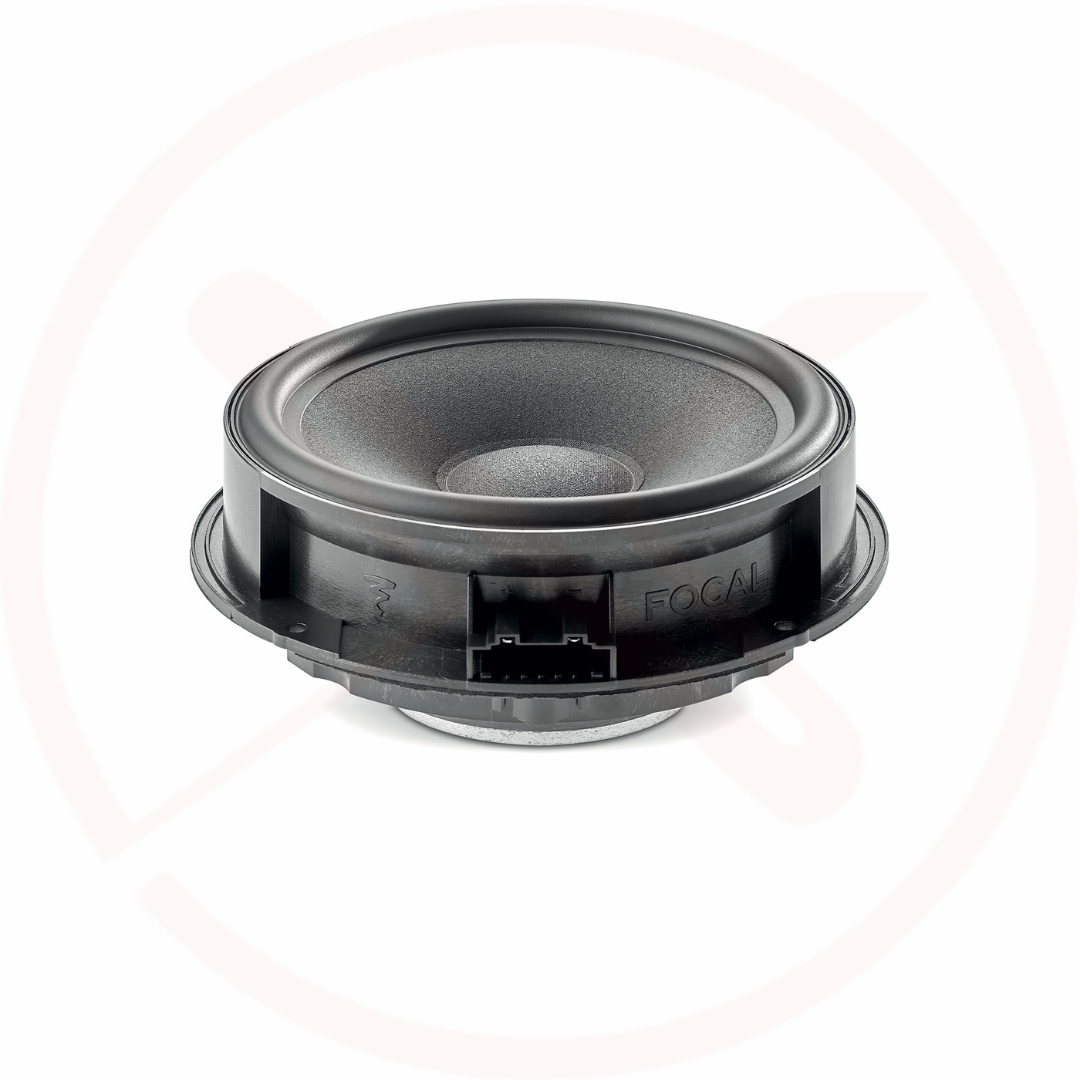

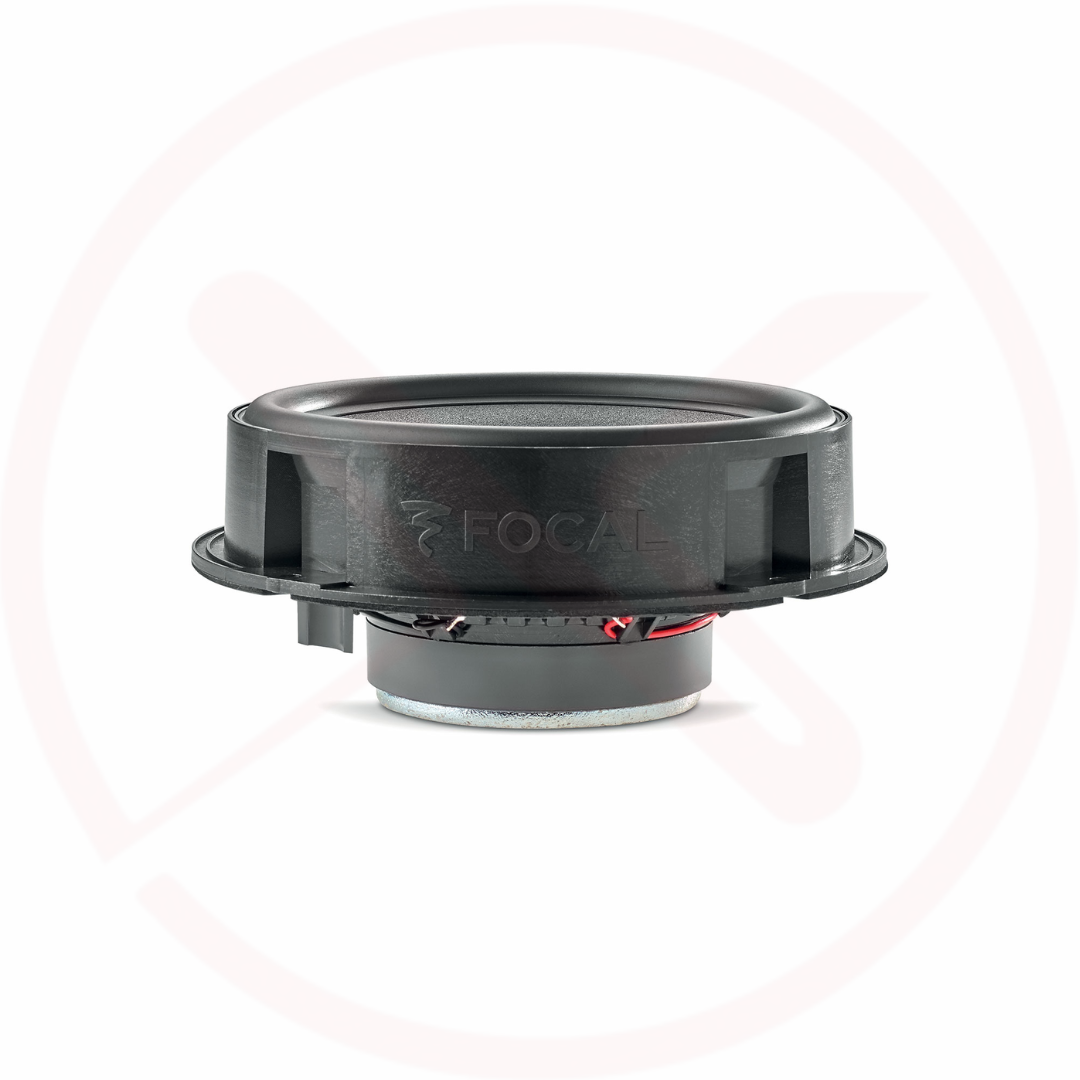

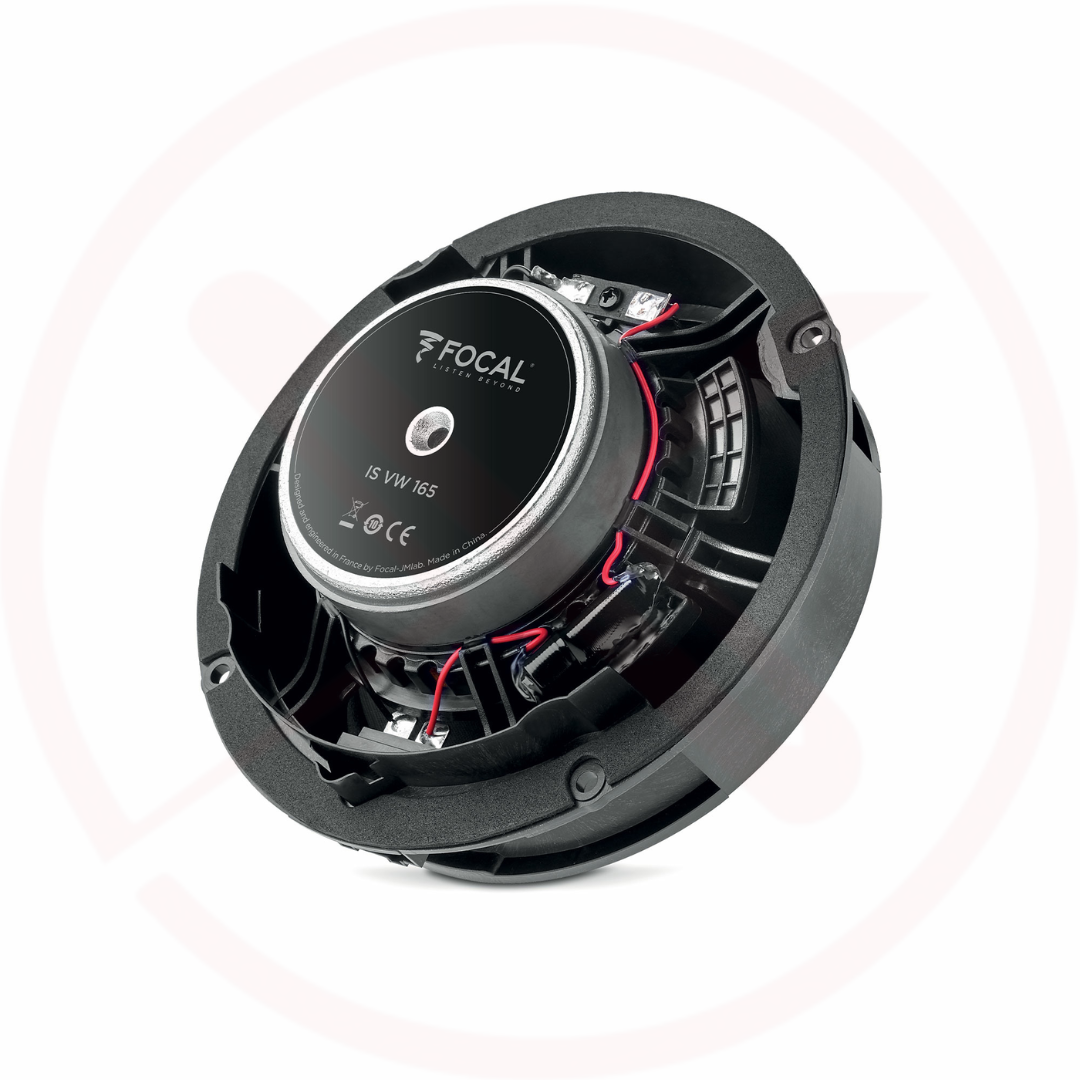

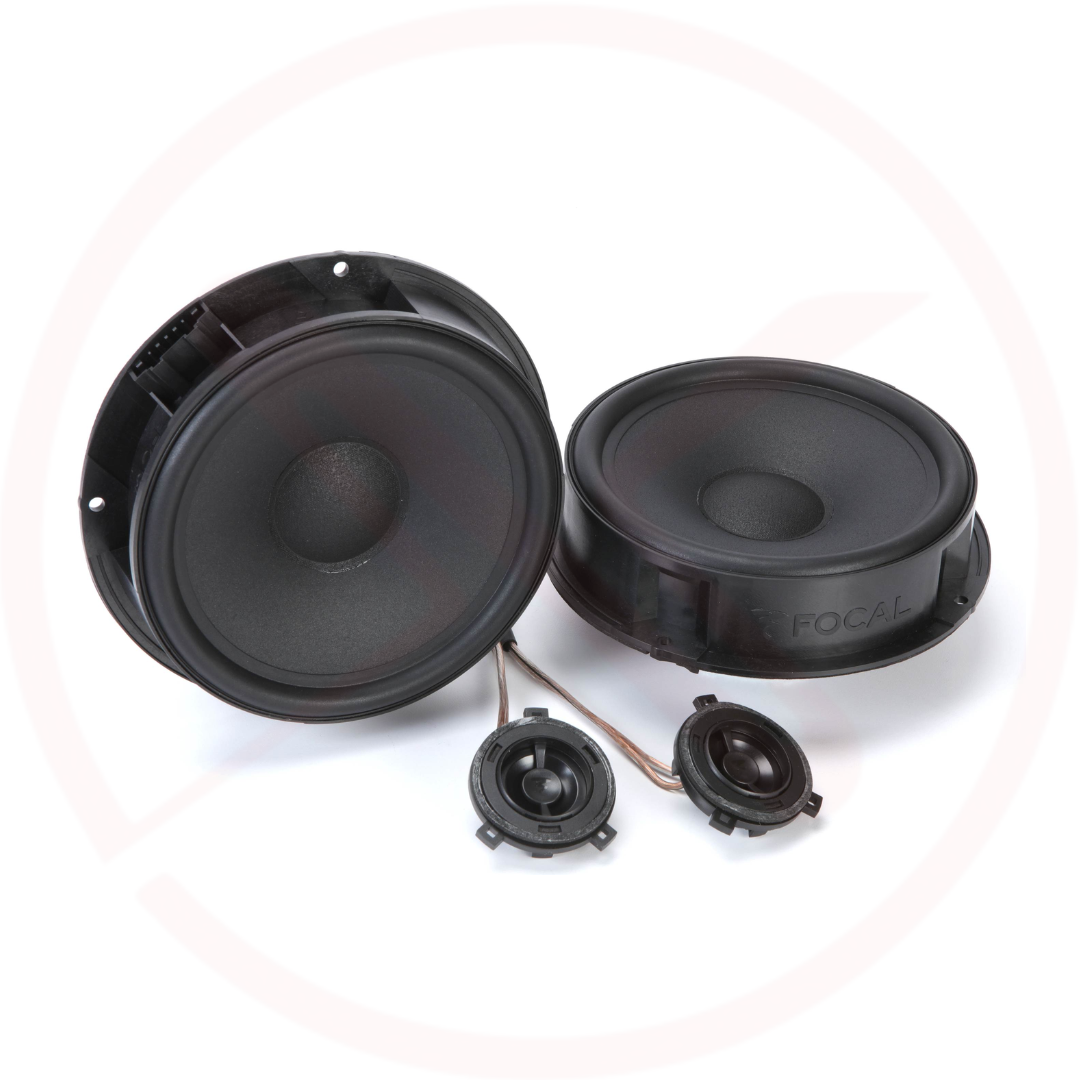

FOCAL IS VW 165 - Plug & Play 6.5" Component Car Speakers for Volkswagen POLO/JETTA/SCIROCCO/GOLF

FULLY PLUG & PLAY 2-WAY COMPONENT CAR SPEAKERS FOR POLO/JETTA/SCIROCCO/GOLF WITH SOCKET (FOCAL INSIDE SERIES)

The Hassle Free Premium Upgrade Exclusively For Volkswagen That's Worth Every Dime!

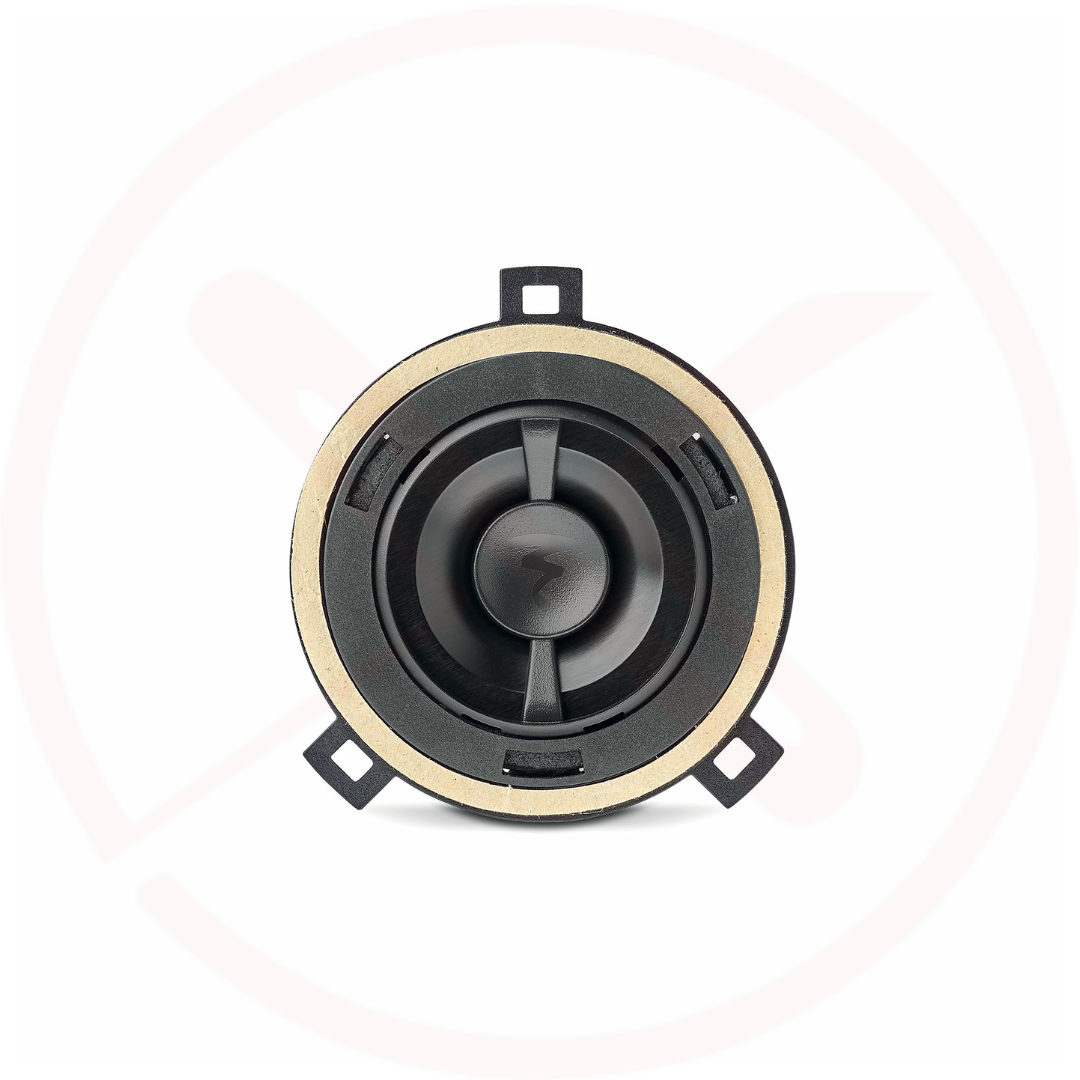

The IS VW 165 2-way separate kit is designed for all drivers who wish to replace their original audio system with a hi-fi quality sound solution that is simple and quick to install. The speakers incorporate Polyglass technology, which delivers well-defined mids and bass. The sound is natural and without coloration. The aluminum inverted dome tweeter, Focal technology, allows for perfect treble reproduction in addition to sound diffusion in all directions. Tweeter mounting foams and anti-vibration foams are provided for uncompromising installation.

Key points:-

- Quick installation

- Frame-integrated spacer: perfect integration in original slots

- Dedicated vehicle connector: no cables to cut or solder

- Improved sound quality and sound level

- No additional accessories required

Product type : 2-way separate kit

Membrane :

Polyglass

Tweeter :

165 mm

Filter : Woofer: Integrated / Tweeter: Online

Frequency response (+/- 3dB) :

60Hz - 20kHz

Maximum power : 120 watts

Maximum SPL (peak@1m) :

87.7 DECIBEL

Motor : Ferrite

Nominal Impedance : 2 Ω

Nominal power : 60 W RMS

Sensitivity : 93.7 dB

Surround material : Butyl

Speaker Parameters:-

DC Resistance (Rdc): 2.08 Ω

Resonant Frequency (Fs): 77.7 Hz

Moving Mass (Mms): 16.7 g

Compliance (Cms): 0.25 mm/N

Equivalent Volume (Vas): 6.65 l

Total Q (Qts): 0.8

Electrical Q (Qes): 0.919

Mechanical Q (Qms): 6.2

Force Factor (Bl): 4.3 N/A

Effective Piston Area (Sd): 136.85 cm²

SPL: 87.7 dB

Max Linear Excursion (Xmax): 7 mm
