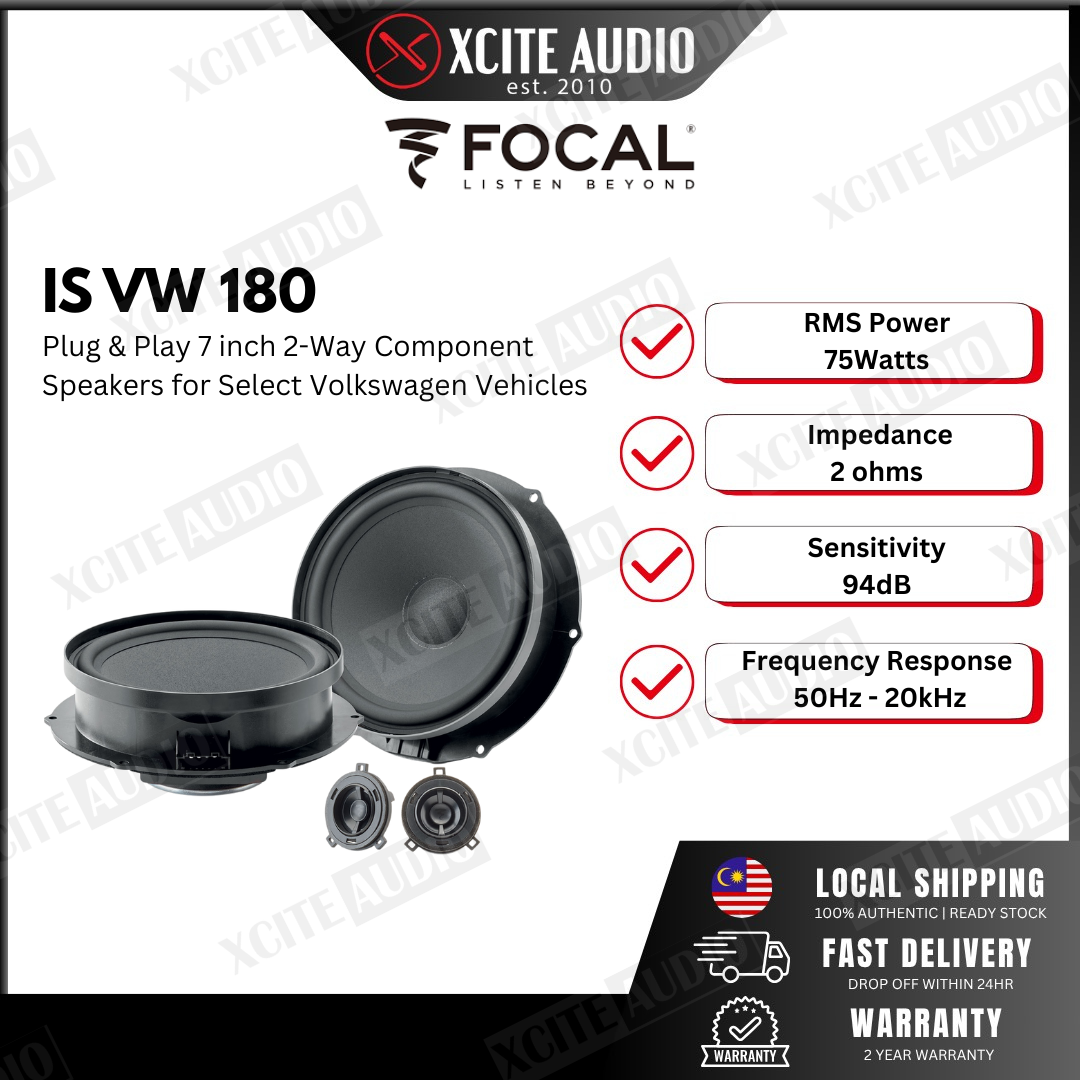

FOCAL KIT IS VW180 - 7" 2-way Component Speaker System Fully Plug & Play For Volkswagen Arteon/Tiguan/Passat

FULLY PLUG & PLAY 2-WAY COMPONENT CAR SPEAKERS FOR ARTEON/TIGUAN/PASSAT WITH SOCKET (FOCAL INSIDE SERIES)



The Hassle Free Premium Upgrade Exclusively For Volkswagen That's Worth Every Dime!

The IS VW 180 2-way component kit is designed for all drivers who want to replace their original audio system with a hi-fi quality sound solution.

The speaker drivers employ Polyglass technology, which delivers well-defined midrange and bass. The sound is natural and without coloration. The Aluminium inverted dome tweeter, a Focal technology, provides perfect treble reproduction in every direction. In addition, tweeter mounting foams and anti-vibration foams are included for a perfect set up.

Quick and easy to install, this kit is compatible with the latest Volkswagen models (Passat, Tiguan, Golf 8, etc.),



Key Points

• Quick and easy install

• No modifications needed on the vehicle

• Invisible integration

• Increased sound quality

• No additional accessories required

• Large emissive surface delivering deep bass



SPECIFICATIONS

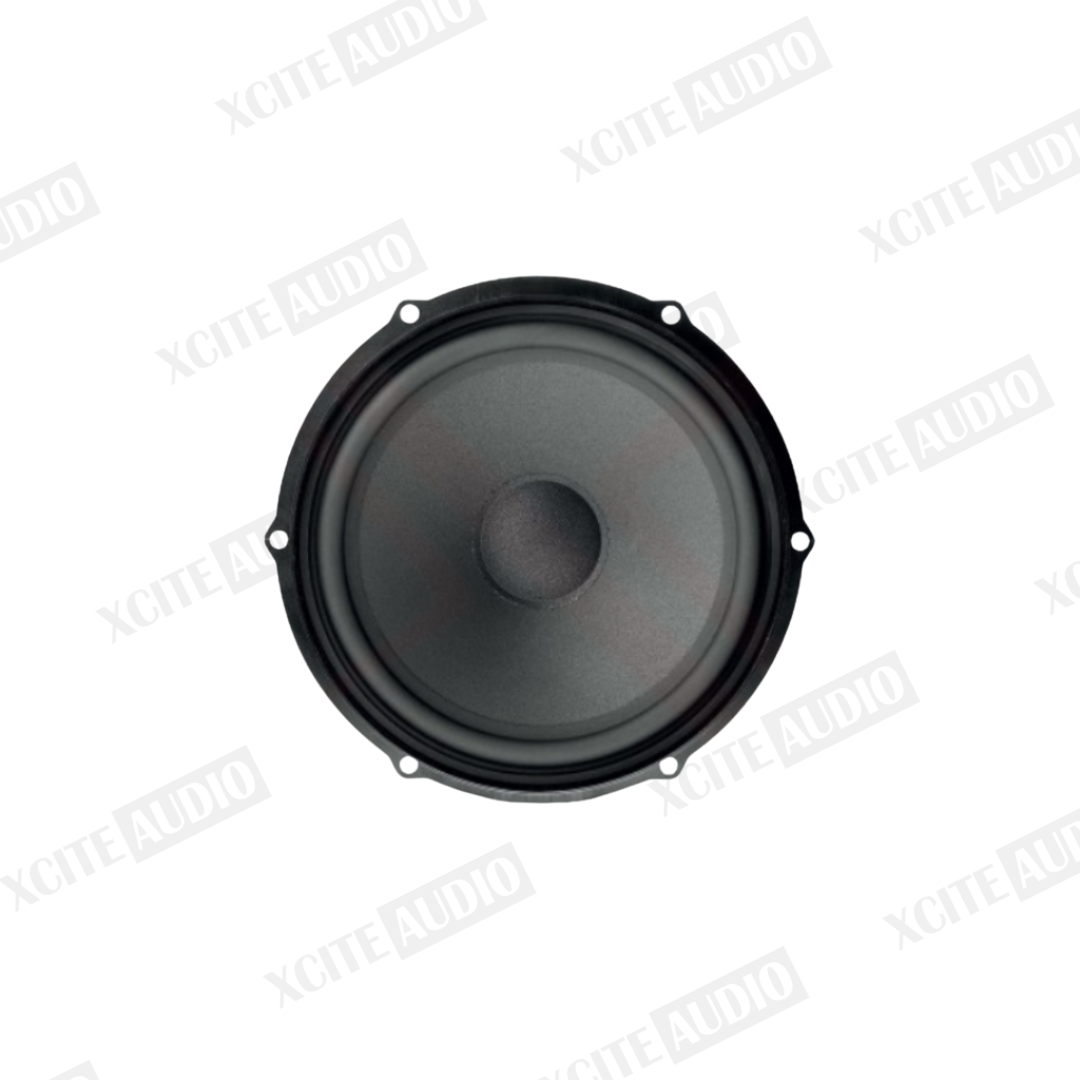

Woofer:

Nominal power : 75W

Maximum power : 150W

Sensitivity : 94dB

Nom. impedance : 2 Ω

Cone : Black Polyglass

Surround : Butyl

DC resistance : 2.07 Ω

VC diameter : 25mm (1")

Former : Kapton

Layers : 2

Wire : Copper

Net weight : 1050g (2.31 lbs)





Tweeter

Nominal power : 15W

Maximum power : 100W

Sensitivity : 91dB

Nom. impedance : 4 Ω

Cone : Aluminium

Surround : Fabric

DC resistance : 3.5 Ω

Former : Kapton

Layers : 2

Wire : Aluminium

Net weight : 50g (0.11 lbs)





PARAMETERS

Woofer:-

Rdc : 2.07 Ω

Fs : 62.4Hz

Mms : 24.7g

Cms : 0.264mm/N

Vas : 12.6 l

Qts : 0.695

Qes : 0.782

Qms : 6.23

Bxl : 5.06N/A

Sd : 183.35cm2

SPL : 88dB

Xmax : 7mm



Tweeter:-

Rdc :3.5 Ω

Fs :3875Hz

Mms :24.7g

SPL :88dB
