The Harman Kardon Feel 700 is an ultra-compact subwoofer that adds powerful, deep bass to your car audio system without taking up much space. With a built-in 125W RMS amplifier and a stylish aluminum design, it fits perfectly under a car seat for an impressive sound experience.
The Harman Kardon Feel 700 is a revolutionary subwoofer specifically designed to add powerful, deep bass to your existing car audio system without taking up a lot of space. This ultra-compact system fits easily under a car seat and offers an impressive bass performance thanks to its built-in 125W RMS Class D amplifier and robust cast aluminum design.
Features of the HK Feel 700 Underseat Subwoofer
Powerful Bass, Ultra-compact Space: The HK FEEL 700 delivers deep and powerful bass sounds without taking up much space.

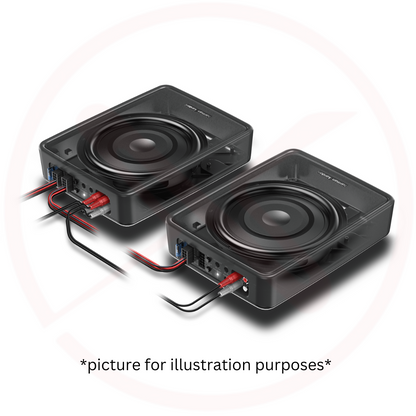

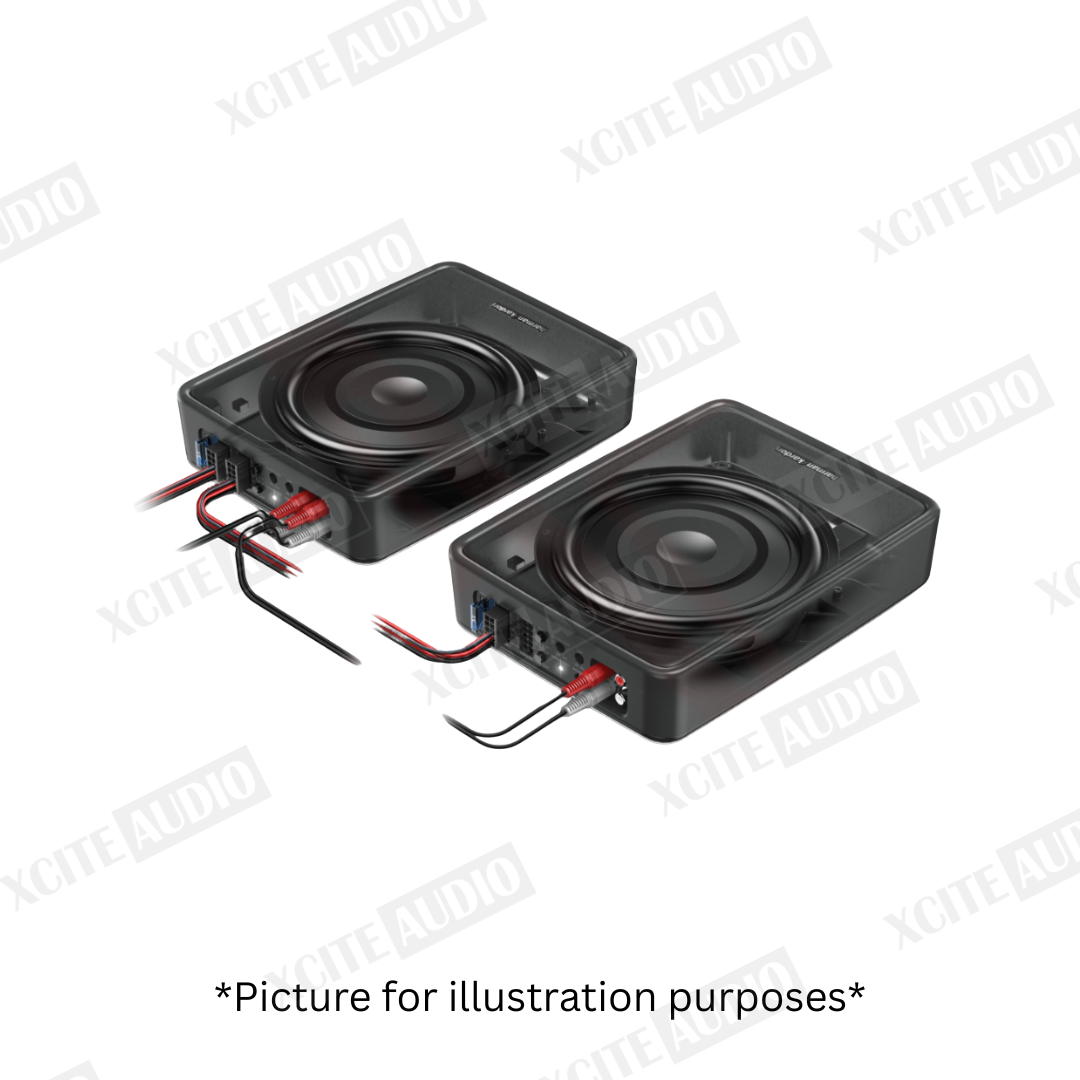

Easy Upgrade with Series Wiring: Easily expand by adding a second subwoofer for even more bass output.
Efficient Class D Amplifier: Minimal heat generation and low power requirements make this amplifier ideal for automotive use.

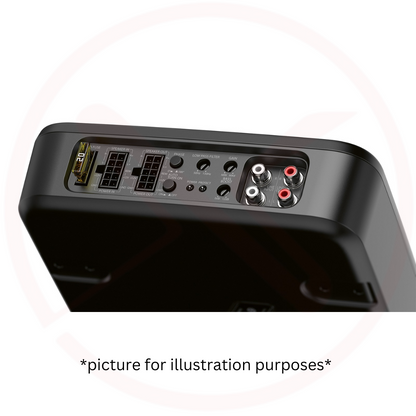

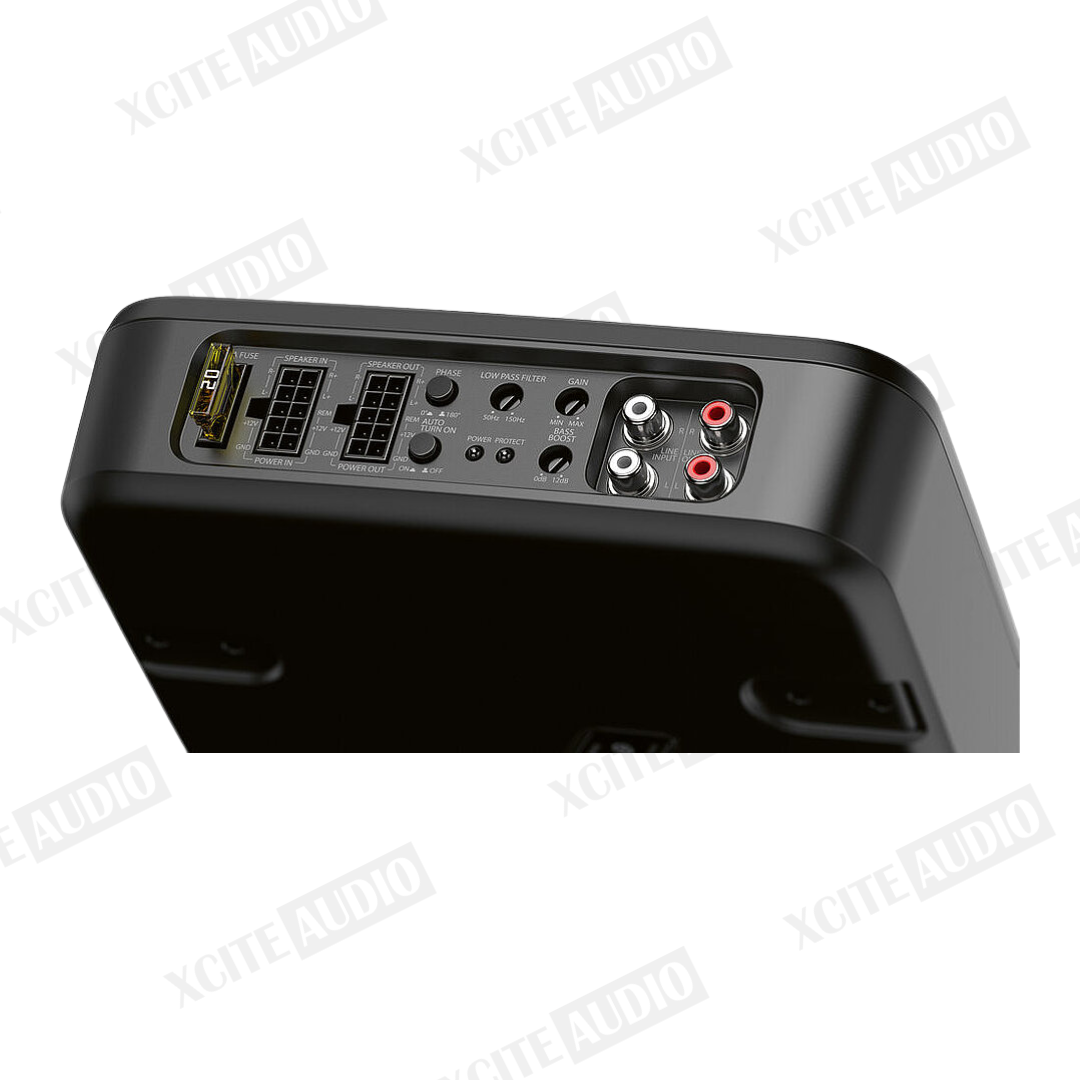

Crossover Control: Adjust the crossover frequency (50Hz – 120Hz) for a seamless transition to the other speakers in the system.
Flexible EQ Adjustments: Gain and Bass Boost controls let you optimize volume and bass response.
Line and High-Level Inputs: Suitable for a variety of installations thanks to the versatile input options.

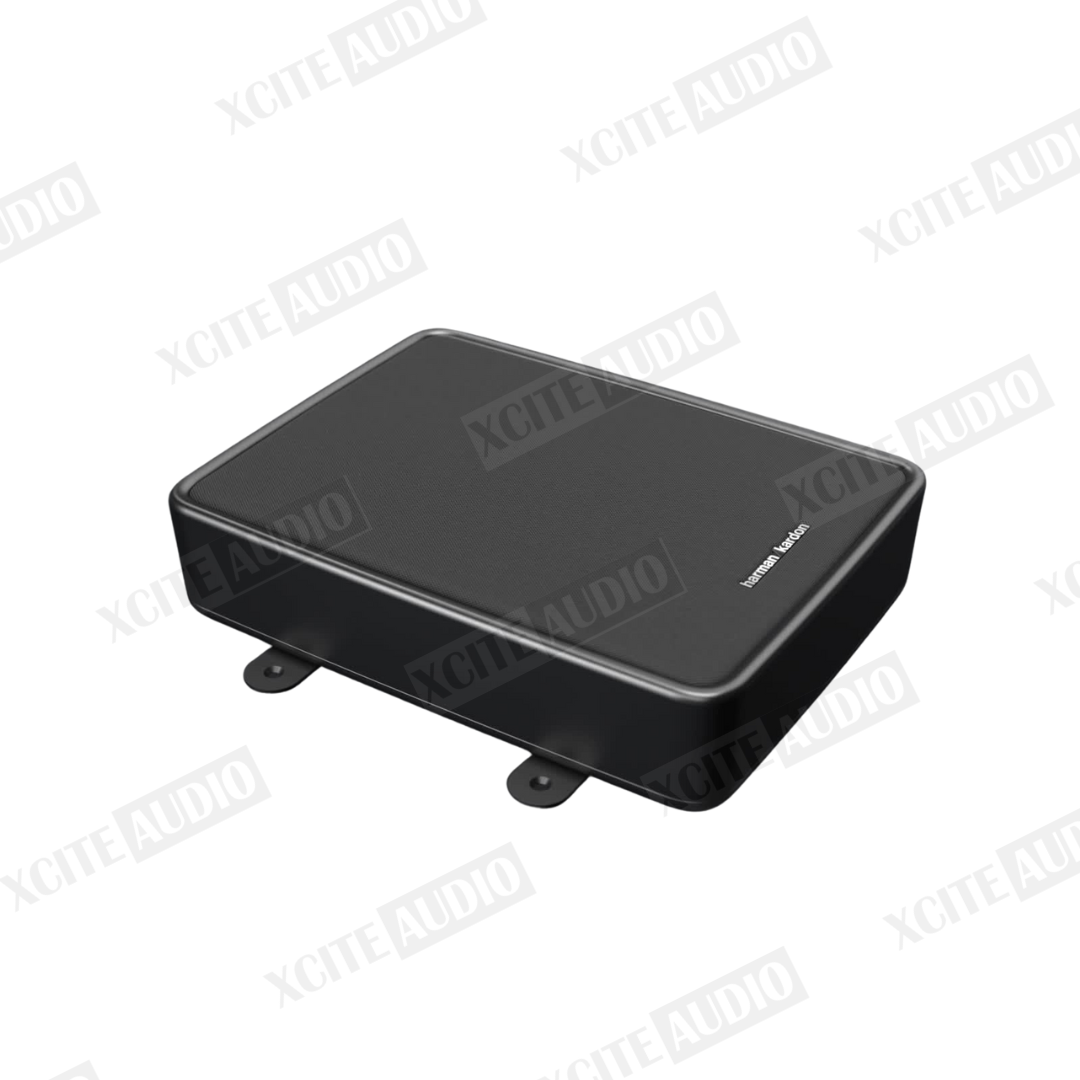

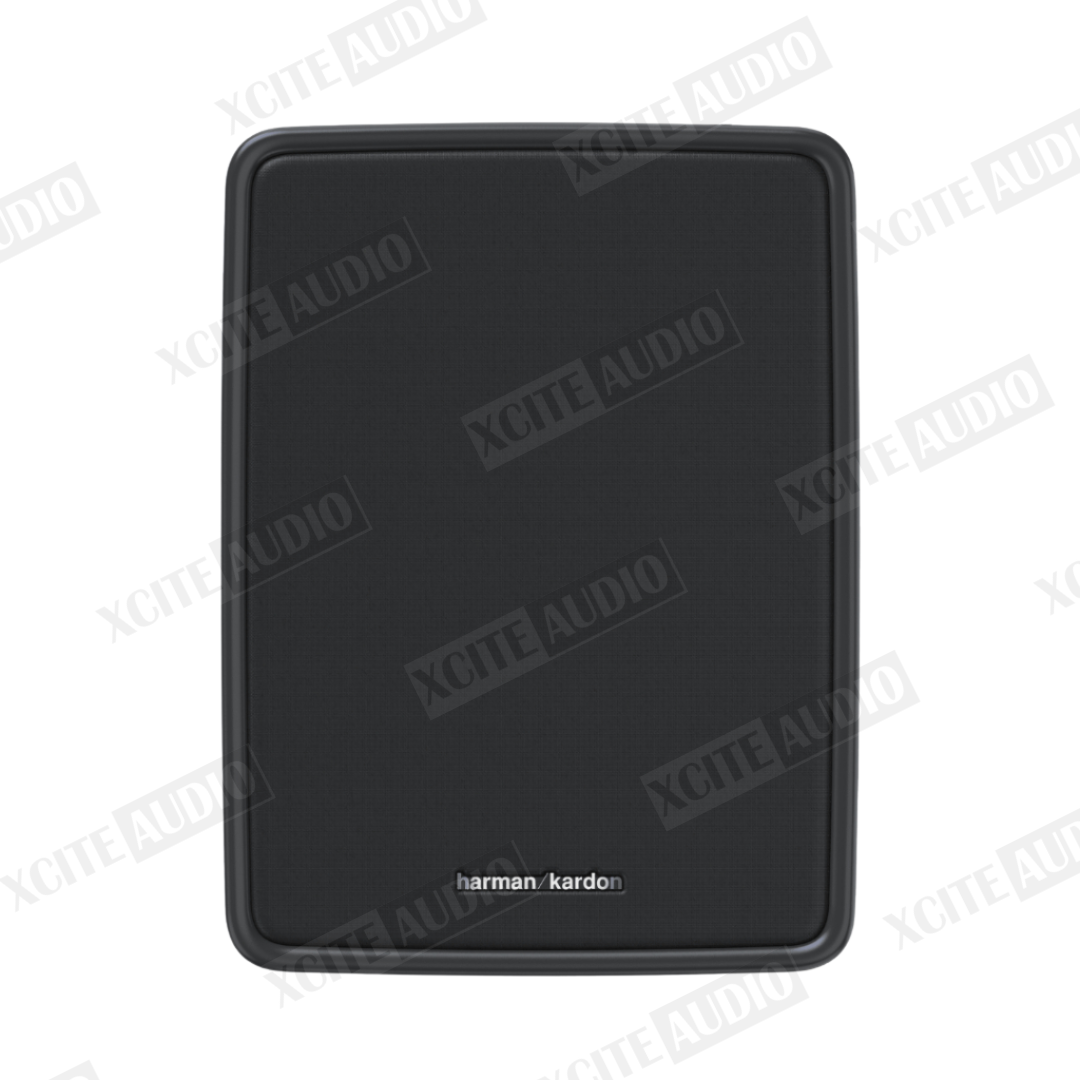

Die-casting Aluminum Housing: The compact and elegant aluminum housing not only offers durability but also a stylish appearance that fits perfectly into a car's interior.
Harman Kardon's Sleek Design: The subtle yet powerful design blends seamlessly into any vehicle and adds a premium look.
General specifications
• Driver Complement: super powerful 7" (165mm) Subwoofer
• Amplifier Power: Class D, 125Wrms; 250W Max
• Frequency Response: 40Hz – 150Hz
• Fuse: 15A
• Maximum Current Draw: 14 A
• Quiescent Current Draw: <700 mA
• Input Sensitivity: 0.10 V – 5.0 V Low-Level Input; 0.5 V – 25V
High-Level Input
• Crossover Frequency: 50 Hz – 150 Hz
• Crossover Slope: 12 dB/octave
• Bass Boost: 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H): 10-1/4" x 7-11/16" x 2-5/16" (260mm x 195mm
x 58mm)
• Weight: 7.7 lbs (3.5kg)
What’s in the box
1x Subwoofer
2x Wiring harness for power and speaker level input (300mm)

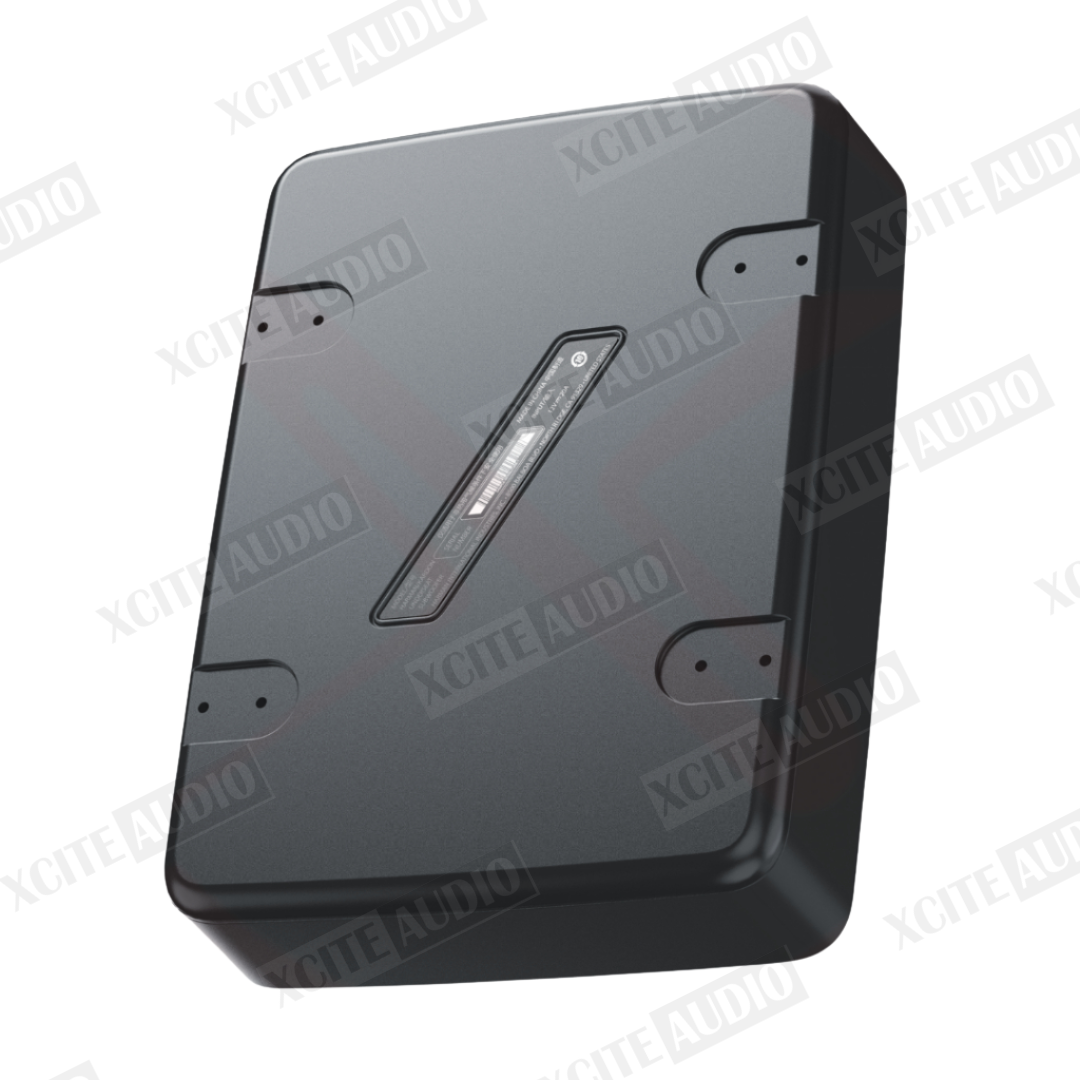

4x Mounting plates
8x M4x6 Philip screws
4x M4x25 Philip screws
1x 15A Fuse
1x Safety sheet
1x OM
Warranty Covered By Harman/Kardon National Distributor
