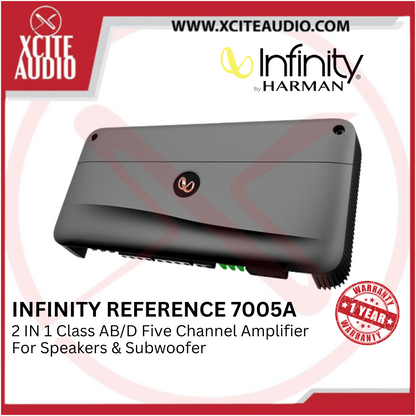

INFINITY REFERENCE 7005A - 2 IN 1 Class AB/D Speakers & Subwoofer 5 Channel Amplifier
Looking for power for your entire system? Infinity's sleek Reference 7005A five-channel amplifier will add firepower and excitement to your music without losing its cool. This power plant will pump out 50 watts RMS to each of your front and rear speakers, plus up to 500 watts RMS to a sub. For a high performance system, you can bridge the amp to 3-channel mode to power front speakers with 150 watts RMS each, while still driving the sub with 500 watts. The sub channel's Class D design ensures that its high output will put minimal strain your vehicle's electrical system.
Features:
Compact size
The Infinity Reference 7005A amplifier feature a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low level input
Speaker-level and low-level inputs allow the Reference 7005A to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, Infinity Reference amps feature variable electronic crossovers and bass boost circuit to allow for fine-tuning.
Low noise and distortion
Produces tight bass with low distortion at high SPL. Balanced Differential Inputs are used to ensure low noise.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
The on-board circuitry to protect them from shorts, temperature, overvoltage and undervoltage.An LED indicator is included on all four models to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.

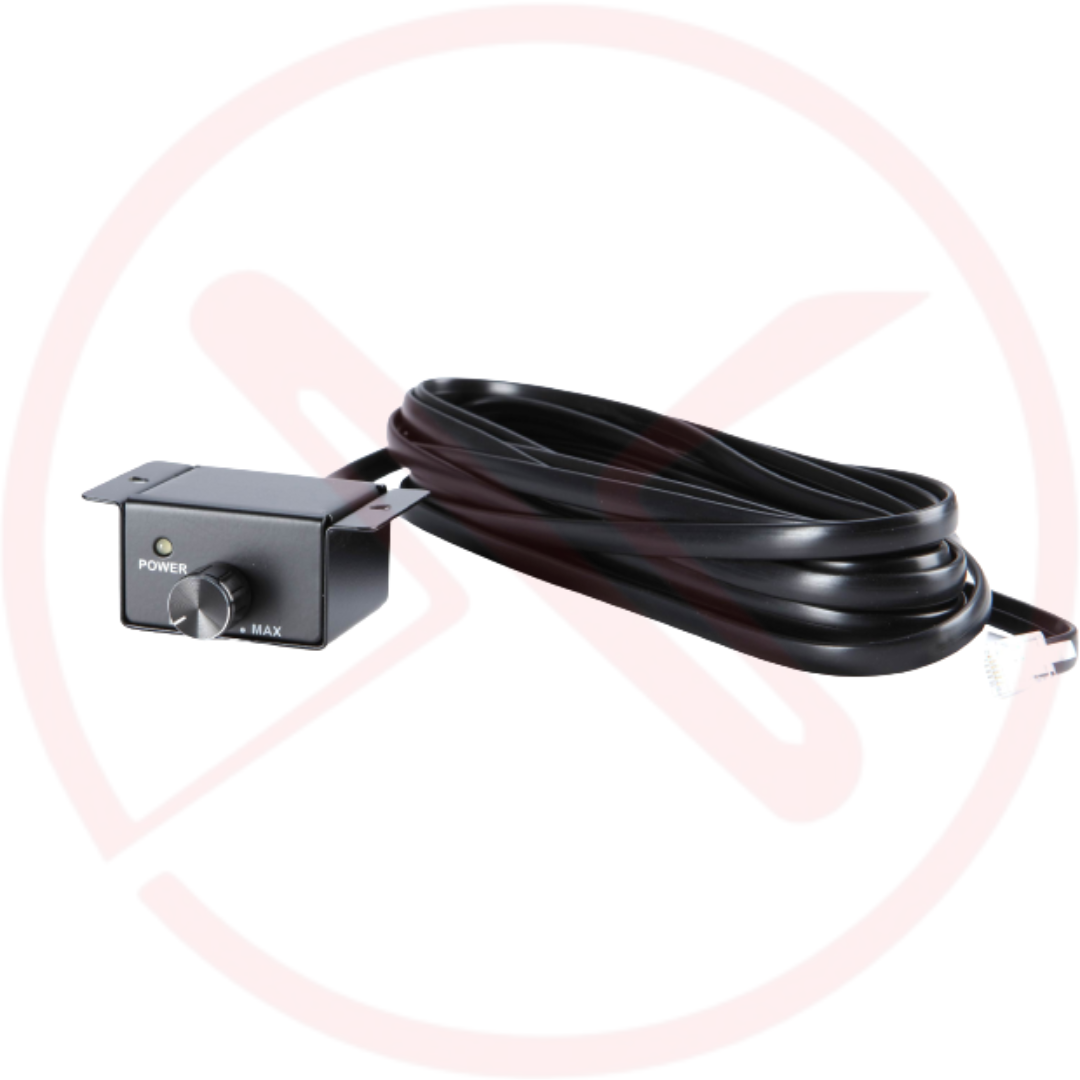

RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
5-channel car amplifier
50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms
75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms
150 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
front and rear channels:
Class AB amp technology
variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
subwoofer channel:
Class D amp technology
low-pass filter (32-320 Hz, 12 dB/octave)
bass boost (0-12 dB at 45 Hz)
phase switch (0, 180 degrees)
wired remote bass control module included
More Info:
preamp and speaker-level inputs
bare wire to RCA adapters included for high-level input
wiring and hardware not included with amplifier
4-gauge power and ground leads recommended
fuse rating: 30A x 3
dimensions: 14-3/16"W x 2-3/16"H x 7-1/8"D
