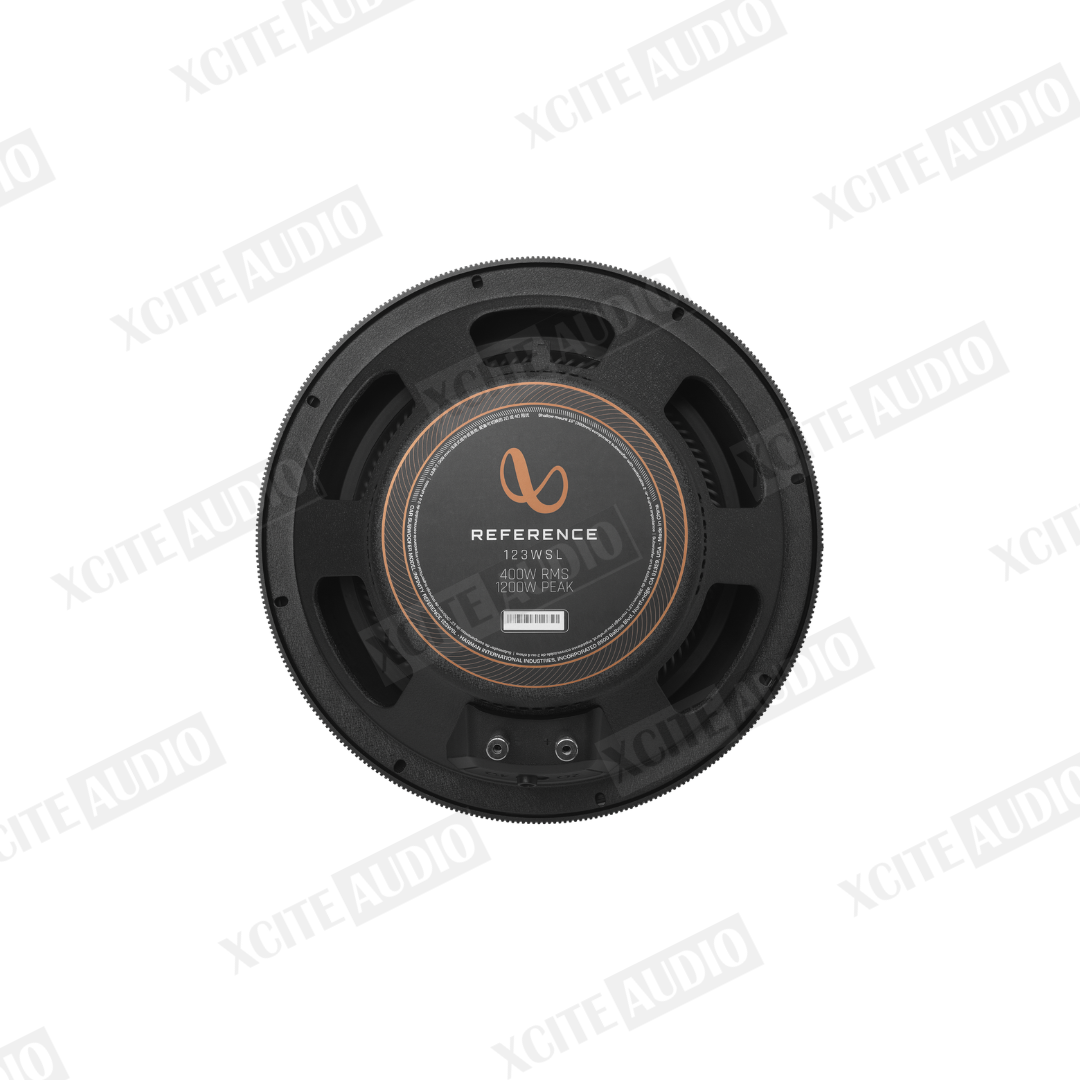

Infinity Reference Series 123WSL 12" Shallow Mount Subwoofer 1200W 2/4-Ohm Car Audio Bass

INFINITY REFERENCE SERIES: DEEP BASS, SHALLOW FIT

Upgrade your vehicle’s audio experience with the Infinity Reference 123WSL. This isn't just a subwoofer; it’s a high-performance solution for modern car interiors. Engineered with an ultra-slim profile, it delivers the signature Infinity deep bass you crave without sacrificing precious trunk or cabin space.

VERSATILE SYSTEM CONFIGURATIONS:

Under-Seat Stealth: The 3.3" mounting depth makes it ideal for compact enclosures under the seats of many pickup trucks and SUVs.

Slim Trunk Enclosures: Perfect for shallow-mount wedge boxes that leave room for your gear.

Selectable Impedance (SSI™): Easily switch between 2-ohm and 4-ohm loads at the flip of a switch, allowing you to reconfigure your system without buying a new subwoofer.

OEM Integration: A premium choice for replacing factory subwoofers in shallow locations while providing a massive boost in low-frequency impact.

Multi-Sub Setup: Low-profile design allows for dual-subwoofer configurations in tight spaces for double the bass output.

KEY FEATURES:

- Patented SSI™ (Selectable Smart Impedance): Features a unique dual-impedance switch that lets you choose 2 or 4 ohms. Switching to 2 ohms allows you to "unlock" the maximum power of your amplifier (as most amps deliver higher wattage at lower impedance), giving you harder-hitting bass without needing a more expensive amplifier.

- Slim Design Profile: Specifically engineered for "shallow-mount" applications where traditional bulky subwoofers simply won't fit.

- Harman Standard Reliability Testing: Every Infinity speaker undergoes environmental testing that would destroy most speakers—freezing, baking, and shaking—to ensure it lasts a lifetime in your car.

- High-Roll Rubber Surround: Provides superior cone edge suspension while maximizing excursion for deeper, more powerful bass.

- Anodized Aluminum Cone: Delivers maximum cone stiffness and efficiency for high output and low distortion.

INSTALLATION & WIRING REQUIREMENTS:

Cutout Diameter: 11" (280mm)

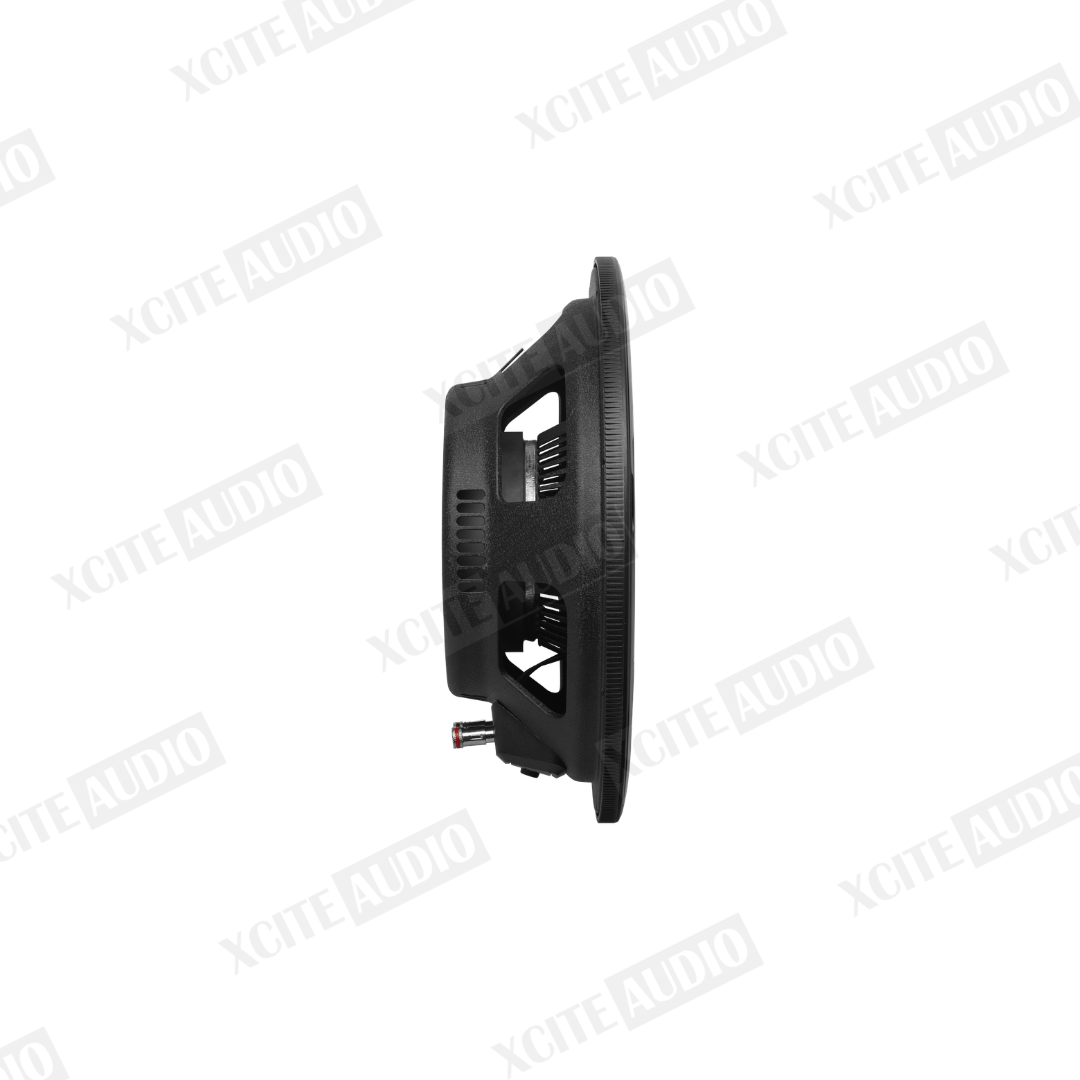

Mounting Depth: Ultra-slim 3.3" (83mm) – ensure your enclosure depth accounts for a small air gap behind the magnet.

Enclosure Type: Optimized for both sealed and vented enclosures.

Wiring: Use high-quality 12AWG or 14AWG speaker wire for the best signal transfer to the terminals.

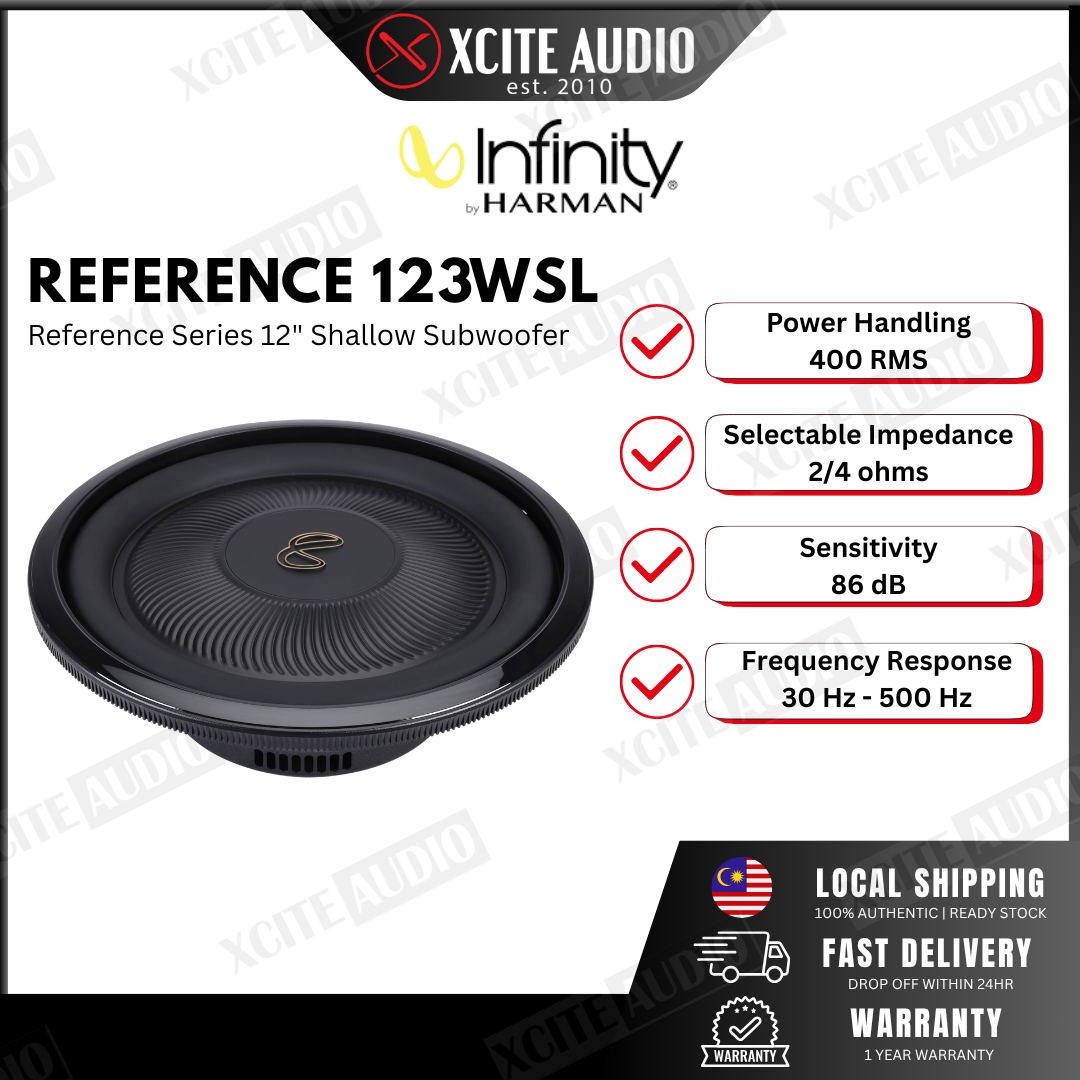

TECHNICAL SPECIFICATIONS:

Model: 123WSL (Reference Series)

Power Handling (RMS): 400 Watts

Power Handling (Peak): 1200 Watts

Sensitivity (@ 2.83V): 84dB

Frequency Response: 30Hz – 500Hz

Impedance: 2 or 4 Ohms (Switchable)

Top-Mount Depth: 3-5/16" (83mm)

WHY CHOOSE INFINITY?

As a brand under the Harman family, Infinity is world-renowned for its dedication to acoustic precision. The Reference Series is designed to bring studio-quality sound to the road, offering a perfect balance of power, clarity, and innovative space-saving technology.

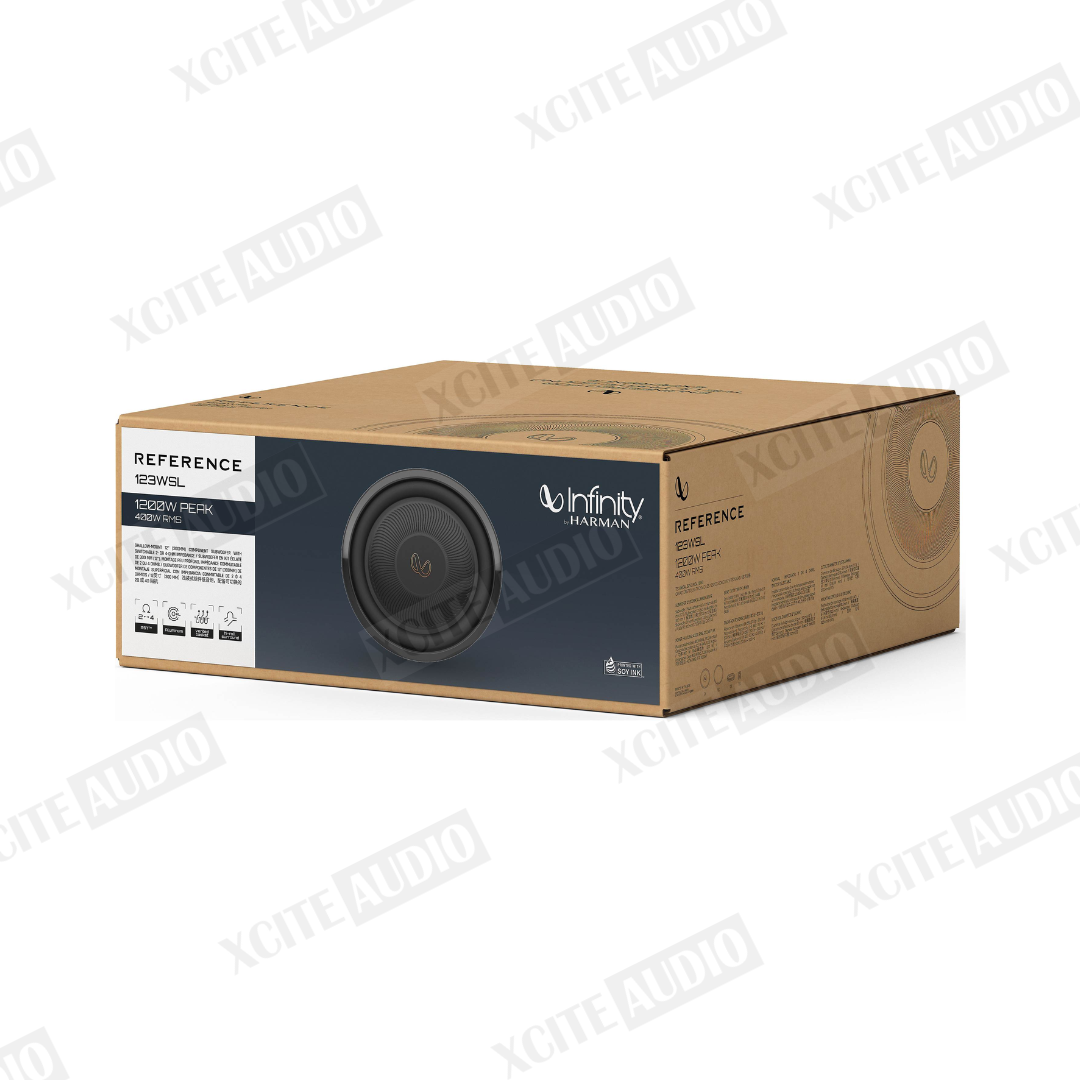

WHAT’S IN THE BOX?

1 x Infinity Reference 123WSL Shallow-Mount Subwoofer

1 x Owner’s Manual

Technical Data Sheet
