JBL Plug & Play Set for Toyota Vellfire/Alphard 20 & 30 Series - JBL Club 64 with FOC JBL GX328

JBL Club 64 (Front Door) + GX 328 (Dash Fill) Bundle | Plug & Play for Toyota Vellfire/Alphard 20 & 30 Series

Upgrade your Toyota Vellfire or Alphard (20 & 30 Series) with this plug-and-play speaker bundle designed to significantly enhance front-stage clarity and overall tonal balance. The JBL Club 64 6.5″ coaxial speakers deliver rich bass and smooth highs from the front doors, while the compact JBL GX 328 3.5″ dash speakers—offered free—bring additional soundstage depth and crisp detail.

Engineered in the US, both speaker models feature JBL’s signature Plus One™ cone technology for improved output and sensitivity, ensuring excellent performance even on stock head units. This bundle offers a clear and immersive upgrade path without needing additional amplification.

Product Highlights:

6.5″ (165 mm) coaxial JBL Club 64 front door speakers with edge-driven silk dome tweeters

3.5″ (87.5 mm) JBL GX 328 coaxial dash speakers included free for extended soundstage

Plus One™ polypropylene woofer cones for extended bass response

Edge-driven soft dome tweeters for smooth, non-fatiguing high-frequency performance

Low-impedance voice coils (3 Ω and 2.3 Ω) optimized for factory radio output

Balanced 2-way sound tuning for OEM system enhancement without external crossovers

Tech Specs:

Model: Club 64 + GX 328 Bundle

Type: 2‑Way Coaxial Speaker System (Front Door + Dash Fill)

Front – JBL Club 64 (6.5″):

Woofer: 165 mm (6.5″) Plus One™ polypropylene cone with rubber surround

Tweeter: Edge-driven silk dome tweeter

Power: 60 W RMS / 180 W peak

Sensitivity: ~93 dB (2.83 V/1 m)

Impedance: 3 Ω

Frequency Response: ~48 Hz – 21 kHz

Installation Diameter: ~142 mm (5.6″) standard 6.5″ fitment

Mounting Depth: ~52 mm

Basket Depth: ~3.5 mm flange thickness (approx.)

Weight: ~1.07 kg per pair

Includes: Speakers, foam gasket, grilles, mounting screws, speed clips

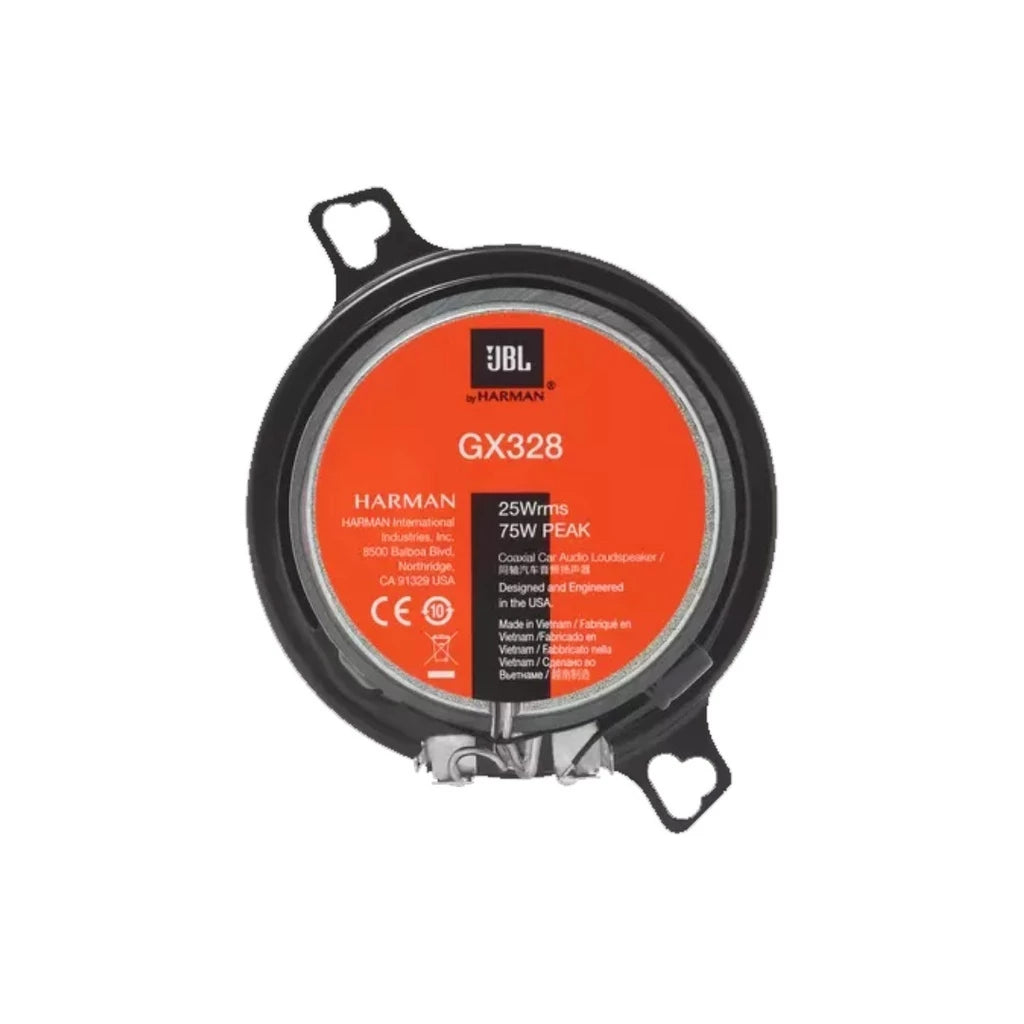

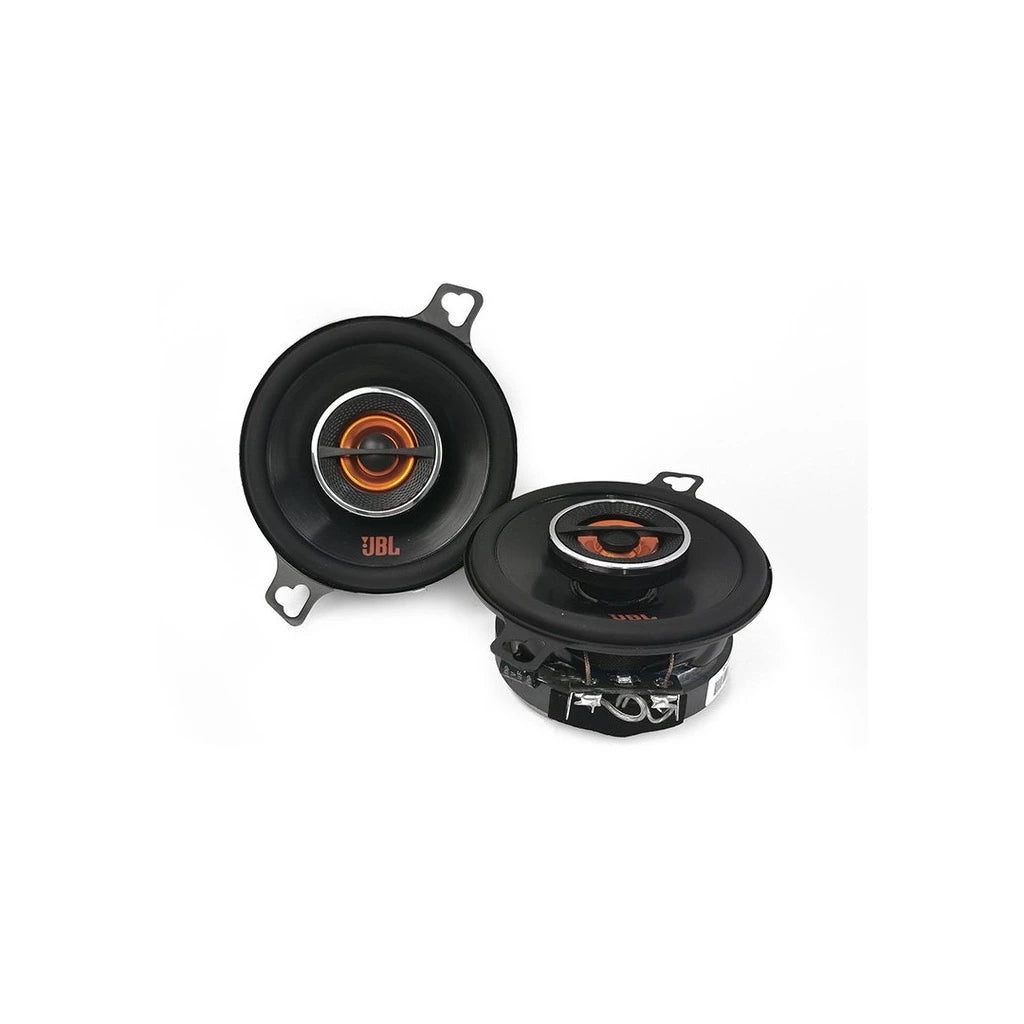

Dash – JBL GX 328 (3.5″, Free):

Driver: 87.5 mm (3.5″) coaxial with Plus One™ cone and soft dome tweeter

Power: 25 W RMS / 75 W peak

Sensitivity: ~89 dB (2.83 V/1 m)

Impedance: 2.3 Ω

Frequency Response: ~90 Hz – 21 kHz

Installation Diameter: ~73 mm (approx.)

Mounting Depth: ~45 mm

Basket Depth: ~3.2 mm flange thickness

Weight: ~1.0 kg per pair

Includes: Speakers, foam gasket

Applications:

Designed for plug-and-play installation in Toyota Vellfire and Alphard 20 & 30 Series vehicles.

The JBL Club 64 is intended for the front doors, while the GX 328 fits into the factory dash speaker locations.

Bracket and socket adapters must be acquired separately for proper OEM integration and fitment.
