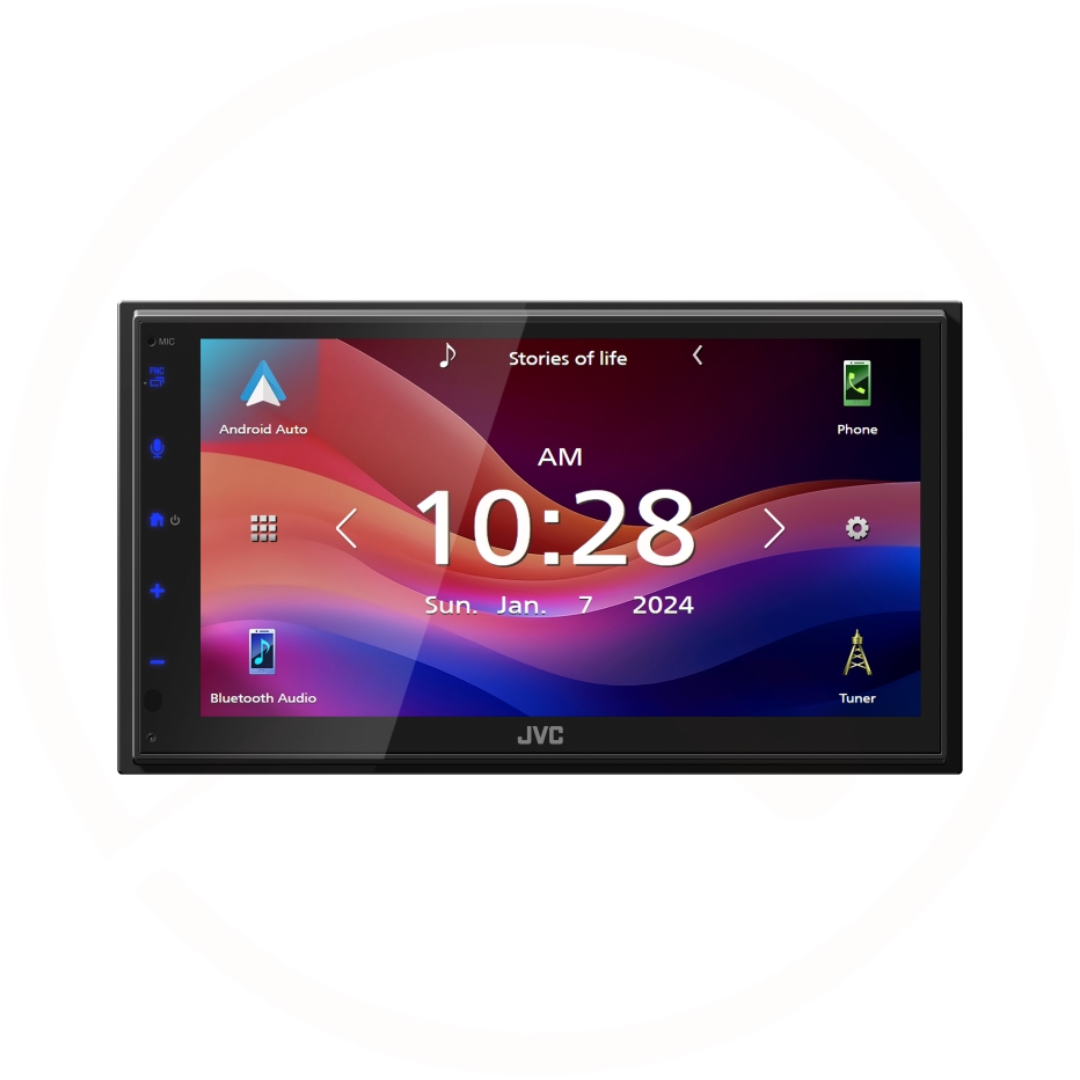

JVC KW M690BW - 6.8" Digital Multimedia Receiver with Apple Carplay/Android Auto

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay (Wireless, Wired) / Android Auto™ (Wireless, Wired) / Wireless Mirroring / Bluetooth® / 13-Band EQ / Short Chassis

KW-M690BW Monitor

Screen Size: 6.8"W SVGA

Touch Panel: Capacitive

Key Illumination Color: Blue

Dimmer: Yes

Multilingual Display: Yes[4]

Media Playback:

MP3 Compatible with Tag: USB

WMA Compatible with Tag: USB

WAV Compatible with Tag: USB

AAC Compatible with Tag: USB

FLAC Compatible with Tag: USB

H.264 Compatible: USB

WMV Compatible: USB

MPEG 1/2 Compatible: USB

MPEG 4 Compatible: USB

MKV Compatible: USB

Bluetooth Control:

Built-in Bluetooth[1]: Yes (Hands-Free MIC Built-in)

Hands Free Call: Yes (HFP1.7)

Audio Streaming & Control (A2DP, AVRCP): Yes

Supported Audio Formats: AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required): Yes

Phone Book Access Profile (PBAP): Yes

Wi-Fi Control:

Built-in Wi-Fi: Yes

Android Control:

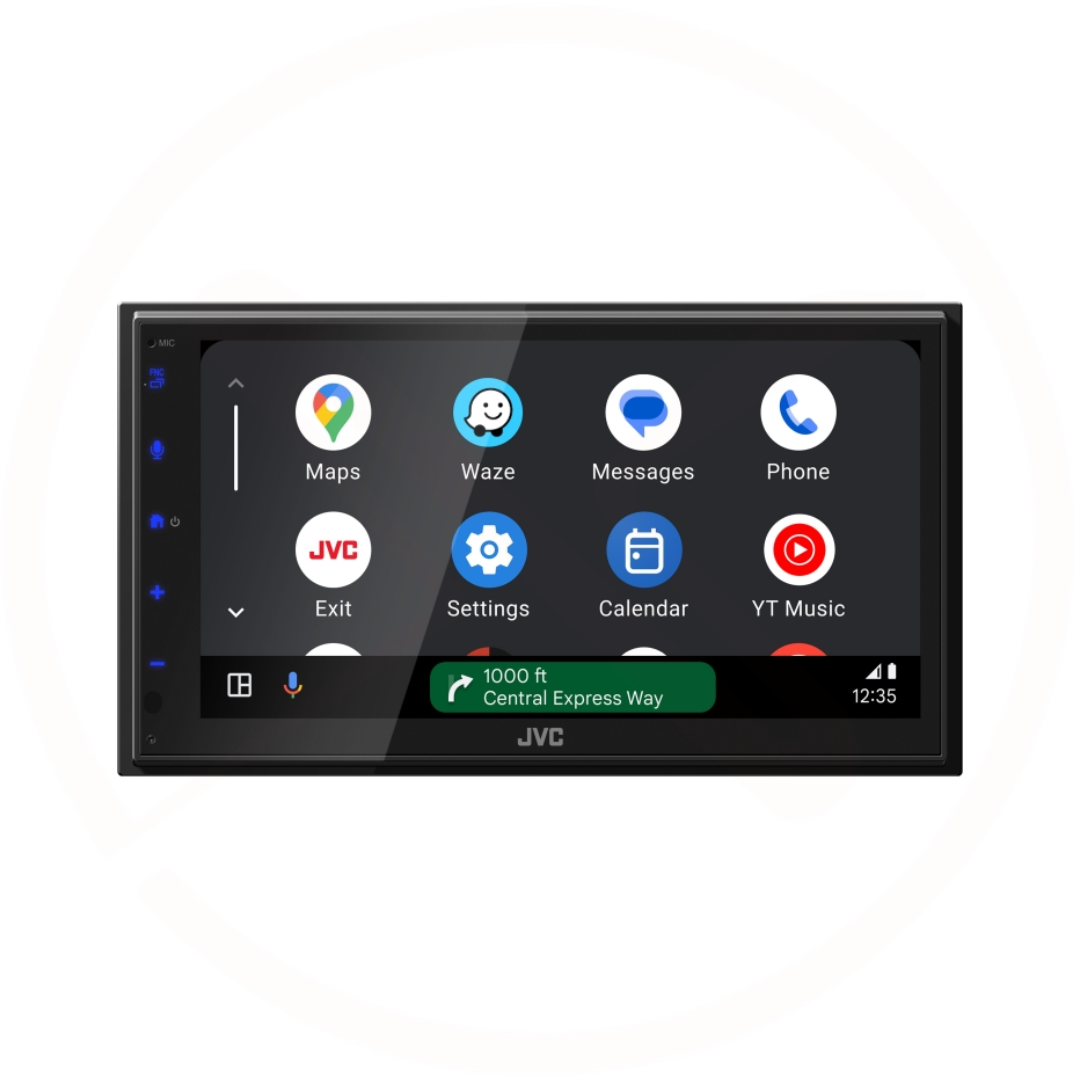

Android Auto[2]: Yes (via Wi-Fi or USB)

Mirroring for Android: Yes (via Wi-Fi) *Need mirroring App

iPod/iPhone Control

CarPlay[3]: Yes (via Wi-Fi or USB

Mirroring for iPhone: Yes (via Wi-Fi) *Need mirroring App

USB:

USB Port: x 1 (High Speed)

Position: Rear

USB Power Supply: Yes (2.1A High Current Charging)

Radio Tuner:

Radio Data System: Yes

Preset Stations: 36 (FM: 24ch, AM: 12ch)

Auto Memory Entry: Yes

FM Frequency Range: 87.5-108.0MHz

AM Frequency Response: 531-1,611kHz

Audio:

Maximum Power Output (Front & Rear): 50Wx4

Full Bandwidth Power (Front & Rear): 22W x 4

EQ: Yes (13-Band Graphic EQ)

Preset EQ: Yes (7 Preset + 3 user)

Bass Boost: Yes

High-Pass Filter/Low-Pass Filter: Yes/Yes

Speaker Size Control: Yes

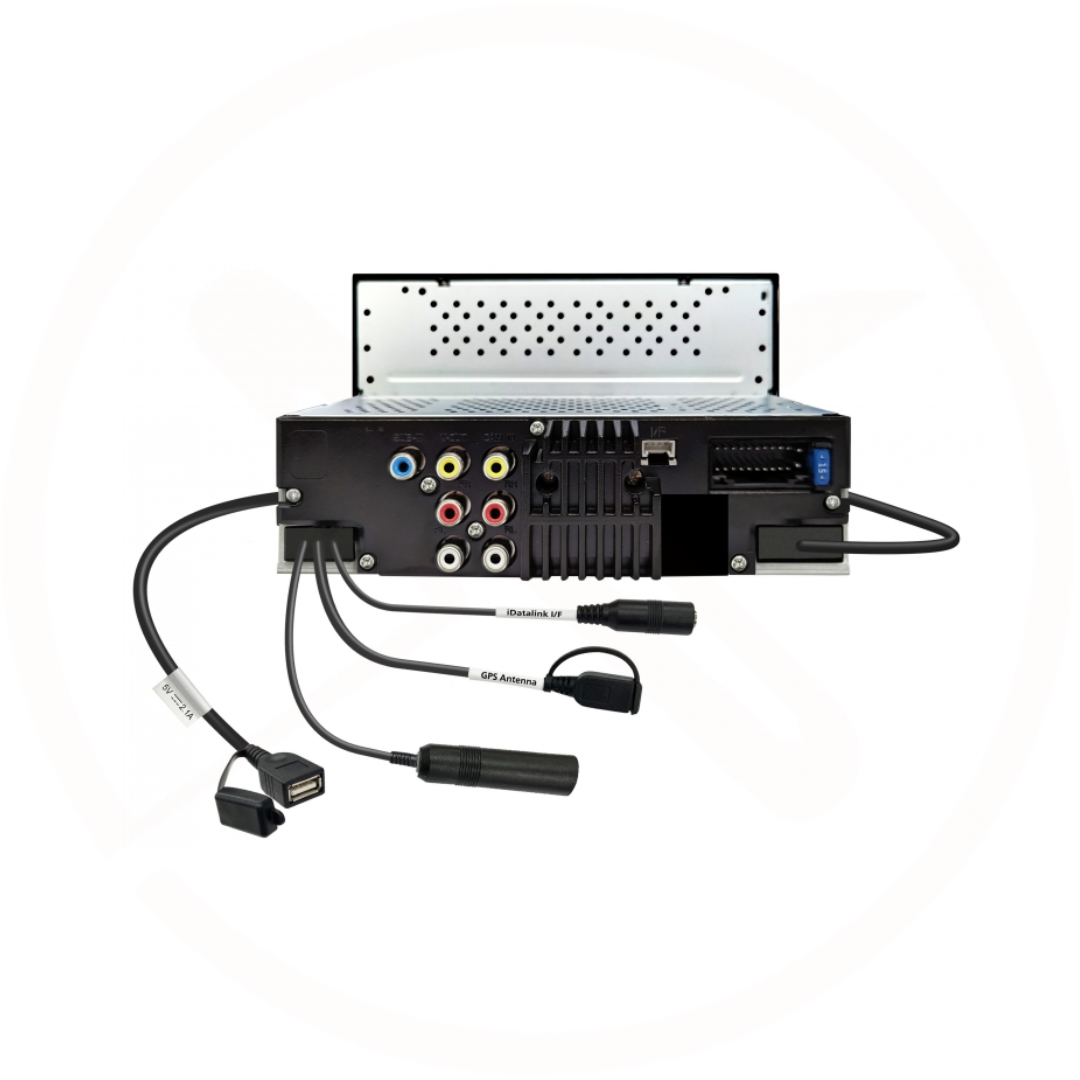

Inputs and Outputs:

Video Out: x 1 (V:RCA)

Rear View Camera Input: Yes

Line Output Terminals: 2 Preouts + Sub WF (Mono)

Pre-output Level/Impedance: 2.5V / 10k ohms

Subwoofer Output with Level/Frequency Control: Yes (Normal / Reverse)

General:

iDatalink Maestro Ready: Yes

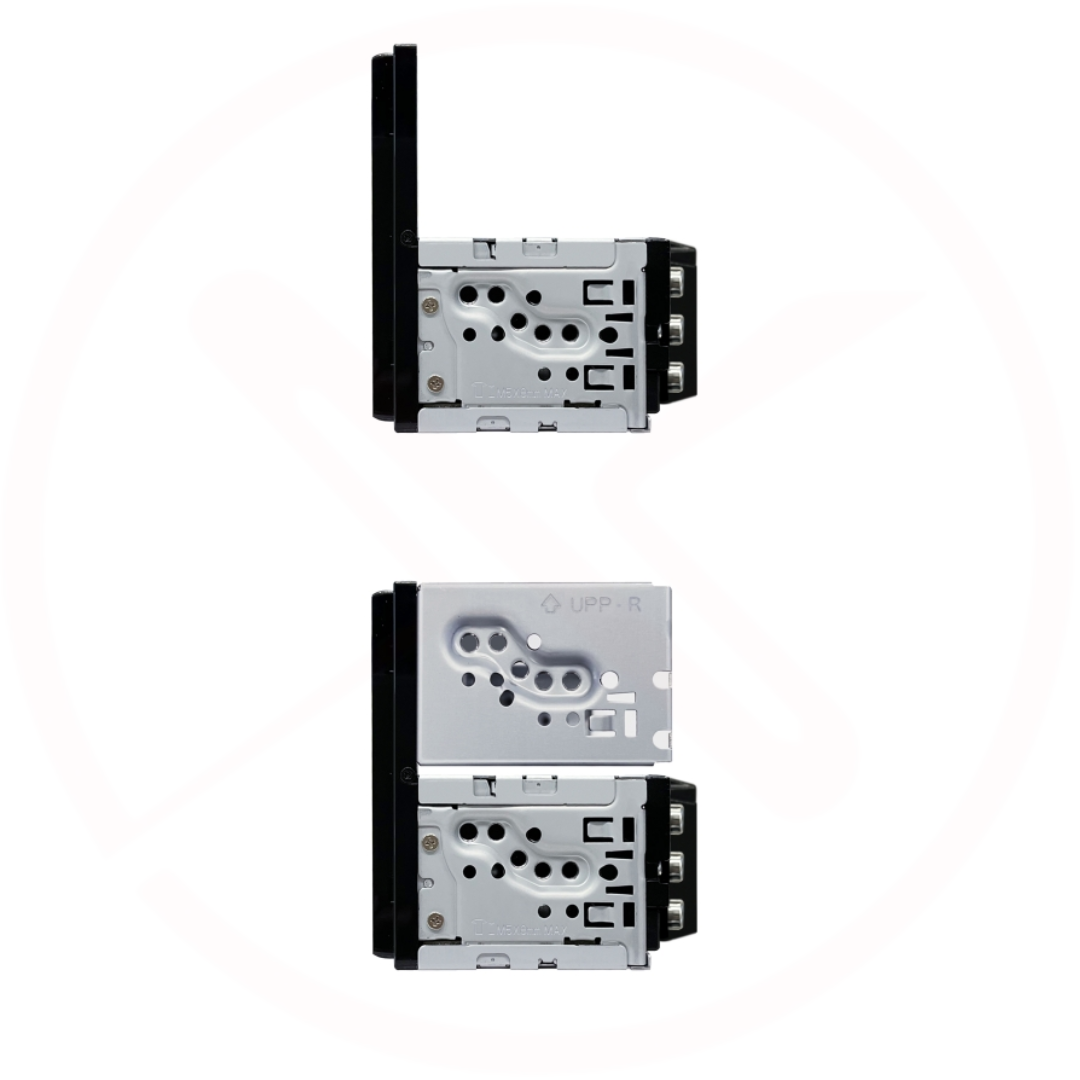

Short Chassis: Yes

Wireless Remote Control Type: Optional (RM-RK259 required)

Steering Remote Control Ready: Yes

Learning Direct OEM Remote: Yes

Dimensions (W x H x D):

Installation Size: 178 x 100 x 85.7 (mm)

Weight: 1.03kg (Including Trim Plate)

Unit Weight in Individual Package: 1.53kg
