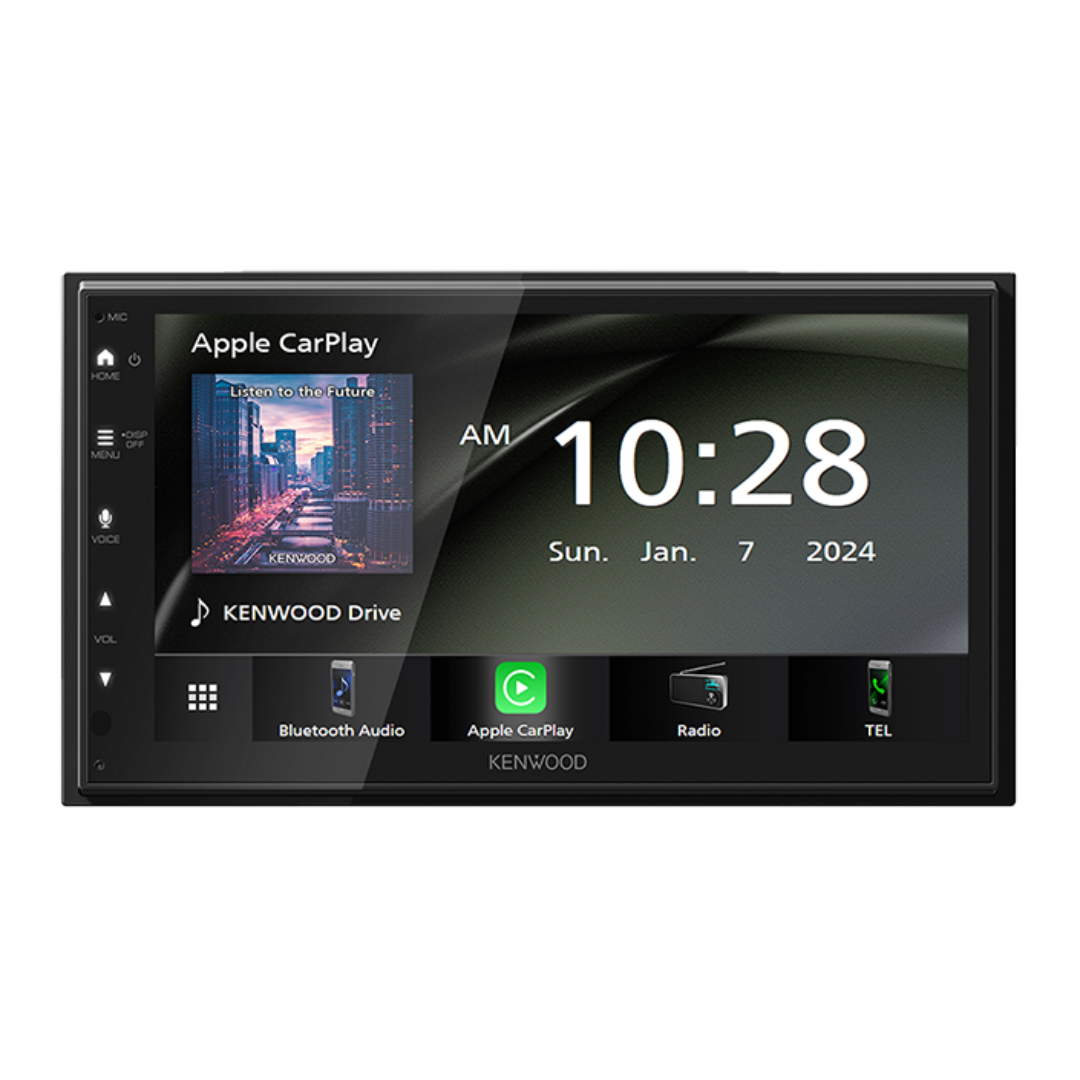

6.8" WSVGA Display with Capacitive Touch Panel
-

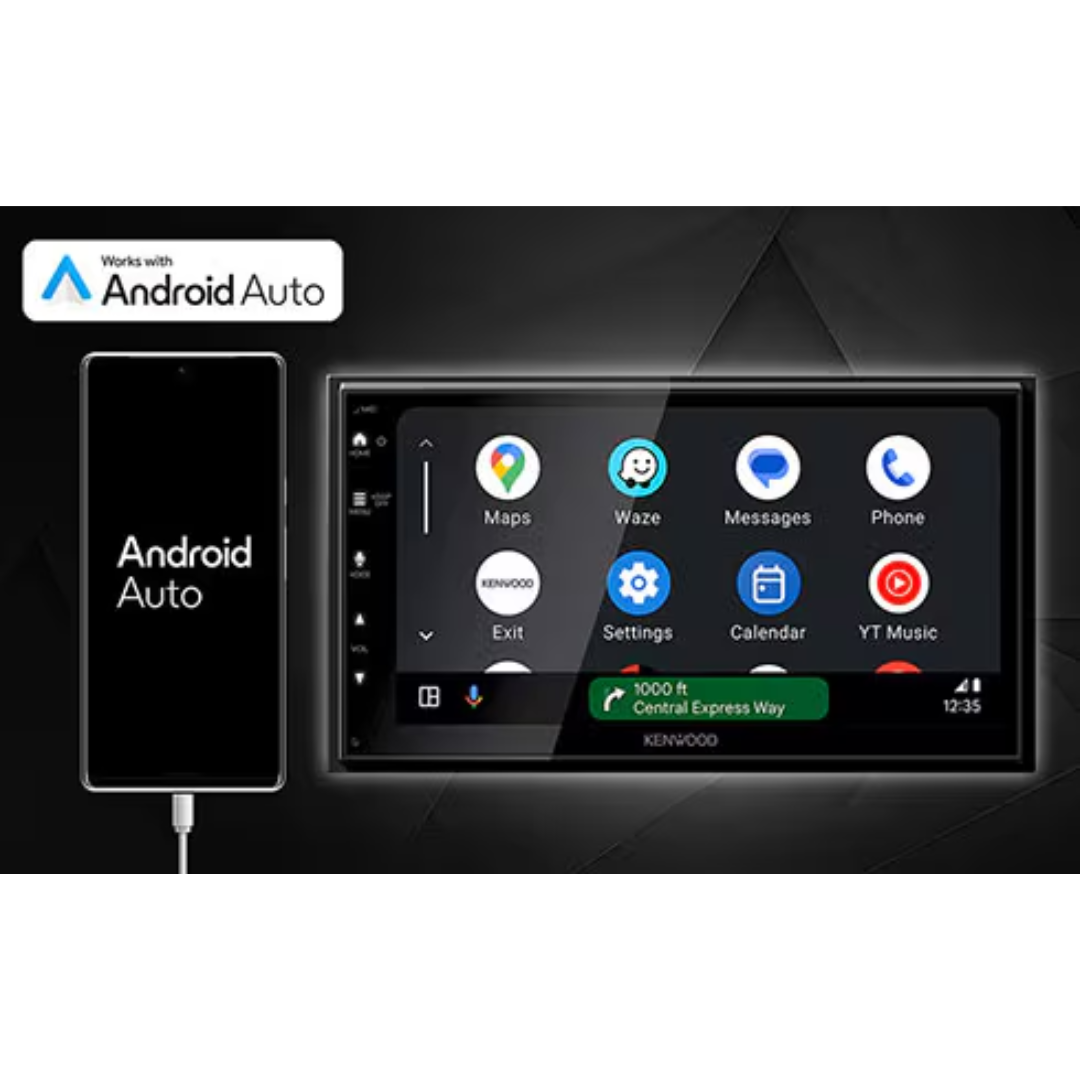

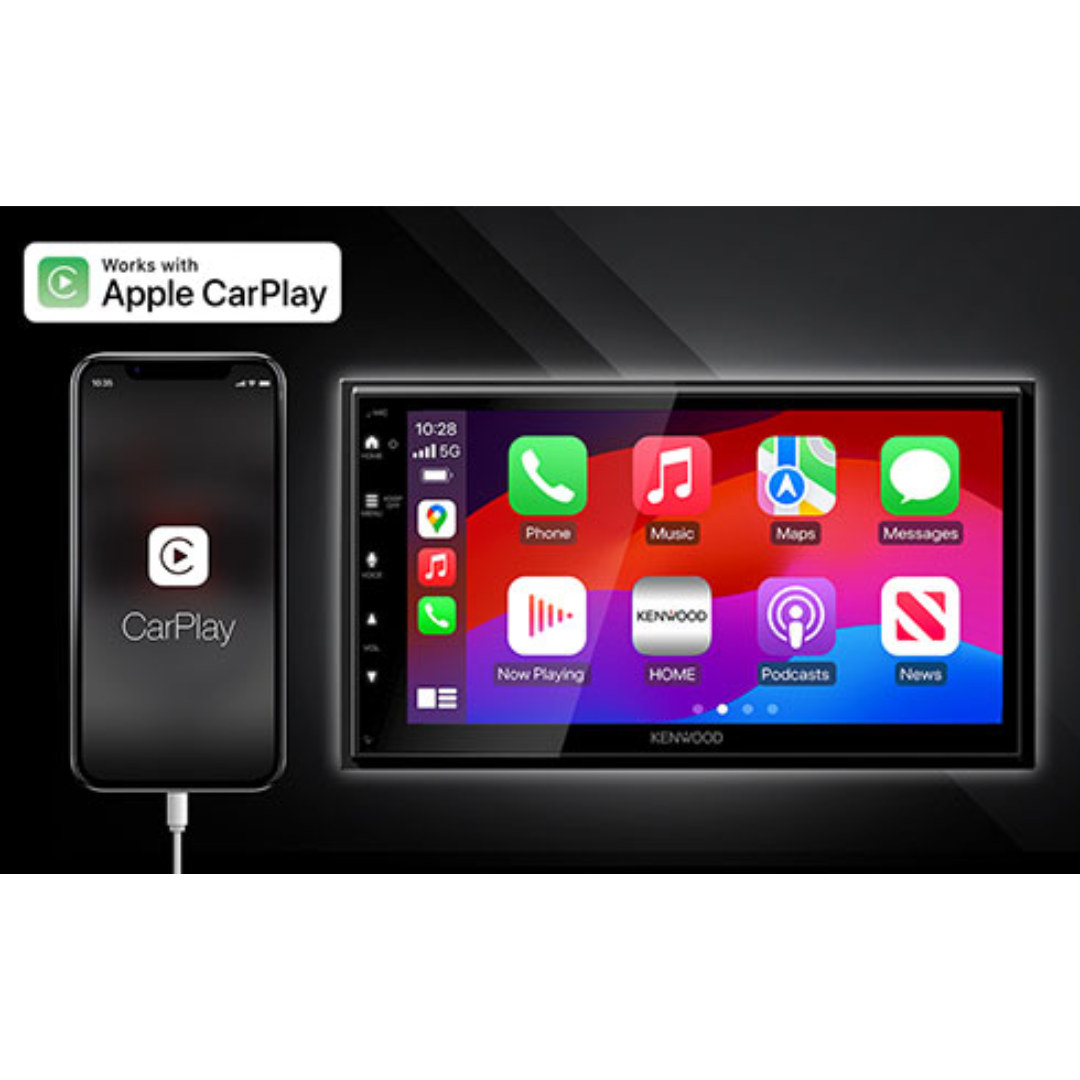

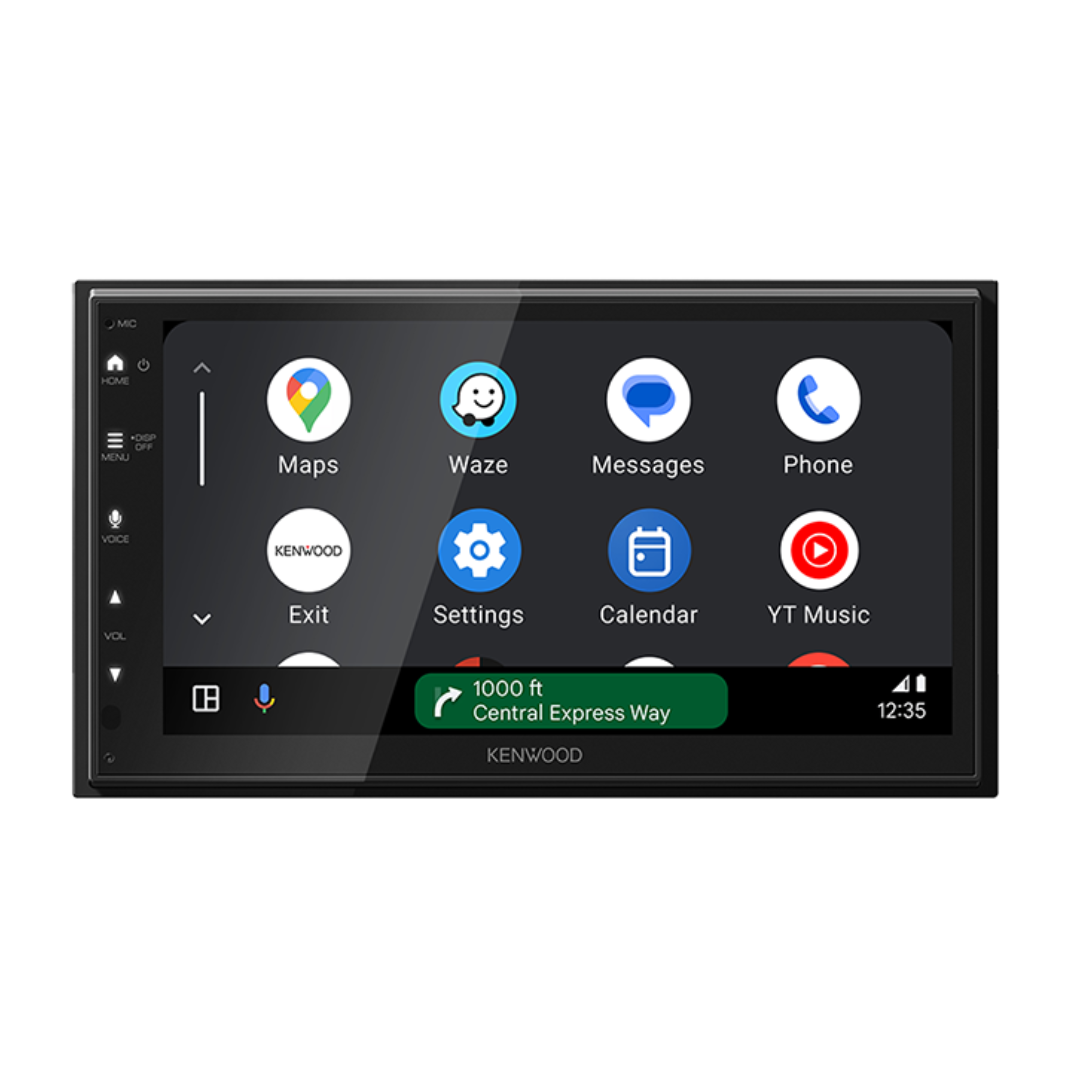

Apple CarPlay & Android Auto™ Ready
-
USB Mirroring for iPhone / Android
-
13 Band EQ & Digital Time Alignment
-
Rear View Camera Input with Parking Guidelines
-
Built-in Bluetooth®
-
2 Preouts 2.5V & Subwoofer Out (Mono)
-
Short Chassis
Detailed Spec:
Monitor section~
Picture Size : 6.8 inches (diagonal) wide
Display System : Transparent TN LCD panel
Drive System : TFT active matrix system
Number of Pixels : 1,843,200 (1024H x 600V x RGB)
Effective Pixels : 99.99%
Pixel Arrangement : RGB striped arrangement
Back Lighting : LED
USB interface section~
USB Standard : USB 2.0 High Speed
File System : FAT 16/32, exFAT, NTFS
Maximum Power Supply Current : DC 5V 2.1 A
D/A Converter : 24 bit
Audio Decoder : MP3/WMA/AAC/WAV/FLAC
Video Decoder : MPEG1/MPEG2/MPEG4/WMV/H.264/MKV
Frequency Response
-192 kHz: 20-20,000 Hz
-96 kHz : 20-20,000 Hz
-48 kHz : 20-20,000 Hz
-44.1kHz: 20-20,000 Hz
Total Harmonic Distortion : 0.2% (1 kHz)
Signal to Noise Ratio : 75 dB
Dynamic Range : 75 dB
Bluetooth section
Technology :Bluetooth Ver. 5.0
Frequency : 2.402-2.480 GHz
RF Output Power (E.I.R.P.) :+9 dBm (MAX), Power Class 1
Maximum Communication range : Line of sight approx. 10 m (32.8 ft)
Audio Codec :SBC/AAC
Profile (Multi Profile support)
-HFP (Hands Free Profile) 1.8
-A2DP (Advanced Audio Distribution Profile) 1.3
-AVRCP (Audio/Video Remote Control Profile) 1.6
-PBAP (Phonebook Access Profile) 1.2

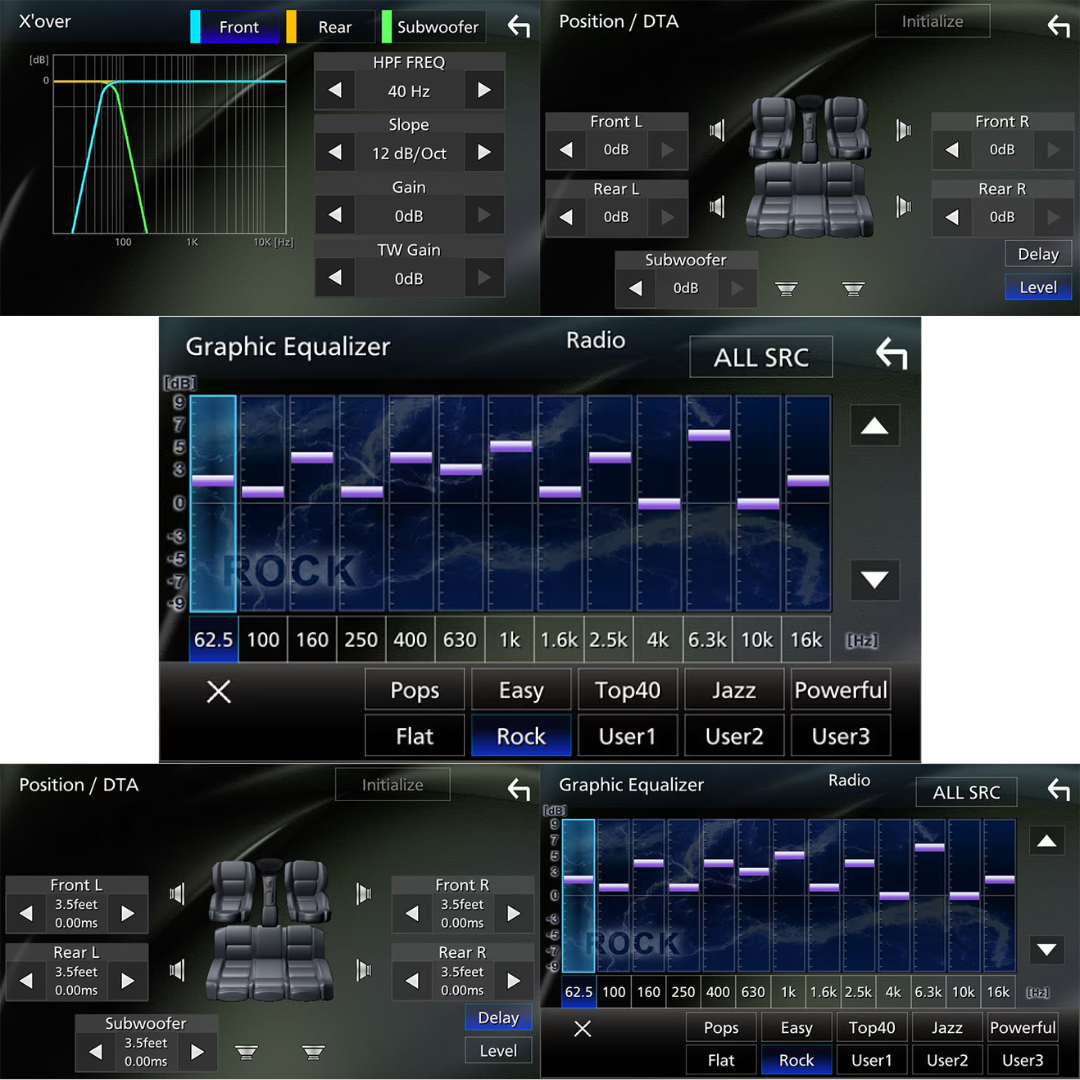

DSP section
Graphics equalizer
Band : 13 Band
Frequency (BAND1 - 13) :62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/ 6.3k/10k/16k Hz
Gain :-9/-8/-7/-6/-5/-4/-3/-2/-1/0/ +1/+2/+3/+4/+5/+6/+7/+8/+9 dB
2Way X'Over
-High pass filter
Frequency: Through, 30/40/50/60/70/80/90/ 100/120/150/180/220/250 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB
-Low pass filter
Frequency: 30/40/50/60/70/80/90/100/120/150/180/220/250 Hz, Through
Slope:-6/-12/-18/-24 dB/Oct.
Gain: -8/-7/-6/-5/-4/-3/-2/-1/0 dB
-Position
Front/Rear/Subwoofer Delay:0-6.1m (0.01 m Step)
-Gain
:-8-0 dB
-Subwoofer level
:-40-+6 dB
