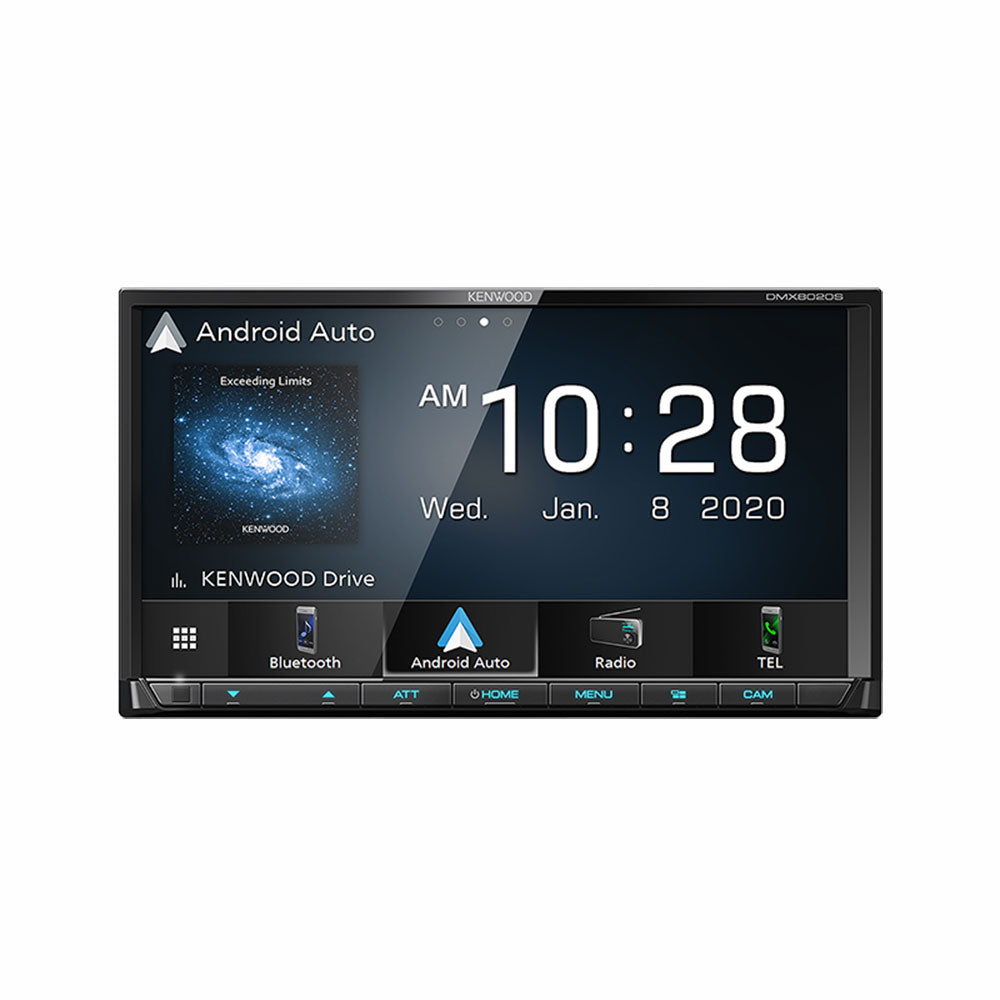

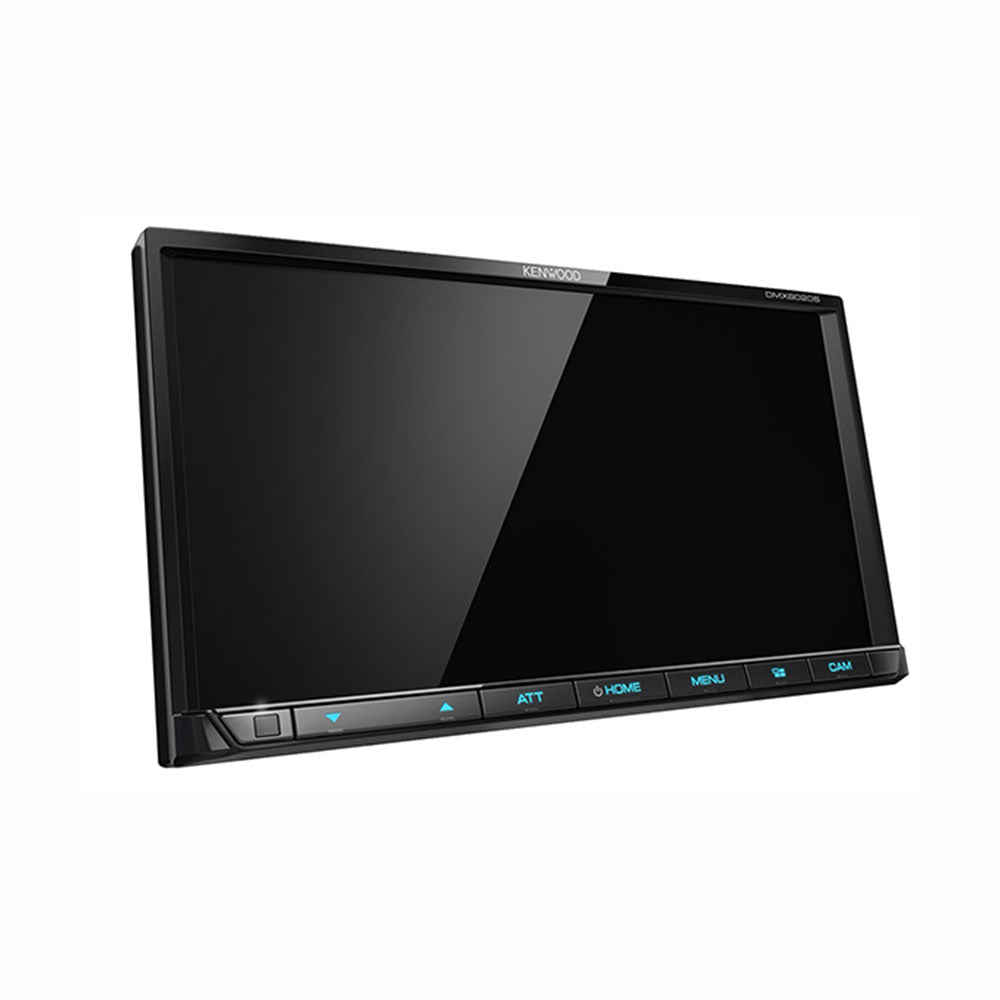

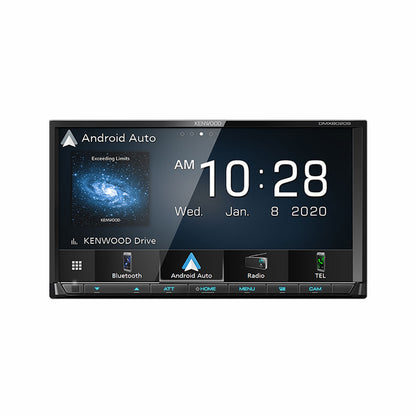

Kenwood DMX8020S 7" Digital Media Receiver with WVGA Display Car Headunit

Kenwood DMX8020S 7" Digital Media Receiver with WVGA Display Car Headunit

Features:

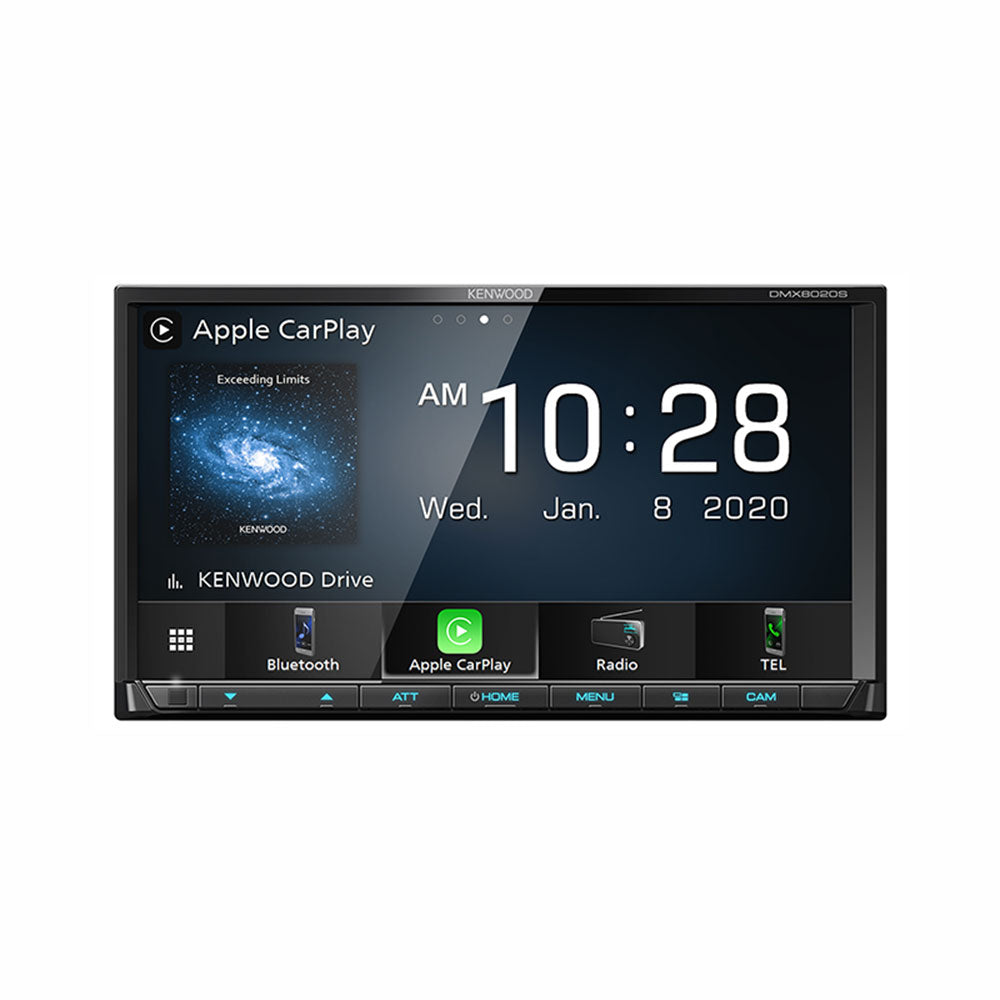

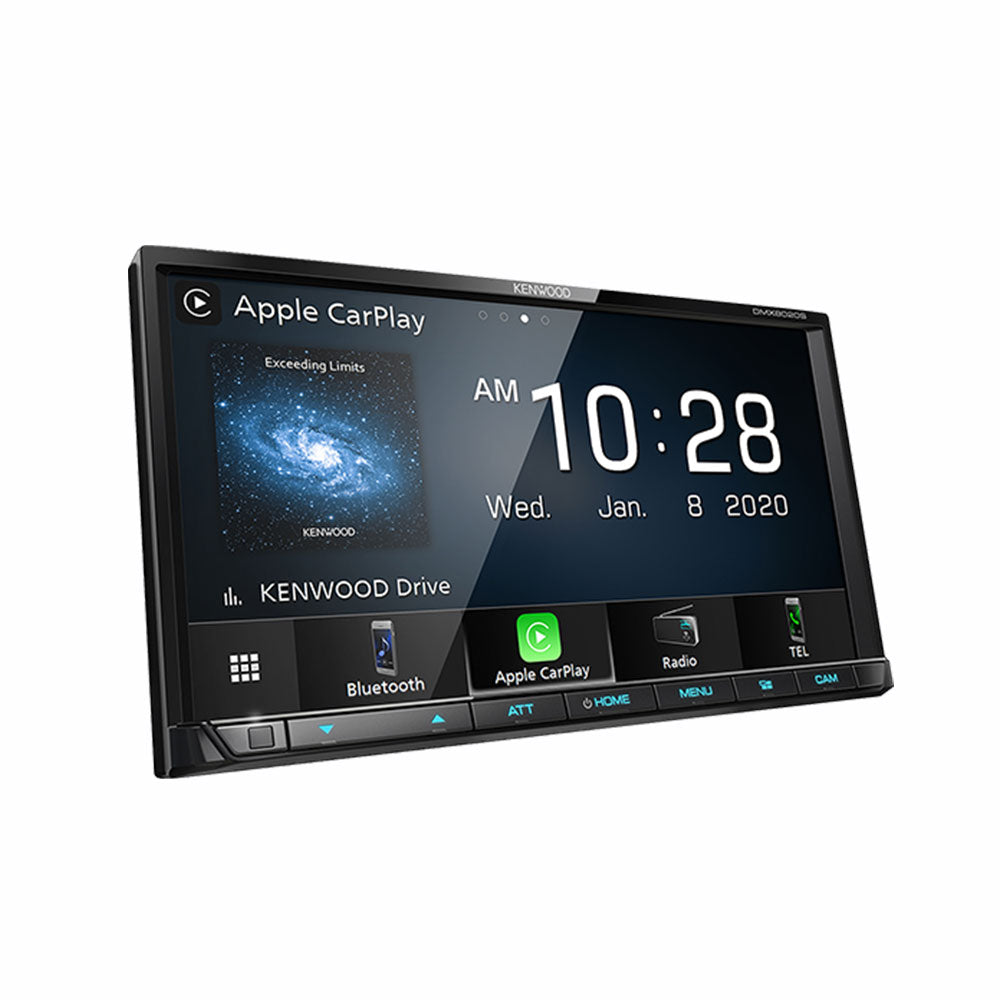

• Apple CarPlay™ & Android Auto™ Ready
• USB Mirroring Ready
• Customizable Multi-Widget Screen
• Built-in Bluetooth
• 3 Camera Inputs
• 13 Band EQ & Digital Time Alignment
• 3 Preouts 5V

Specifications:

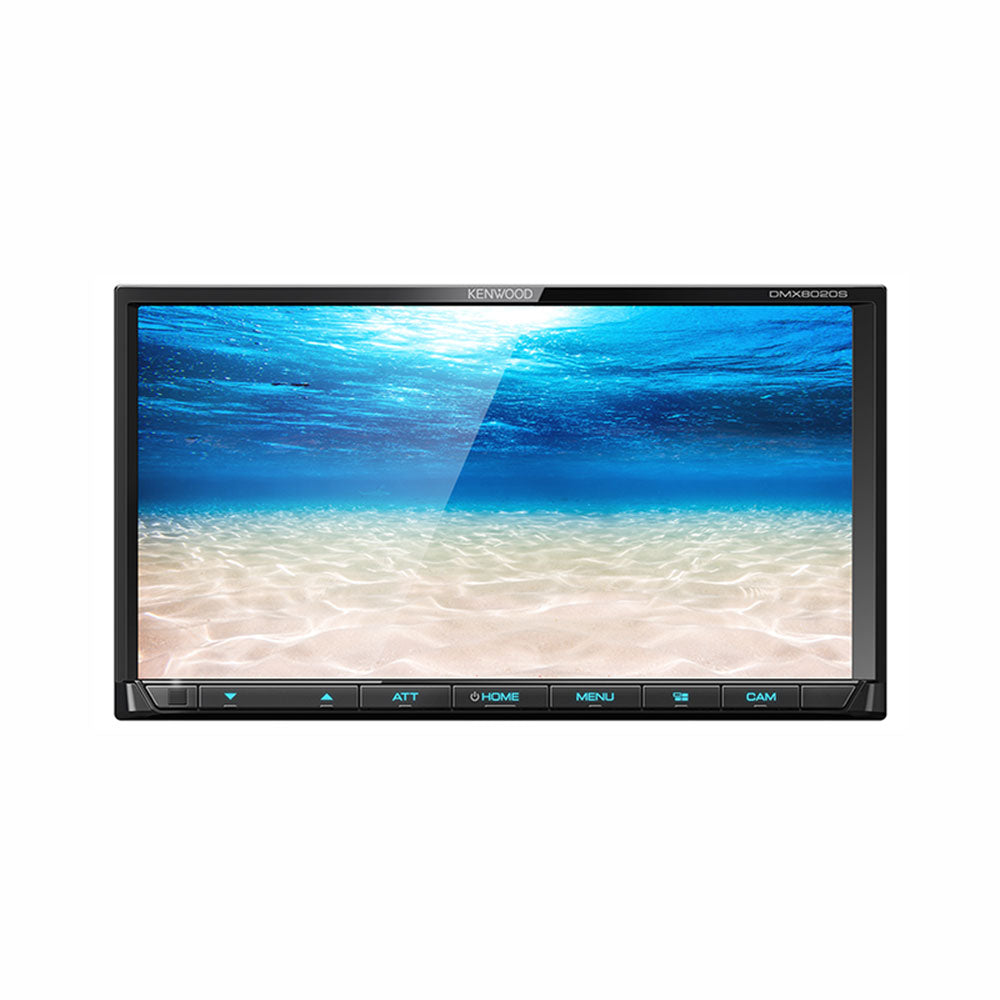

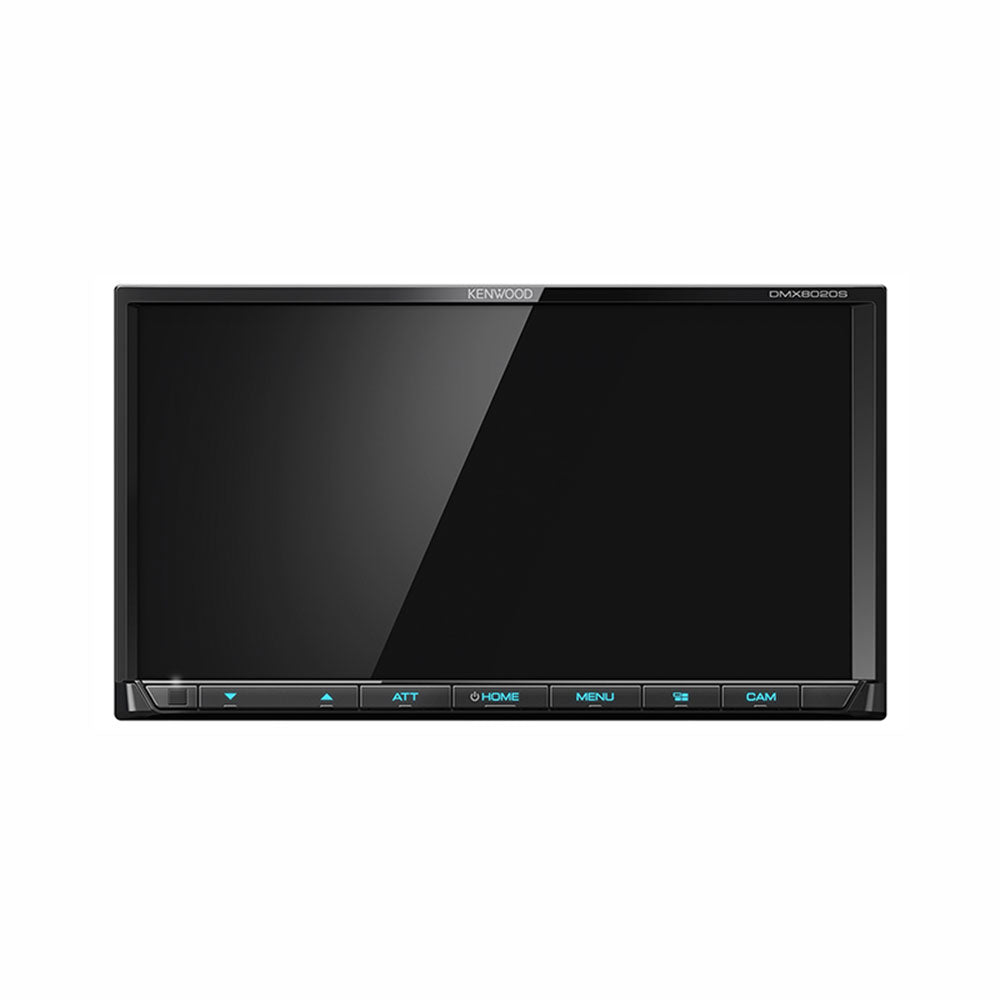

Monitor Section

• Picture size: 6.95 inches(diagonal) wide
• W x H: 156.6 mm x 81.6 mm
• Display system: TN LCD panel
• Drive system: TFT active matrix system
• Number of pixels:
• 1,152,000
• 800H x 480V x RGB
• Effective pixels: 99.99%
• Pixel arrangement: RGB striped arrangement
• Back lighting: LED

USB I/F Section

• USB Standard: USB2.0 High Speed
• File System: FAT 16/32, exFAT, NTFS
• Maximum Power Supply Current: DC5V=1.5A
• D/A Converter: 24/32Bit
• Audio Decoder: MP3 / WMA / AAC / WAV / FLAC / Vorbis
• Video Decoder: MPEG1/2,MPEG4 / WMV / H.264 / MKV
• Frequency response 192k Sampling: 20 - 88,000 Hz
• 96k Sampling: 20 - 44,000 Hz
• 48k Sampling: 20 - 22,000 Hz
• 44.1k Sampling: 20 - 20,000 Hz
• Total harmonic distortion 1kHz: 0.010%
• Signal to Noise ratio: 98.5dB
• Dynamic range: 89dB

Bluetooth Section

• Technology: Bluetooth Ver5.0
• Frequency: 2.402 – 2.480 GHz
• RF Output Power (E.I.R.P.): +4dBm (MAX), Power Class 2
• Maximum Communication range: Line of sight approx.10m(32.8ft)
• Audio Codec: SBC / AAC
• Multi Profile Support: Multi Profile
• Profile:
• HFP (V1.7) (Hands Free Profile)
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (V1.6) (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)

DSP Section

• Graphics equalizer
• BAND: 13Band
• Position
• Front / Rear /Subwoofer Delay: 0 - 6.1m (0.01m Step)
• Gain: -8 to 0dB
• Subwoofer Level: -50 to +10dB

FM

• Frequency Range: 87.5MHz - 108.0MHz
• (Frequency step): (50kHz)
• Usable sensitivity: 9.3dBf
• S/N30dB: 0.8μV/75Ω
• Quieting sensitivity: 15.2dBf
• DIN S/N 46dB: 1.6μV / 75Ohms
• Frequency response: 30Hz - 15kHz (±3.0dB)
• S/N (dB): 65dB (MONO)
• Selectivity: Over 80dB (±400kHz)
• Stereo separation: 45dB (1kHz)

AM

• Frequency Range: 531kHz - 1611kHz
• (Frequency step): (9kHz)
• Usable sensitivity: 25μV

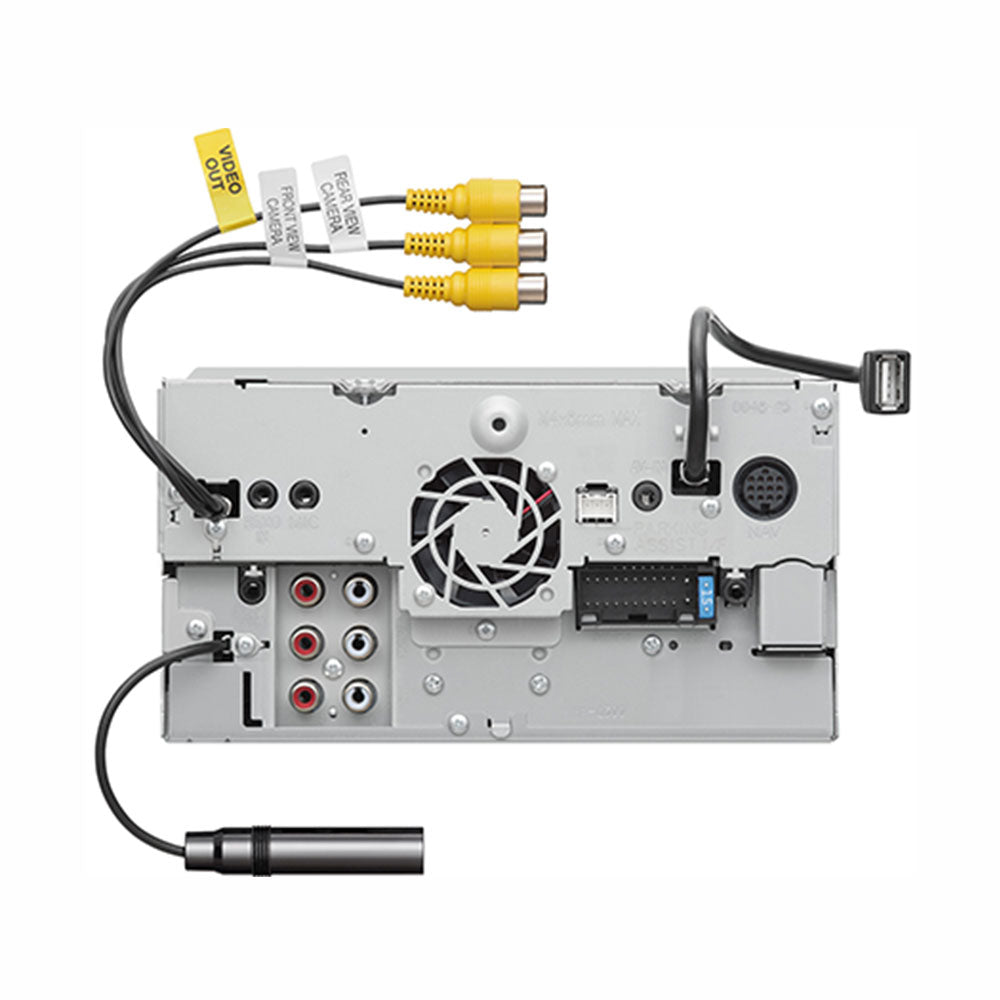

Video

• Color system of external video input: NTSC/PAL
• External video input level (Mini jacks) :1 Vp-p / 75 Ohms
• External audio max input level (Mini jacks): 2 V / 25 kOhms
• Video Input level (RCA jacks): 1 Vp-p / 75 Ohms
• Video Output level (RCA jacks): 1 Vp-p / 75 Ohms
• Audio Output level (Mini jacks): 0.9 V / 10 kOhms
• Analog RGB input: -

Audio

• Maximum Power Output (Front&Rear): 50Wx4
• Typical Power Output (Front&Rear): Full Bandwidth Power (at less than 1%THD) 22Wx4
• Output frequency band: 20 - 88,000Hz
• Preout level (V) 5V / 10kOhms
• Preout impedance (Ω) =< 300 Ohms
• Speaker Impedance (Ω) 4-8 Ohms

General

• Operating voltage: 12V DC Car Battery
• Installation Dimensions WxHxD: 178mm x 100mm x 155mm
• Weight Main unit: 1.7 kg

Content:

• 1 x Car Headunit
• Manual
• Fittings as per Manufacturer
