KENWOOD XH SERIES - Full Immersive Sound (Free Installation Kits)

KENWOOD XH SERIES + BLAUPUNKT 6 CHANNEL DSP

FREE SPEAKER ADAPTER AND SOCKET

Speaker Kit

*Honda - all models with 6/6.5" speakers *except latest generation civic / crv (2024 and above)

*Toyota - all models with 6/6.5inch speaker and Alza new gen (dash speaker 4pin socket not included)

please pm for corolla and vios models

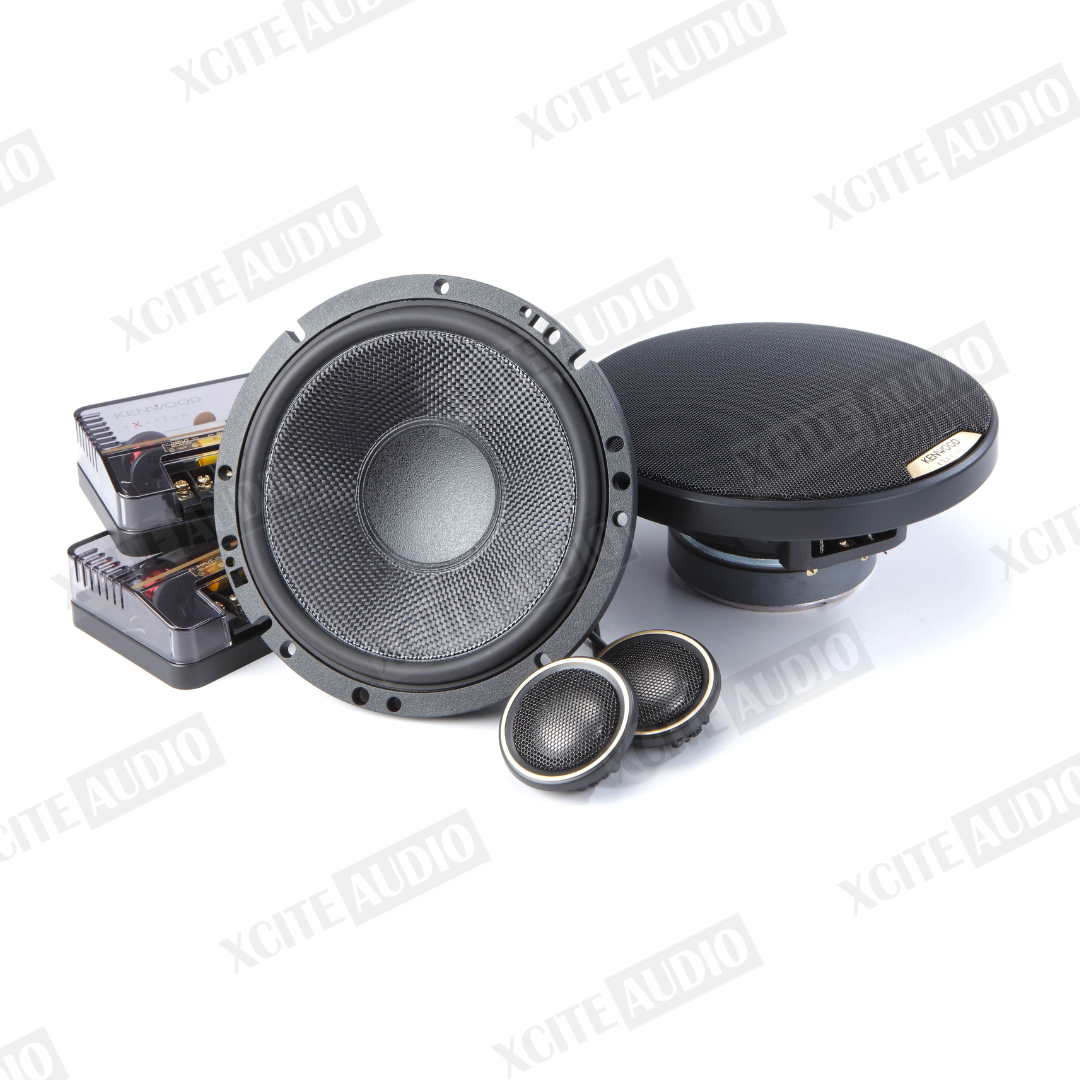

MODEL: KENWOOD XH170C

Features & specs

Speaker Size

6 1/2

Driver Design

2-way

Woofer Design

Cone

Woofer Material

Glass Fiber

Woofer Surround

Rubber

Tweeter Design

1-3/16" Dome

Tweeter Material

Titanium

Impedance (Ohms)

3

Weather-resistant

No

Grilles Included

Black, Steel mesh, Plastic frame

Sensitivity (1W at 1 meter)

87db

Frequency Response

60 - 35k Hz

Maximum RMS Wattage

100

Peak Power Handling (Watts)

300

Top-mount Depth (Inches)

2 3/8

Bottom-mount Depth (Inches)

2 5/8

Cutout Diameter or Length (inches)

5 1/2

Mounting Height (Inches)

0.417

Frame Width

6.485

Frame Length

6.485

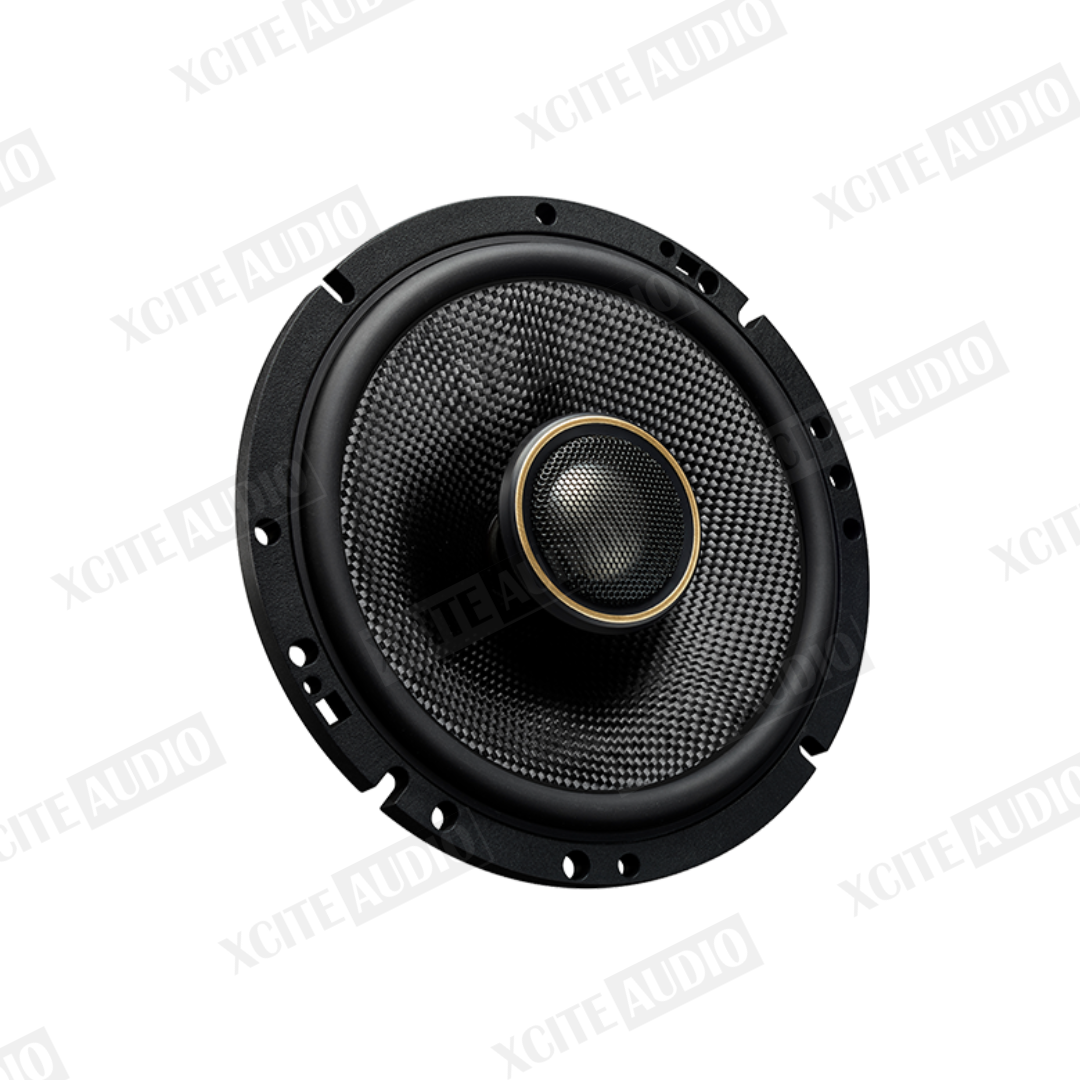

MODEL: KENWOOD XH170

Features & specs

Speaker Size

6 1/2



Driver Design

2-way



Woofer Design

Cone



Woofer Material

Glass Fiber



Woofer Surround

Rubber



Tweeter Design

1-3/16" Dome



Tweeter Material

Titanium



Impedance (Ohms)

3



Weather-resistant

No



Grilles Included

Black, Steel mesh, Plastic frame



Sensitivity (1W at 1 meter)

87db



Frequency Response

43 - 40k Hz



Maximum RMS Wattage

100



Peak Power Handling (Watts)

300



Bottom-mount Depth

59 mm



Cutout Diameter or Length

140 mm

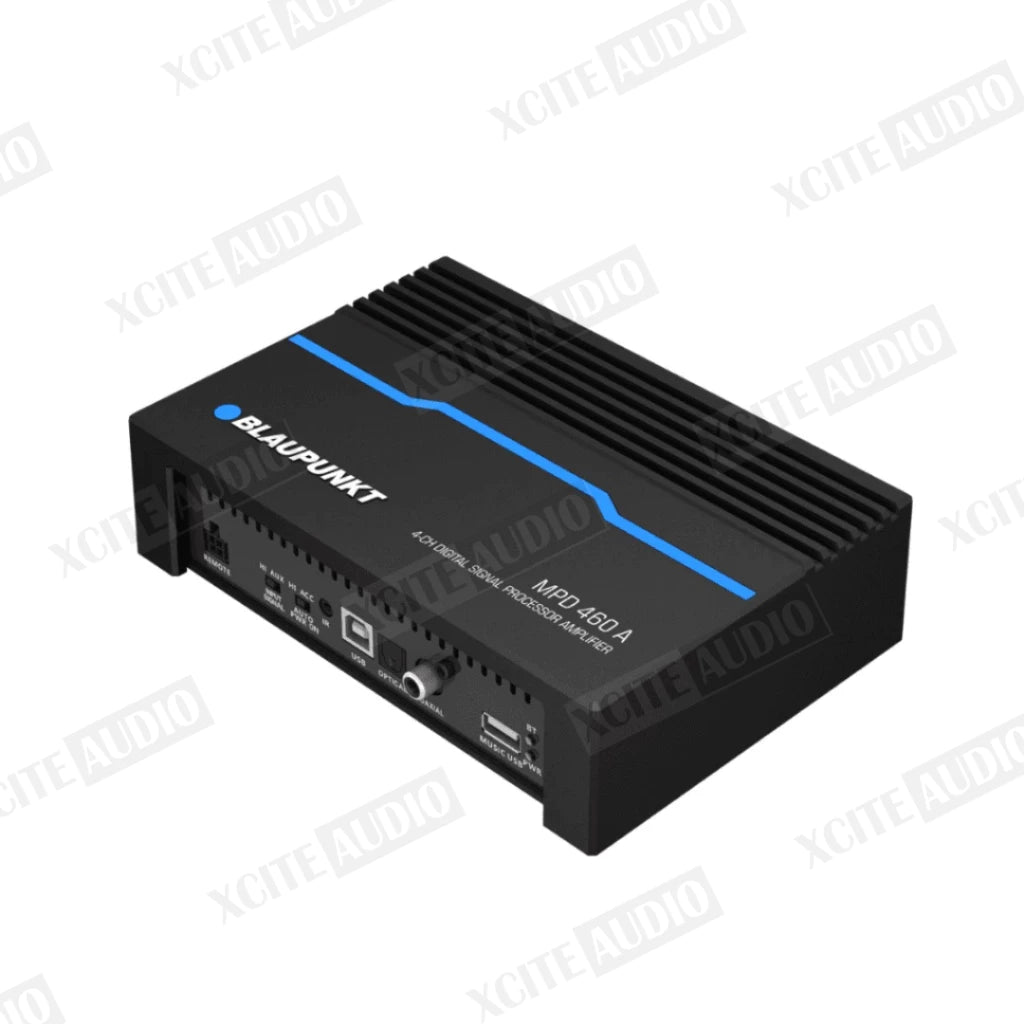

MODEL: Blaupunkt MPD 460 A

RMS Power : 25Wx4(4Ω), 40Wx4(2Ω)

DSP Resolution : 24 Bit

DSP Power : 48 kHz

Output Power RMS @ 4 Ohms (≤1% THD +N) : 4x25W

Output Power RMS @ 2 Ohms (≤1% THD +N) : 4x40W

Distortion (THD) : <0.005%

Damping Factor : >70

Operating Voltage : 10 -14.4V

Sampling Rate : 48kHz

Signal Converter A/D : 7210

Signal Converter D/A : 4344
