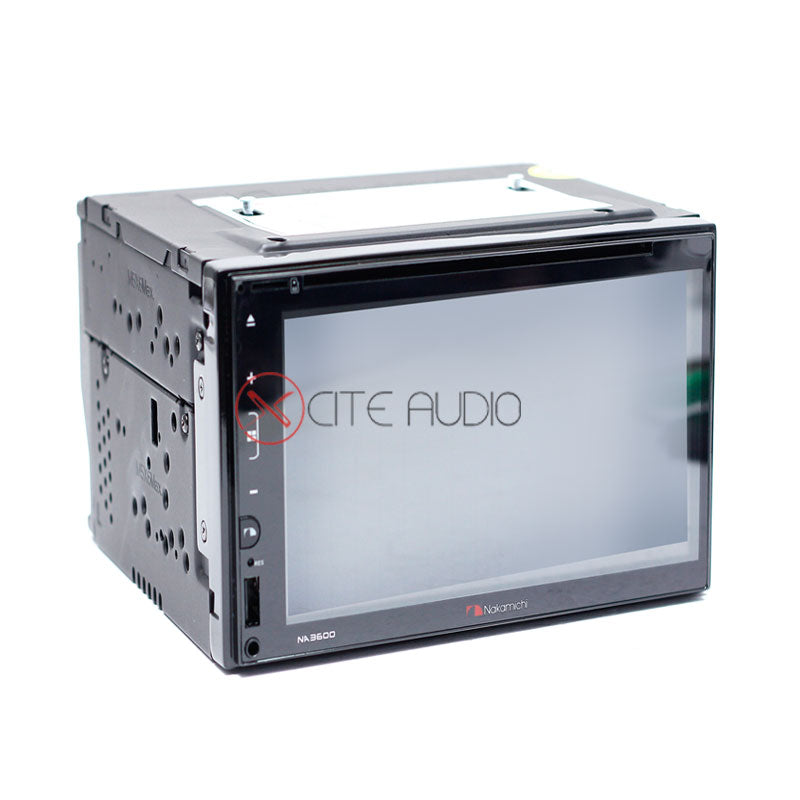

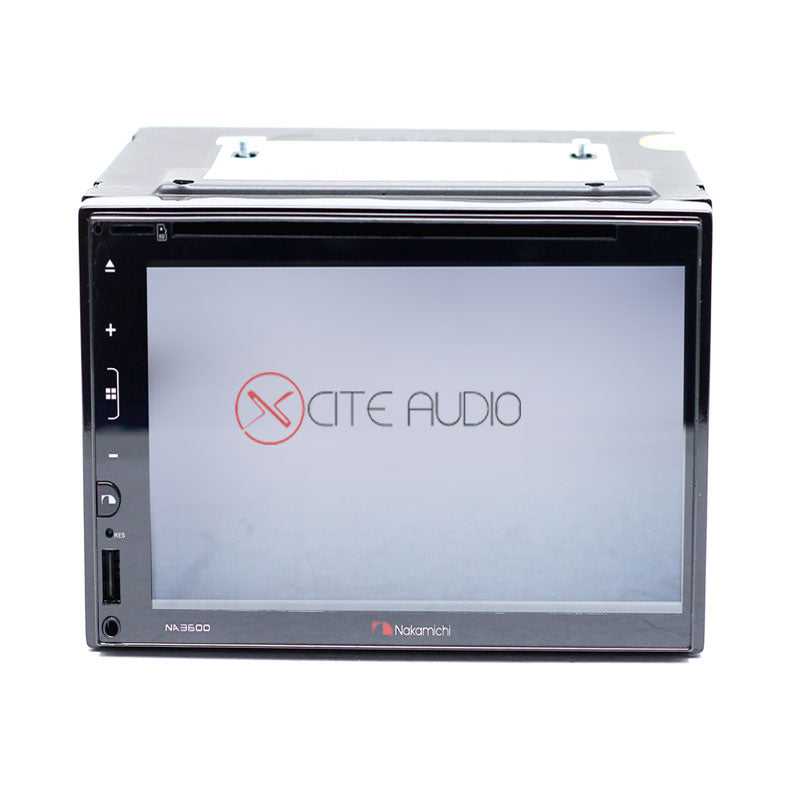

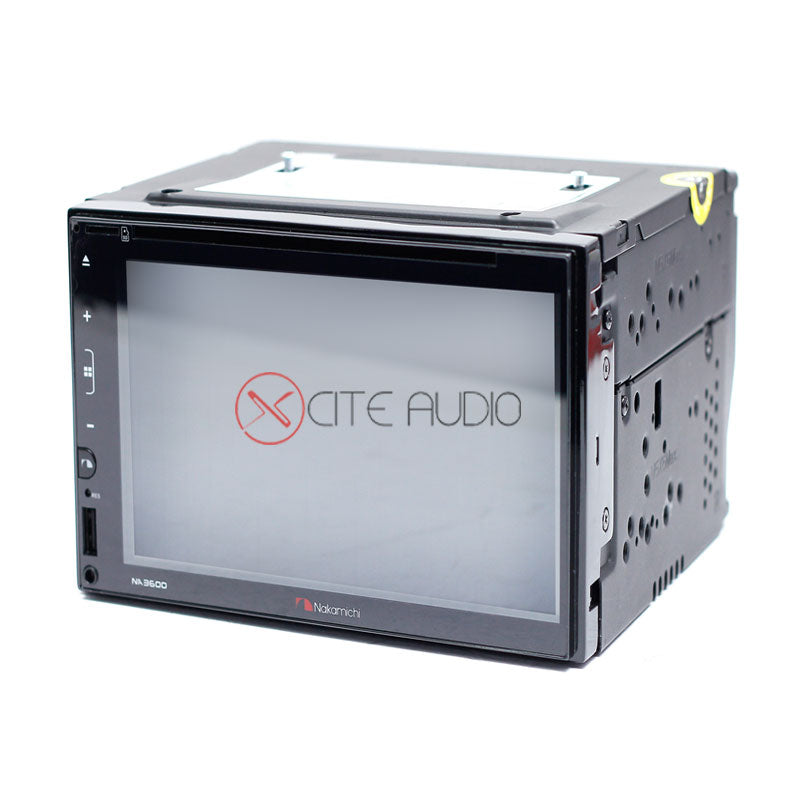

Nakamichi NA3600 6.8" WVGA 2-Din Full HD Bluetooth /USB /MP3 /WMA / AUX AV Receiver

Specification:

General

  • Power Requirement: DC 12 Volts, negative ground
  • Load Impedance: 4 Ohms
  • Maximum Power Output: 40 Watts x 4 (RMS)
  • Tone Control:
    • Bass (At 100Hz): +/- 8dB
    • Treble (At 10 kHz): +/- 8dB



AM Radio Section

  • Frequency Range: 522-1620 kHz
  • Usable Sensitivity (-20dB): 25dB



FM Radio Section

  • Frequency Range: 87.5-108 MHz
  • Usable Sensitivity (-20dB): 15dB
  • Signal to Noise Ratio: 60dB
  • Stereo Separation (At 1 KHz): 30dB
  • Frequency Response: 30 Hz-15 KHz



DISC Section

  • Disc Play: DVD/VCD/MP3/CD
  • Mounting Angle: +/- 30 degree



Video Section

  • Video System: NTSC/PAL/SECAM
  • Video Output Level: 1.0Vp-p 75 Ohms
  • Horizontal Resolution: 500



Bluetooth Section

  • Communication type: V2.1
  • Maximum Distance: 5 Meters (approx.)



Audio Section

  • Maximum Output Level: 2 Vrms (+/- 3dB)
  • Frequency Response: 20 Hz to 20 KHz
  • Signal to Noise Ratio: 85dB
  • Channel Separation: 80dB
