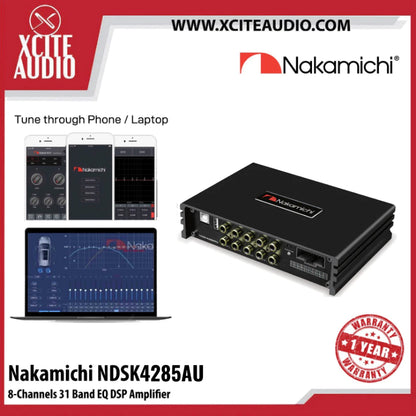

Nakamichi NDSK4285AU(new model) 4-IN 8-OUT 31 EQ Amplified DSP [Universal Cable Included]

Nakamichi NDSK4285AU(new model) 4-IN 8-OUT 31 EQ Amplified DSP [Universal Cable Included]

Regular price RM850.00
Regular price RM1,050.00 Sale price RM850.00
Sale Sold out

Nakamichi NDSK4285AU(new model) 4-IN 8-OUT 31EQ Amplified DSP

PRODUCT DATA
Dynamic Range(RCA Input): ≥100dB
S/N(RCA Input): 0~22dB
Frequency Response: 20Hz~20KHz
Input Impedance High Level Input: 240Ω
Low level Output Impedance: ≤100Ω
Signal Input RCA Input: 8Vpp; High Level: 26Vpp
Output Range RCA Output: 12Vpp; Amplifier: 4×80W
Power DC: 9V-16V
REM Input High Level Input Signal: FL+/ FL- or ACC control cable
REM Output: +12V Startup Voltage Output
Standby Power: ≤0.1W
Gross Weight Approximately: 0.7kg

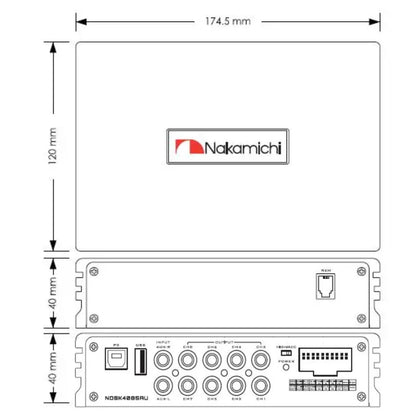

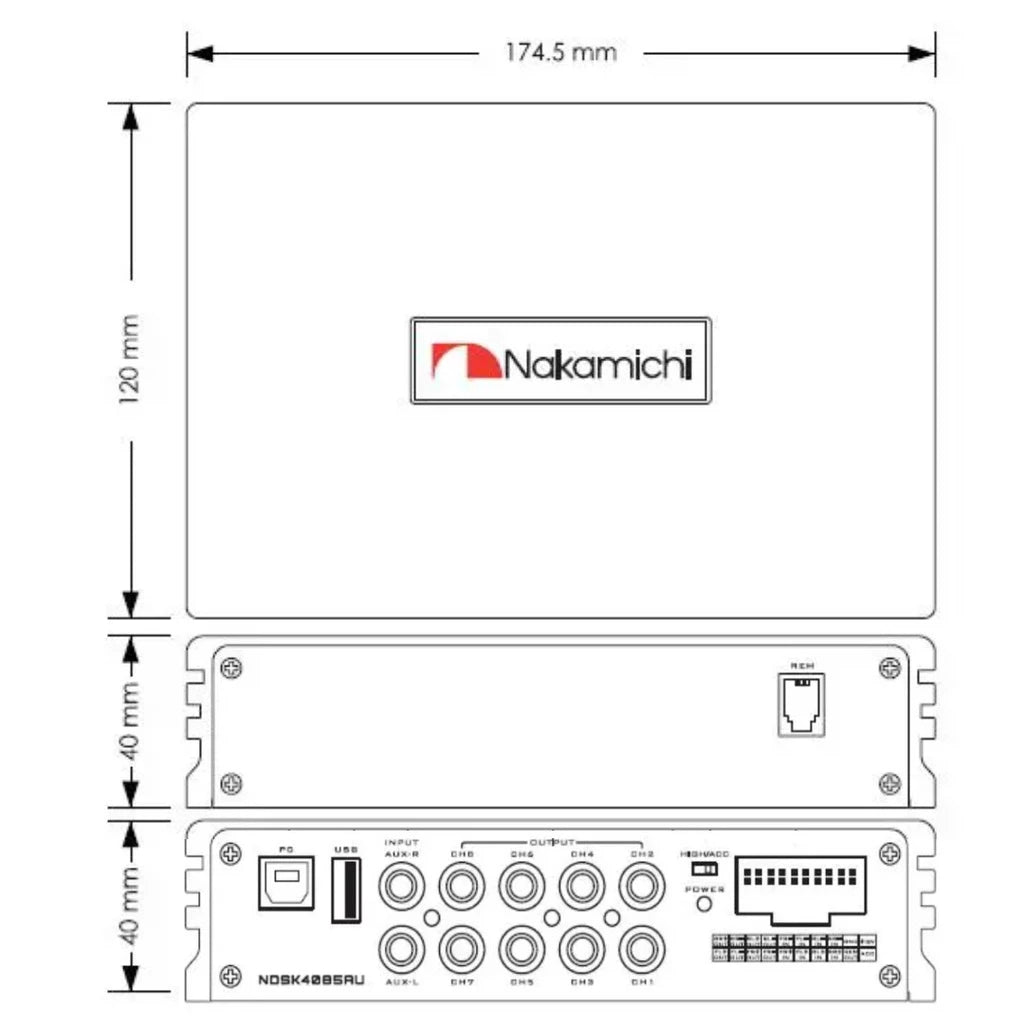

Box Dimension(L×H×W): 174.5×120×40mm

TECHNICAL SHEET

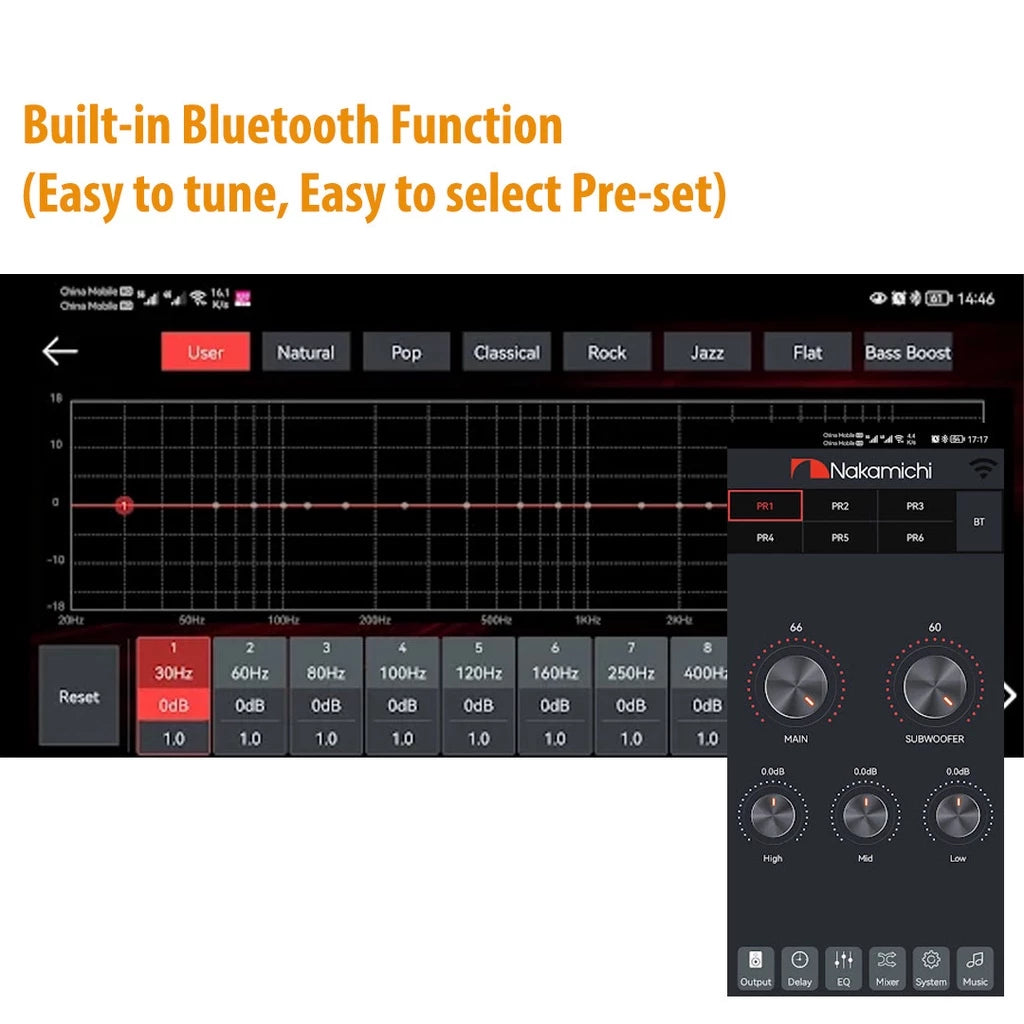

Input Signal Type: 4-Channel high level, supports internal Bluetooth and USB music playback
Output Type: 8-Channels low level, 4-Channels 80W power
Output Gain Gain range: Mute,-59dB~6dB
Output Signal EQ: 31-band EQ for every channel,
1.Frequency Range:20Hz~20KHz,1Hz Accuracy
2.Q value(Slope):0.404~28.85
3.Gain:-20.0dB~+20.0dB,0.1dB Accuracy
Output Signal Crossover Equipped with high and low pass filters.
1.Professional filter type: Butter-W, Bessel, Link-Rill
2.Filtering Crossover Point: 20Hz~20kHz, Resolution 1Hz
3.Filter Slope setup:6dB/Oct ~ 48dB/Oct
Output Phase and Time Alignment Adjust phase and time alignment for every output channel :
In Phase or Out Phase(0°-180°);
Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692 cm,0 to 273 inch.
Presets Save 6 presets into the device
