PERFECT 10 MEGA SALES | ETON 3 WAY BUNDLE FREE BLAUPUNKT 8 CHANNEL DSP & SOUND DEADENING WORTH RM2376

ETON Front and Rear Bundle Package FREE Blaupunkt 8 Channel DSP

**please check description for vehicle compatibility or pm us directly!!**
PRICE NOT INCLUDE INSTALLATION

1)FREE Speaker PNP socket and Speaker Spacer

*Honda - all models with 6/6.5" speakers *except latest generation civic / crv (2024 and above)

*Toyota - all models with 6/6.5inch speaker and Alza new gen (dash speaker 4pin socket not included)

please pm for corolla and vios models

*Perodua/proton - all models except myvi gen 1/2 , wira/satria/iswara old

Selected mitsubishi and subaru compatible.

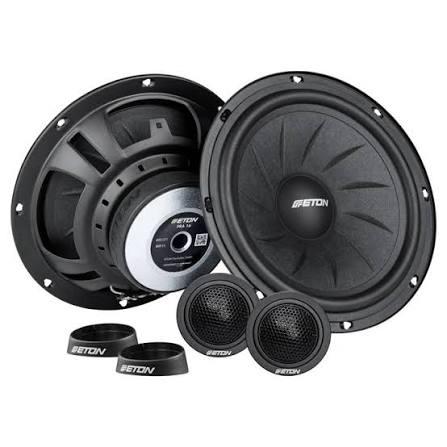

ETON PRA 16

Type: 2‑Way Component Speaker System

Woofer: 165 mm (6.5″) rib‑reinforced paper/fibreglass cone

Tweeter: 25 mm (1″) aluminum dome with fabric surround

Power: 70 W RMS / 100 W peak

Sensitivity: 92.3 dB (2.83 V/1 m)

Impedance: 3 Ω

Frequency Response: Typical mid‑bass and tweeter integration (≈56 Hz – 20 kHz)

Outer Diameter: 165 mm

Cut‑Out Diameter: ~142 mm

Mounting Depth: ~66 mm

Weight: ~0.74 kg per speaker

Thiele‑Small Parameters: fr = 56 Hz, Qts = 0.69, Cms = 0.56 mm/N, Qms = 3.76, BL = 4.0 Tm (ideal for sealed or vented enclosures)

Applications: Front or rear installation in cars, OEM upgrades or as efficient aftermarket fill speakers



ETON PRA 80

Nominal/music power handling: 20 W RMS/30 W

Impedance: 4 Ohm

Sound pressure: 86 dB

Outer diameter: 95 mm

Installation diameter: 74 mm

Installation depth: 39.4 mm

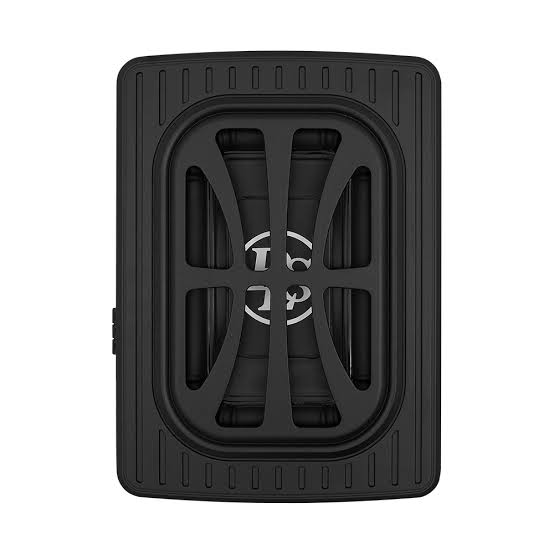

DLS ACW 68

Type: Active under‑seat subwoofer, 6×8″ (150 × 200 mm)

Power Handling: 120 W RMS / 250 W Peak

Sensitivity (S/N): > 90 dB

Impedance/Input Sensitivity: High‑level: 0.9 V; Low‑level: 300 mV

Frequency Response: 30 Hz – 150 Hz

Bass Optimize (Boost): −6 dB / +6 dB

Low‑Pass Filter: 50 Hz – 150 Hz (adjustable)

Subsonic Filter: 30 Hz

Fuse Rating: 15 A

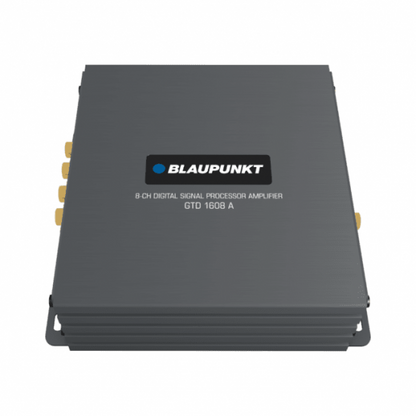

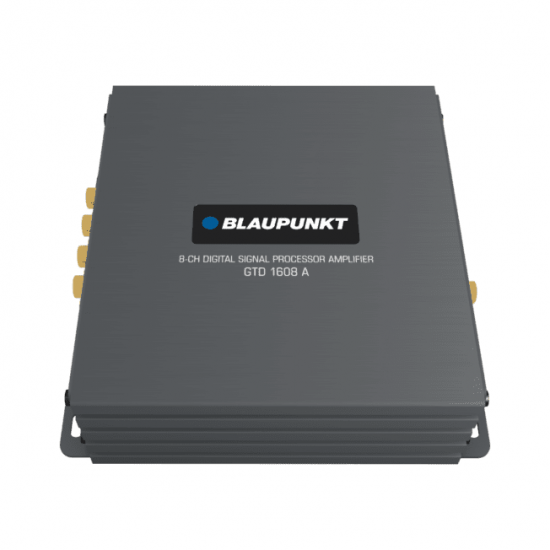

Blaupunkt GTD 1608 A

DSP RMS Power: 35W x 6 (4Ω), 50W x 6 (2Ω)

DSP Resolution: 24 Bit

DSP Output Power RMS @ 4 Ohms (<1% THD +N): 35W x 6

DSP Output Power RMS @ 2 Ohms (<1% THD +N): 50W x 6

Distortion (THD): <0.005%

Damping Factor: >70

Operating Voltage: 10-14.4V

Sampling Rate: 48KHz

Signal Converter A/D: AKM7735

Signal Converter D/A: Cirrus Logic CS4344



Input

RCA / Cinch Sensitivity: 300mV

High Level Input Sensitivity: 3.5V

Impedance High Level: 240 Ohms

S/N Ratio Analog-in: 100dB

2 x RCA / Aux-in

6 High Level Speaker Input

1 x Remote-in

1 x USB



Output

8 x RCA / Cinch

6 High Level Speaker Output

1 x Remote-out

Voltage RCA / Cinch: 4V RMS
