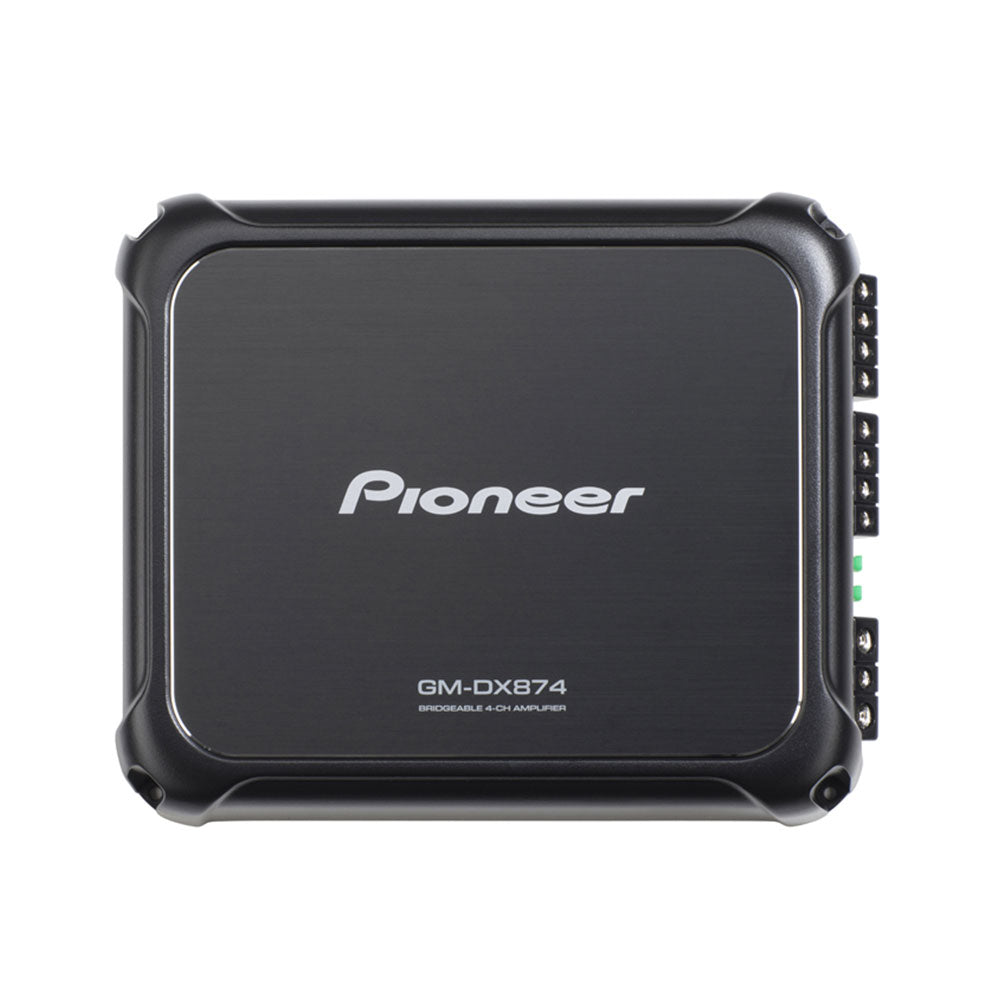

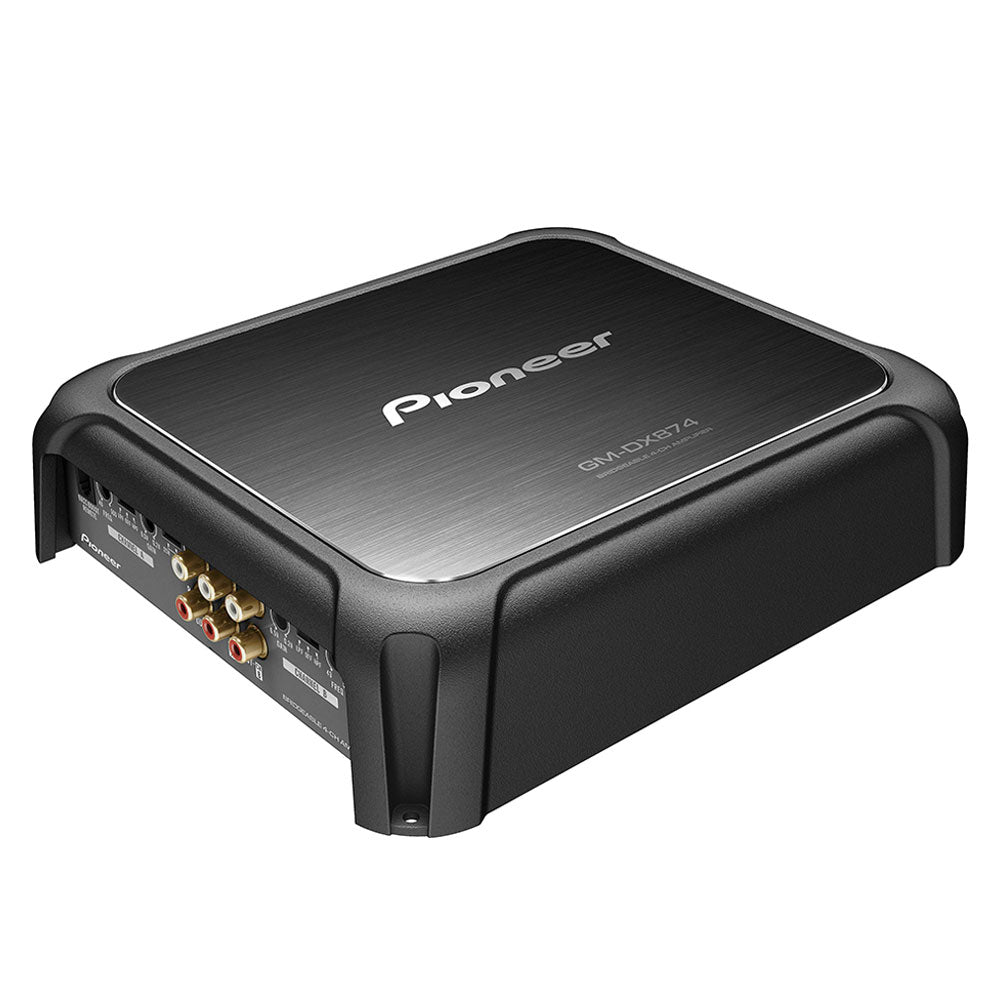

Pioneer GM-DX874 Hi-Res 4-Channel Class-FD 100W RMS x 4 Car Audio Amplifier
Pioneer 4-Channel, GM-DX874 is compatible with high-resolution audio that offers sound reproduction with extraordinarily realistic atmosphere. With superior-quality audio parts and fine acoustic tuning yield outstanding sound quality. A high-capacity audio power source capacitor ensures stable power supply even at high power output.
Power
- Continuous Power (RMS) Output @ 1Ω: 125W RMS x 4
- Continuous Power (RMS) Output @ 2Ω: 150W RMS x 4
- Continuous Power (RMS) Output @ 4Ω: 100W RMS x 4
- Continuous Power (RMS) Output - Bridged @ 4Ω: 300W RMS x 2
Audio Adjustments
- Low-Pass Crossover Frequency: 40 Hz
- Low-Pass Slope (dB/octave): -12dB
- High-Pass Crossover Frequency: 500 Hz
- Bass Boost Frequency: 50 Hz
- Bass Boost Level: 0 dB to 18 dB
Audio Specifications
- Frequency Response: 10 Hz - 50 kHz
- Total Harmonic Distortion (THD): < 0.5% (100 Hz)
- Signal-to-Noise (SN) Ratio: > 95dB
General
- RCA Inputs: 4-CH (Gold Plated)
- Amplifier Class: Class-FD
- Hi-Res Certified: Yes
- Bridgeable: Yes
- Speaker Level Input: Yes
- Fuse Rating: 30A x 2
- Bass Boost Remote: Yes
- Automatic Signal Sensing and Turn-On: Yes
- Hi-Volt Input Level Control: 200 mV to 6.5 V
- Terminal Type: Block
- Load Impedance Allowance (Ohms): 1 to 8
- Protection Control System: Yes
- Dimensions: 252mm (W) x 60mm (H) x 215mm (D)
Content:
- 1 x Car Amplifier
- Manual
- Fitting as per Manufacturer
