Pioneer TS-WX010A Compact Active Subwoofer 160w Max Power

Compact Powered Subwoofer Designed for Today’s Automotive Landscape

Compact in size with exceptionally low power consumption, yet able to produce powerful and impactful bass, the TS-WX010A compact subwoofer is a direct result of Pioneer’s over 80 years’ experience designing and manufacturing loudspeakers, combined with an understanding of the evolving automotive landscape.

Small Footprint with High Efficiency

Due to its small size and high electrical efficiency, the TS-WX010A compact subwoofer is a perfect upgrade for many of today’s vehicles, especially EV (electric vehicle) and gasoline/electric hybrid vehicles where low weight, small size and low power consumption are a priority.

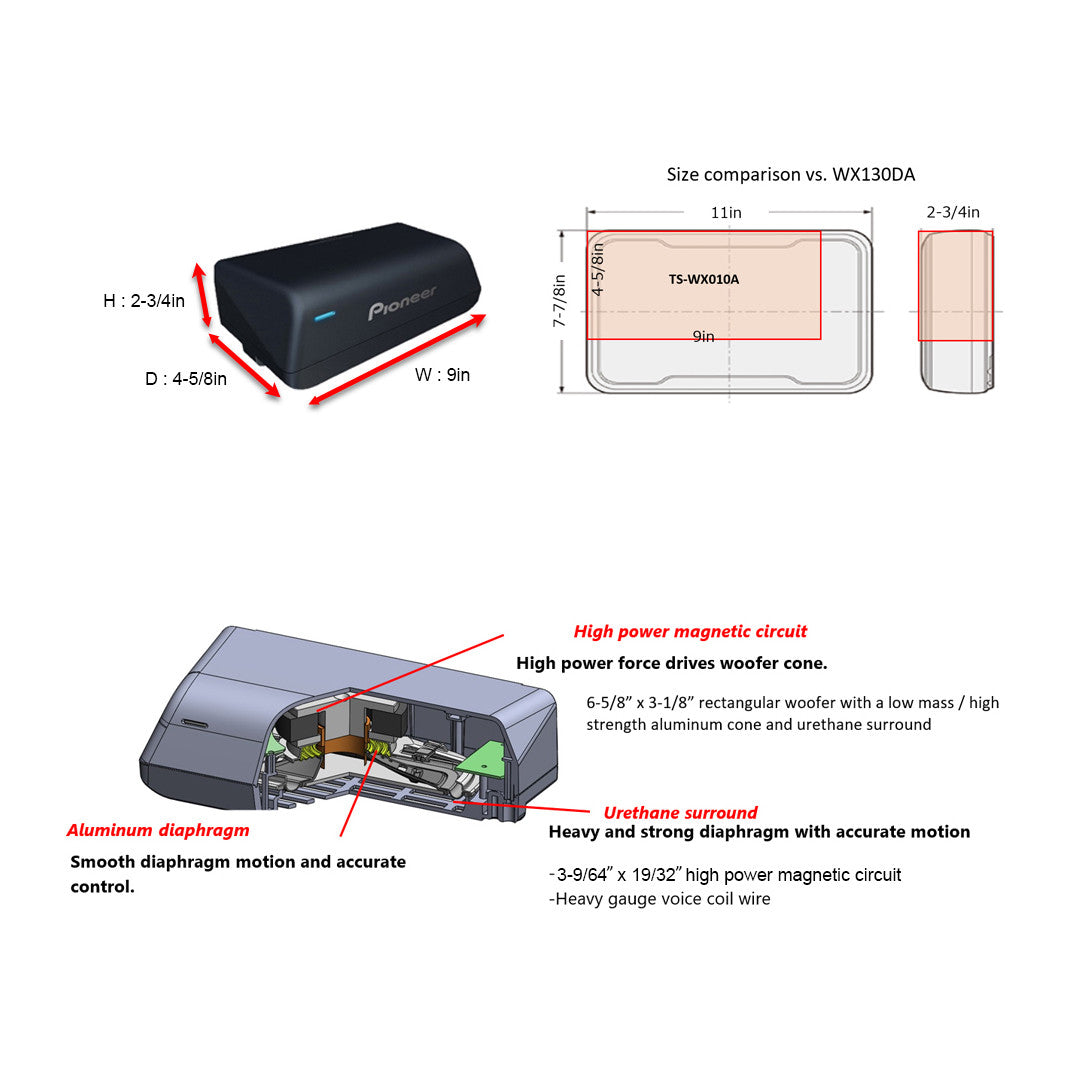

Measuring only 9-inches wide, 4-5/8” deep, and 2-3/4” high, and weighing just under 3-1/2 pounds, the TS-WX010A is the smallest and lightest powered subwoofer in the Pioneer lineup. In comparison, the TS-WX010A is 48% smaller than Pioneer’s next smallest powered subwoofer, the TS-WX130DA.


Small Subwoofer with High Power

The TS-WX010A features a 6-5/8” by 3-1/8” rectangular woofer with a low mass / high strength aluminum cone, urethane surround and high-power magnetic circuit housed in a down firing sealed enclosure made of high-grade resin. This compact subwoofer is powered by a built-in Class-D amplifier rated at 50 watts RMS output (160 watts maximum).

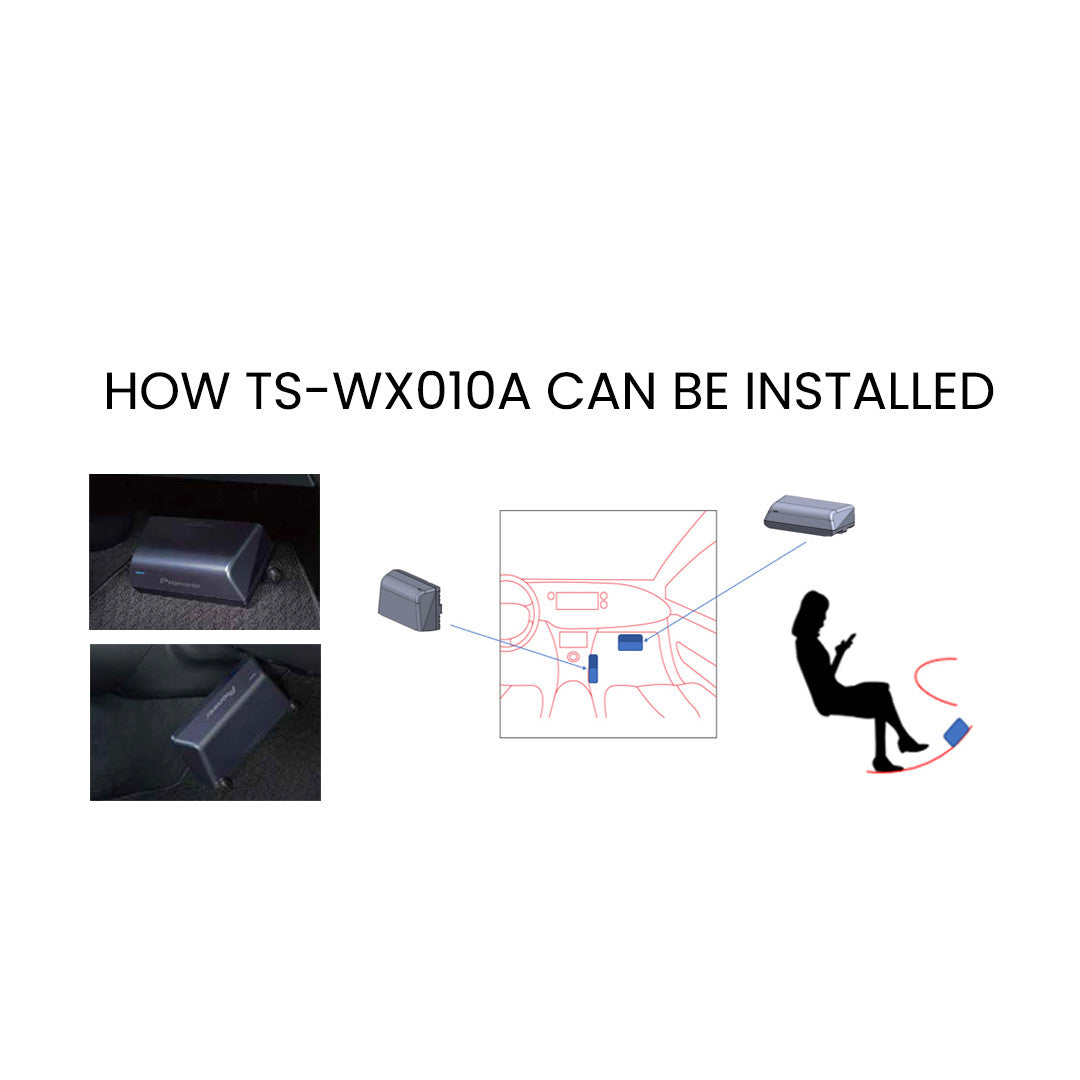

Vertical or Horizontal Installation

The compact dimensions of the TS-WX010A allows installation inside the passenger compartment of most vehicles, providing the potential to integrate acoustically with the vehicle’s full range speakers and seamlessly enhance both output and overall sound quality. With installation options that include vertical or horizontal mounting, the TS-WX010A is optimized for installation in the passenger side footwell, where its small size affords the ability to be attached near the underside of the dashboard or the center console.

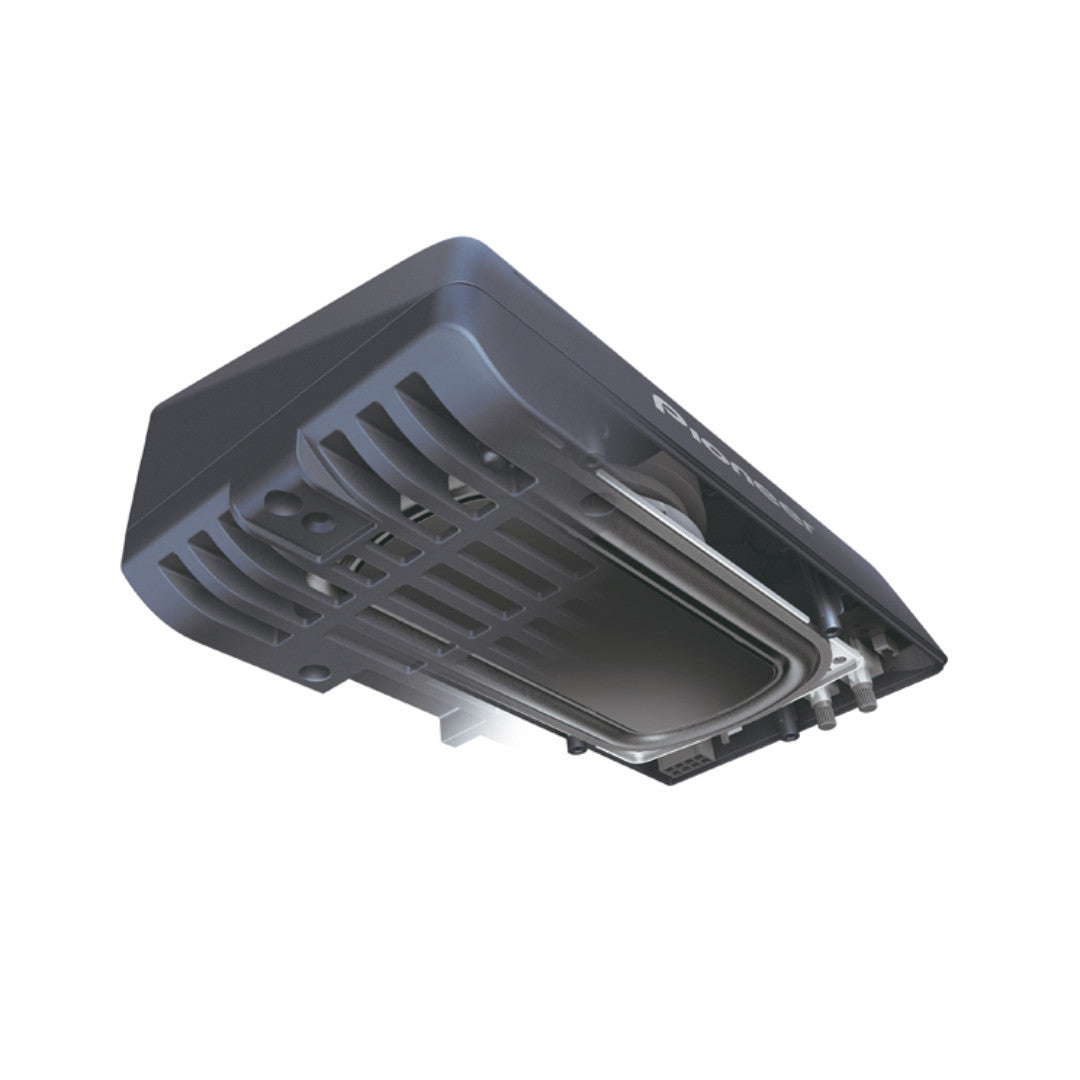

Down firing system

For foot space and effective reproduction of deep, powerful bass.

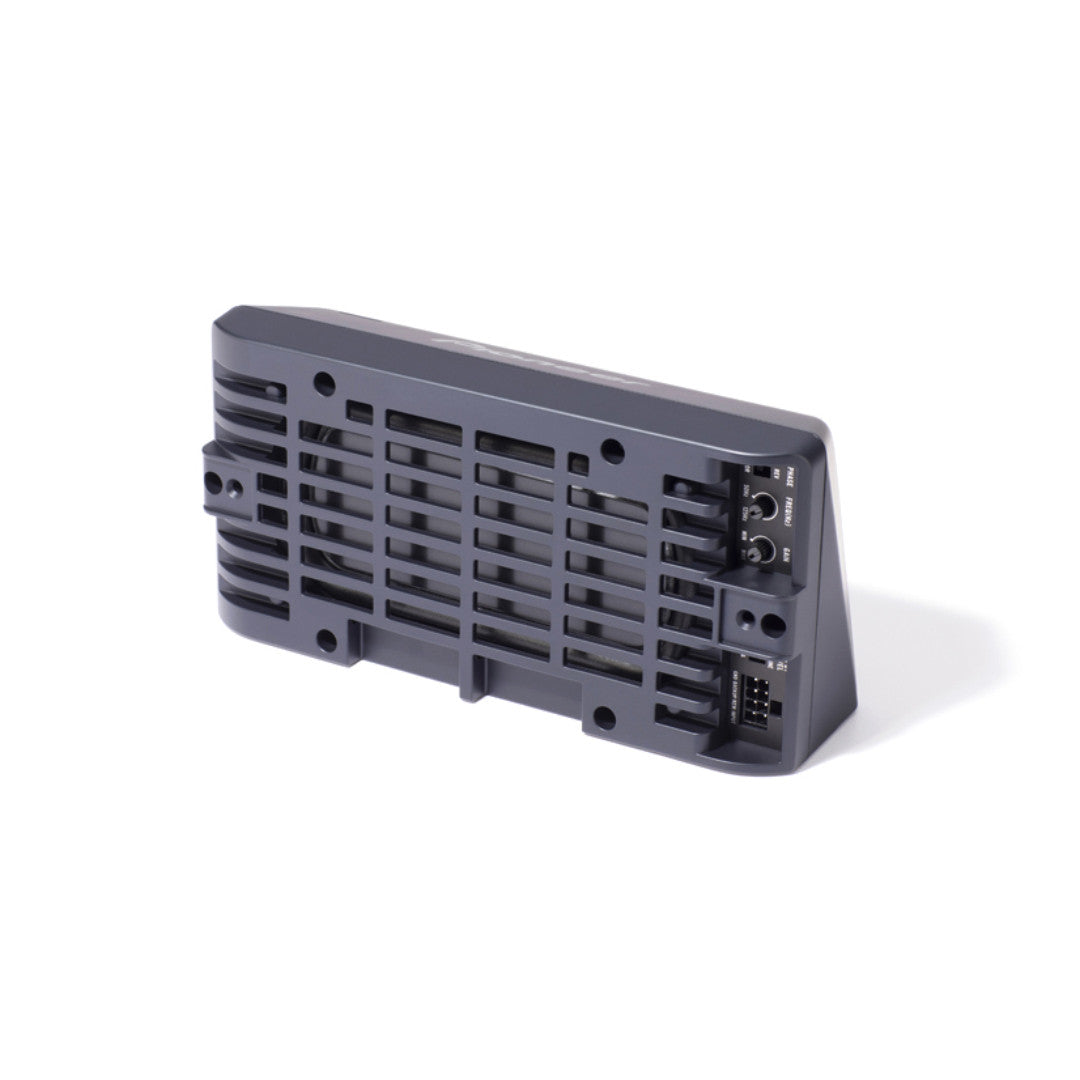

The TS-WX010A features a full grille and down firing structure for cone protection to be installed inside your vehicle interior. This combines deep, powerful bass while seamlessly integrating physically, electrically and most importantly acoustically into the vehicle.

Bass Sound Creator

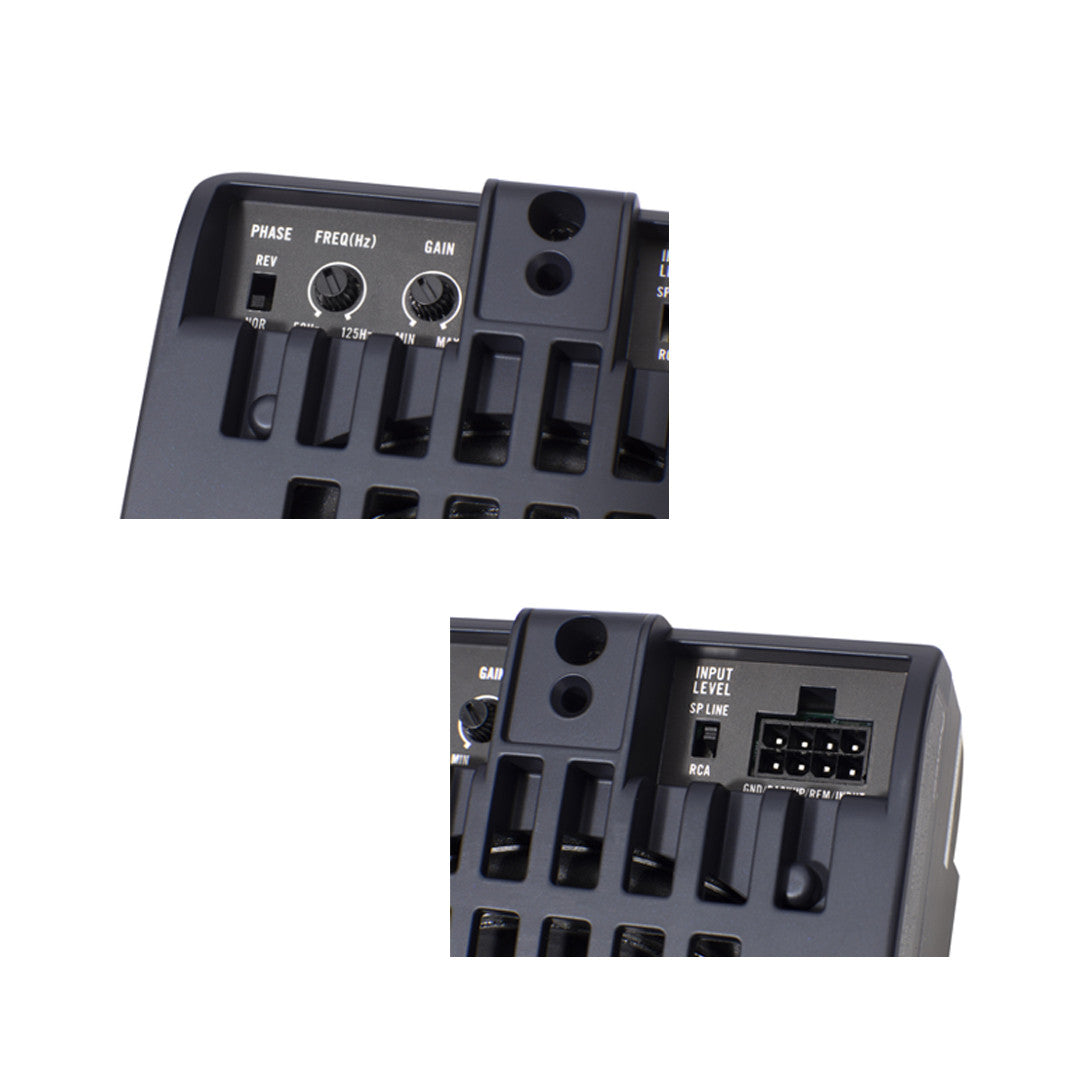

Designed to be small in size with reduced power consumption while still producing impactful bass output for enhanced sound quality, the TS-WX010A accepts both RCA type line level and speaker level inputs for connection to aftermarket audio systems or integration into factory installed systems, making installation a simple process.

Specification

• System Type: Active Subwoofer

• Sensitivity: (1W/1m)98 dB (In car, installed at the foot space)

• Frequency Range: 20 Hz to 200 Hz

• CTA-2031 Compliant: Yes

• Continuous Power handling (RMS) - Watts: 50 Watts

• Maximum Peak Power Handling - Watts: 160 Watts

• Built In Amp: Yes

• Amp Max Power Output: 160 Watts

• Amp RMS Output: 50 Watts

• Input Level (@ Gain Max) RCA:  70m V + 70m V / 22k Ohm

• Input Level (@ Gain Max) Speaker Line:  1.4 V + 1.4 V / 5k Ohm

• Power Source: DC 14.4V

• Amp Max Current Consumption: 4.2 A

• Amp Grounding: Negative

Build

• Shape: Oval

• Size: 6-5/8" x 3-1/8"

• Cone Material: Cellulose fiber

• Drive Cone Material: Alminium

• Surround Material: Urethane

• Surround Type: Rolled

• Basket Material: Stamped Metal

• Magnet Material: Ferrite

• Magnet Weight: 9.5 oz

• Voice Coil Type: Single Voice

• Voice Coil Bobbin: Glass imide

• Voice Coil wire: Copper

• Damper: Aramid

What’s in the Box

• TS-WX010A Compact Powered Subwoofer
• 2 Mounting Brackets
• 2 Floor Mounting Brackets
• 2 Mounting Nuts
• 2 (5 x14mm) screws
• 2 (M5 x 25mm)screws
• 1 Wire assembly harness
• 1 10A ATO fuse in holder (installed on power wire)
• 4 Cushion Tape
• Installation Manual
• Warranty Sheet
