STANDARTPLAST STP BiplastWave / Biplast 10-25 mm / Biplast Profi Car Sound-Absorbing Sheets - 1 Sheet

STP BIPLAST is used as sound-insulating, vibration-damping, heat-insulating, damping, and anti-squeak material in various vehicles.

To protect the mounting layer, anti-adhesive paper or film is used. The surface, opposite to the mounting layer, is taken as a facing surface.

The material remains elastic at the temperature range from -40°C to 100°C, resistant to temperature up to 150°C.

The material is elastic polyurethane foam, mainly, open-cell, with extended recovery time upon the compression cycle cessation.

*BIPLAST 10/15/25 SHARED PROPERTIES*

Sheet Size: 375 × 500 mm

Bond Strength: ≥ 2 N/cm

Adhesive Film Bond Strength: 0.01 – 0.20 N/cm

Tensile Stress at Break: ≥ 70 kPa

Flammability Burn Rate: ≤ 100 mm/min

Sound Absorption Coefficient: ≥ 0.1

Operating Temperature: –40 °C to +100 °C (short-term up to +150 °C)

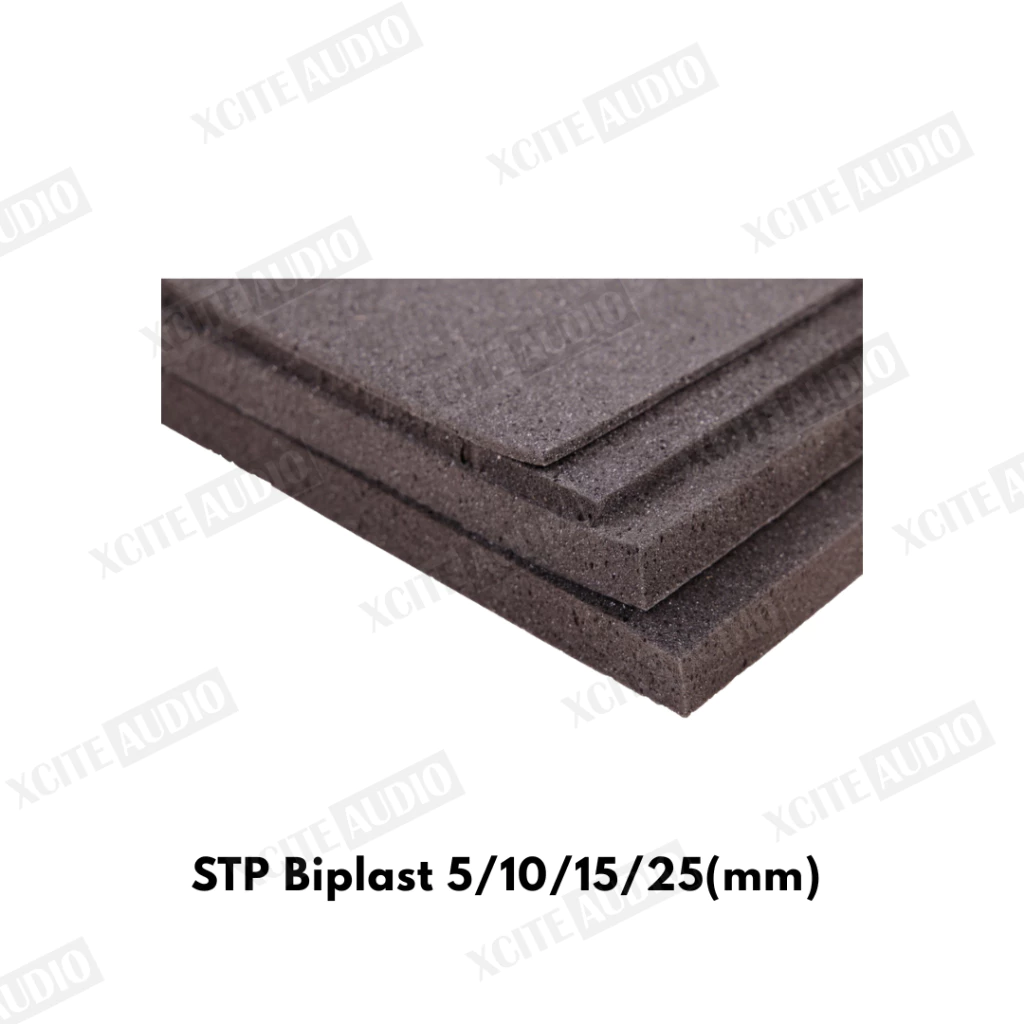

1. STP Biplast 10 mm — Specifications

Material: Open-cell polyurethane foam

Type: Self-adhesive sound-absorbing and sealing foam

Thickness: 10 mm

Recommended Use: Doors, roof, trunk, interior plastic panels

2. STP Biplast 15 mm — Specifications

Material: Open-cell polyurethane foam

Type: Self-adhesive sound-absorbing material

Thickness: 15 mm

Recommended Use: Doors, cabin area, trunk, general sound insulation

3. STP Biplast 25 mm — Specifications

Material: Open-cell polyurethane foam

Type: High-thickness sound-absorbing foam

Thickness: 25 mm

Recommended Use: Maximum sound absorption for roof, trunk, cabin, panels

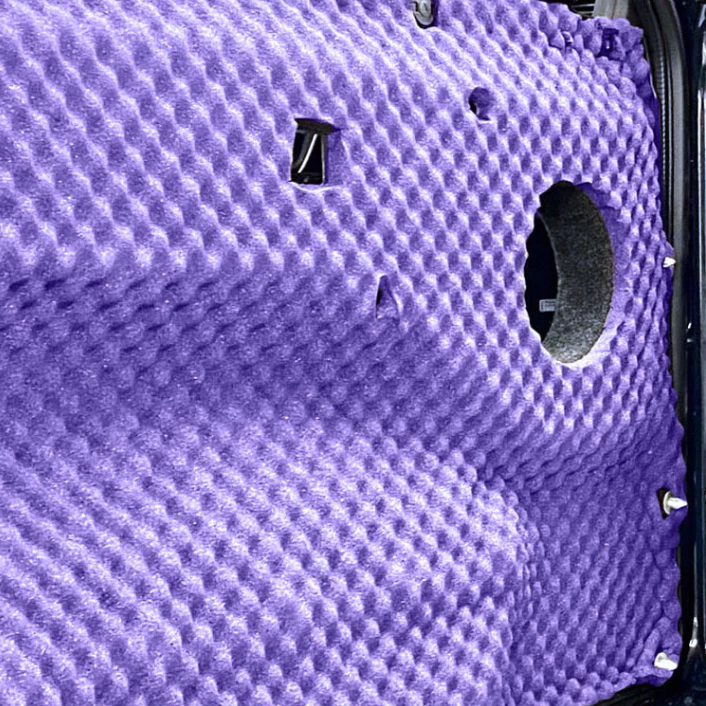

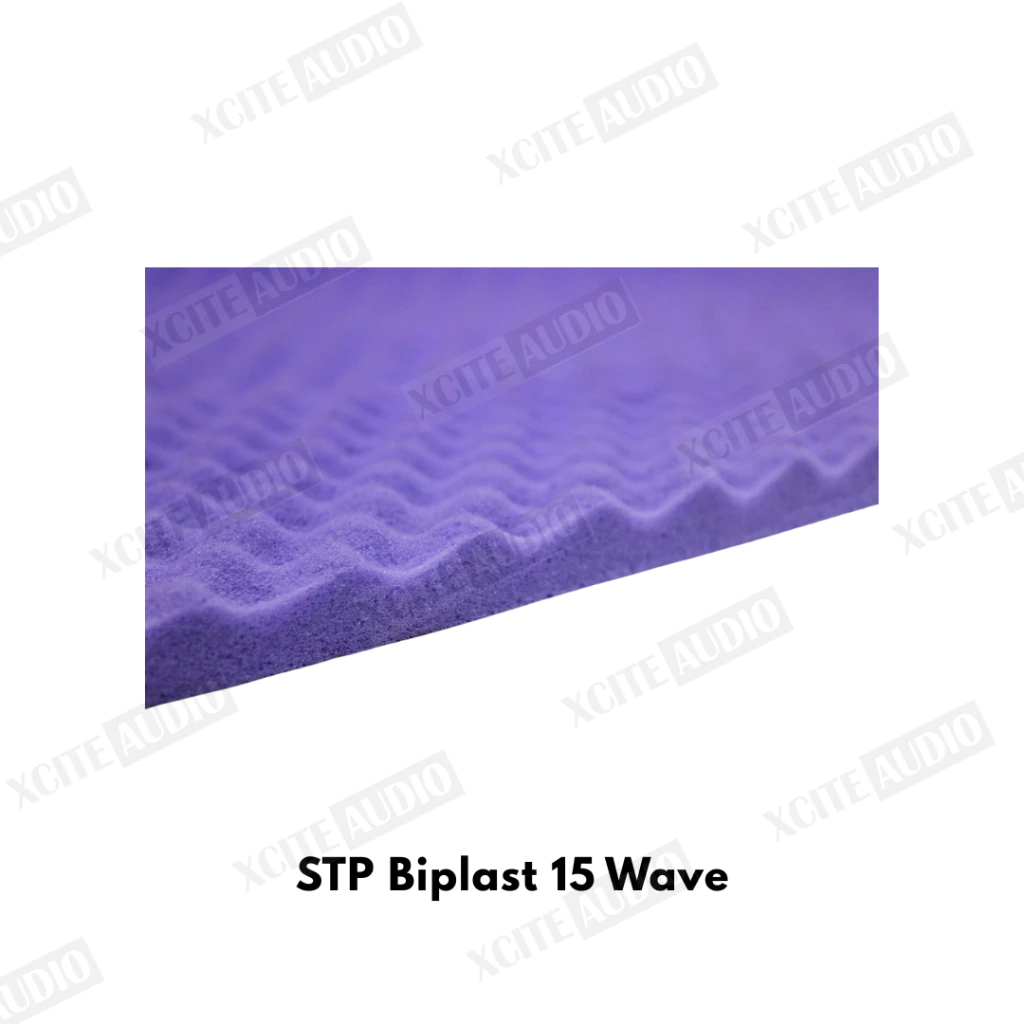

4. STP BiplastWave 15 mm — Specifications

Material: Visco-elastic polyurethane foam

Structure: Open-cell with “wave” surface pattern

Type: Self-adhesive sound absorber + diffuser

Thickness: 15 mm

Sheet Size: 500 × 375 mm

Sheet Weight: ~1.1 kg

Mass per m²: ~0.5 kg/m²

Adhesive Layer: Yes (self-adhesive)

Operating Temperature: –40 °C to +100 °C (short-term up to +150 °C)

Recommended Use: Second layer over vibro dampers, interior panels, diffusing and absorbing mid-high frequencies

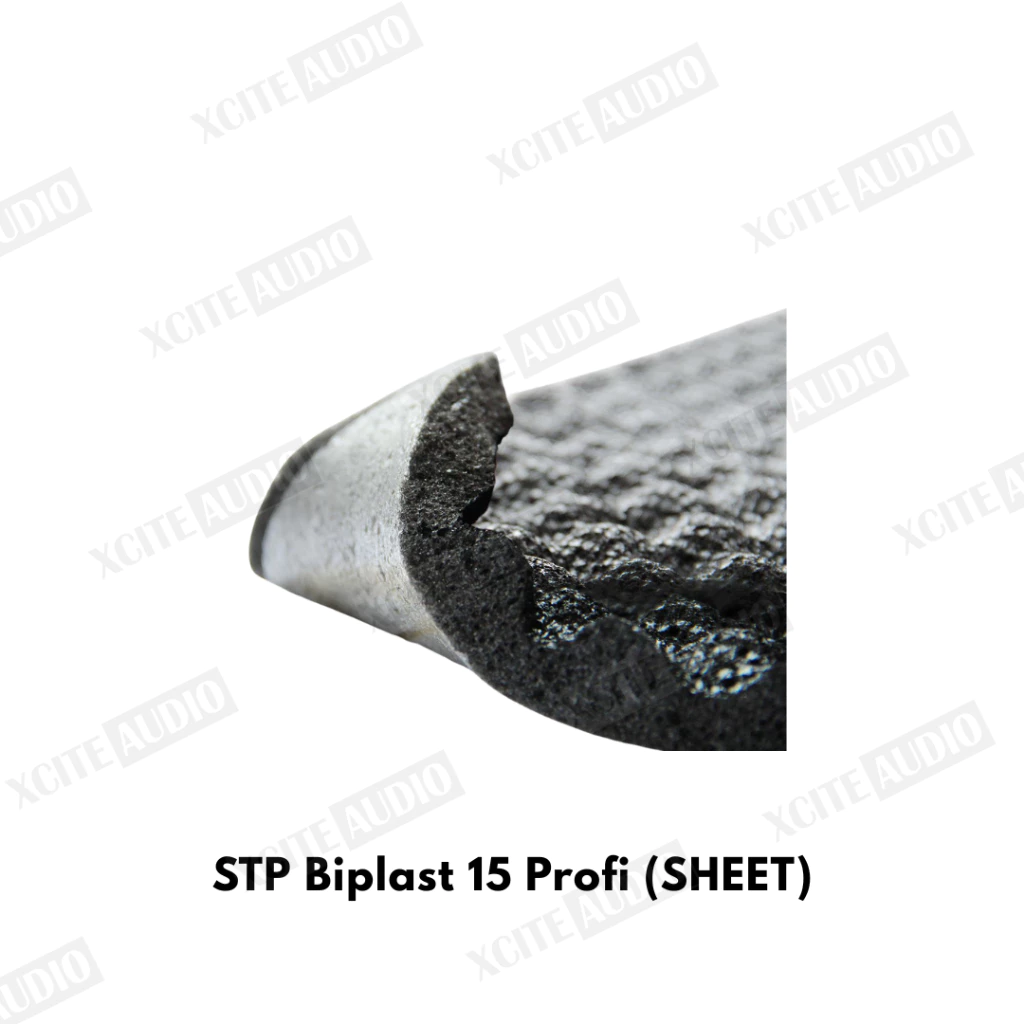

5. STP Biplast Profi 15 mm — Specifications

Material: Modified open-cell polyurethane foam

Structure: Compressible, shape-recovering

Surface: Relief pattern with sound-transparent PU moisture-protective film

Thickness: 15 mm

Mass: ~0.7 kg/m²

Adhesive Layer: Yes

Recommended Use: Professional-grade installation for doors, floor, trunk, cabin

Properties: Enhanced moisture resistance, improved durability and airflow absorption
