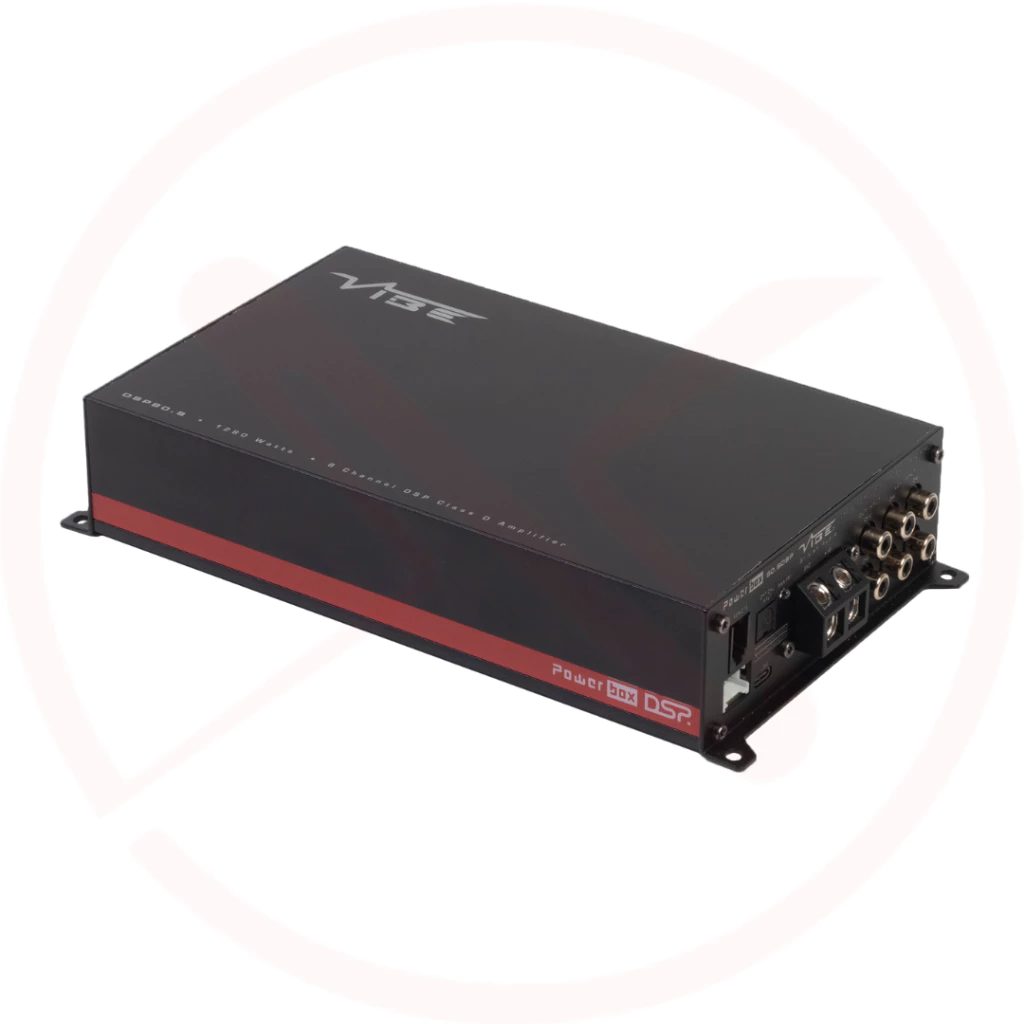

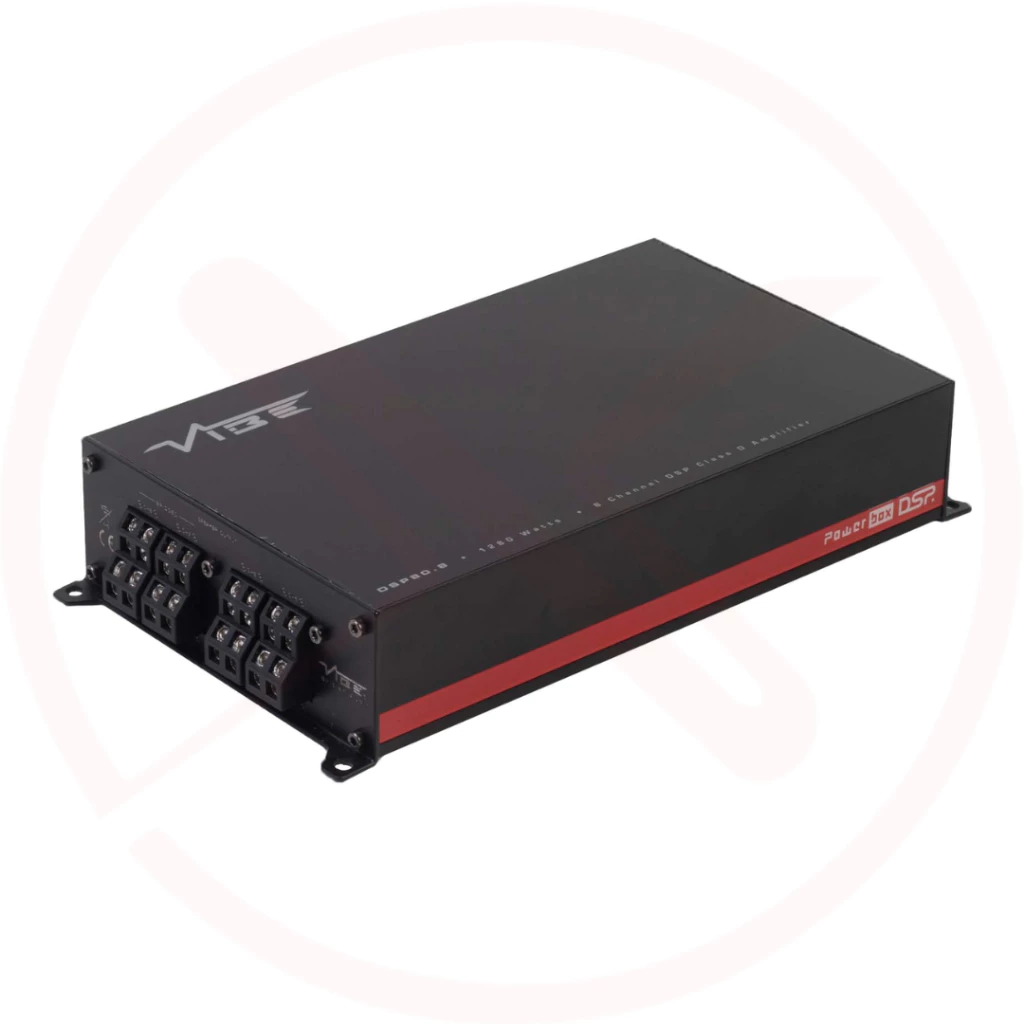

VIBE British Audio POWERBOX80.8-10DSP-V3 | 8-Channel 1600W Class D Amplifier with Integrated 10-Channel DSP

BRITISH ENGINEERING & UNMATCHED AUDIO CONTROL

Upgrade your car’s sound system with the VIBE POWERBOX80.8-10DSP-V3. This isn't just an amplifier; it’s a complete audio command center. Featuring an ultra-compact Class D design, it delivers high-power output while providing a built-in 10-channel Digital Signal Processor (DSP) for professional-grade tuning.

VERSATILE SYSTEM CONFIGURATIONS:

- Active 3-Way Front + Rear: Run a full 3-way active front stage (Tweeter, Mid-range, Woofer) plus rear component speakers fully active.

- Dual 2-Way Active + Subwoofer: Perfect for running two sets of 2-way component speakers in a fully active setup with a dedicated subwoofer.

- High-Power Mid-Bass: Suitable to drive high-power rated mid-bass drivers with maximum impact without needing an additional amplifier.

- Continental & Euro Car Specialist: Ideal for BMW, Mercedes-Benz, Audi, and VW models that use multiple speaker channels from the factory.

- OEM Subwoofer Upgrade: Powerful enough to drive aftermarket subwoofers in factory locations for a stealthy, high-impact bass upgrade.

KEY FEATURES:

Massive 8-Channel Power: 8 x 80W RMS @ 4 (up to 1600W Max).

Integrated 10-Channel DSP: 8 amplified channels + 2 additional pre-outs for an extra external amplifier.

Smartphone App Tuning: Fully customize via Bluetooth using the VIBE DSP app (iOS & Android). Adjust EQ, Time Alignment, and Crossovers in real-time.

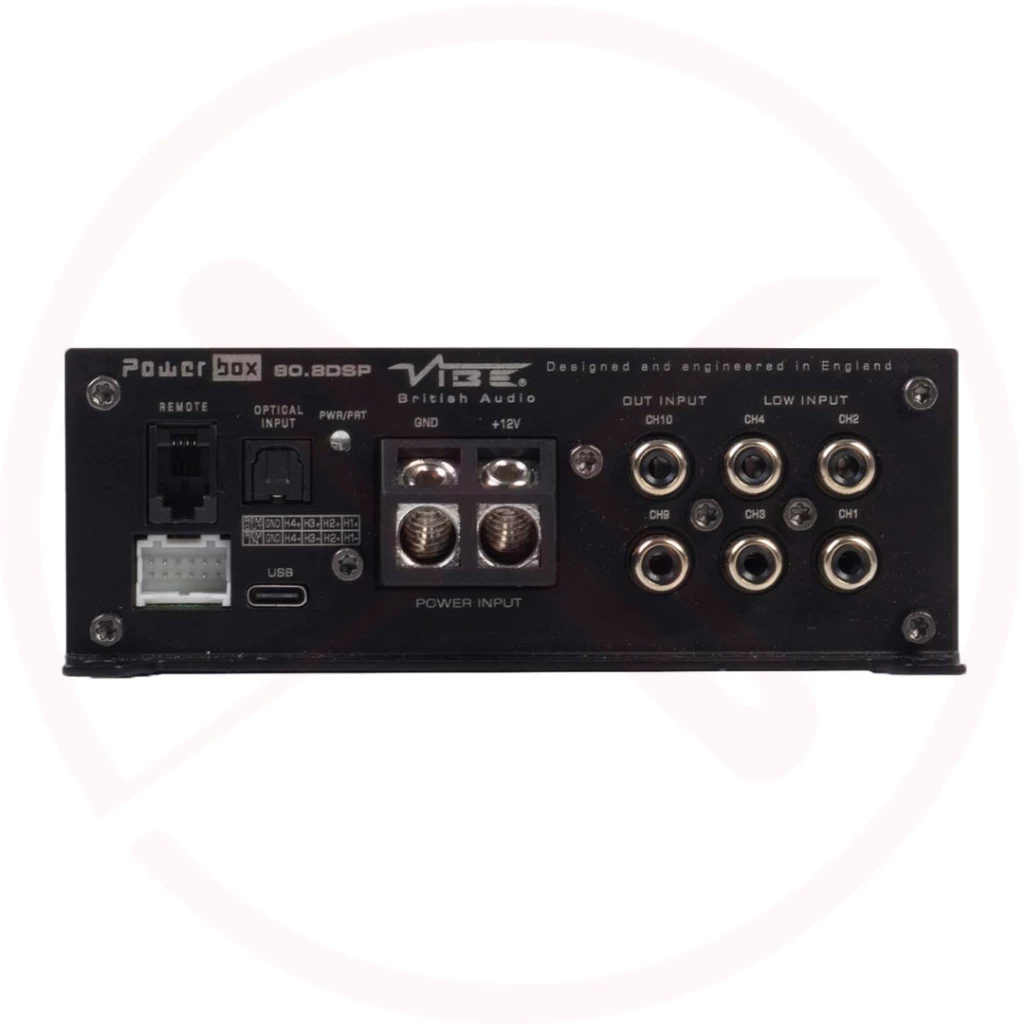

Optical TOSLINK Input: Connect high-resolution digital sources for the purest audio signal possible.

Autosense Technology: Automatically turns the amp on/off when a signal is detected—no remote wire needed for most factory upgrades.

INSTALLATION & WIRING REQUIREMENTS:

Power & Ground Cable: Minimum 8 Gauge (8AWG); 4 Gauge (4AWG) is highly recommended.

Fuse Rating: 80A (Internal and inline battery fuse).

Grounding: Must be connected to a clean, bare-metal chassis point with the shortest cable possible.

Mounting: Do not mount upside down to ensure proper heat dissipation.

TECHNICAL SPECIFICATIONS:

RMS Power @ 4 : 8 x 80 Watts

RMS Power @ 2 : 8 x 100 Watts

Bridged Power @ 4 : 6 x 80W + 1 x 200W (Note: Only Channels 7 & 8 are bridgeable)

Dimensions (H x W x D): 40mm x 220mm x 131mm

Operating Voltage: 9.6V – 18V

EQ : 31-Band Parametric with variable Q-factor

WHY CHOOSE VIBE?

Designed and engineered in England. Its compact footprint makes it perfect for hidden installations under seats or behind panels without sacrificing massive power.

WHAT’S IN THE BOX?

1 x POWERBOX80.8-10DSP-V3 Amplifier

Owner's Manual

High-level input wiring harness
