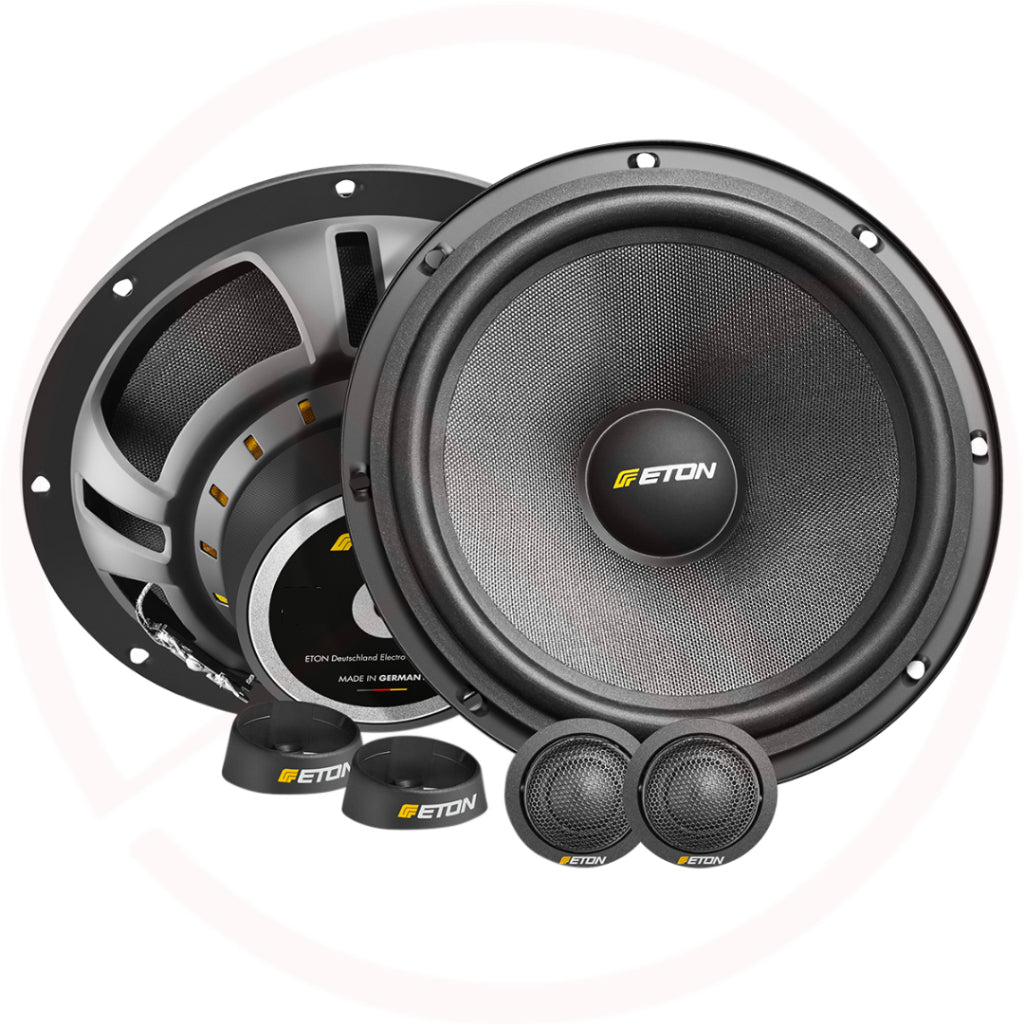

ETON PRW 16 - PRW Series 6.5inch 2-Way Component Car Speaker System

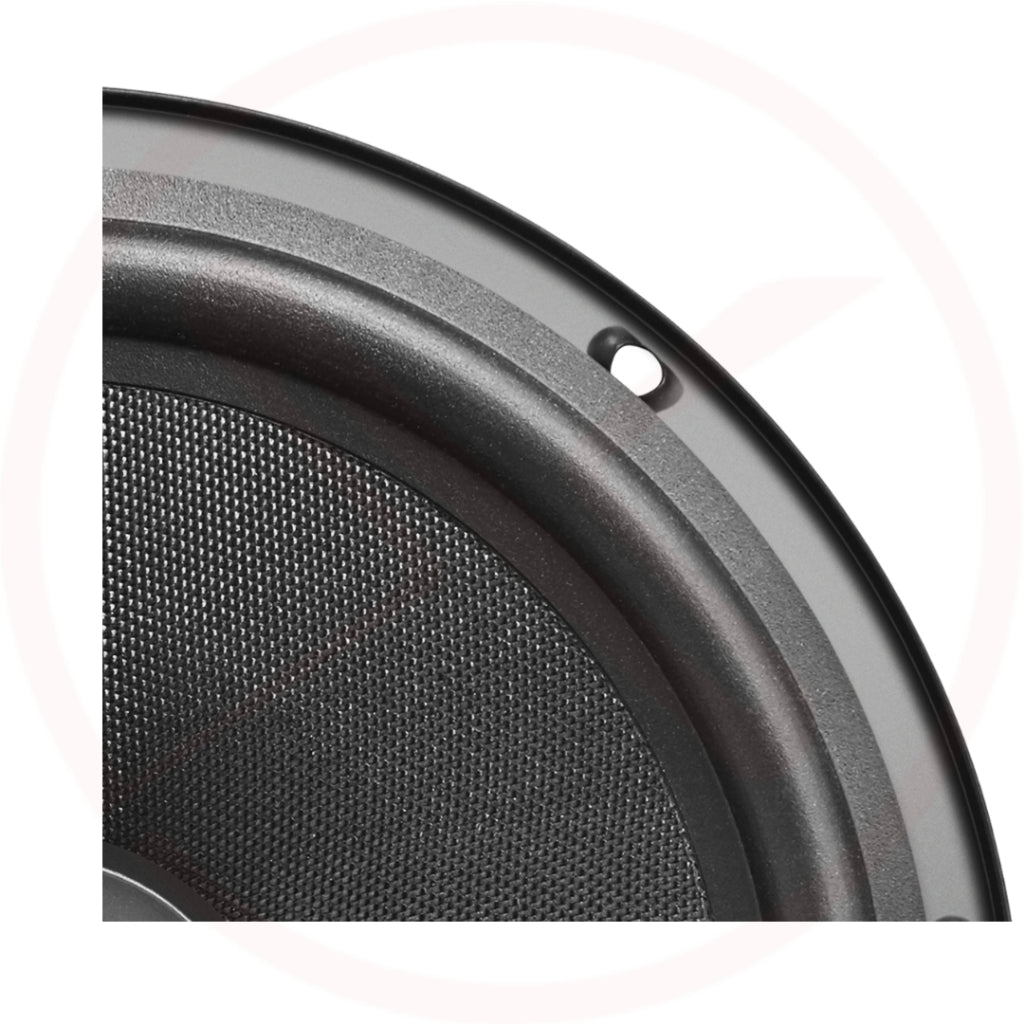

165 mm woofer-midrange with fiberglass-reinforced paper diaphragm, strong ferrite magnet and a flow-optimized, powder-coated metal basket with 19mm fabric tweeter provide dynamics, impulse fidelity and powerful bass paired with a high efficiency. Powder coated metal basket with strong ferrite magnet, 4 ohm impedance, 70 W RMS, 100 W music power handling, 92 dB characteristic sound pressure. Made in Germany.

Nominal Impedance (Zn): 4 Ω

DC Resistance (Re): 3.3 Ω

Voice Coil Inductance (Le): 0.38 mH

Force Factor (BL×l): 4.1 Tm

Mechanical Q (Qms): 4.48

Electrical Q (Qes): 0.83

Total Q (Qts): 0.70

Mechanical Resistance (Rms): 1.18 kg/s

Magnet Material: Ferrite

Total Moving Mass (Mmd): 12.6 g

Effective Piston Area (Sd): 137 cm²

Resonance Frequency (fr): 61 Hz

Suspension Compliance (Cms): 0.56 mm/N

Maximum Excursion (Xmax): ±9.0 mm

Equivalent Air Volume of Suspension (Vas): — dm³

Characteristic SPL (1W/1m): 92 dB

Rated Power: 70 / 100 W

Voice Coil Diameter: 14.8 / 25 mm
